Introduction to JY-T02 Full Spectrum Transmittance Detection Equipment

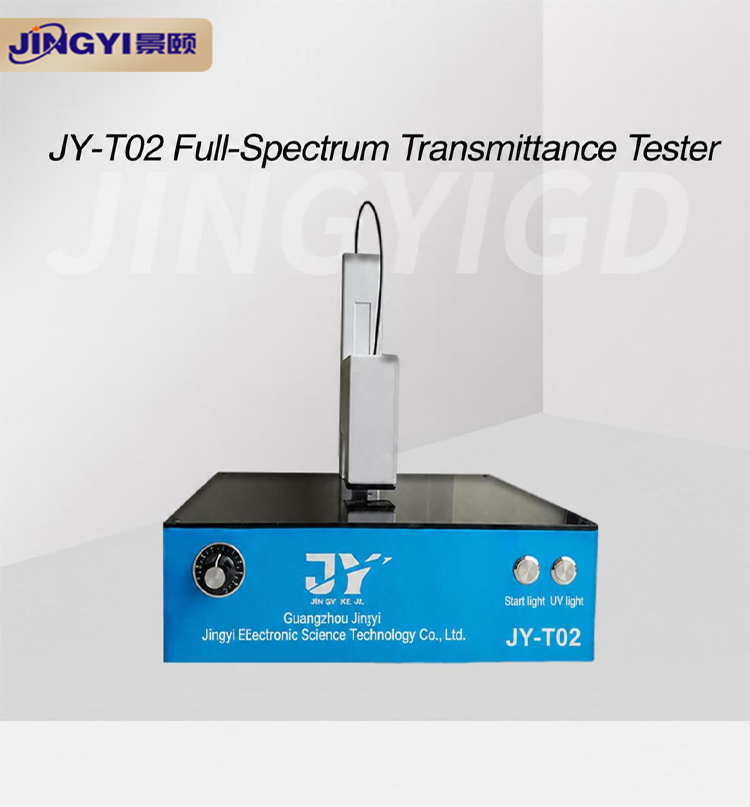

JY-T02 Full Spectrum Transmittance Detection Equipment

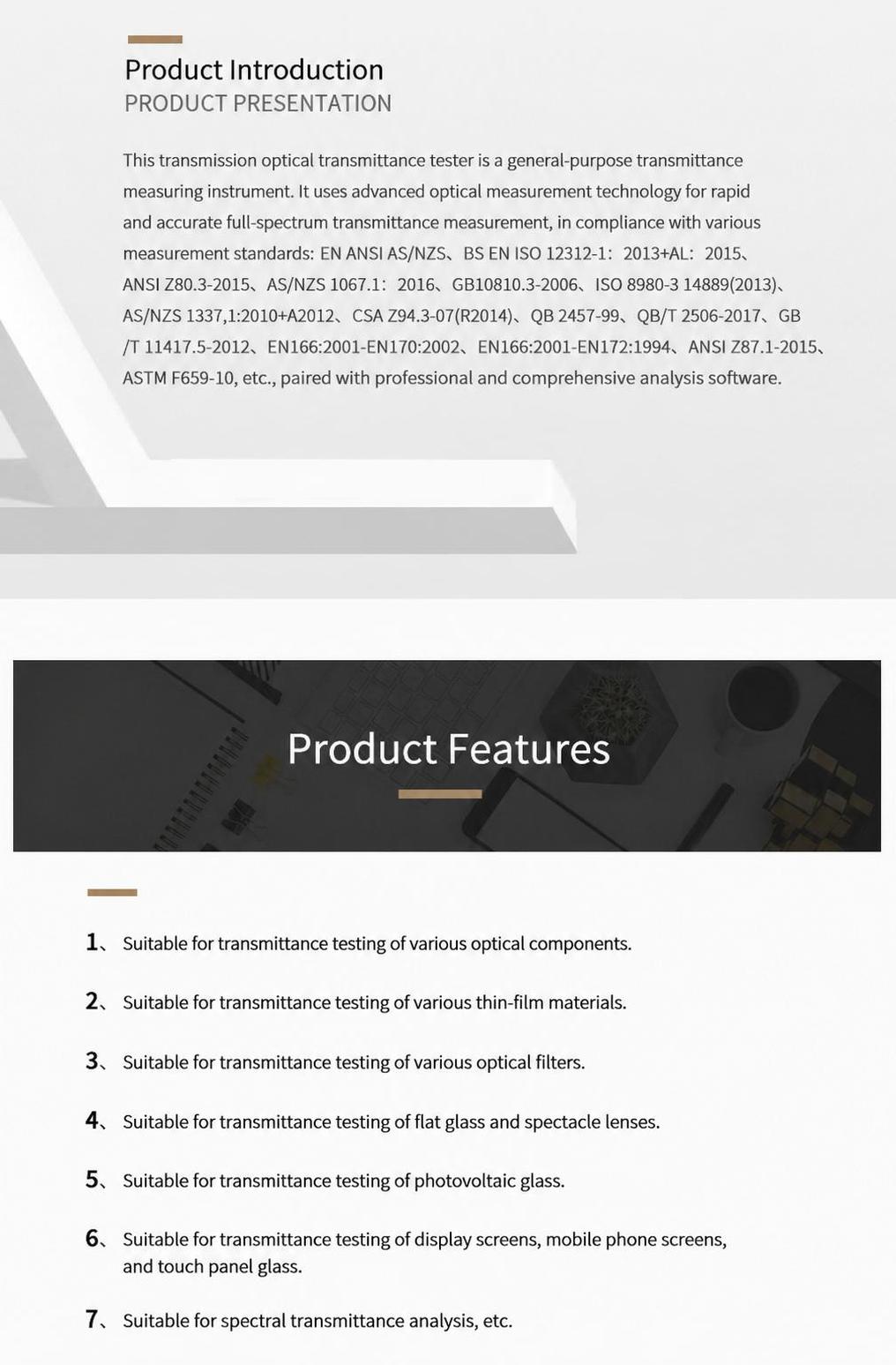

Product Introduction
This transmittance detector is a universal transmittance detector that uses advanced spectral measurement technology for rapid full spectrum transmittance measurement, meeting various measurement standards and equipped with professional and comprehensive analysis software.
Product Features
1. Suitable for detecting the transmittance of various optical components.
2. Suitable for detecting the transmittance of various thin films.
3. Suitable for detecting the transmittance of various filters.
4. Suitable for detecting the transmittance of flat glass and eyeglass lenses.
5. Suitable for detecting the transmittance of photovoltaic glass.
6. Transparency detection of display screens, mobile phone screens, and touch panels.
7. Suitable for spectral transmittance analysis, etc.

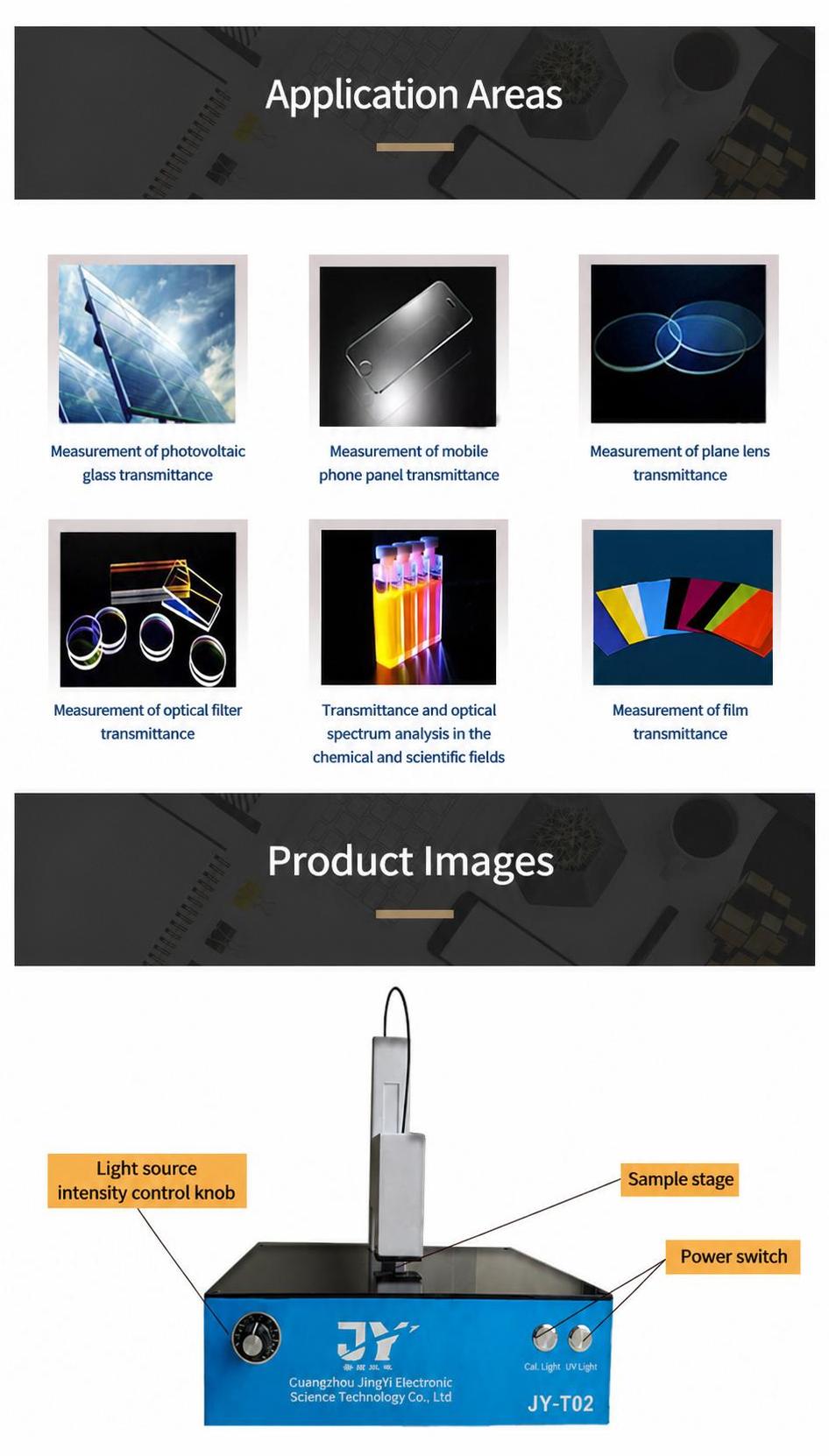

Application Fields
Measurement of transmittance of photovoltaic glass
Measurement of Light Transmittance of Mobile Phone Panel
Measurement of transmittance of planar lens
Measurement of filter transmittance
Spectral analysis of transmittance in chemical engineering and scientific research
Measurement of film transmittance
product image

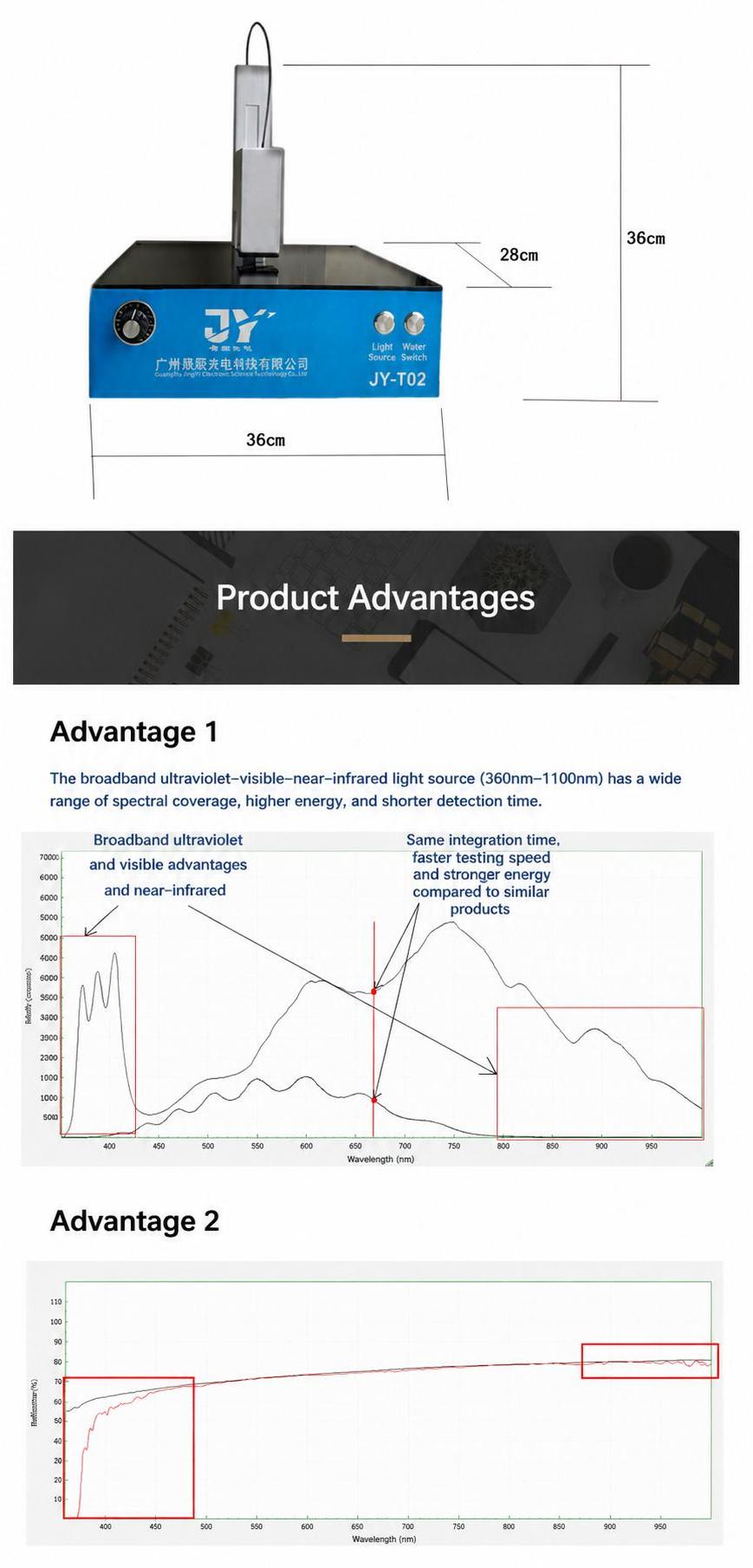

Product Advantages
Advantage 1
The spectral range is wide, and the combination of complementary light paths forms a light source for measuring from ultraviolet visible infrared spectra (360nm-1100nm), with higher energy and shorter detection time.
The advantage of supplementary light is significant in compensating for the shortcomings of insufficient ultraviolet and near-infrared bands
Same integration time, stronger energy compared to similar products, faster testing time
Advantage 2

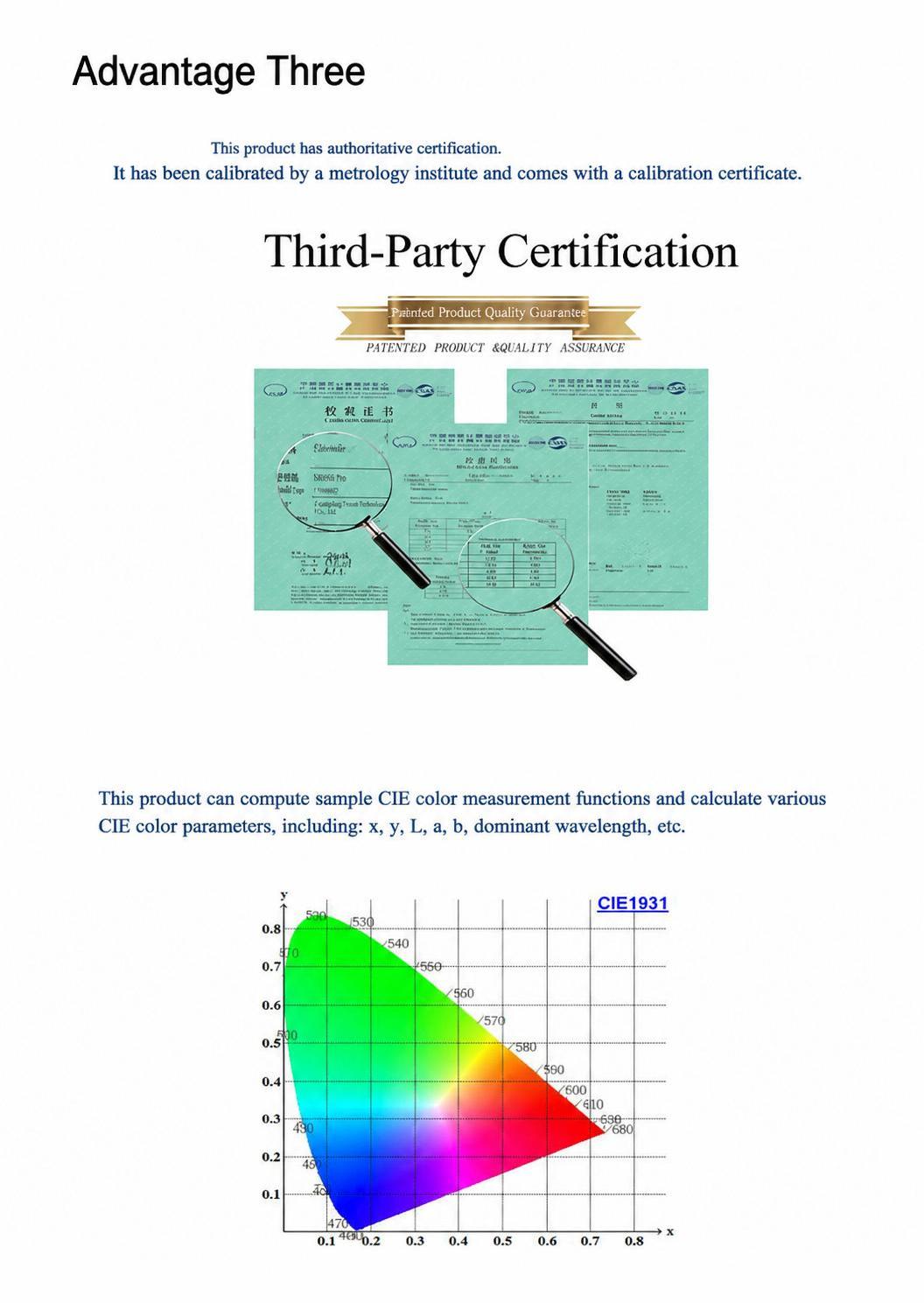

Advantage Three
This product has authoritative certification, has been calibrated by a metrology institute, and can be accompanied by a calibration certificate.
Third party organization certification
Patent Products&Quality Assurance
This product can also perform CIE color detection on samples and calculate various CIE color parameters of the sample, such as x, y, l, a, b, dominant wavelength, etc.

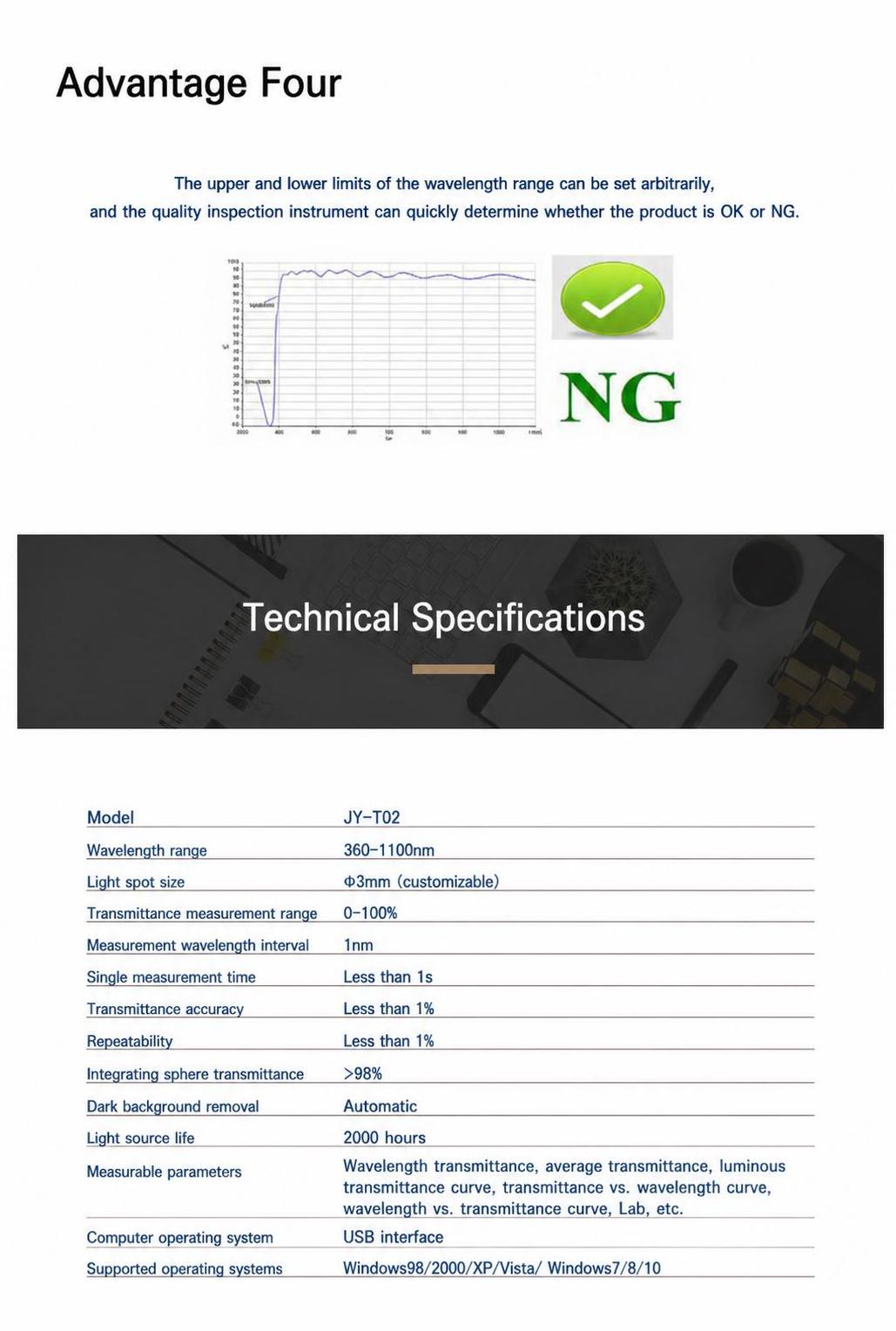

Advantage Four
The quality tester can set the upper and lower limits of any wavelength range to quickly determine the product
Technical Parameters
|
project
|
parameter
|
|
model
|
jy-t02
|
|
wavelength range
|
360-1100nm
|
|
Spot size
|
φ3mm（customizable）
|
|
Transmittance measurement range
|
0-100%
|
|
Measure wavelength interval
|
1nm
|
|
Single sampling time
|
Better than 1 second
|
|
Transmittance accuracy
|
Better than 1%
|
|
Test repeatability
|
Better than 1%
|
|
Integral sphere coating transmittance
|
>98%
|
|
Deducting dark background
|
Automatic
|
|
light source lifetime
|
2000小时
|
|
Measurable parameters
|
Wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, transmittance colors xy, xyz, lab, etc
|
|
Computer operating system
|
USB port
|
|
Supporting operating systems
|
windows98/2000/xp/vista/ windows7/8/10
|
