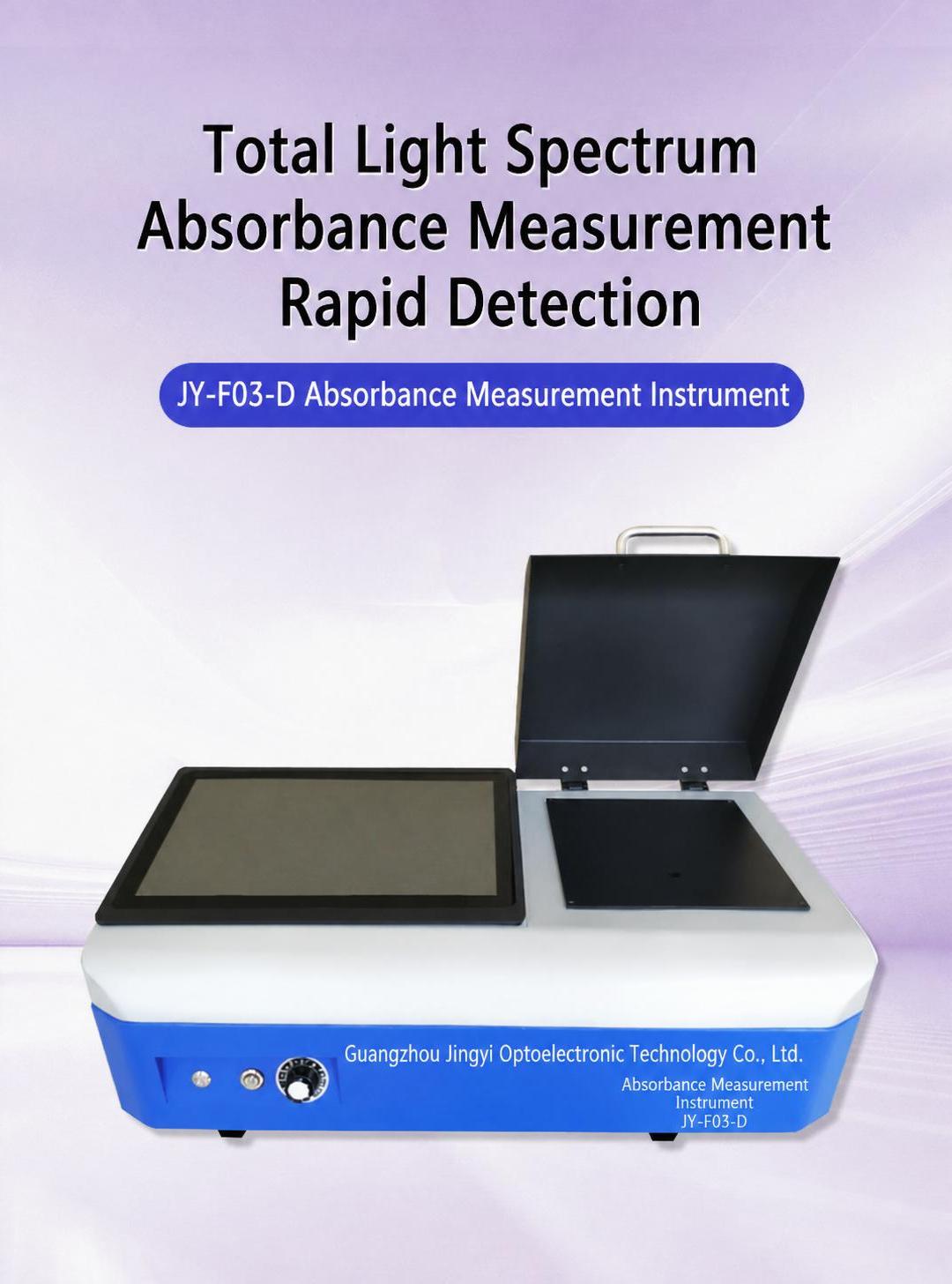

JY-F03-D absorbance detector

Product Introduction

The Jingyi photoelectric absorbance detector can measure the absorbance and absorbance curve of various objects, achieving rapid detection of full spectrum absorbance simultaneously. Meet various national standards. Adopting the hemispherical emissivity measurement method, the light source has high output stability and fast measurement speed, achieving real-time measurement operation.

Application Fields

Lidar absorbing material
Automotive component absorbent materials
Absorbent materials for mobile phone components
Anodized metal
Lampshade, reflective cup, car rearview mirror
Coatings, pigments, inks, plastics
light-absorbing material

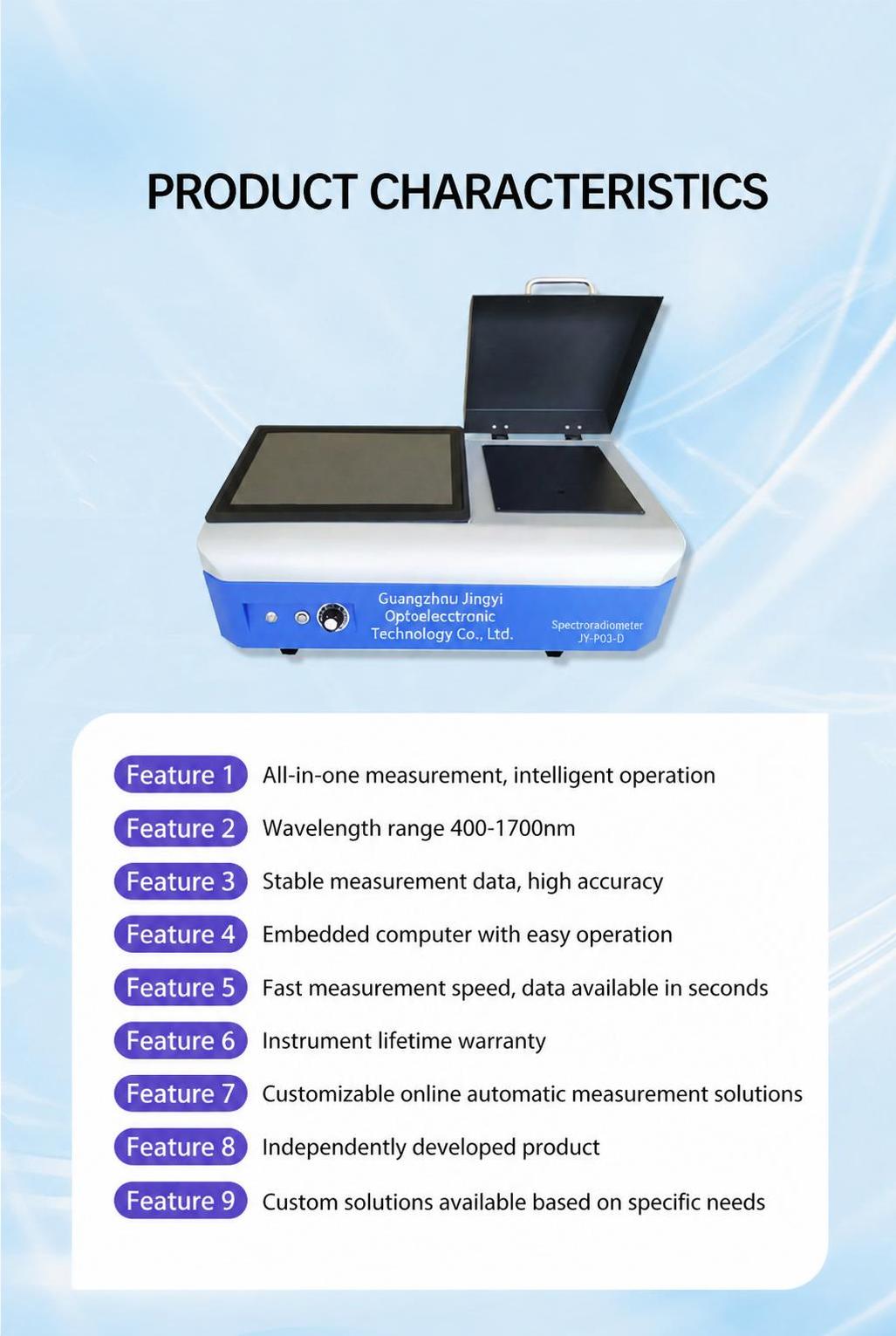

Product Features
Features - Type measurement, intelligent operation
Characteristic 2: Wide Spectrum Detection at 400-1700nm
Characteristic 3: Stable measurement data and high accuracy
Feature 4: Equipped with an embedded computer, easy to operate
Feature 5: Fast measurement speed, data can be obtained within milliseconds
Feature 6: Lifetime Warranty for Instruments
Feature 7: Customizable industrial online automatic detection solution
Feature 8: Independently developed products
Feature 9 can be customized according to specific needs

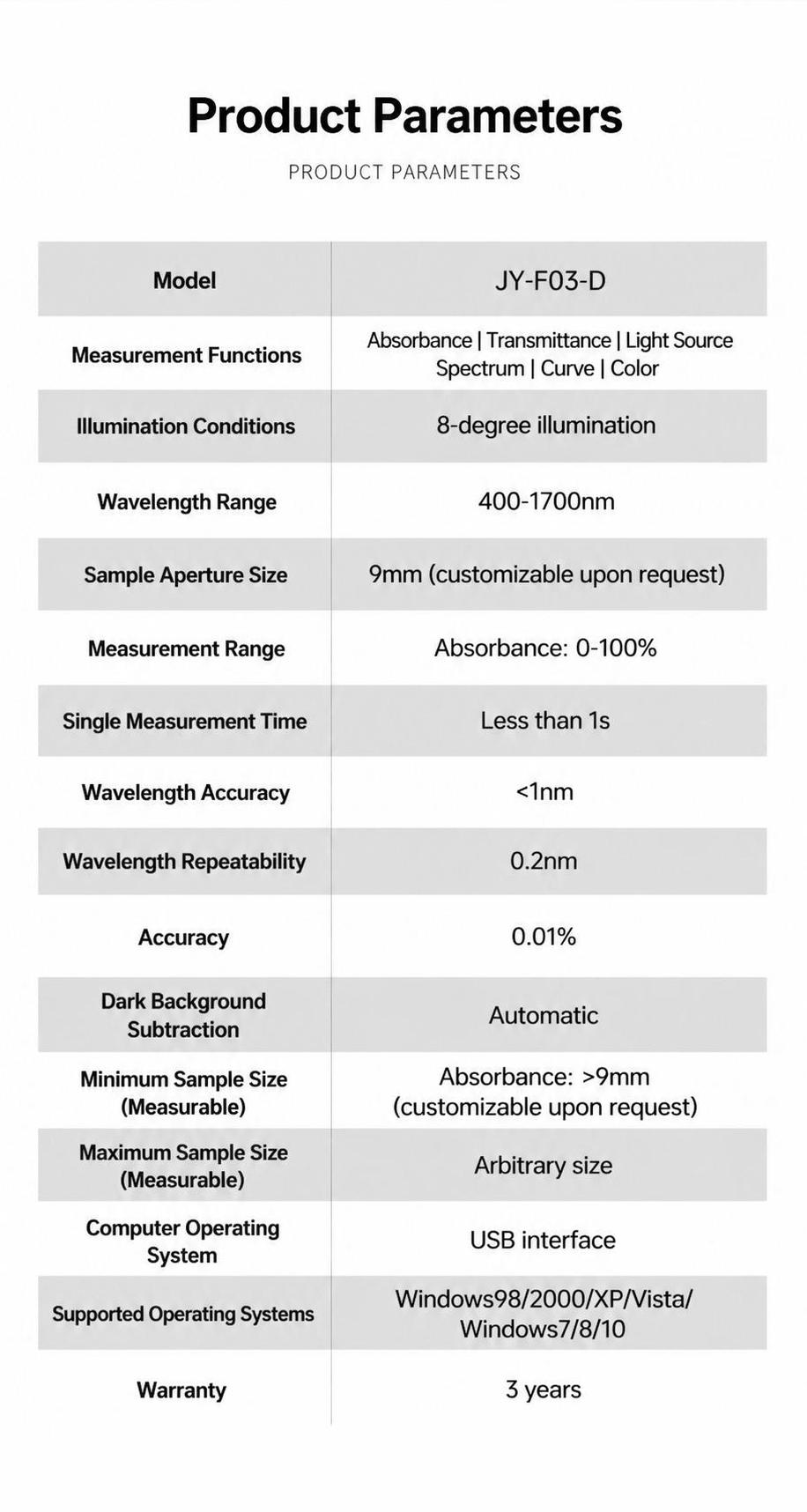

Product Specifications

model	JY-F03-D
Measurement function	Absorption rate/absorption spectrum curve/color
Lighting reception conditions	8-degree illumination
wavelength range	400-1700nm
Sample mouth size	9mm (customizable according to requirements)
measurement range	Absorption rate: 0-100%
Single sampling time	Better than 1 second
Wavelength accuracy	<1nm
Wavelength repeatability	0.2nm
precision	0.01%
Deducting dark background	Automatic
Minimum size of measurable sample shape	Absorption:>9mm (can be customized according to needs)
Maximum size of measurable sample shape	Any size
Computer operating system	USB port
Supporting operating systems	Windows98/2000/XP/Vista/Windows7/8/10
warranty	3 years
