Low power halogen lamp light source with adjustable intensity and built-in fan cooling

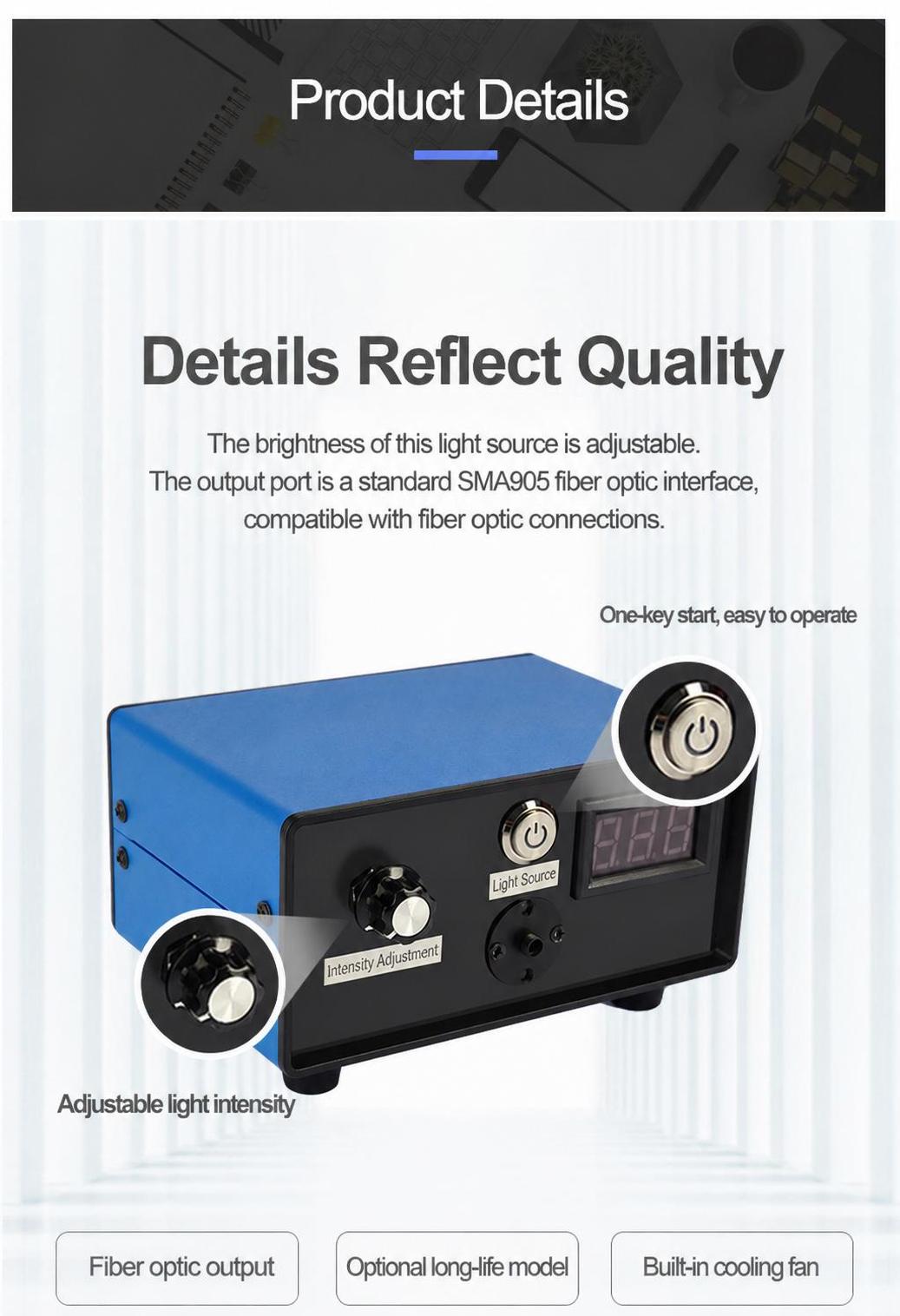

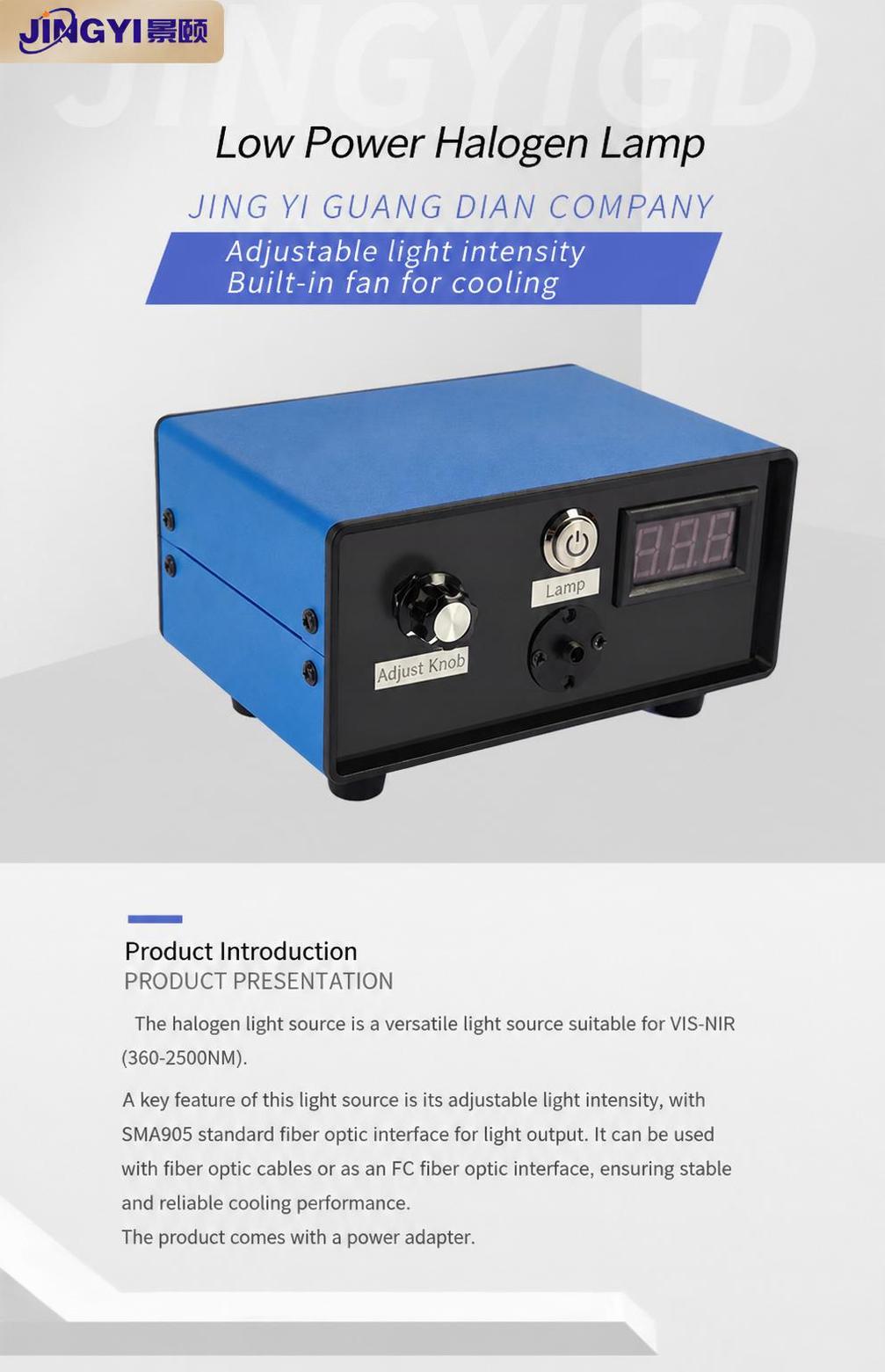

Product Introduction: The halogen tungsten light source is a versatile light source suitable for VIS-NIR (360-2500NM). This light source features adjustable light intensity, with a standard SMA905 fiber optic connector for light output, which can be connected to fiber optics or used as an FC fiber optic connector. It also includes a cooling fan inside to stabilize and cool the light source, and comes with a power adapter upon delivery.
Product Features: 1. Adjustable light source intensity 2. Fiber optic interface output 3. Optional long-life model 4. Built-in fan cooling

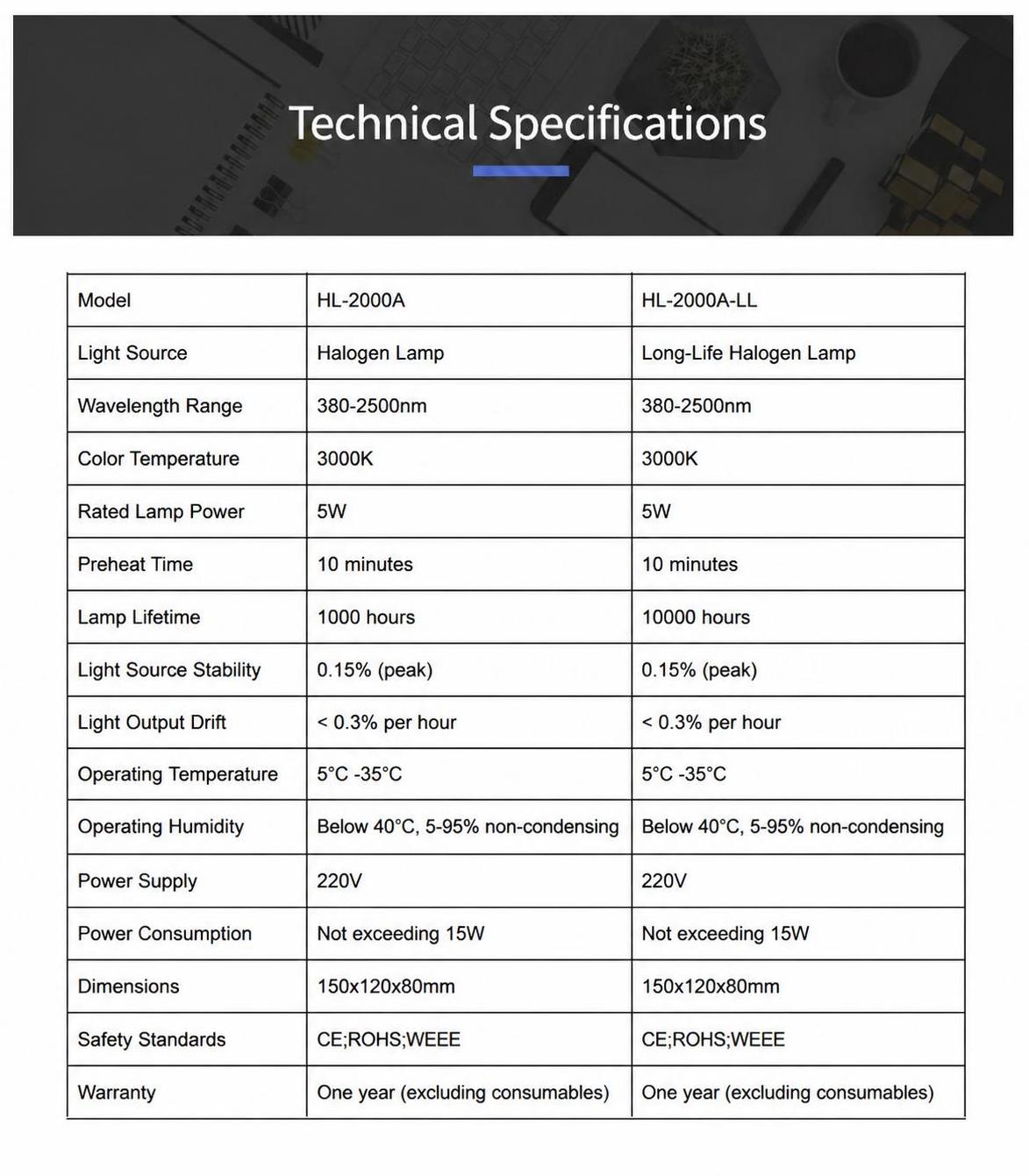

Technical Parameters



model	HL-2000A	HL-2000A-LL
light source	halogen tungsten lamp	Long life halogen tungsten lamp
Light source wavelength	380-2500nm	380-2500nm
color temperature	3000K	3000K
Nominal bulb power	5W	5W
warm-up time	10 minutes	10 minutes
light source lifetime	1000 hours	10000 hours
Stability of light source output	0.15% (peak to peak)	0.15% (peak to peak)
Optical output drift	Less than 0.3% per hour	Less than 0.3% per hour
Operating Temperature	5℃-35℃	5℃-35℃
Operating Humidity	5-95% non condensing at 40 ℃	5-95% non condensing at 40 ℃
Adapter	220V	220V
power consumption	Not exceeding 15W	Not exceeding 15W
size	150x120x80mm	150x120x80mm
Safety and Standards	CE;ROHS,WEEE	CE;ROHS,WEEE
warranty	One year (excluding consumables)	One year (excluding consumables)
