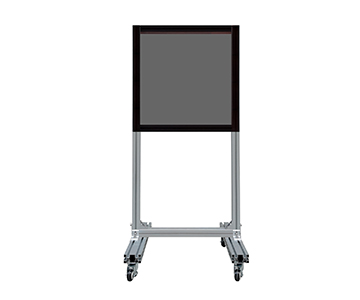

Product Introduction
The Lidar optical intensity attenuation sheet can uniformly attenuate light intensity across a wide spectral range without altering the energy distribution of the spectrum. It is suitable for long-distance simulated testing of Lidar, accurately simulating experiments such as the maximum detection range of Lidar. The size specifications and optical parameters of the Lidar optical intensity attenuation sheets produced by our company can be customized.
Product Parameters
|
Model
|
JY-ATE
|
|
Light Transmittance
|
40%
|
|
Selectable Light Transmittance
|
2-90%
|
|
Common Light Transmittance
|
28%, 45%, 50%, 71%
|
|
Size
|
0.5*0.5 m
|
|
Selectable Size
|
Optional 0.05-3 m
|
|
Common Size
|
0.5*0.5 m, 1*1 m, 1.5*1.5 m, 2*2 m
|
|
Wavelength
|
200-2500 nm
|
|
Common Wavelength
|
905 nm / 1550 nm
|
|
Accuracy
|
±1%
|
|
Uniformity
|
±1%
|
|
Thickness
|
3 mm
|
|
Bracket
|
With caster
|
|
Optional Accessories
|
Base, aluminum alloy case, bracket, bracket with casters
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
