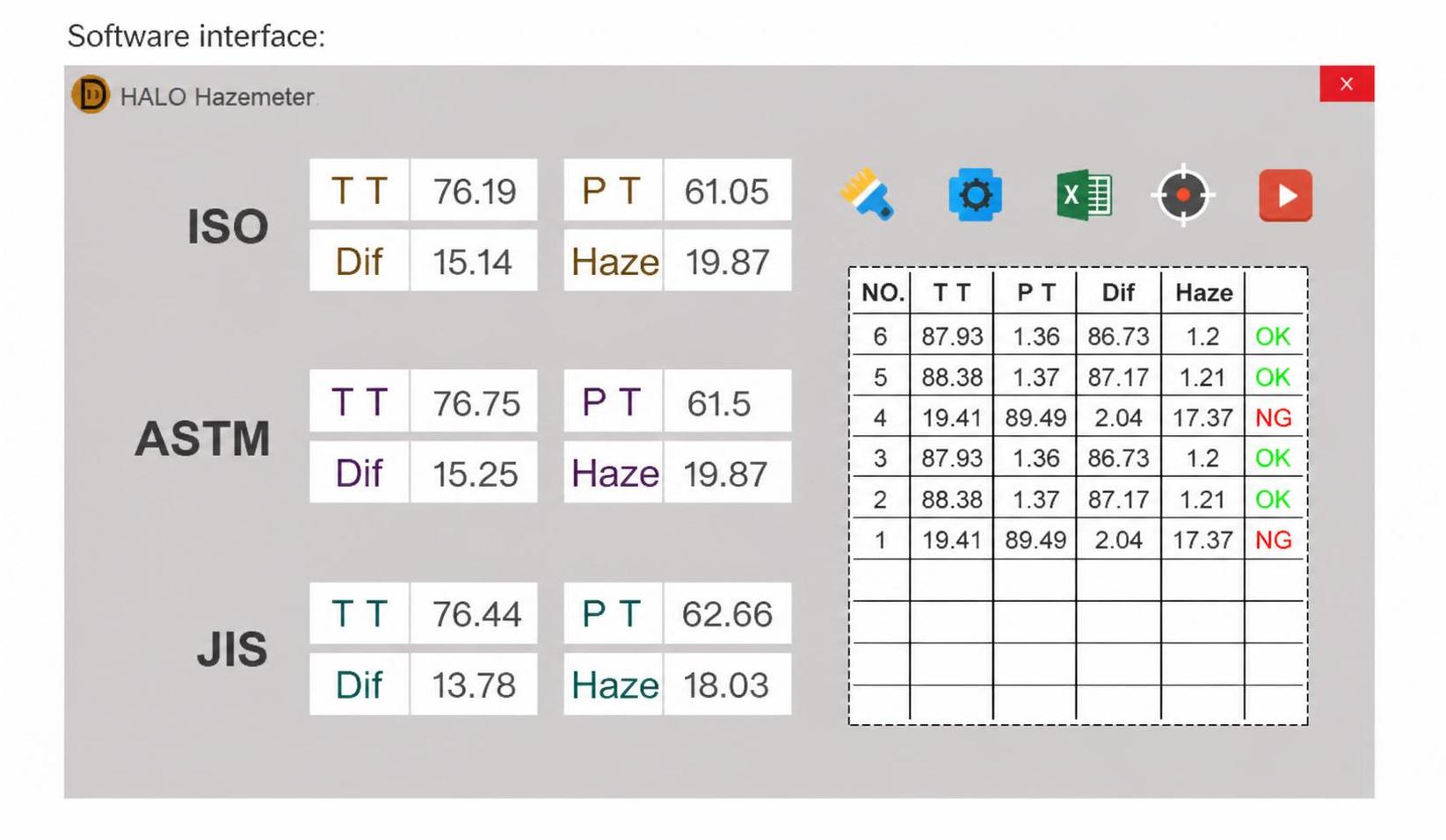

Software interface:

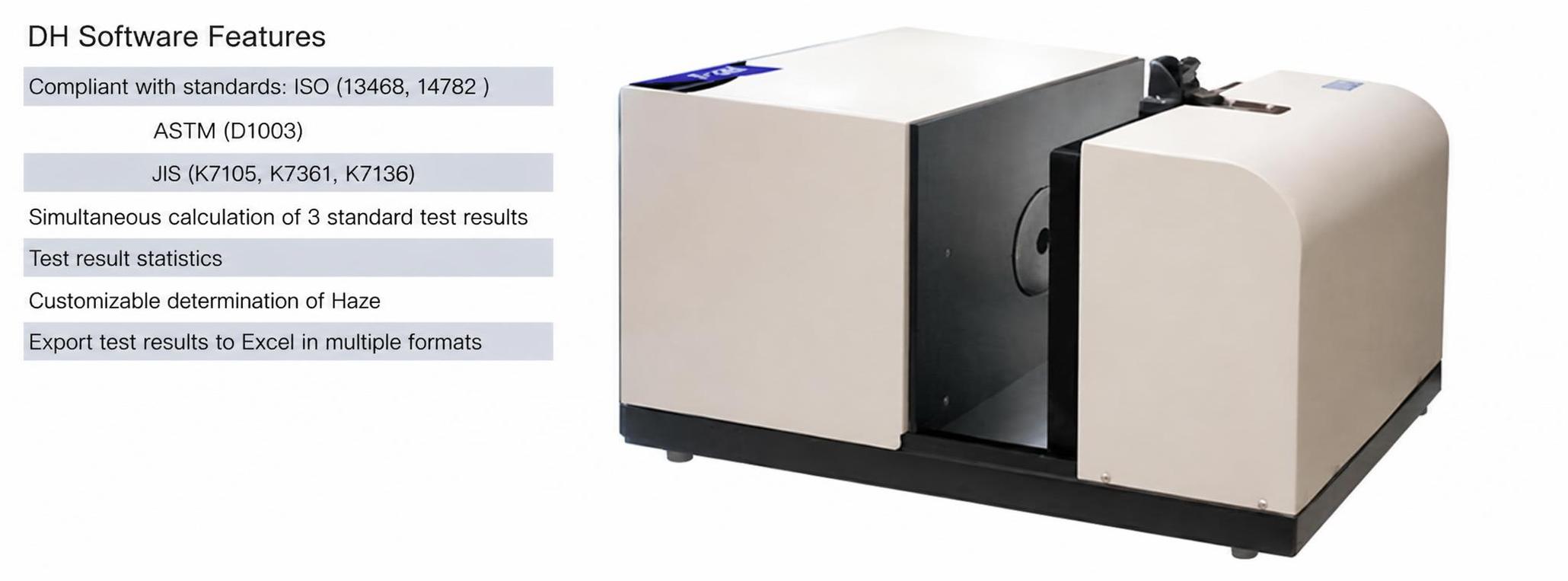

HALO Hazemeter

meet the standard：ISO (13468，14782)

ASTM (D1003)

JIS (K7105，K7361，K7136)

Simultaneously calculate the results of three standard tests

Test result statistics

Customizable determination of haze

Can export multiple records of test results to Excel

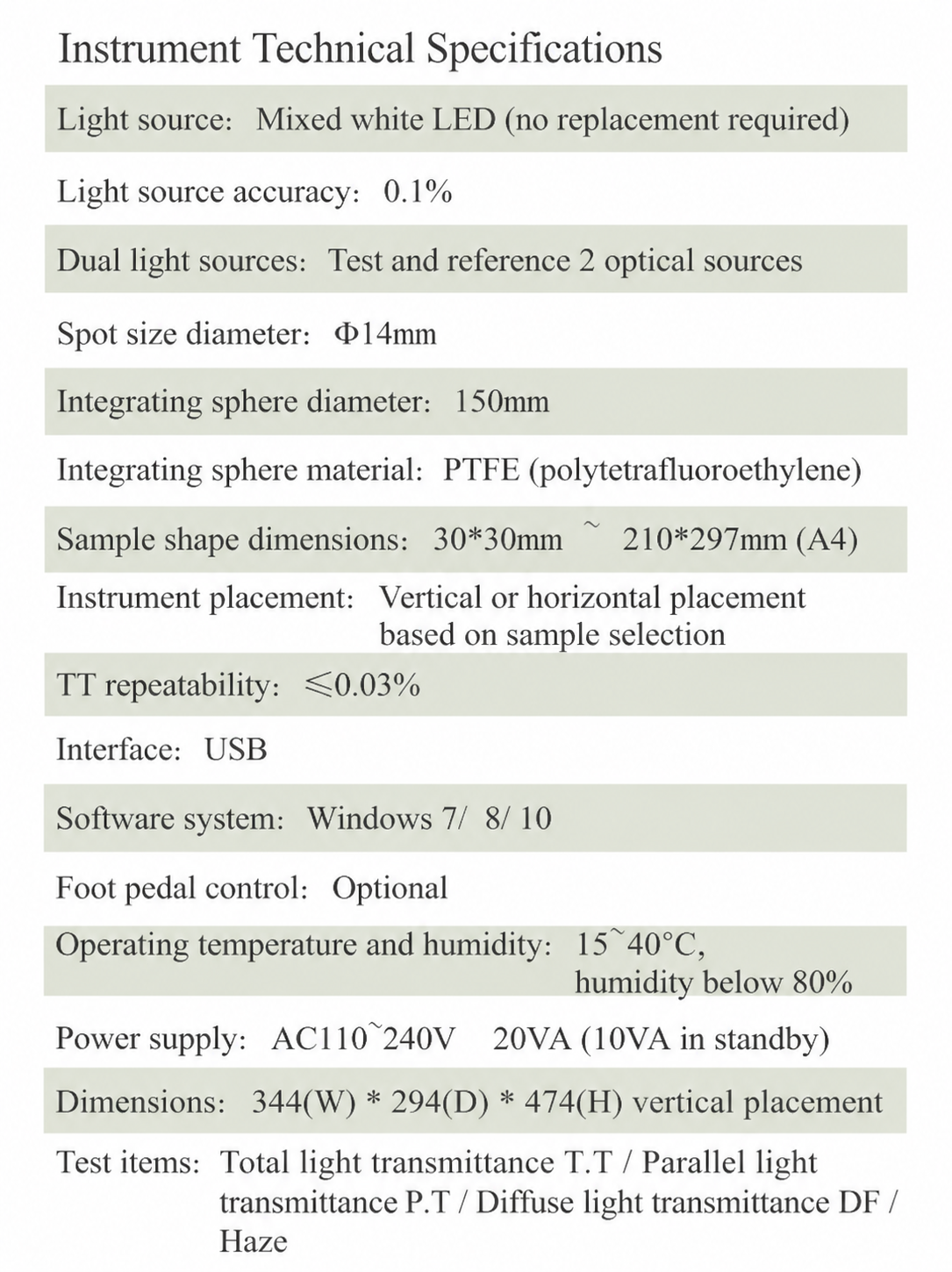

project	technical indicators
C light source	Mixed white LED (no need to replace)
Light source accuracy	0.1%
dual light source	Test and compensate for 2 sets of light sources
spot diameter	φ14mm
Integral sphere diameter	150mm
Integral ball material	PTFE (polytetrafluoroethylene)
Sample shape and size	3030mm ~ 210297mm(A4)
Instrument placement	Choose vertical or horizontal placement based on the sample
TT repeatability accuracy	≤0.03%
connection method	USB
software system	Windows 7/8/10
Foot pedal control	optional
Operating temperature and humidity	15~40℃，Humidity below 80%
voltage power	AC110~240V 20VA (standby state 10VA)
Overall dimensions	344 (W) * 294 (D) * 474 (H) vertical placement
Test project	Total transmittance T.T/Parallel transmittance P.T/Scattering transmittance DF/Haze HAZE

Application fields:
