Open Integral Ball 200mm

Open Integral Ball 200mm

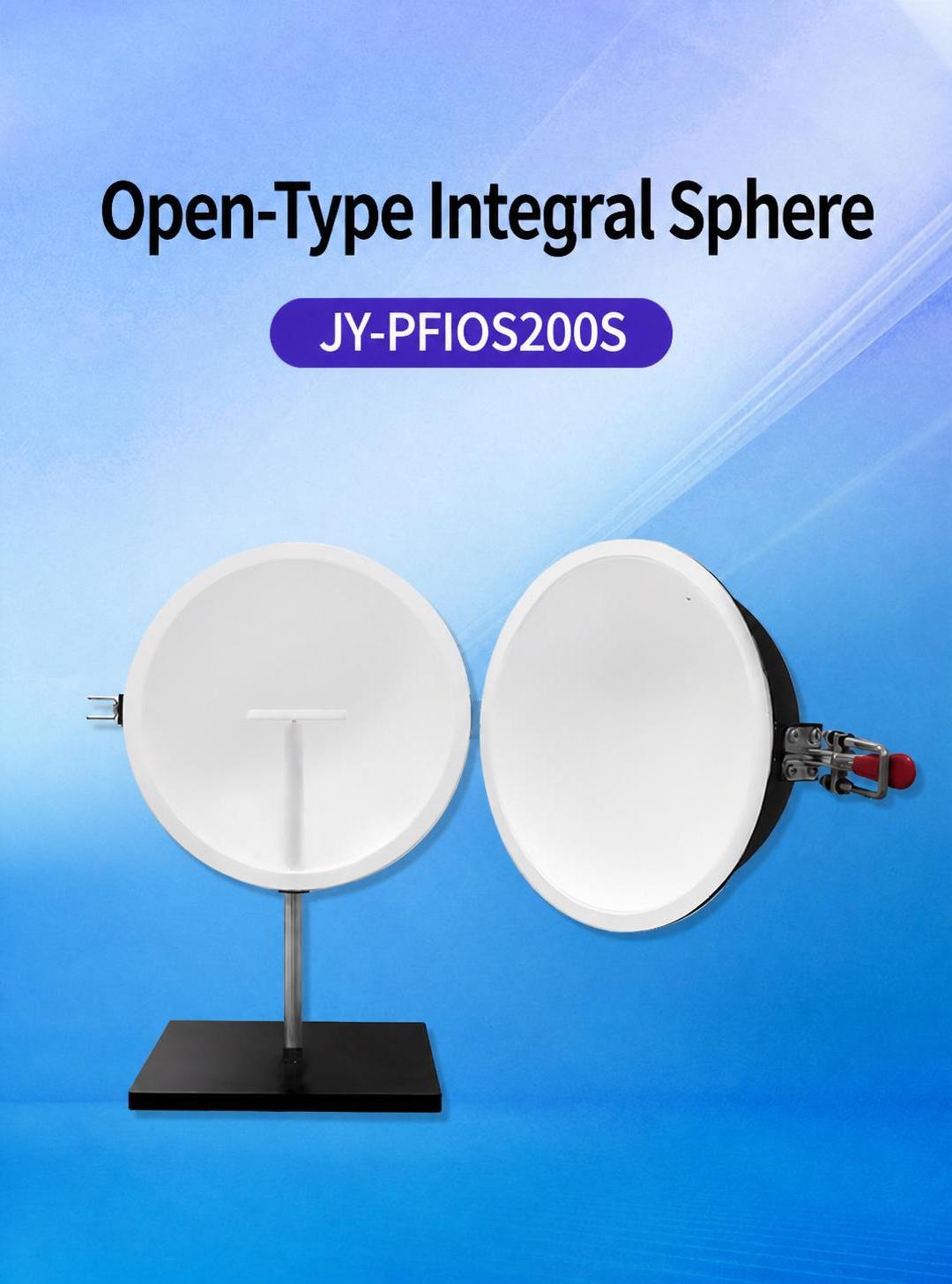

Open Integral Sphere: JY-PFIO-S200S Detailed Introduction

Open Integral Ball
jy-pfios200s

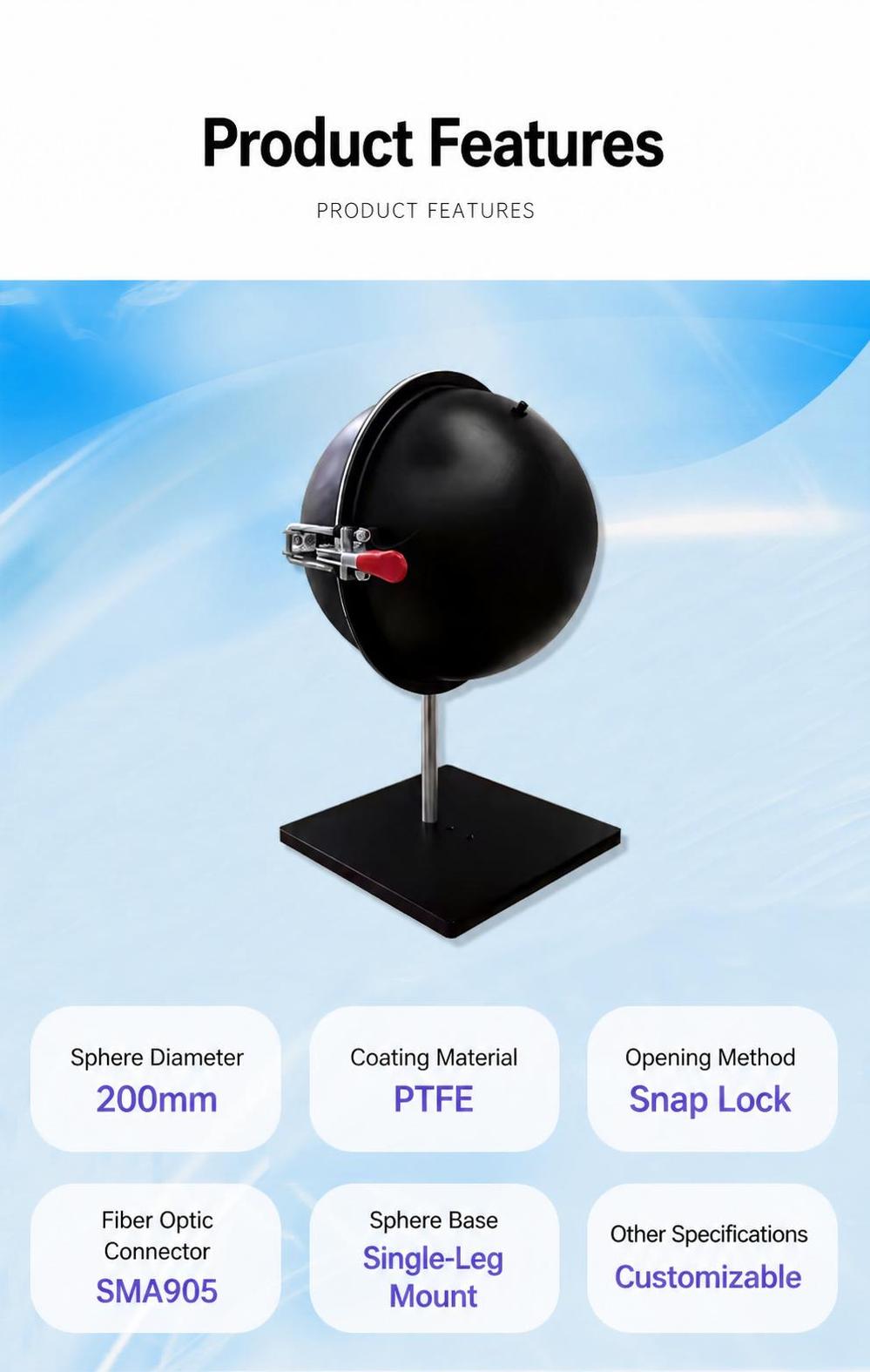

Product Features
Integral sphere diameter 200mm
Coating material PTFE
Opening method buckle
Fiber optic interface sma905
Integral ball base single foot support
Other specifications can be customized

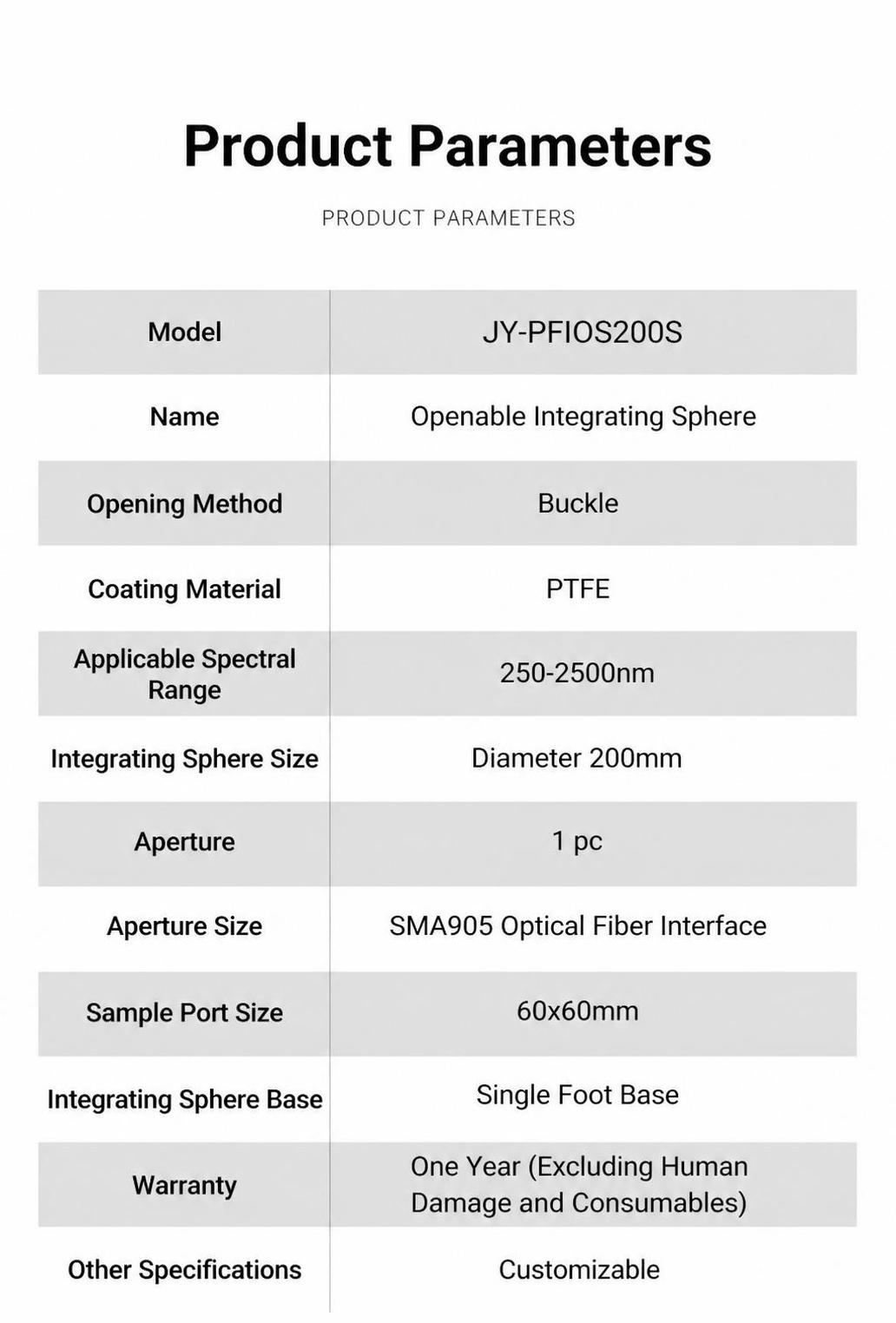

Product Specifications
project
parameter
model
jy-pfios200s
name
Open Integral Ball
Open with
snap fastener
Coating materials
ptfe
Applicable spectral range
250-2500nm
Integral sphere size
Diameter 200mm
open one's mouth
1个
opening size
SMA905 fiber optic interface
Sample support size
60x60mm
Integral ball base
Single foot support
warranty
One year (excluding human damage and consumables)
Other Specifications
customizable

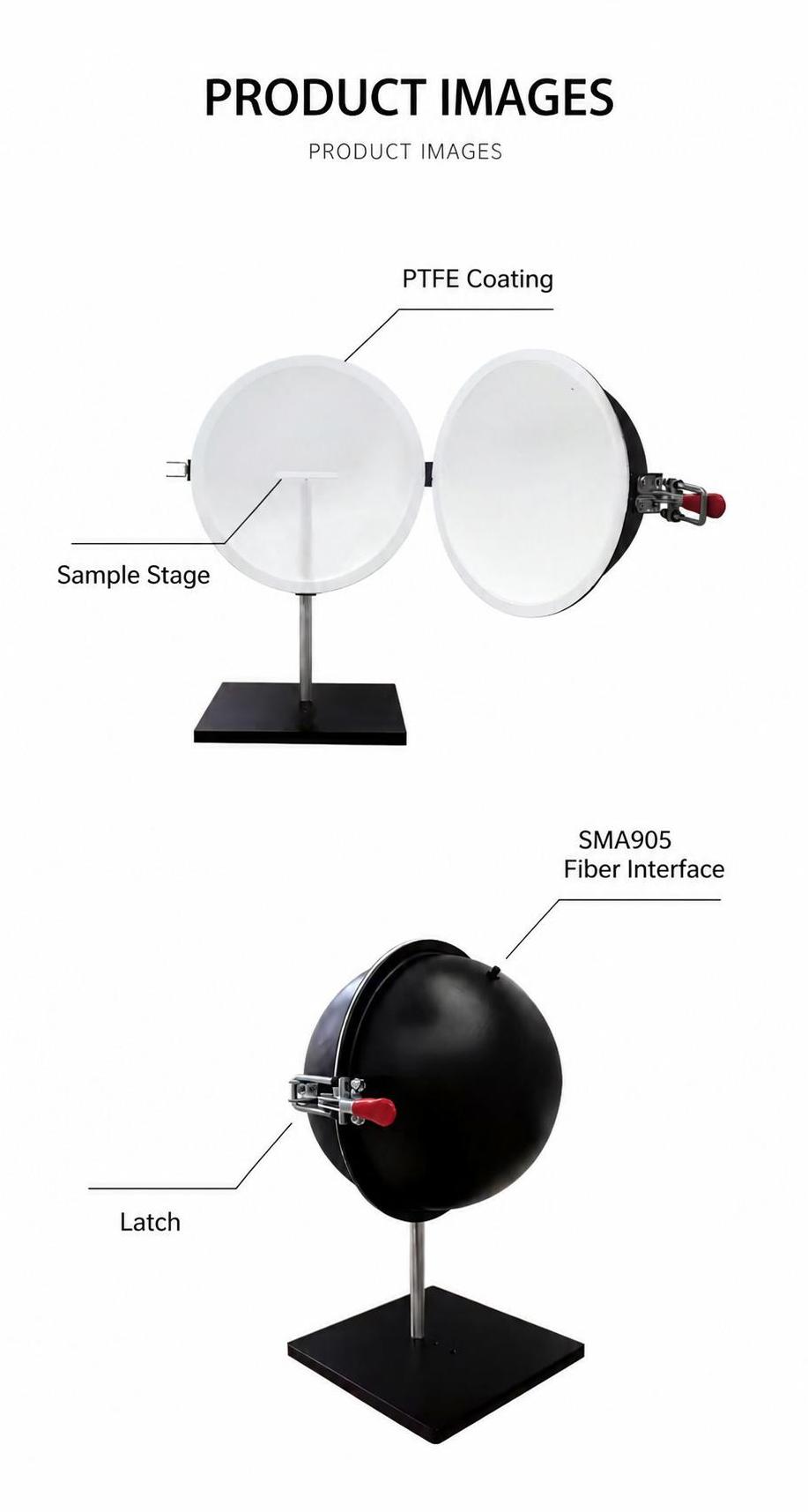

product image
PTFE coating
sample stage
SMA905 fiber optic interface
snap fastener
