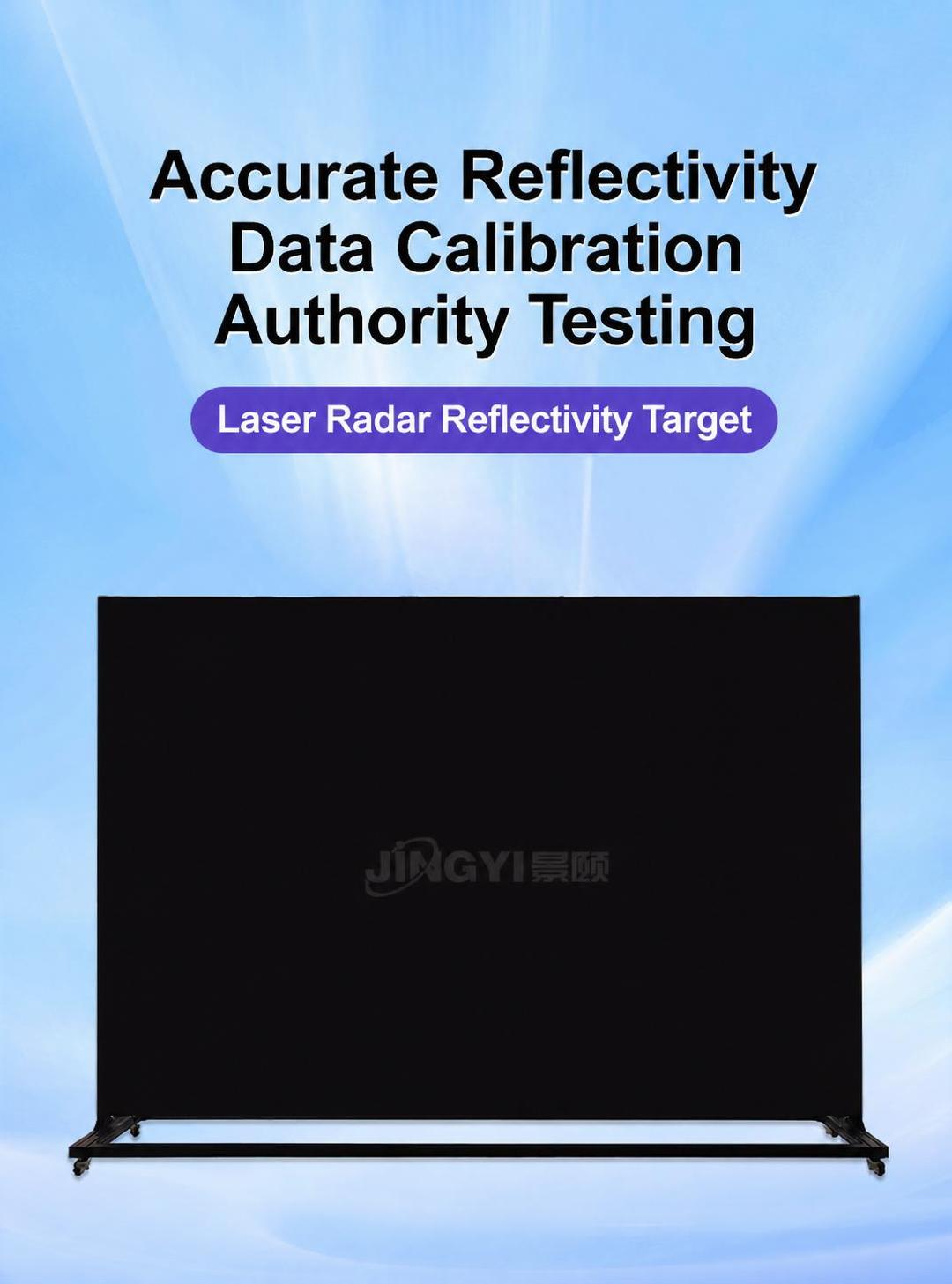

Jingyi Optoelectronics: JY-MRT Lidar Reflectivity Test Board Product Introduction

Accurate reflectivity data
Authoritative organization testing
Lidar reflection blackboard
Product Introduction
With the rapid development of LiDAR technology, LiDAR has been widely used in automotive autonomous driving and mobile LiDAR scanners. The lidar dedicated test board produced by Jingyi Optoelectronics can be used for target distance calibration of LiDAR, allowing LiDAR to more accurately determine surrounding faulty objects and their motion trajectories. The reflectivity commonly used for laser radar calibration includes three reflectivity levels: 10%, 50%, and 90%. If high calibration accuracy is required, more step reflectivity can be customized.
Jingyi Optoelectronics adopts independently developed technology and processes. This diffuse reflection plate has a reflectivity of 2% and a size of 3000x2000mm. Other sizes can also be customized, all of which have nearly perfect Lambertian characteristics and stability, allowing for optimal testing results for laser radar calibration.
Partial application areas
01 Lidar
02 Flight Time (TOF)
03 auto drive system
04 Mobile Lidar Scannei Testing System
05 Band Range Sensitivity Test

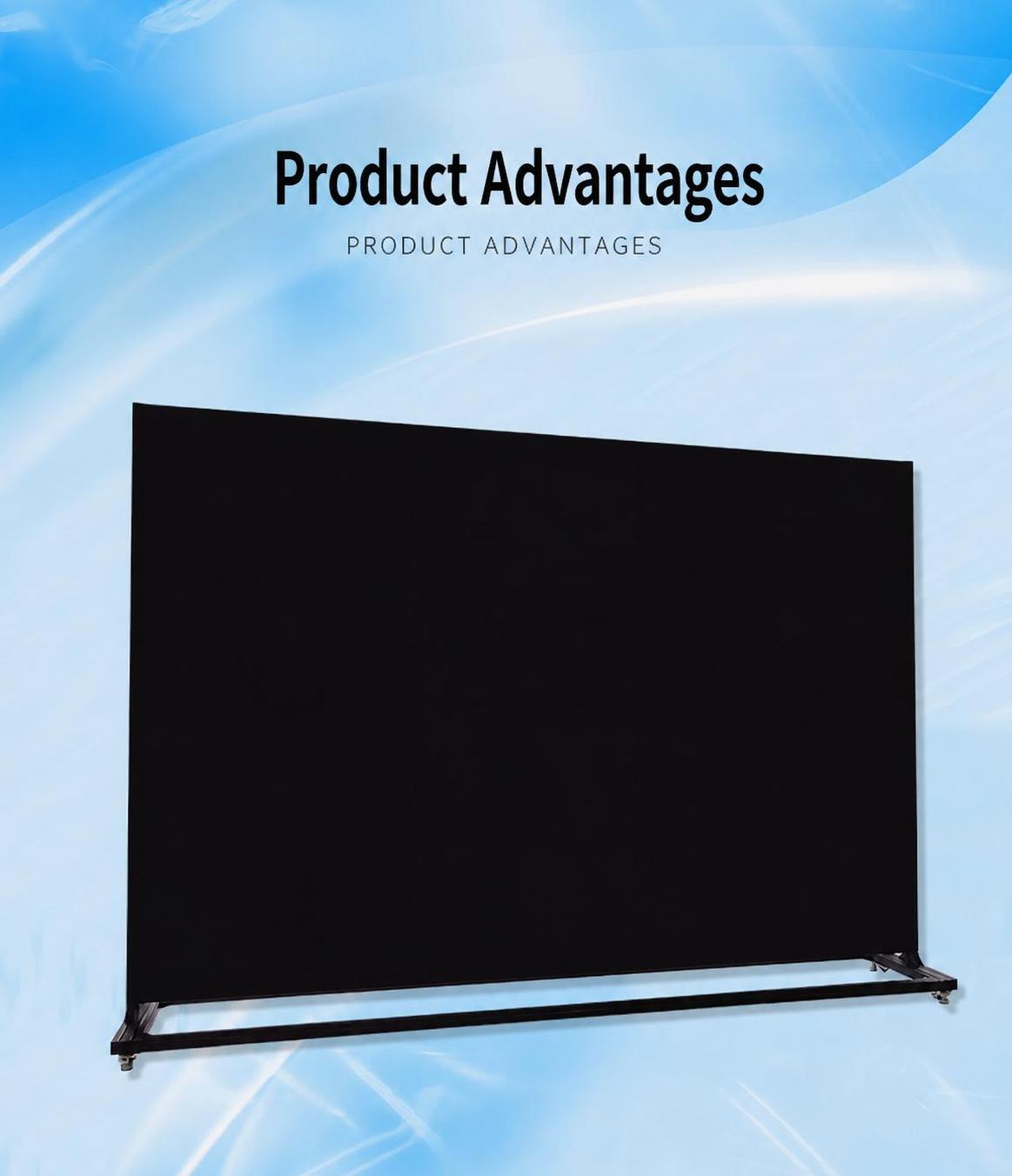

Product Advantage
Using a wavelength of 940nm
Reflectivity of 2% and flat spectrum
Has nearly perfect Lambertian characteristics
Comes with factory reflection test report
Accurate reflectivity data detected by authoritative institutions
Has excellent diffuse reflectance testing effect

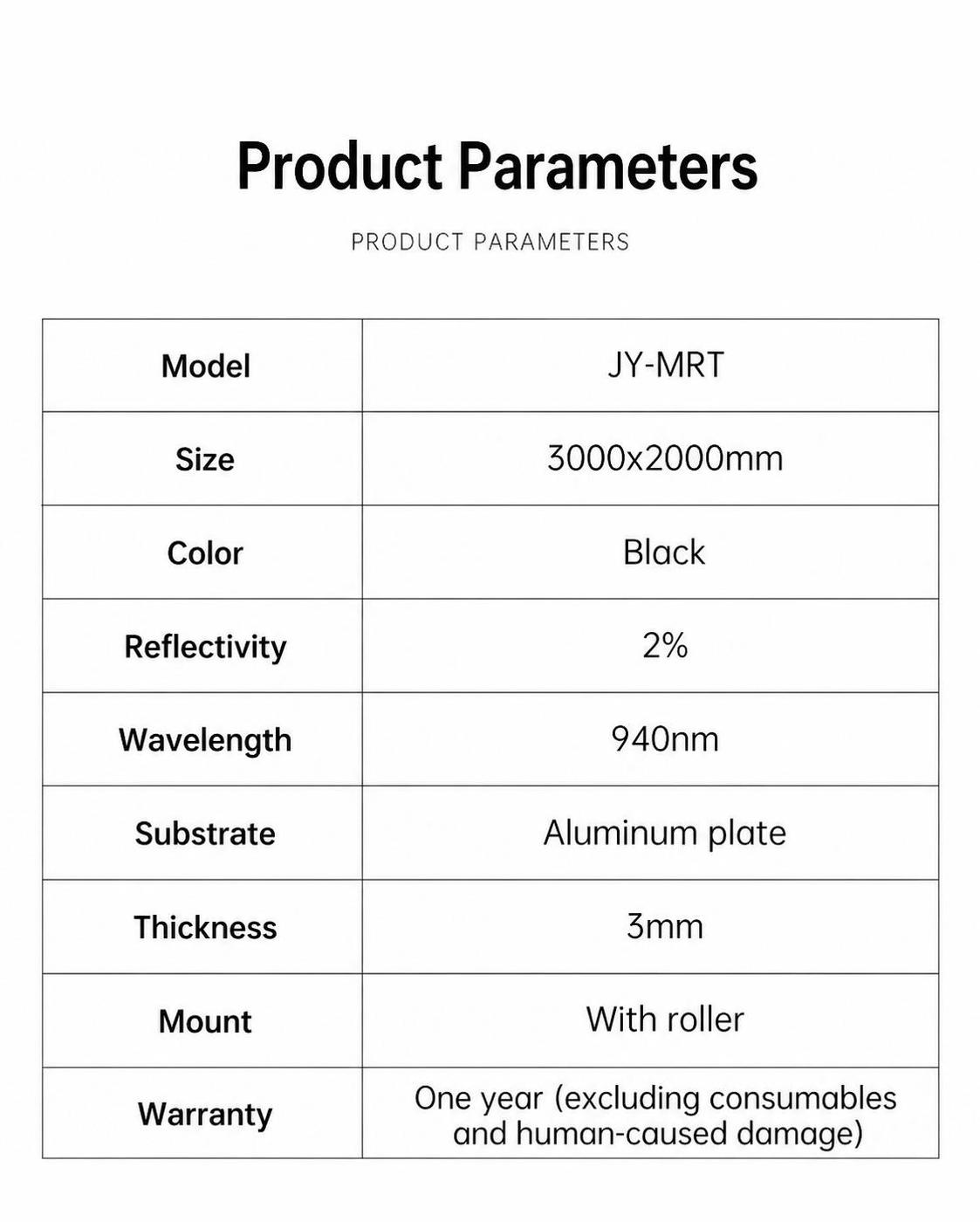

Product Specifications
