Detailed explanation of J-TIP reflection probe characteristics

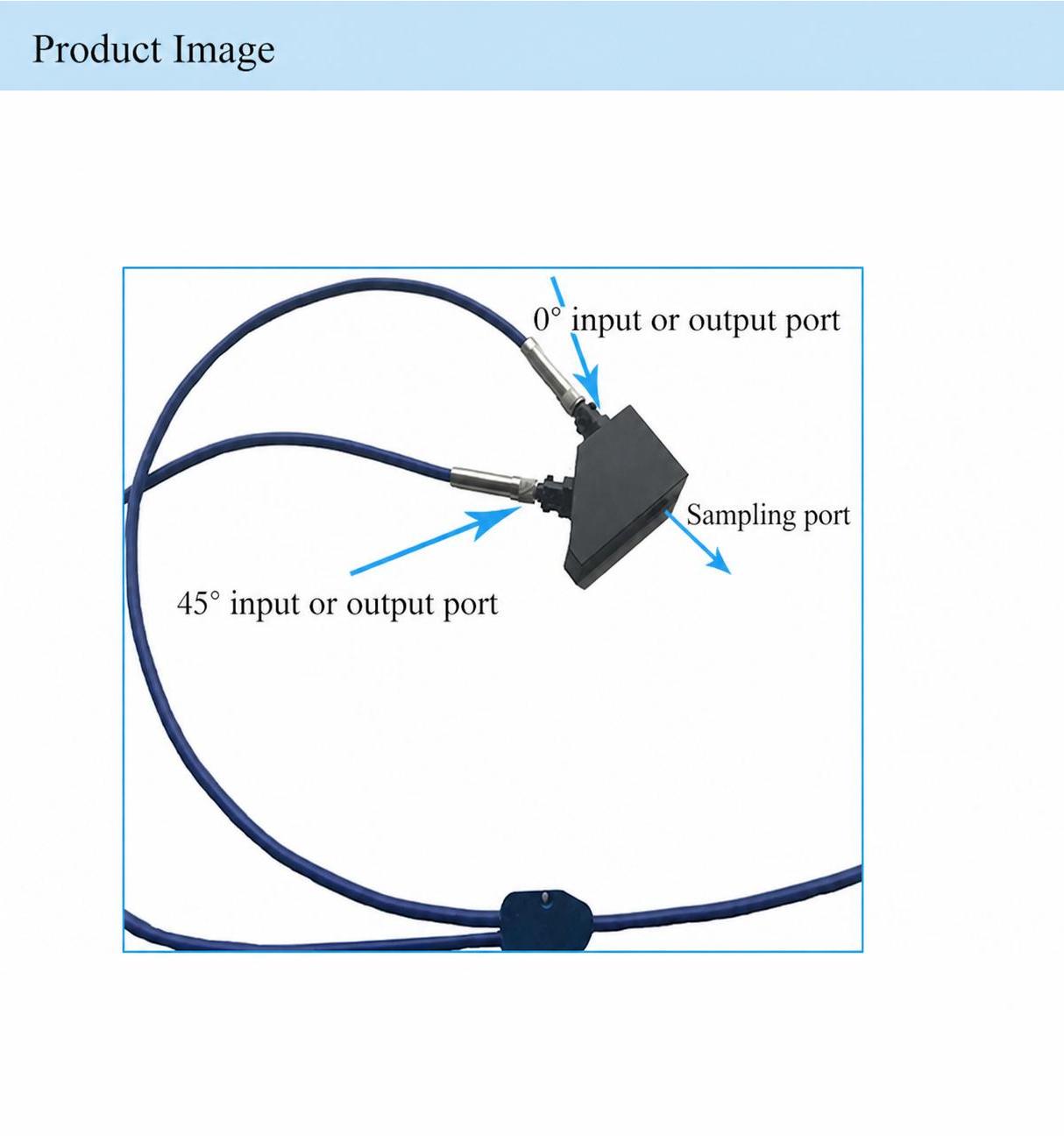

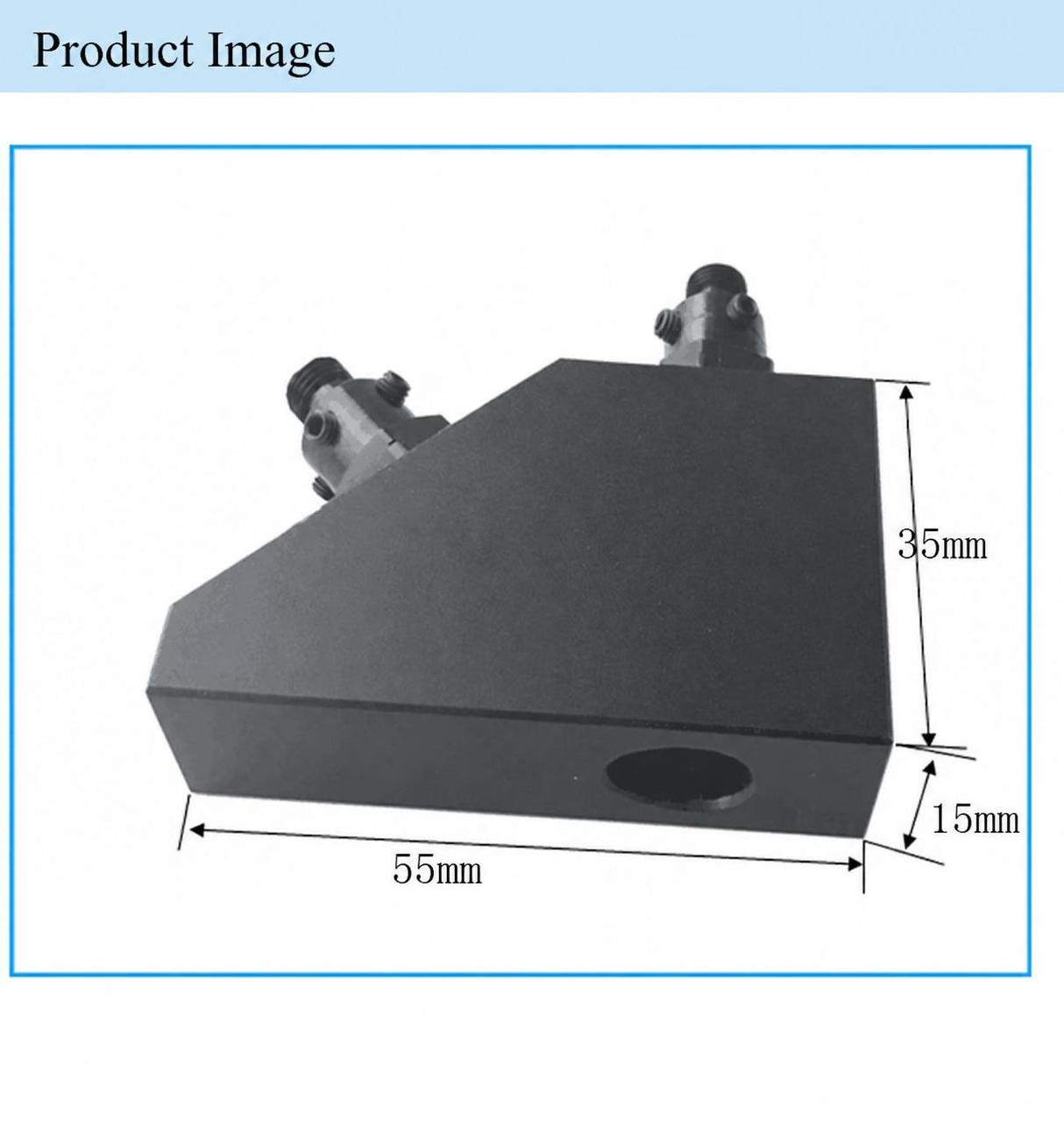

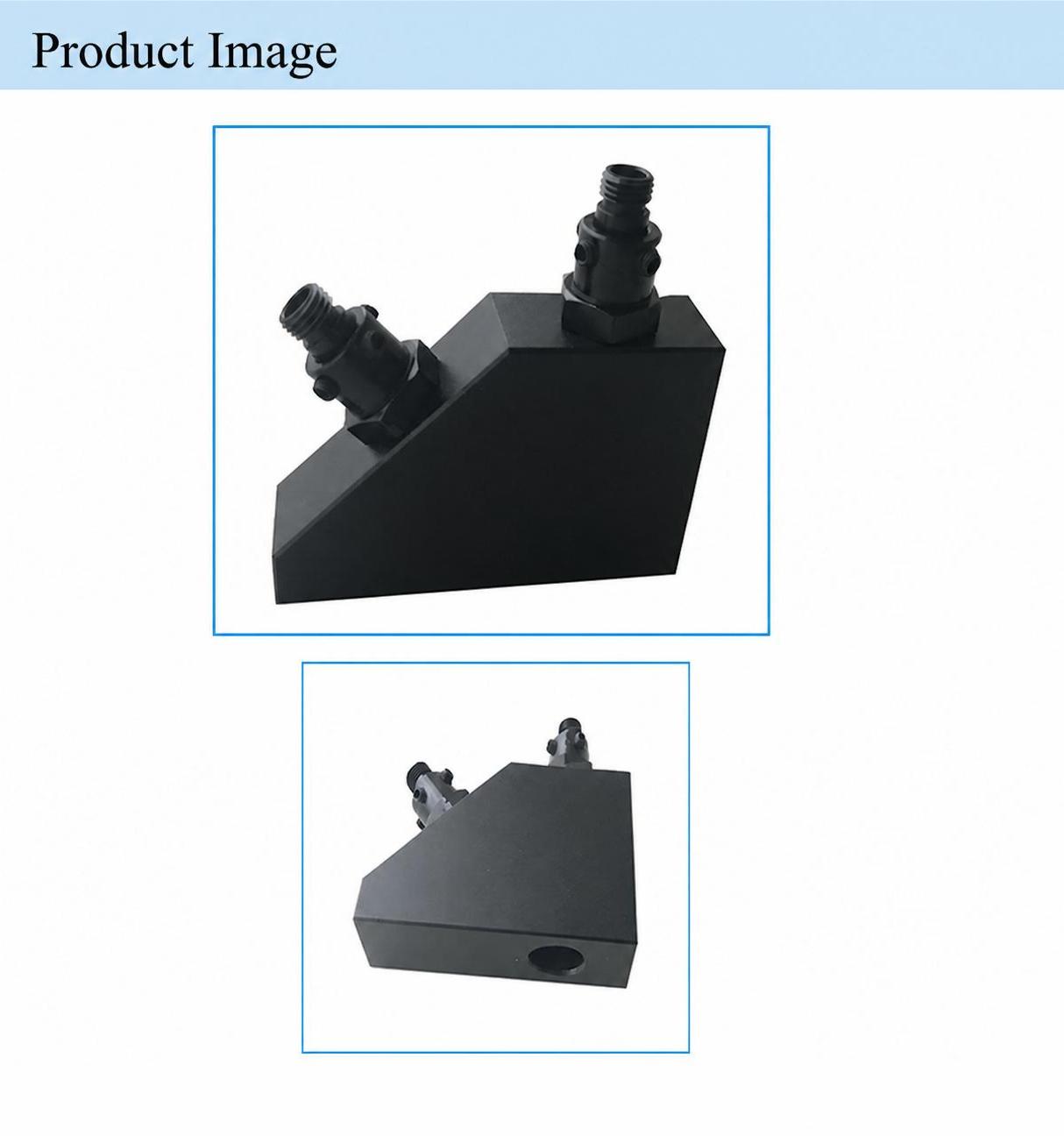

J-TIP Reflective Probe

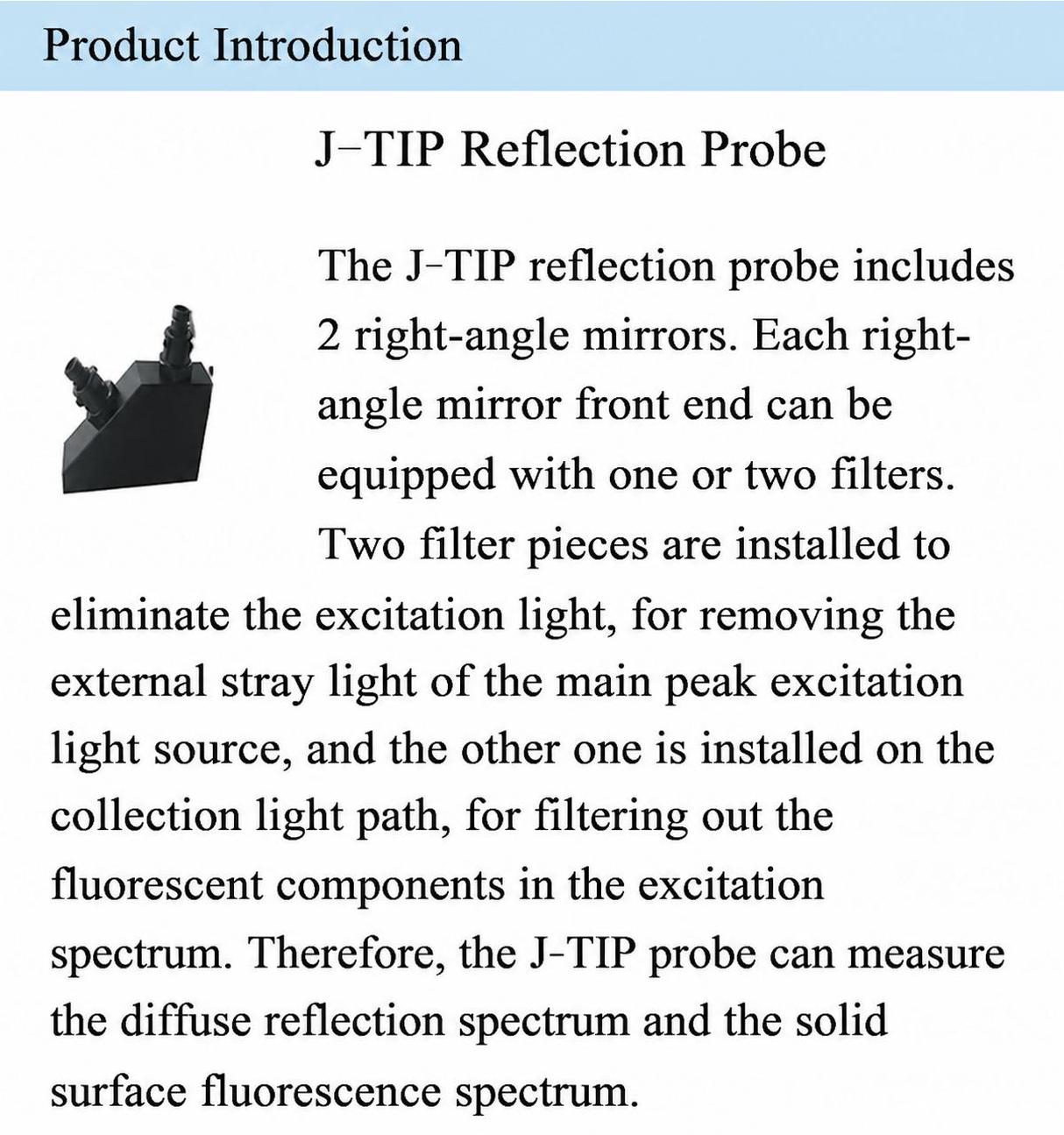

Product Introduction: The J-TIP reflector probe consists of two collimating mirrors, each of which can be loaded with one or two filters at the front end. Two filters are installed, one is installed in the excitation light path to eliminate impurities in the excitation light source except for the main peak, and the other is installed in the collection light path to filter out excitation light components in the fluorescence radiation spectrum. Therefore, the J-TIP probe can not only measure diffuse reflectance spectra, but also detect fluorescence spectra of solid surfaces.

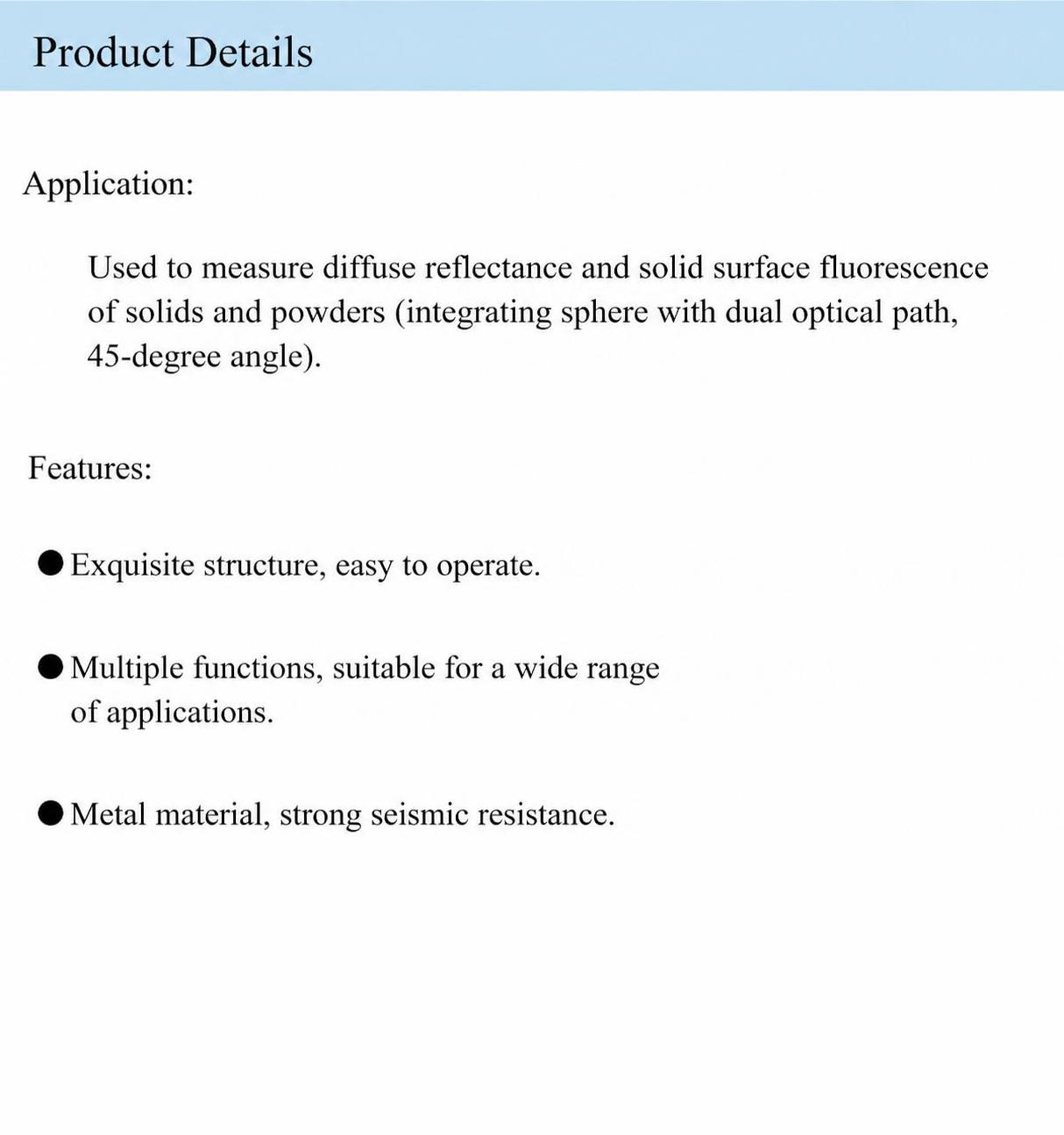

Application areas: Used for measuring the diffuse reflectance and surface fluorescence of solids and powders (dual collimated lens, 45 degree angle).

Features: Exquisite structure and flexible operation. Diverse functions and wide applicability. Made of metal material, with strong seismic resistance.

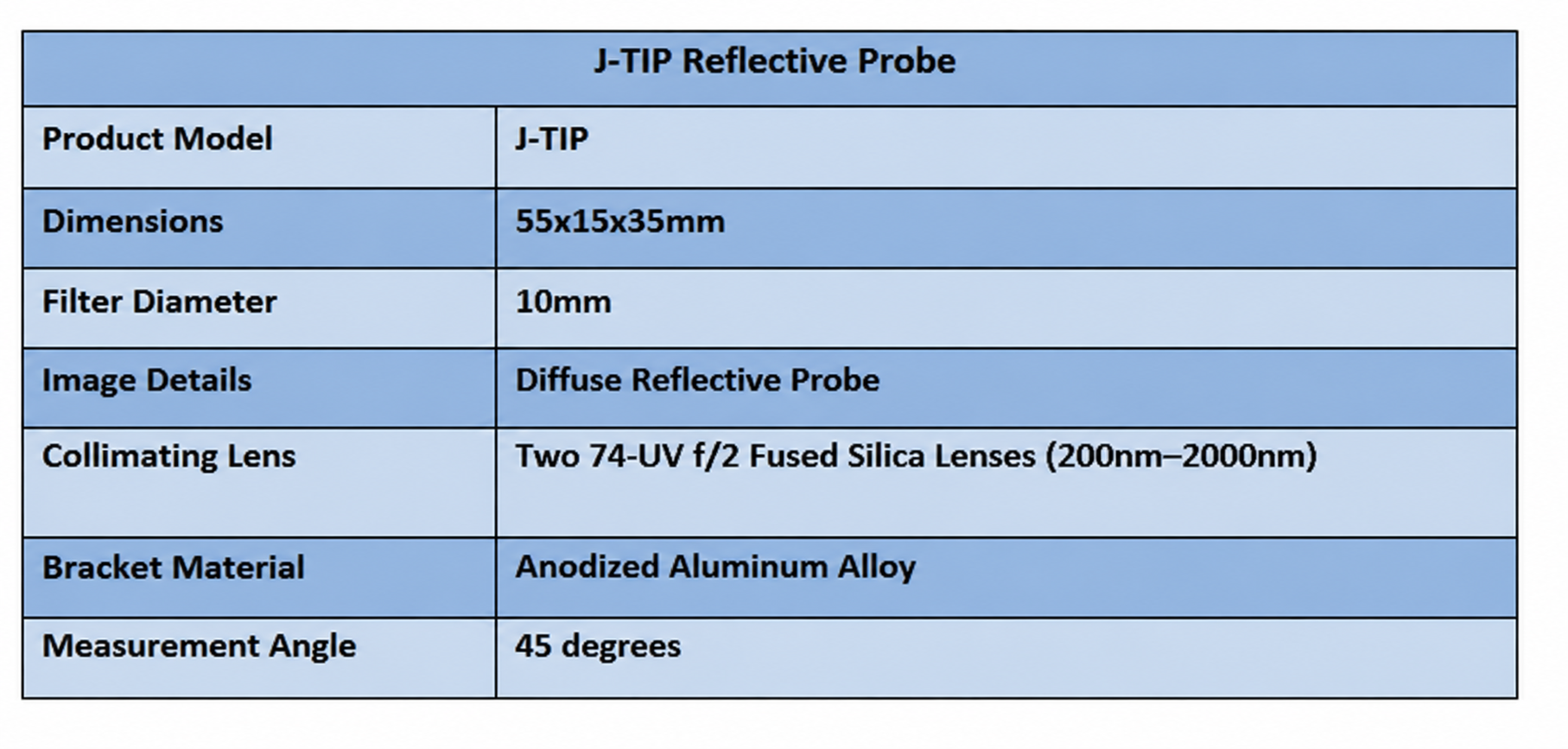

Product Specifications
