Jyrmc022 Automotive Rearview Mirror Reflectivity Tester: High speed Measurement and Detailed Explanation of Characteristics
Fast measurement speed, single test time 1ms

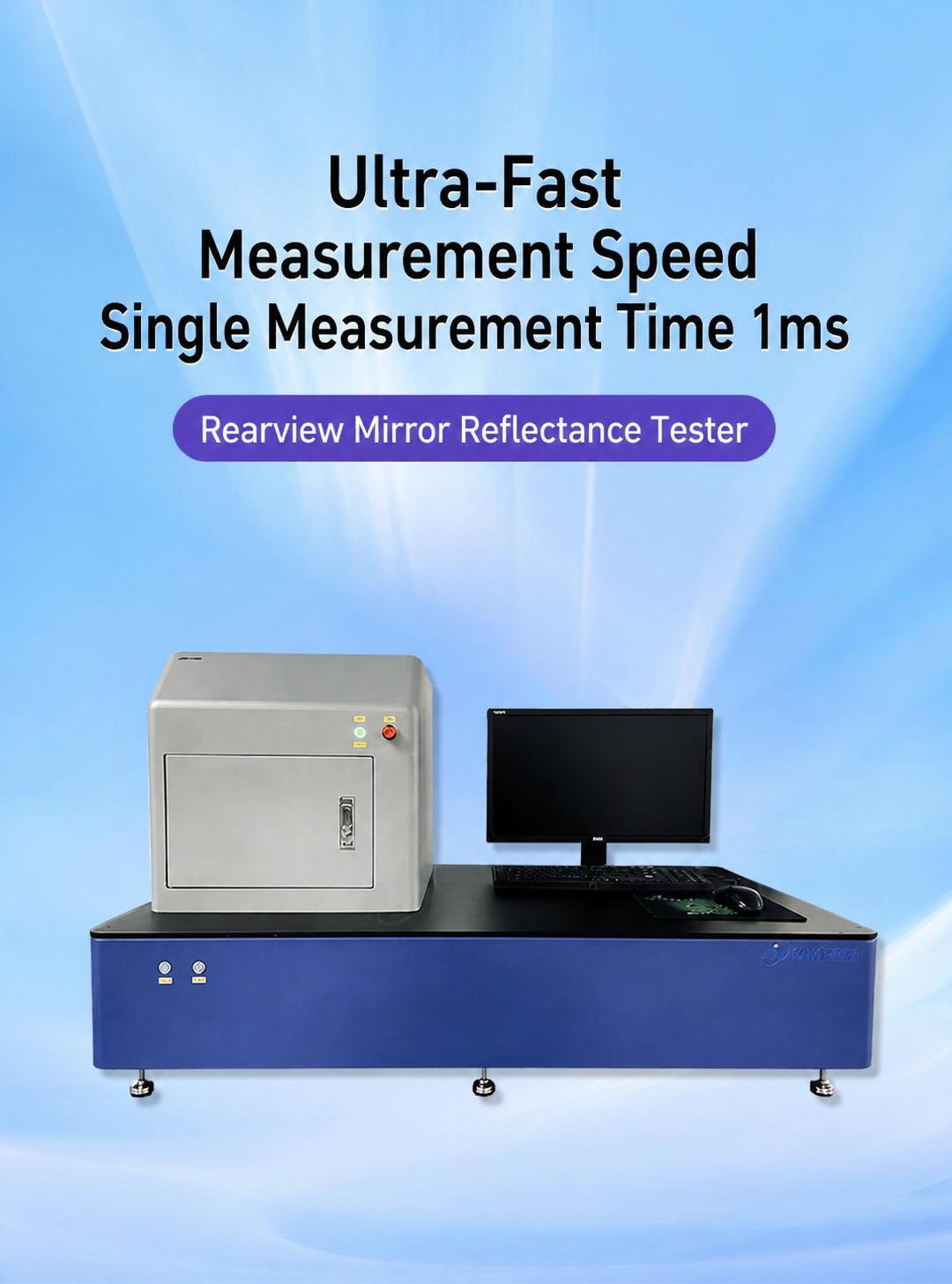

Rearview mirror reflectivity tester
Product Introduction
The jyrmc022 automotive rearview mirror reflectivity tester produced by Jingyi Optoelectronics is designed according to the national standard GB 15084-2022 reflectivity detection requirements for mirrors, and supports testing in high and low temperature environments. It can measure the reflectivity, reflectivity stability, reflectivity conversion time at operating temperature, safety function test during power outage, reflectivity response time test during reverse, and eliminate glare characteristics at room temperature of the rearview mirror. This instrument fully complies with various standards for detecting car rearview mirrors.
Application Fields
Ordinary anti glare interior rearview mirror
Automatic anti glare interior rearview mirror
Streaming media rearview mirror

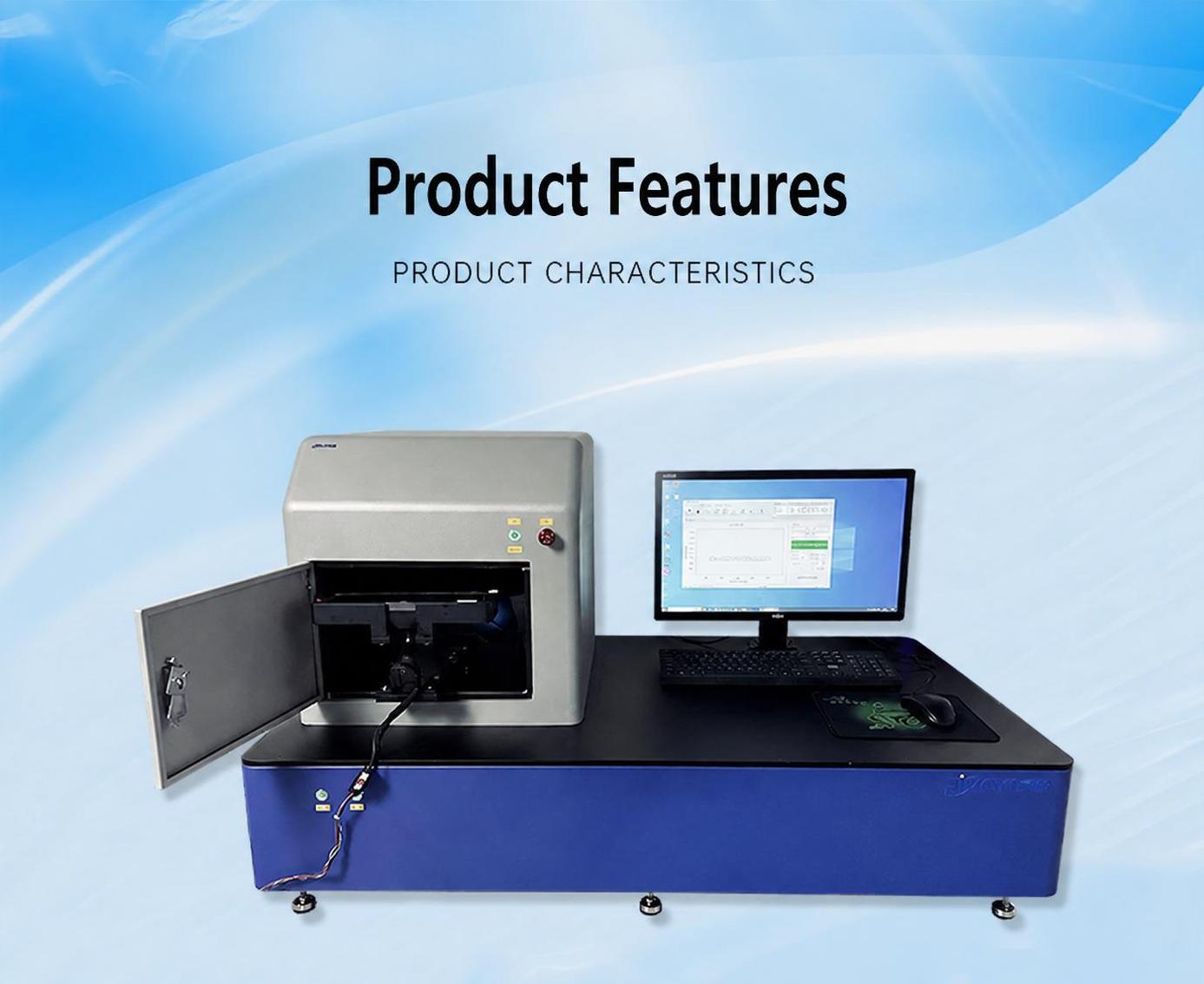

Product Features
Fast measurement speed, single test time 1ms
Customizable online automatic detection solution
Customize judgment criteria
Support high and low temperature environment testing
Easy to operate and flexible to use

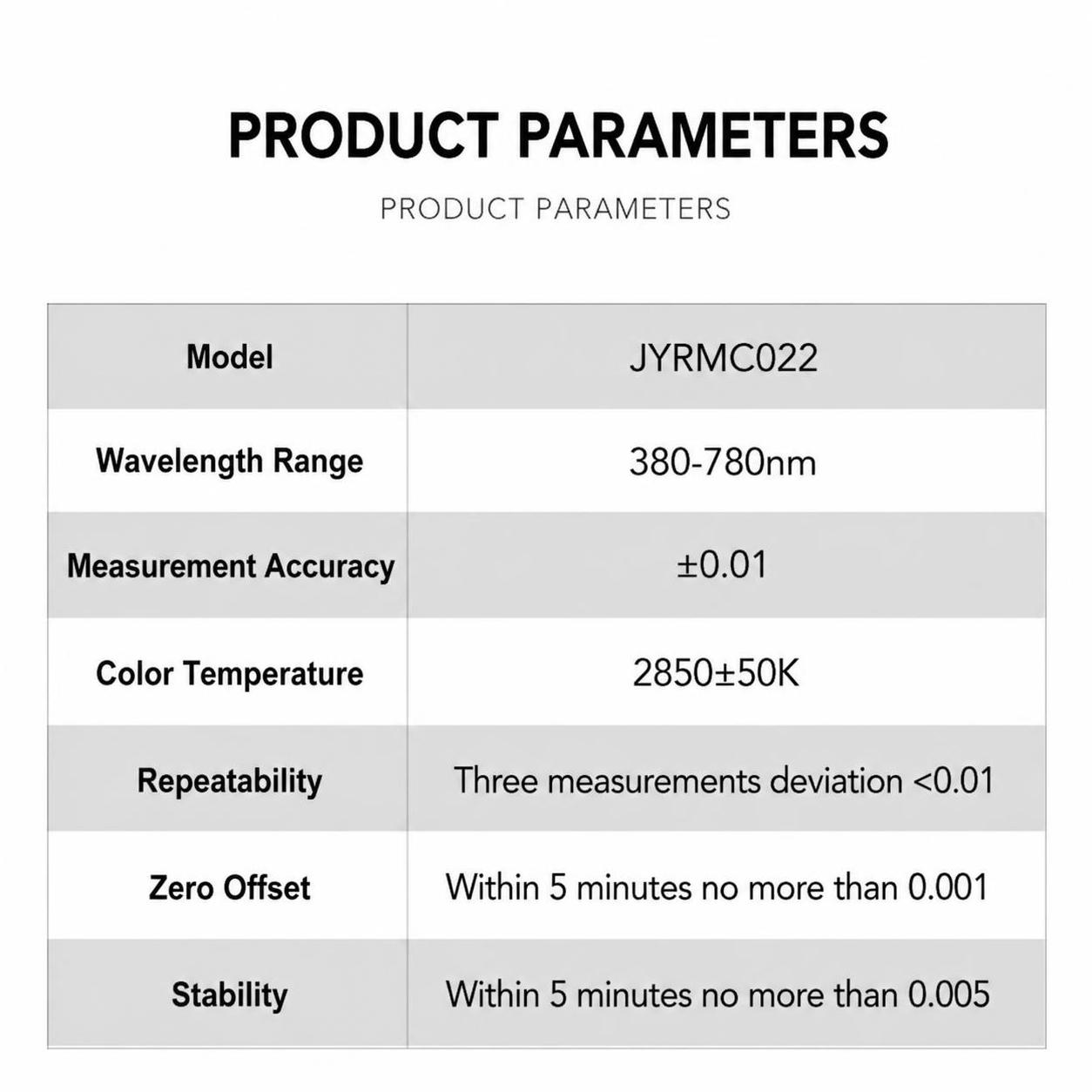

Product Specifications
|
project
|
parameter
|
|
model
|
jyrmc022
|
|
wavelength range
|
380-780nm
|
|
measurement accuracy
|
±0.01
|
|
color temperature
|
2850±50k
|
|
repetitiveness
|
The deviation of three measurements is less than 0.01
|
|
Zero offset
|
Not exceeding 0.001 within 5 minutes
|
|
Stability
|
5 minutes not exceeding 0.005
|
|

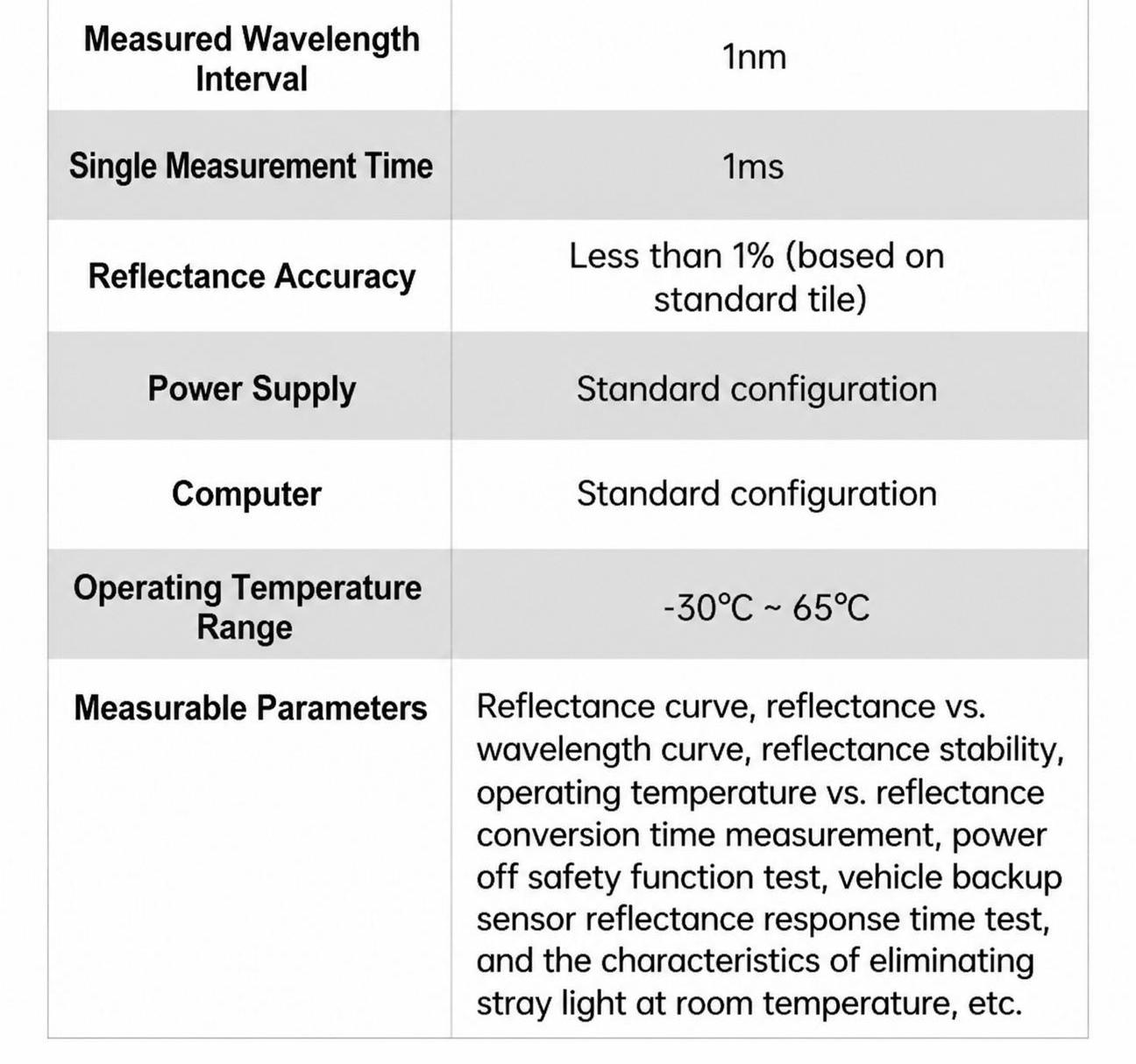

Measure wavelength interval
|
1nm
|
|
Single test time
|
1ms
|
|
Reflectivity accuracy
|
Better than 1% (based on standard film)
|
|
power supply
|
Standard Configuration
|
|
computer
|
Standard Configuration
|
|
Working temperature range
|
-30℃ ~ 65℃
|
|
Measurable parameters
|
Reflectivity curve, reflectivity over time curve, reflectivity stability, measurement of reflectivity conversion time at operating temperature, safety function test during power outage, reflectivity response time test during reverse, glare elimination characteristics at room temperature, etc
|
、
