JY-CUV-VAR Variable Pathlength Cuvette Holder: Precise Measurement of Transmittance, Absorbance, and Concentration
JY-CUV-VAR variable path length cuvette holder for measuring liquid transmittance, absorbance, and concentration

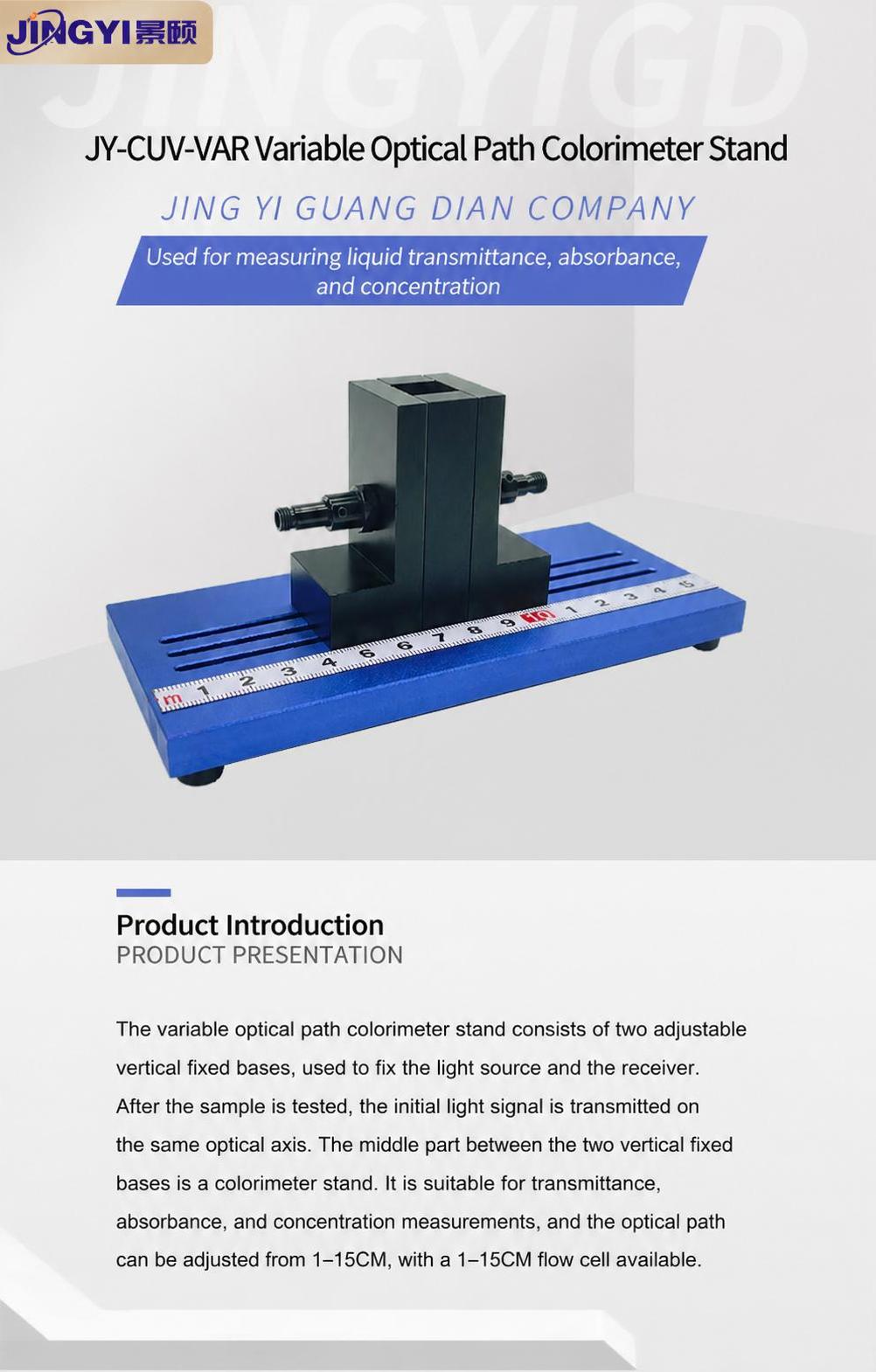

Product Introduction The variable optical path cuvette holder features two adjustable collimating mirror holders on each side. One is used to fix the collimated emission light, while the other receives the light signal after passing through the test item, ensuring the optical path remains on the same axis. In the middle of the two collimating mirror holders is a cuvette holder, suitable for transmittance, absorbance, and concentration measurements. The adjustable optical path ranges from 1 to 15CM and can accommodate a flow cell of 1 to 15CM.

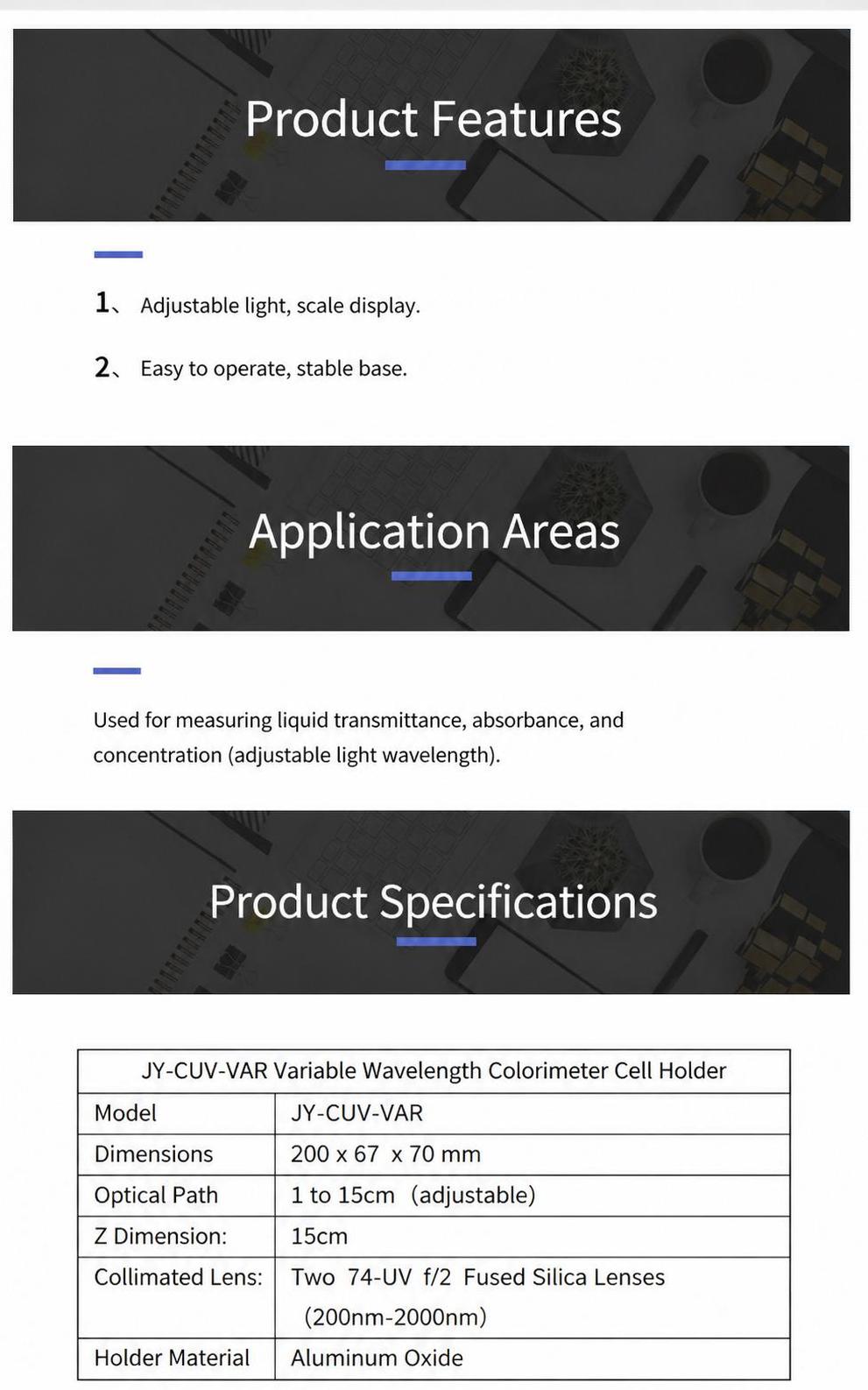

Product Features: 1. Adjustable optical path with scale display. 2. Easy to operate and sturdy chassis.
Application field: Used for measuring liquid transmittance, absorbance, and concentration (with adjustable optical path).
Product Specifications

project	parameter
Product Model	JY-CUV-VAR
size	200 x 67 x 70 mm
optical path	1 to 15cm (adjustable)
Z size	15cm
collimating lens	Two fused silica lenses (200nm-2000nm)
Scaffold materials	Metallic alumina
