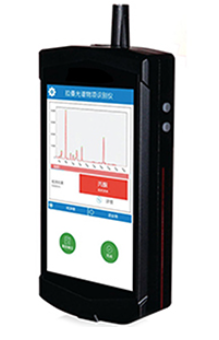

Overview
The ATR6500 is characterized by its ultra-lightweight, ultra-thin design, and compact size, weighing less than 0.6 kg, making it suitable for one-handed operation and highly portable. It can be used for rapid identification of drugs, precursor chemicals, explosives, jewelry, jade, raw materials, and other items on-site in customs, public security, laboratories, workshops, warehouses, docks, and other locations. Additionally, it can be used for rapid detection and identification of additives, pesticide residues, and veterinary drug residues in food.
The ATR6500 is equipped with an excellent built-in Raman spectroscopy recognition algorithm and a standard spectral library containing over 20,000 substances, enabling non-discriminatory detection and easy identification of substances. Additionally, users can add their own spectral data.
Equipped with the Android system, the device boasts a simple and intuitive interface, featuring a 5.5-inch high-definition screen and a dual-camera setup (13 million + 8 million pixels). It allows for instant recording of inspection scenes and is equipped with built-in modules such as Wi-Fi, Bluetooth, and GPS, making it both simple and intelligent.
We will provide comprehensive technical support and services, including the establishment of spectral libraries, method development and validation, as well as IQ/OQ/PQ certification support.
Public safety, food safety, pharmaceutical safety, and rapid non-destructive testing - everything is under your control!

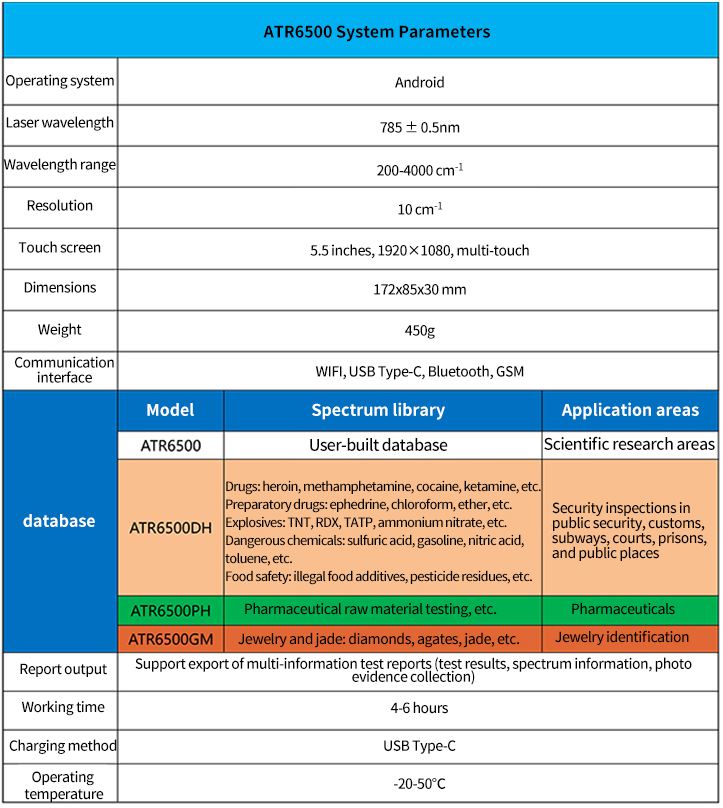

ATR6500 system parameters
Product Features
1. One-click operation, simple and easy to use;
2. Extremely lightweight (only 450 grams);
3. Accurate, rapid, non-destructive, and non-contact material identification;
4. Precise and accurate artificial intelligence recognition algorithm;
5. High-definition 5.5-inch capacitive touch screen, offering superior control experience;
6. Equipped with dual high-definition cameras, it can record law enforcement activities;
7. Accurate GPS positioning;
8. It supports multiple communication methods such as 4G, Bluetooth, and Wi-Fi;
9. The detection results can be generated as a PDF report and exported;
10. Endurance time of built-in lithium battery: 6 hours
01 Application Fields
Counter-terrorism and anti-drug enforcement
university laboratory
Quality inspection and drug supervision
food testing
Oil industry
Archaeological survey
Gem appraisal
02 Application Cases
Public Security Drug Enforcement
Specially suitable for rapid detection of high fluorescence samples such as heroin, opium, fentanyl and other drugs, precursor drugs, and hazardous chemicals.
pharmaceutical factory
On site rapid non-destructive testing of raw materials for safe and efficient production supervision.
jeweler
Used to identify the authenticity of diamonds, gemstones, jade stones, agates, corals, etc.
Plastic particle identification
There are thousands of components in plastic pellets, and their appearance is similar. Raman spectroscopy can identify the specific composition of plastic pellets.
Food/Plastic/Cosmetics Factory
Identify the ingredients of chemical substances such as essence, additives, plastics and cosmetics.
prison
Used for carry on luggage inspection to prevent the carrying of prohibited items such as hazardous chemicals.
Customs
Used for customs inspection of imported and exported goods to prevent the entry and exit of drugs, hazardous chemicals, explosives, and smuggled items.
Consult customer service to obtain detailed materials and exclusive solutions.
