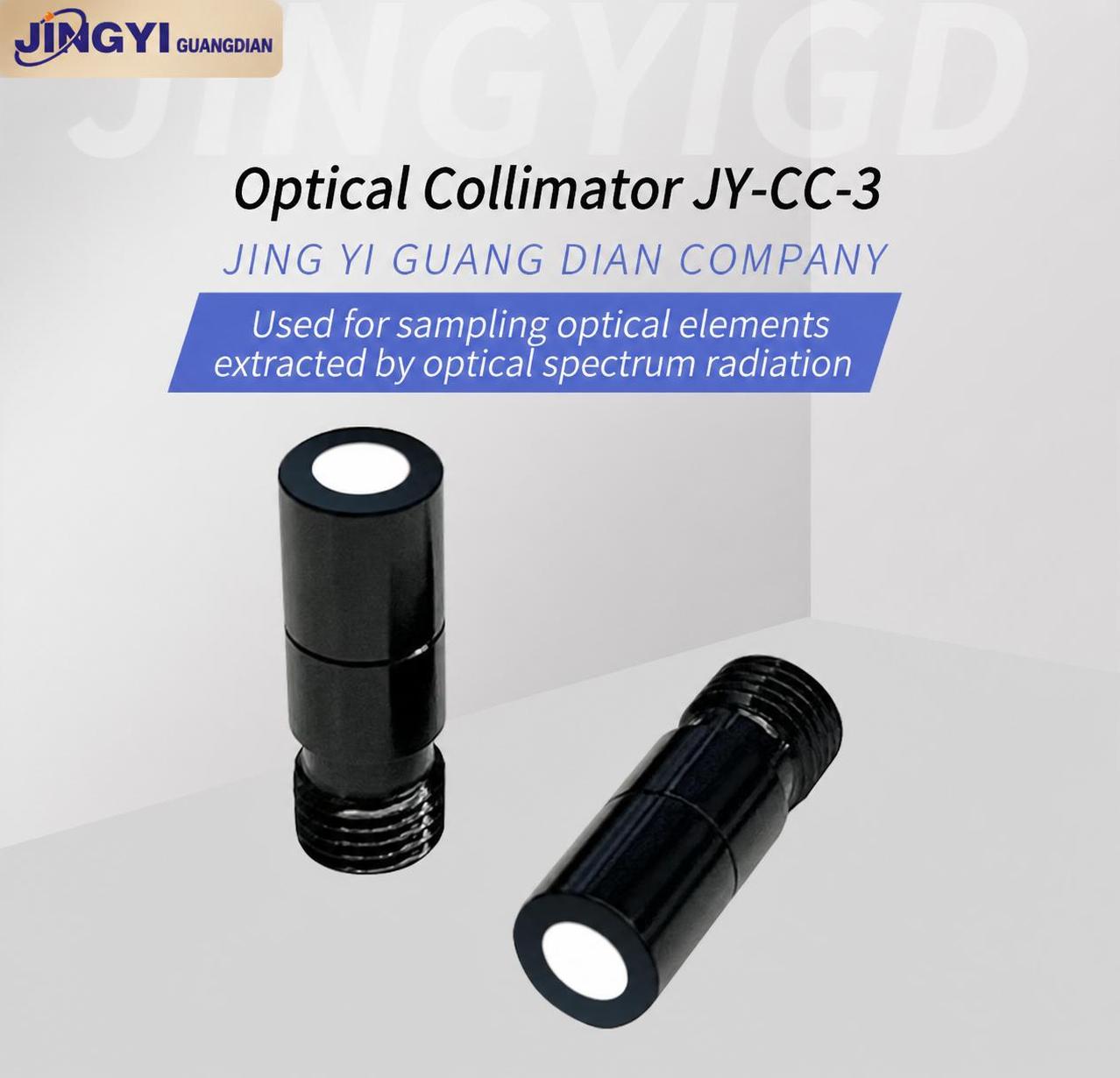

Cosine corrector JY-CC-3: optical element for spectral radiation sampling
Cosine corrector JY-CC-3, an optical component used for spectral radiation sampling

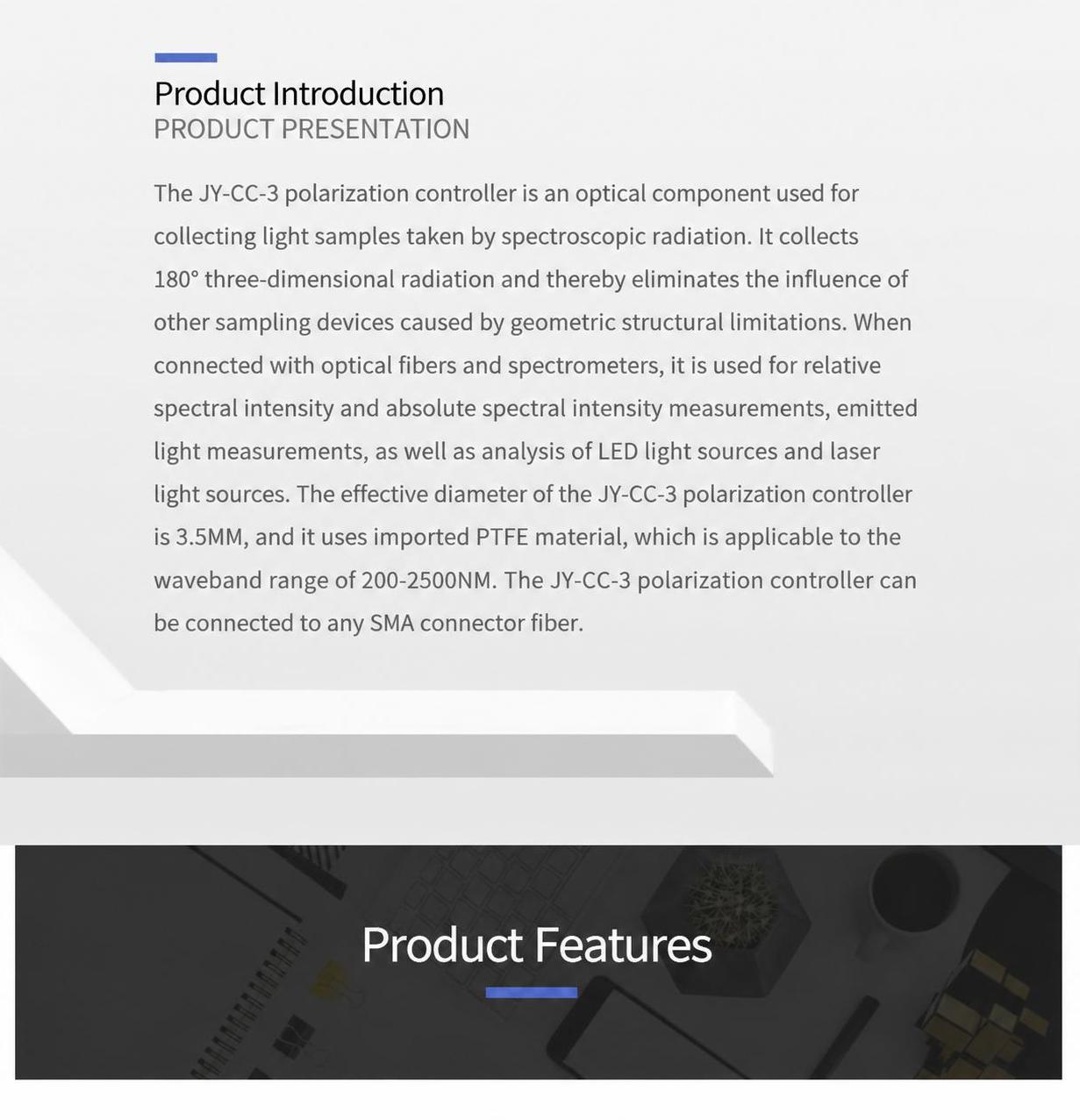

Product Introduction The Cosine Corrector JY-CC-3 is an optical component used for spectral radiation sampling, designed to collect radiation within a 180° solid angle, thus eliminating the optical coupling issues caused by the geometric limitations of light collection and sampling in other sampling devices. It is connected to optical fibers and spectrometers for relative and absolute spectral intensity measurements, emission spectrum measurements, as well as analysis of LED and laser light sources. The JY-CC3 Cosine Corrector has an effective diameter of 3.5MM, is made of imported PTFE material, and can be used in the wavelength range of 200-2500NM. The Cosine Corrector can be connected to any optical fiber with an SMA connector.

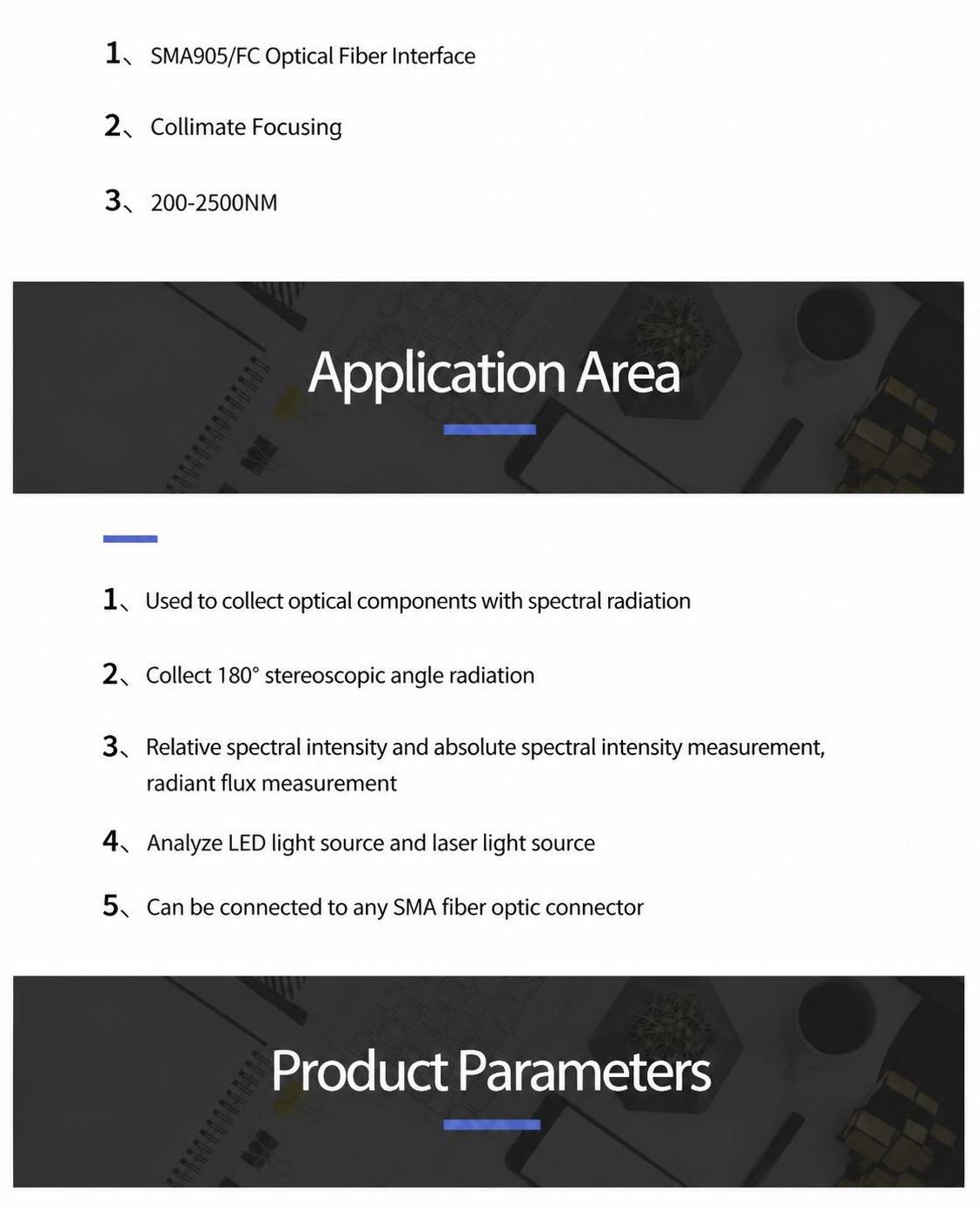

Product Features: 1. SMA905/FC fiber optic interface 2. Collimation and focusing 3. 200-2500NM
Application areas: 1. Optical components for spectral radiation sampling 2. Collection of radiation within a 180° solid angle 3. Measurement of relative and absolute spectral intensity, emission spectroscopy 4. Analysis of LED and laser light sources 5. Can be connected to any SMA-connectorized optical fiber

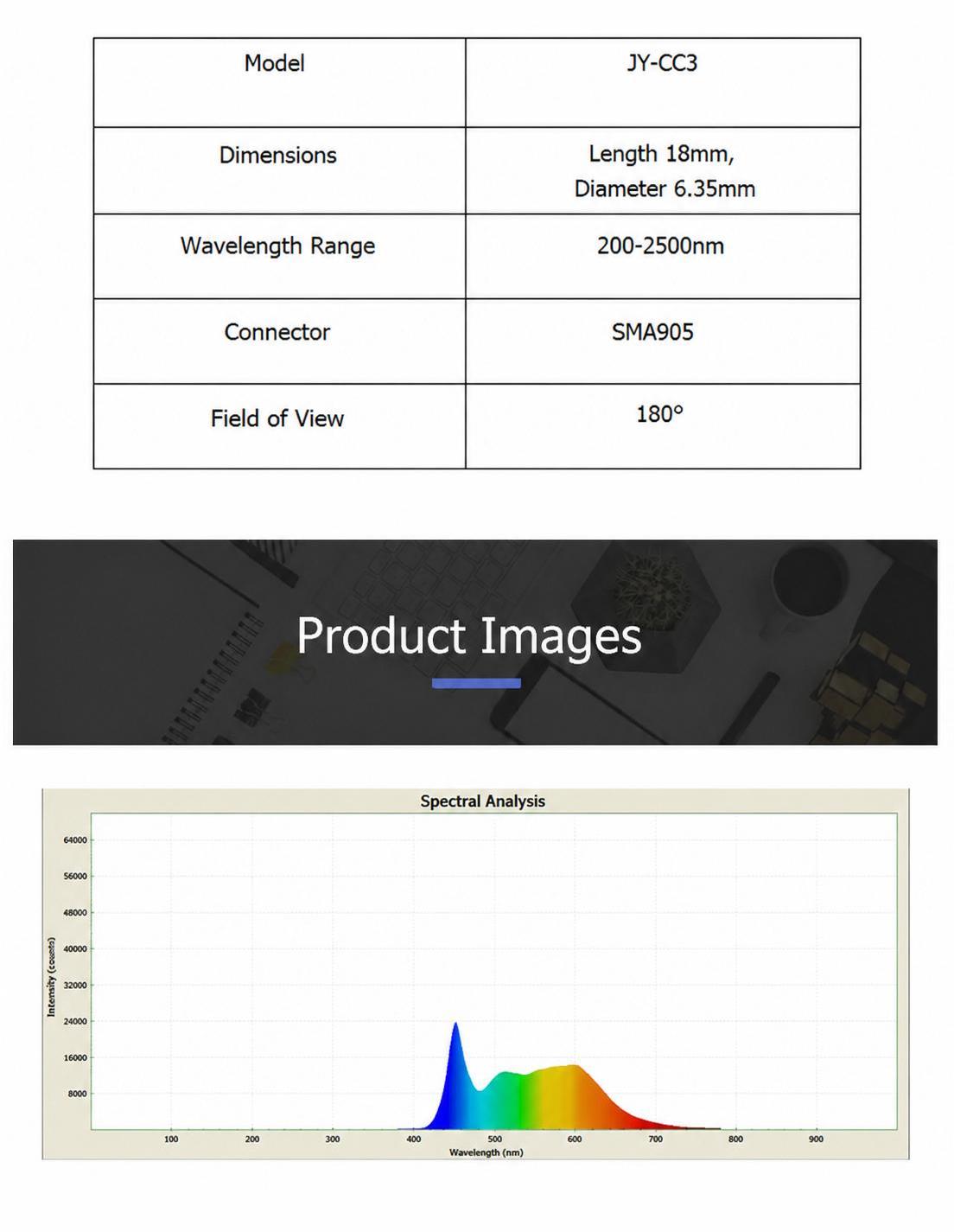

Product Specifications

model	JY-CC3
Overall dimensions	Length 18mm, diameter 6.35mm
wavelength range	200-2500nm
interface	SMA905
field of view	180°
