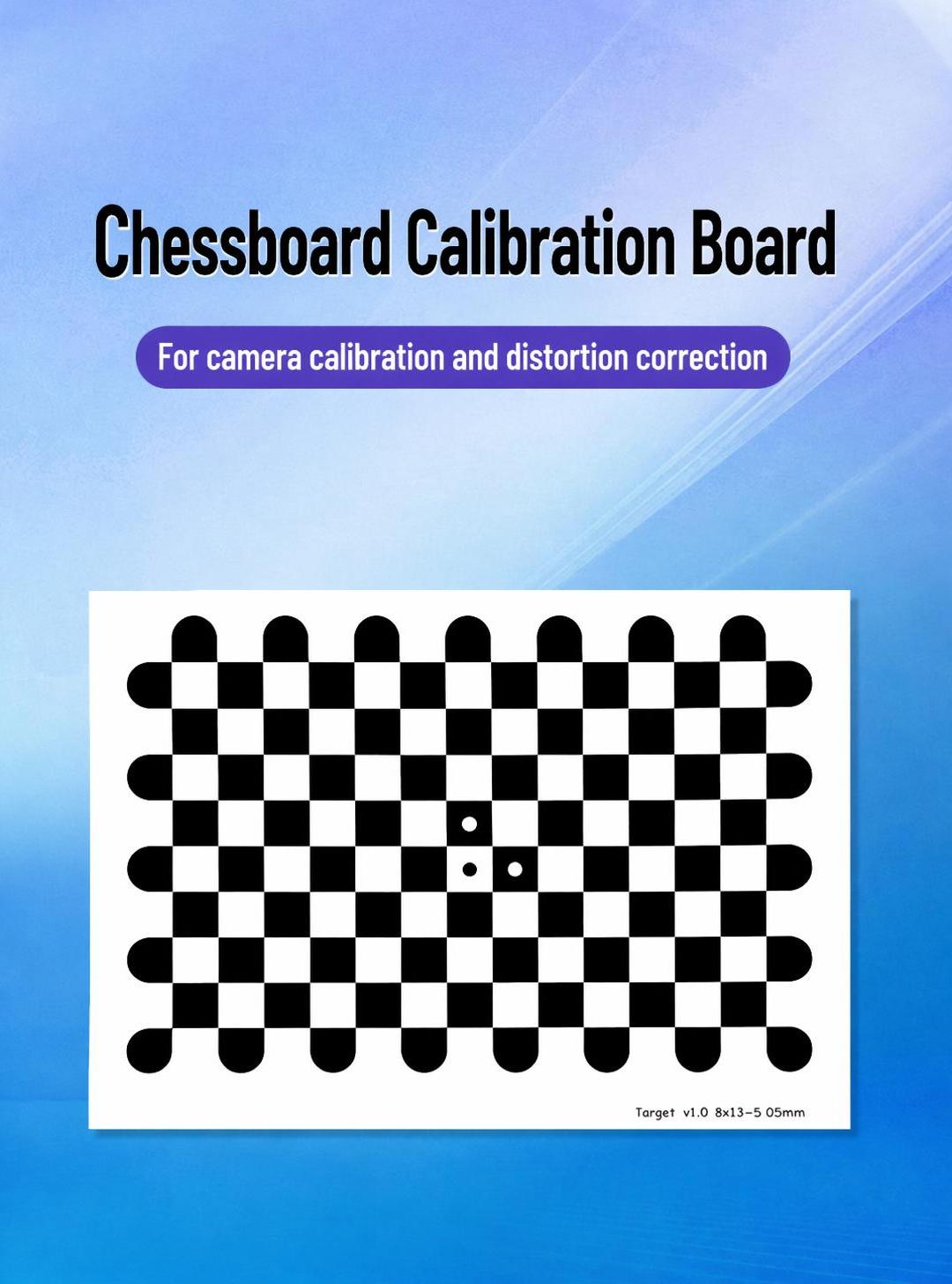

Checkerboard Calibration Board: The Key to Camera Calibration and Distortion Correction

Checkerboard calibration board is used for camera calibration and distortion correction

Product Introduction Chessboard Pattern Calibration Board, which has a black and white checkered pattern on its surface similar to a chessboard. These grid patterns are used as known feature points in machine vision systems for camera calibration and distortion correction. It is a widely used tool in fields such as machine vision, image processing, and optical correction, and plays an important role in multiple application scenarios with its unique design and high-precision characteristics.

Application field: machine vision: in industrial automation, robot navigation and other fields, it is used for camera calibration and distortion correction to improve the accuracy and stability of the machine vision system Automatic driving: in driverless cars, unmanned aerial vehicles and other fields, it is used for camera calibration and sensor calibration to improve the accuracy and security of the auto drive system Photogrammetry: in virtual reality, augmented reality and other fields, it is used for three-dimensional reconstruction and scene reconstruction to determine the internal and external parameters of the camera

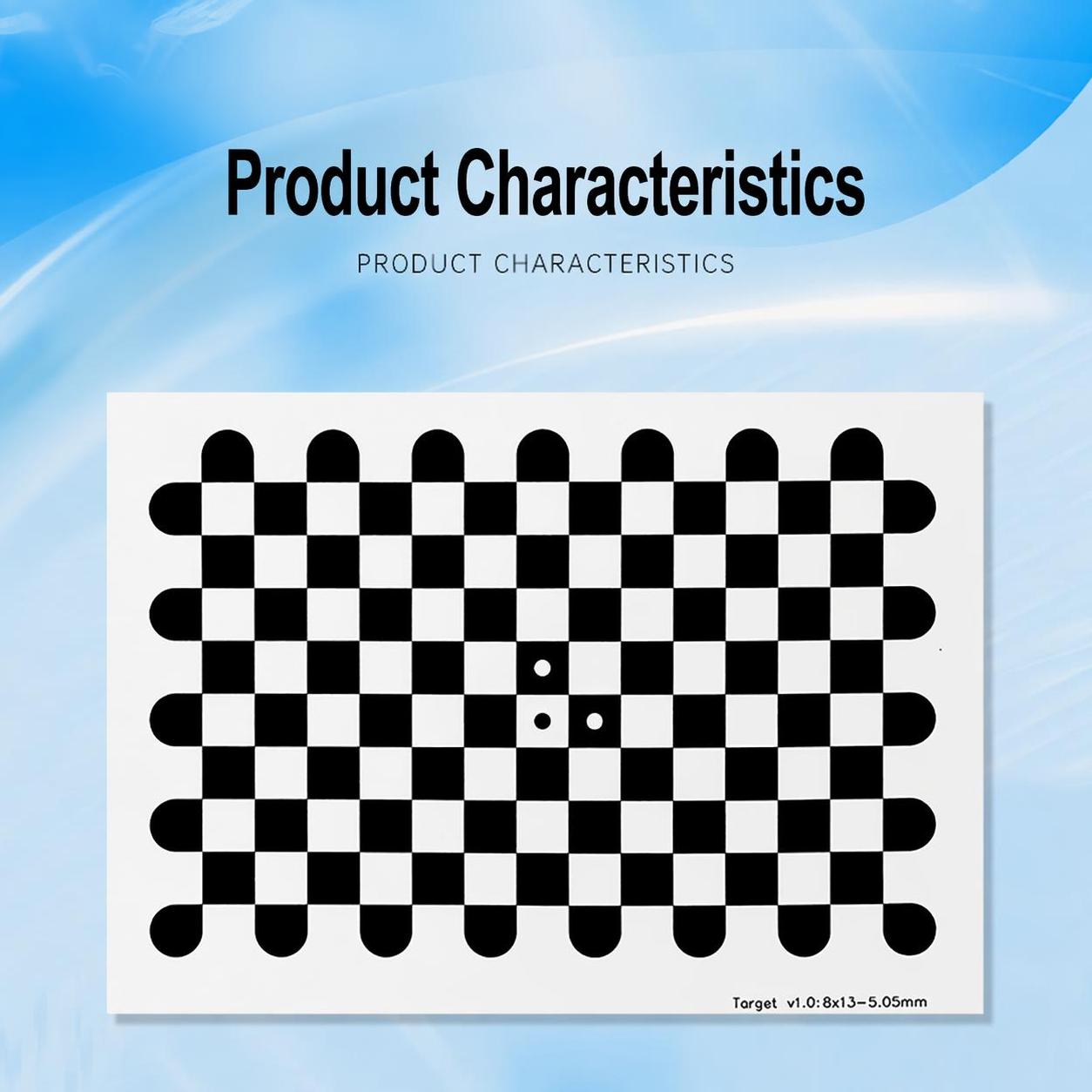

Product features: High precision: The black and white checkered pattern design has high precision and can accurately correct distortions and errors in the visual system. Durability: Made of high-quality materials, it has good durability and strong adaptability. Its diffuse reflection characteristics help avoid reflection and light transmission problems, improving the flexibility and adaptability of use. Standardized design: Its design usually follows certain standards to ensure the accuracy and repeatability of calibration results

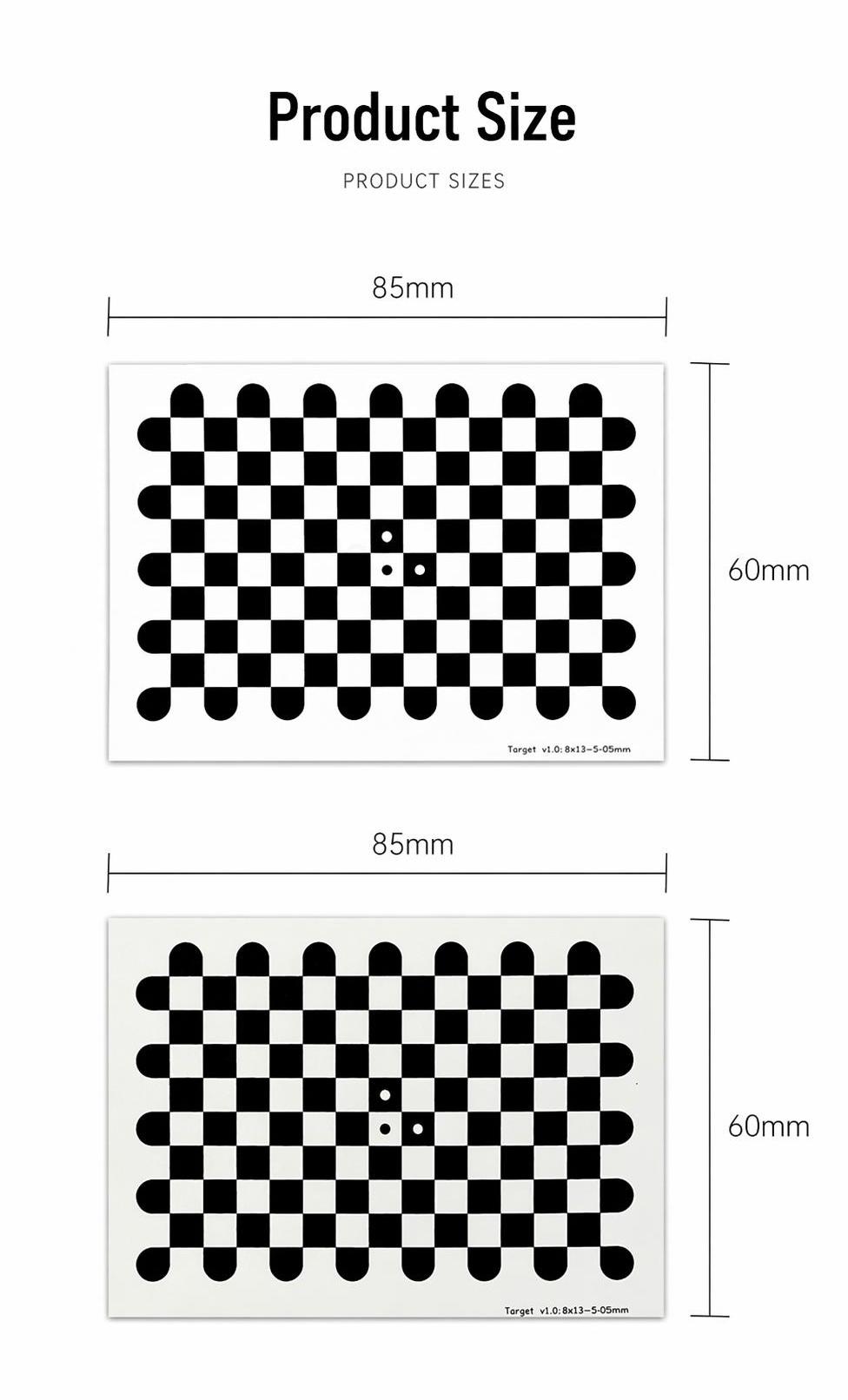

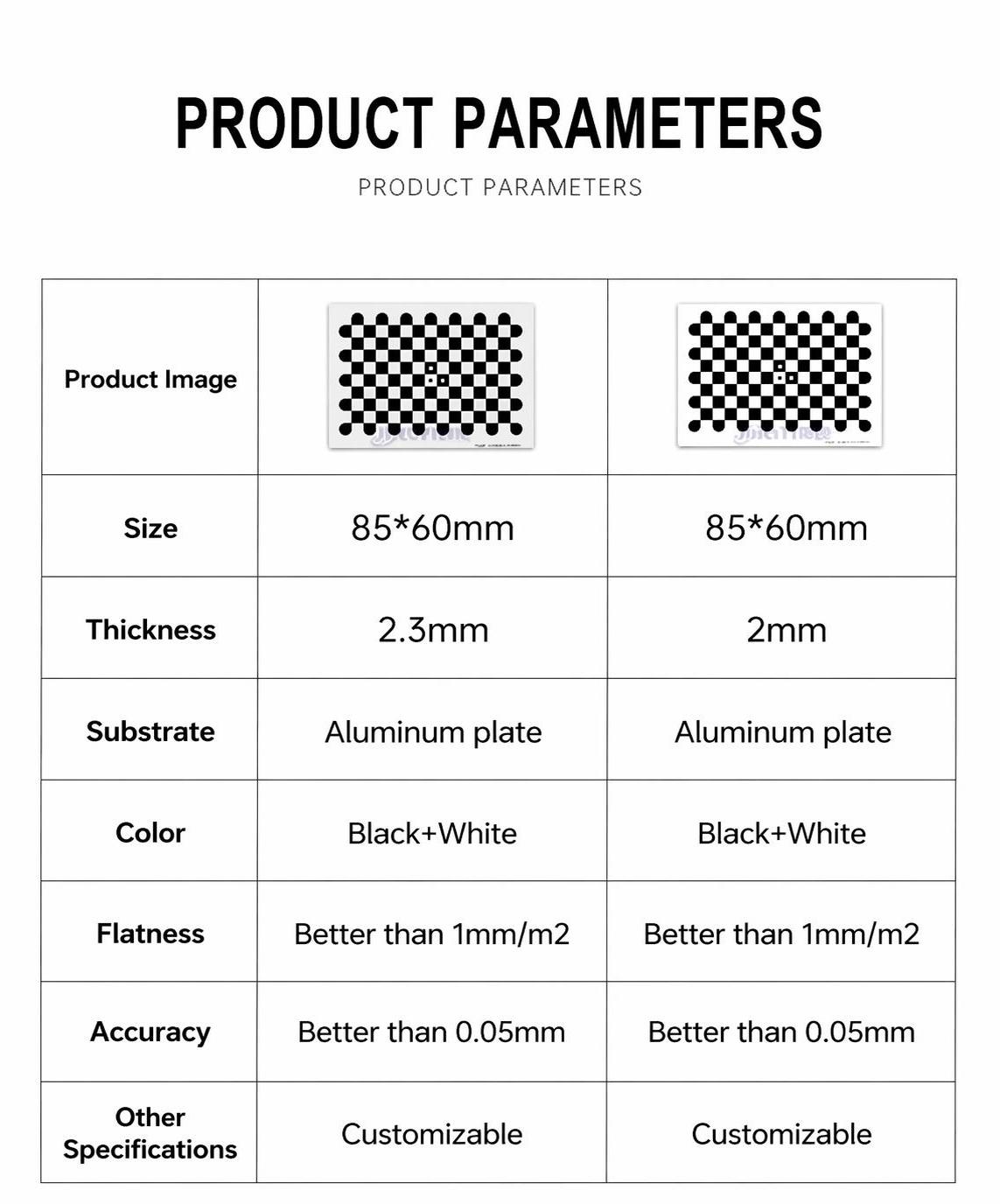

Product Specifications
