Product description
The JY-QEY6500-EL electroluminescence test system is consistent with the photoluminescence solution. It is designed with a modular concept and is particularly suitable for use in glove boxes. It uses the industry's flagship spectrometer and can accurately measure quantum efficiency, brightness, chromaticity, etc., truly realizing the simultaneous preparation and testing.
There are two configurations for the EL test solution, which are adapted to different sample morphologies, device brightness and test requirements. With the source meter and software, the device can be measured more accurately.
Solution 1: High degree of integration, adapted to wireless remote control automated testing, 3.3-inch integrating sphere is more suitable for high-brightness samples, special fixtures can be customized according to the device, and PL can be expanded.

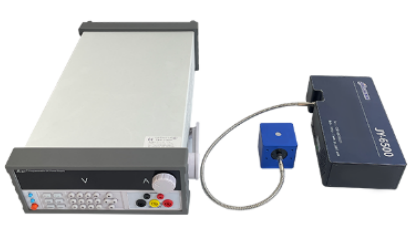

Solution 2: Highly flexible probe station solution, single-point testing, small-volume special-shaped samples are applicable, 1.5-inch integrating sphere, can test low-brightness samples, easy to install, compact and flexible.
Customizable solution: It can adapt to devices and integrating spheres of different sizes and structures, and customize systems or special fixtures to meet special testing needs.
Measurable parameters
Brightness
Color coordinates
Dominant wavelength
Quantum efficiency
Quantum efficiency vs. current density curve
Product parameters
|
System Configuration
|
|
Model
|
JY-QEY6500-EL
|
|
Spectrometer
|
Model
|
JY-6500
|
JY-NIR1700
|
|
Spectral range
|
350-1100nm
|
900-1700nm
|
|
Signal-to-noise ratio
|
1000:1
|
1500:1
|
|
Resolution
|
1-2.5nm
|
3-10nm
|
|
Dynamic range
|
85000:1
|
15000:1
|
|
AD bits
|
16-bit
|
16-bit
|
|
Integrating sphere
|
Dimensions
|
3.3 inches
|
|
Coating material
|
PTFE
|
|
Sample aperture
|
1.5 inches
|
|
Source meter
|
Keithley 2400 optional
|
|
Fiber optic
|
Core diameter
|
1000um (other core diameters available)
|
|
Length
|
1 meter (other lengths available)
|
|
Calibration lamp
|
Power
|
5W (electrical power)
|
|
Software
|
JY-QY dedicated software
|
|
Accessories
|
Sample dish
|
Solid, liquid, powder sample dish
|
|
Stand
|
Integrating sphere holder
|
|
Cuvette
|
Quartz cuvette (optional)
|
Product images

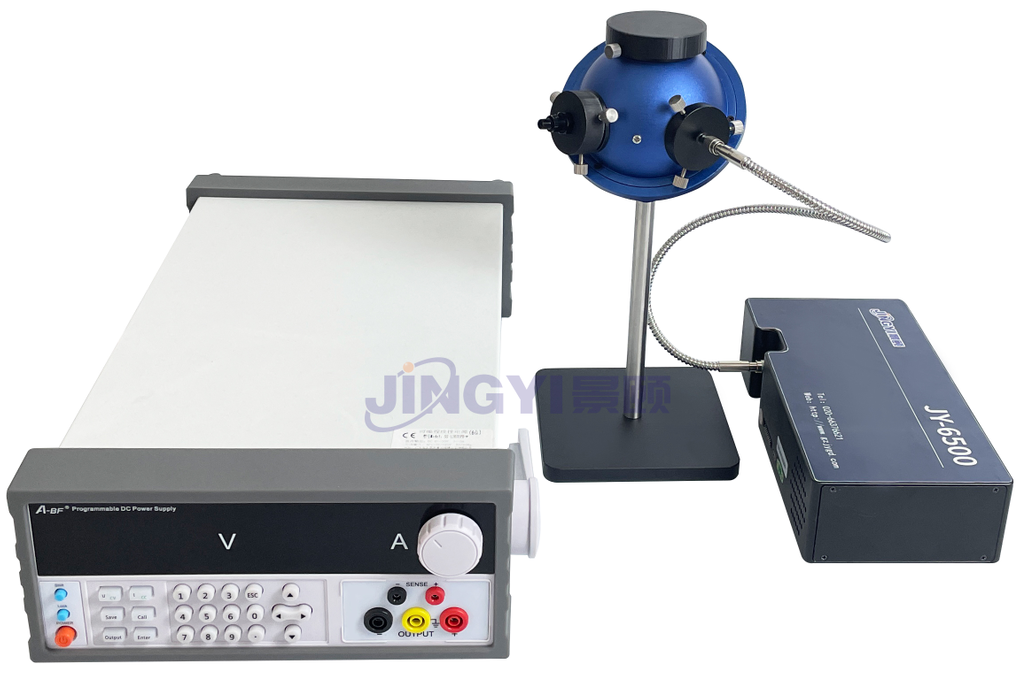

Solution 1: High degree of integration, suitable for wireless remote control automated testing, 3.3-inch integrating sphere is more suitable for high-brightness samples, special fixtures can be customized according to the device, and PL can be expanded.

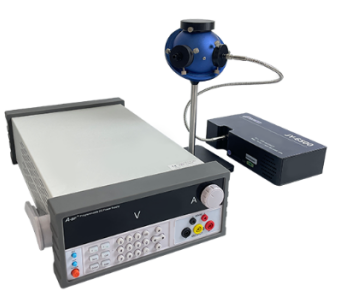

Solution 2: Highly flexible probe station solution, single-point testing, suitable for small-volume and special-shaped samples, 1.5-inch integrating sphere, can test low-brightness samples, easy to install, compact and flexible.
Consult customer service to obtain detailed materials and exclusive solutions.
Tel: 400-1800-685
Email:info@gzjygd.com
