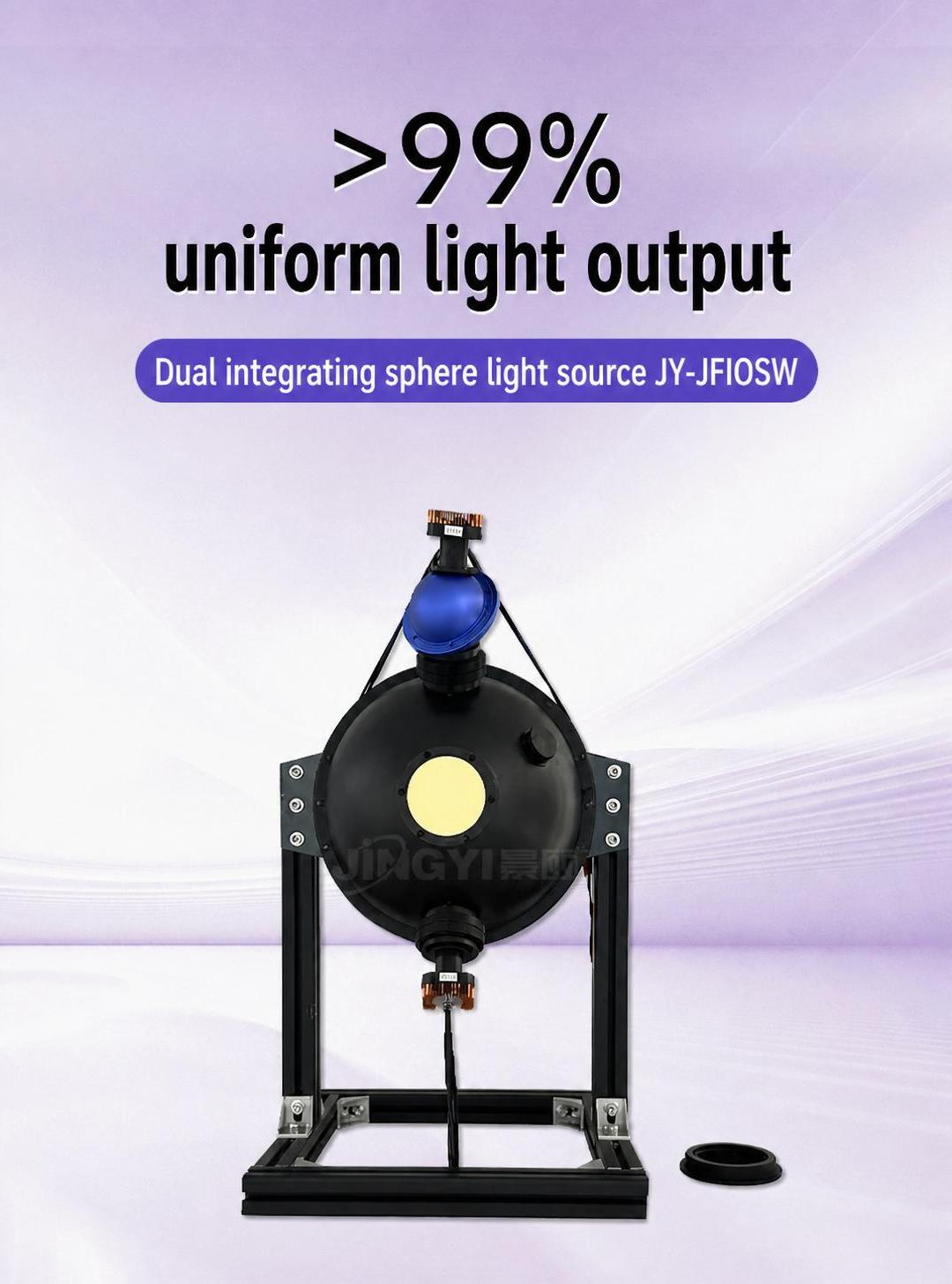

Dual integrating sphere light source: 99% high uniformity output

Product Introduction: Jingyi Optoelectronics is a standard light source designed for testing weak light and high uniformity requirements. It adopts a dual integrating sphere design, with a uniformity output of over 99%. The light source intensity can be adjusted as low as 1x10 ⁻⁷ lux weak light, and can be applied to highly sensitive microphotophotometers, image intensifiers, low light night vision devices, telescopic photometers, hyperspectral radiometers, and spectral radiometric calibration or correction.
Application areas: Digital cameras, camera remote sensing instruments, CCD cameras for biology, low light imaging and quantitative measurement simulation of starlight and moonlight. Imaging systems in large and small aperture space remote sensing detection systems laboratories, imaging systems in device laboratories, calibration films for devices, digital cameras, camera uniformity correction. Spectral response characteristics are suitable for calibration of remote sensing instruments, CCD cameras, image arrays, and other detectors. Biology, low light imaging, and quantitative measurement calibration are used for uniform output in low light, such as simulating starlight and moonlight for calibration of low light measurement cameras, such as fluorescence measurement systems for calibration of large and small aperture space remote sensing detection systems for uniformity correction

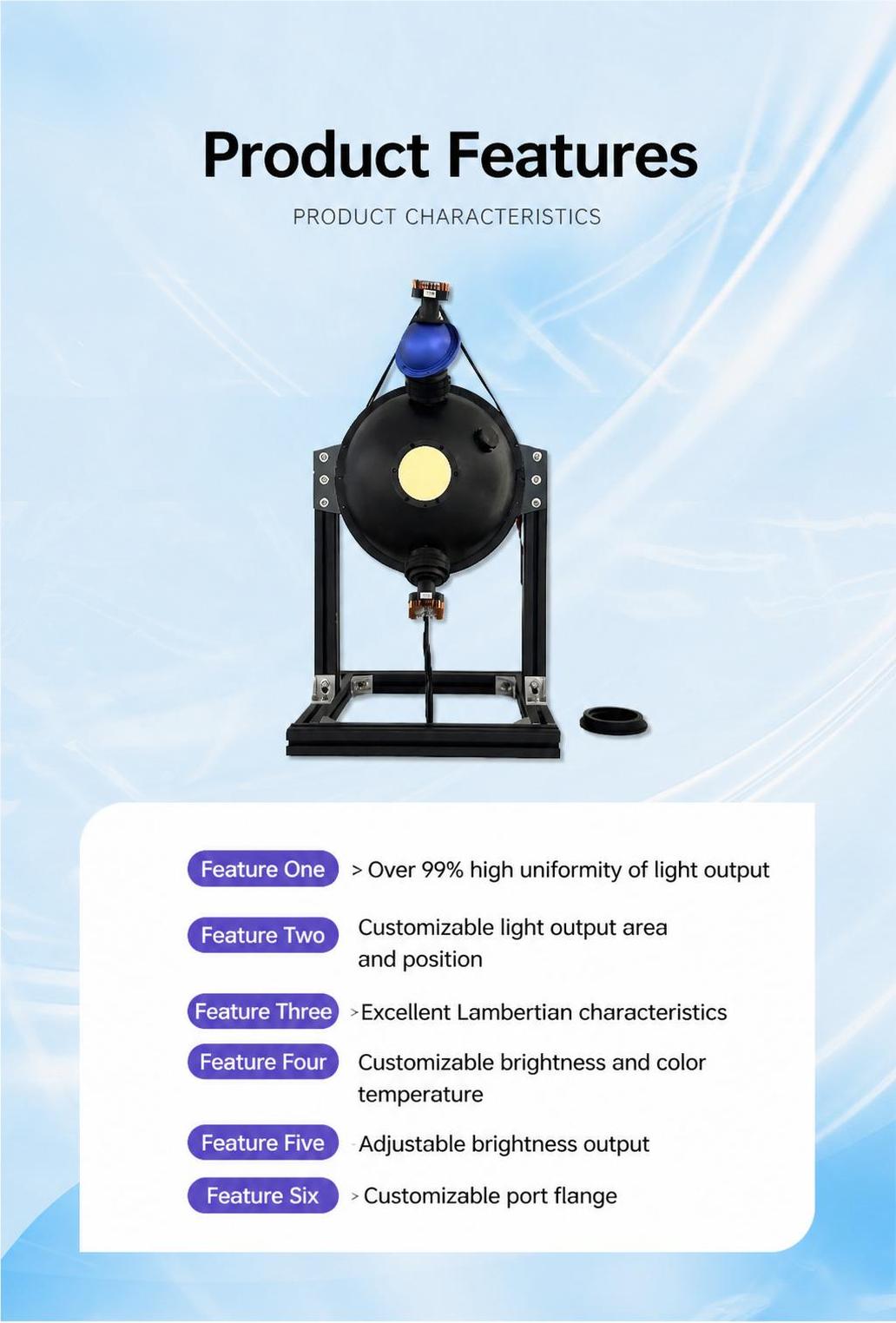

Product Features

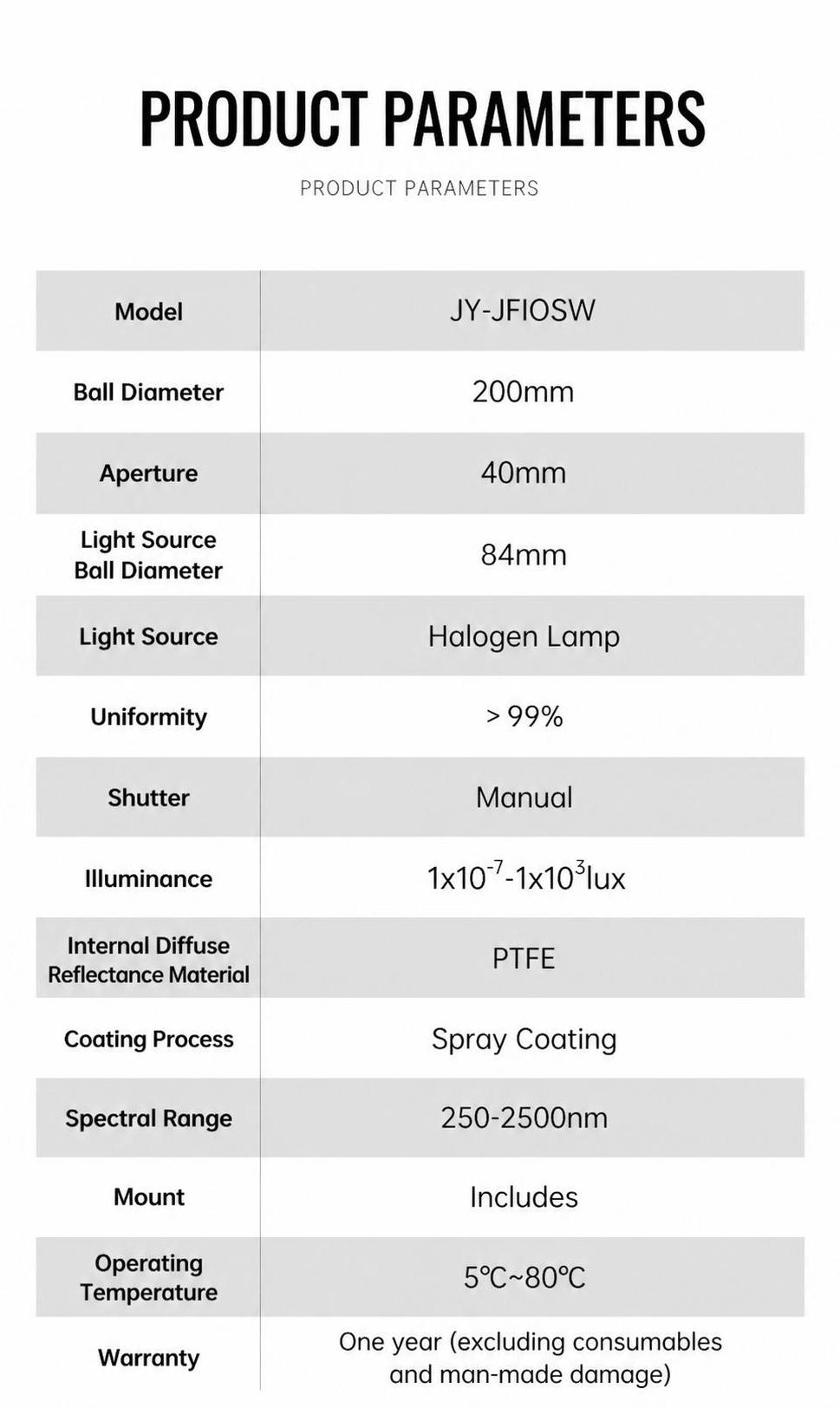

Product Specifications

model	JY-JFIOSW
sphere diameter	200mm
open one's mouth	40mm
Diameter of light source sphere	84mm
light source	halogen lamp
uniformity	>99%
aperture	manual
Illuminance	1x10⁻⁷-1x10³lux
Inner liner diffuse reflective material	PTFE
Coating process	spraying
Coating spectral range	250-2500nm
support	contain
Temperature range for use	5℃~80℃
warranty	One year (excluding consumables and human damage)
