Introduction to JY-CUV-VAR four-way cuvette and collimating lens

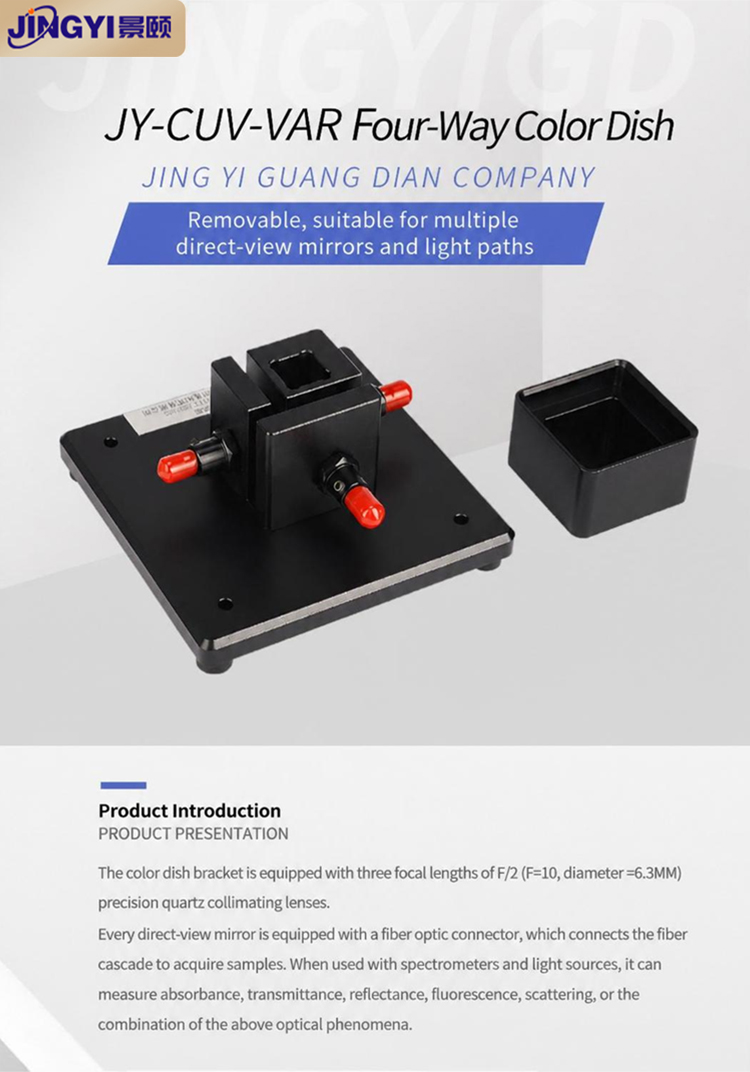

JY-CUV-VAR four-way cuvette with detachable collimating lens for versatile use
Product Introduction The cuvette holder comes standard with three quartz collimating lenses with a focal length of F/2 (F=10, diameter = 6.3MM). Each collimating lens is equipped with a fiber optic connector, which is connected to a fiber optic cable to read or illuminate the sample. When used in conjunction with a spectrometer and a light source, it is capable of measuring absorbance, fluorescence, scattering, or any combination of these optical phenomena.

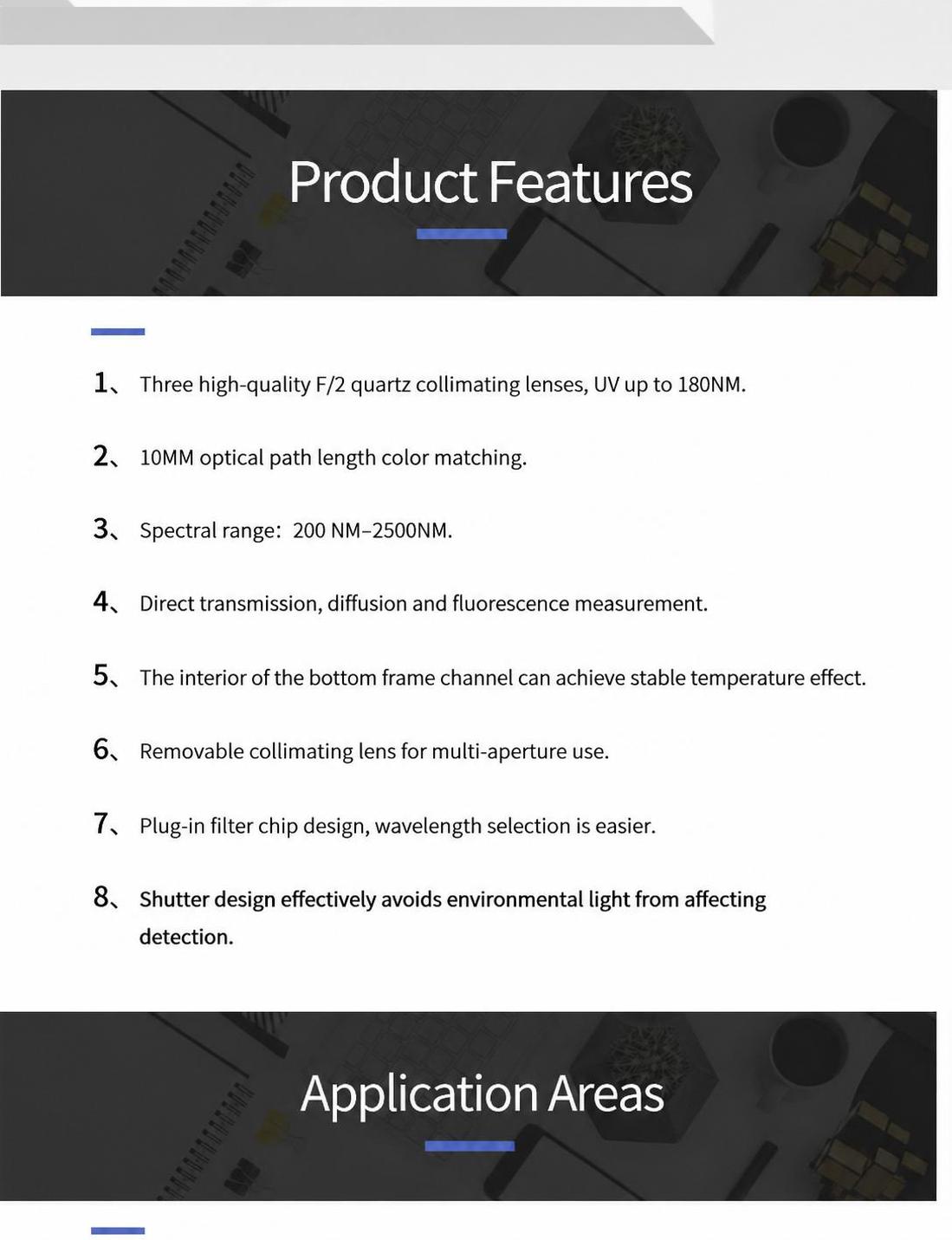

Product Features: 1. Three high-quality F/2 quartz collimating lenses with UV coverage up to 180NM. 2. Compatible with cuvettes with a 10MM optical path. 3. Wide spectral range: 200 NM-2500NM. 4. Capable of through-transmission, scattering, and fluorescence measurements. 5. Internal channels in the base frame for achieving stable temperature effects. 6. Removable collimating lenses for versatile use. 7. Plug-in filter design for easier wavelength selection. 8. Cap design to effectively avoid the impact of ambient light on detection.
Application Fields: Used for measuring liquid transmittance, absorbance (0-degree measurement), concentration, and fluorescence spectrum (90-degree vertical measurement).

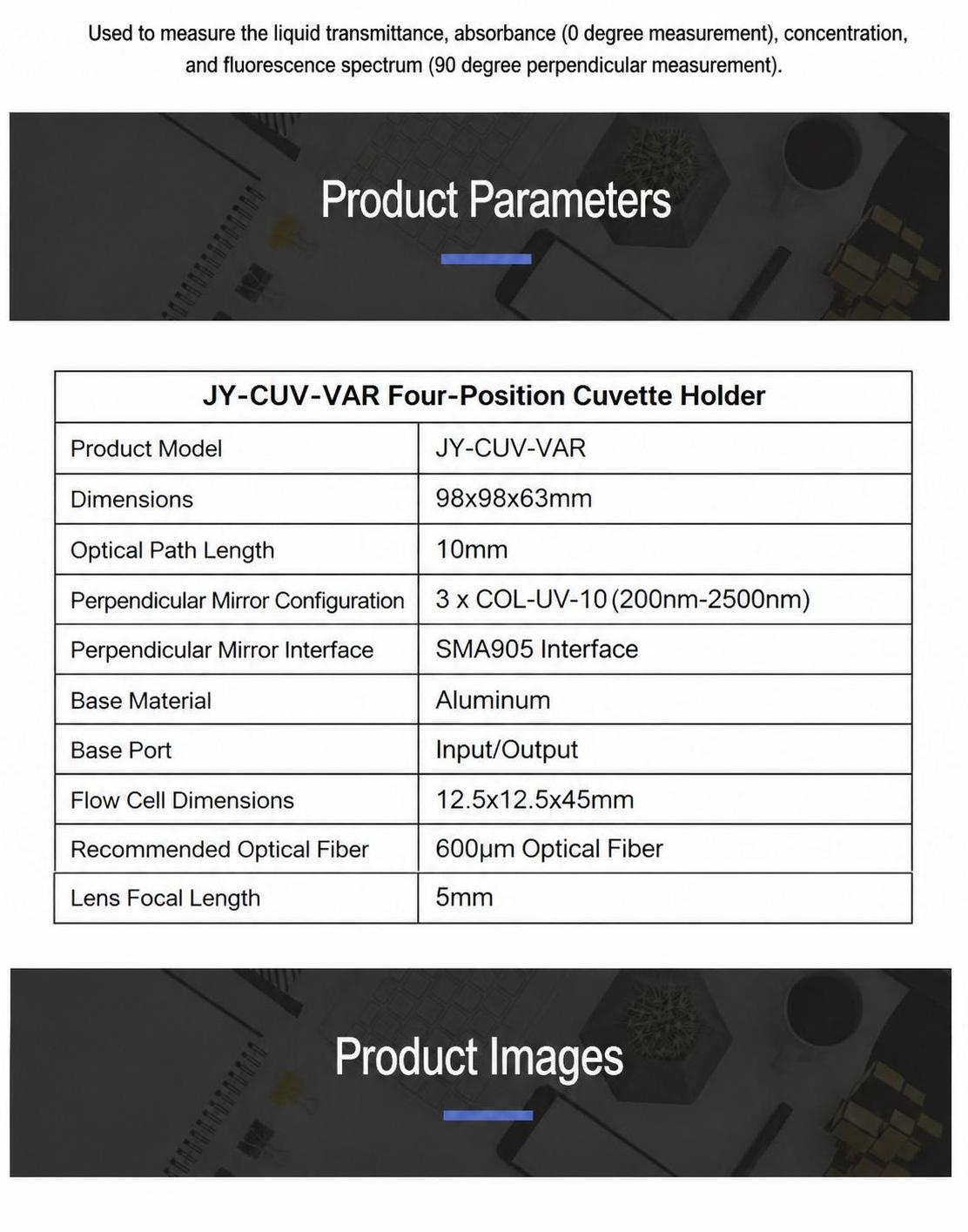

Product Specifications

JY-CEV-VAR Four way Colorimeter
Product Model	JY-CUV-VAR
size	98x98x63mm
optical path	10mm
Collimator mirror configuration	3 个 COL-UV-10 (200nm-2500nm)
Collimator interface	SMA905 interface
Base material	aluminium
Base path	Input/Output
Flow pool size	12.5x12.5x45mm
Recommended fiber configuration	600μm optical fiber
Lens focal length	5mm
