Lidar MRT: a laser radar test board with precise reflectivity

Accurate reflectivity data
Authoritative organization testing
Lidar diffuse reflector plate
Product Introduction
With the rapid development of LiDAR technology, LiDAR has been widely used in automotive autonomous driving and mobile LiDAR scanners. The lidar dedicated test board produced by Jingyi Optoelectronics can be used for target distance calibration of LiDAR, allowing LiDAR to more accurately determine surrounding faulty objects and their motion trajectories. The reflectivity commonly used for laser radar calibration includes three reflectivity levels: 10%, 50%, and 90%. If high calibration accuracy is required, more step reflectivity can be customized.
Jingyi Optoelectronics adopts independently developed technology and processes, with a reflectivity of 40% and a diffuse reflection plate size of 1mx1m. Other sizes can also be customized, all of which have nearly perfect Lambertian characteristics and stability, allowing laser radar calibration to achieve optimal testing results.
Partial application areas
01 Lidar
02 Flight Time (TOF)
03 auto drive system
04 Mobile Lidar Scannei Testing System
05 Band Range Sensitivity Test

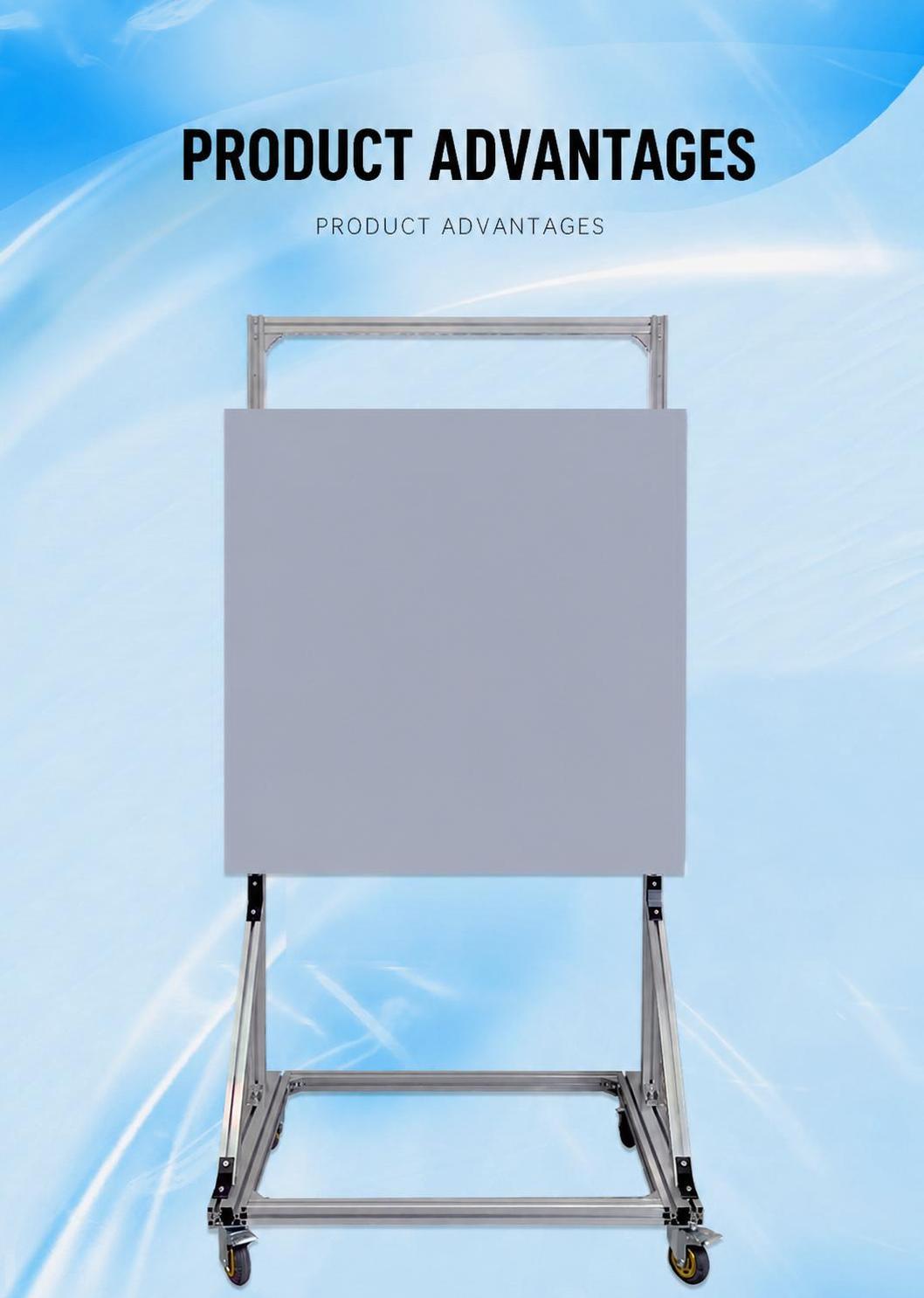

Product Advantage
Using a wavelength of 905nm
Reflectivity of 40% and flat spectrum
Has nearly perfect Lambertian characteristics
Comes with factory reflection detector report
Accurate reflectivity data detected by authoritative institutions
Has excellent diffuse reflectance testing effect

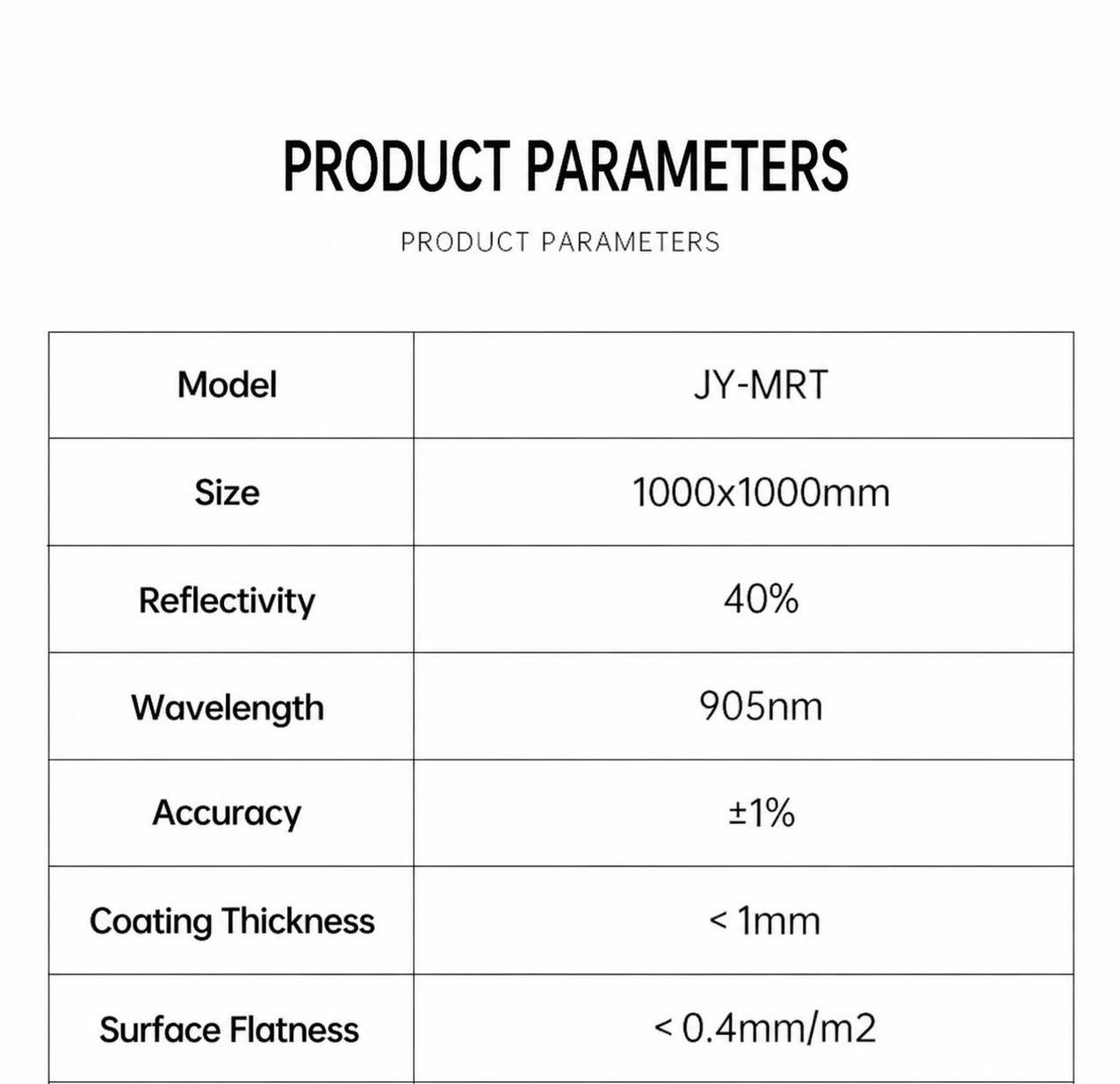

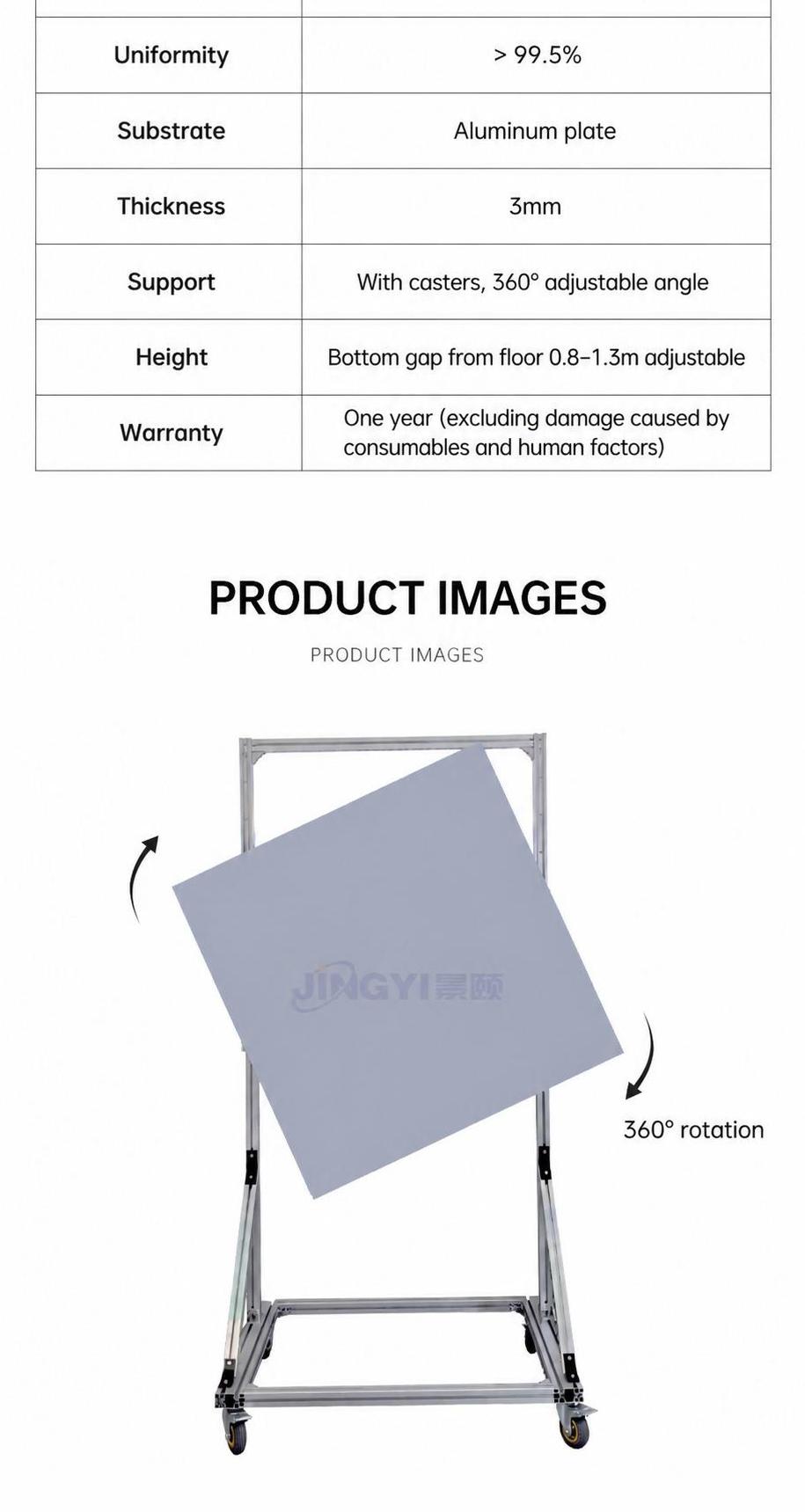

Product Specifications
