JY-UNS390 and JY-UNS540 Spectral Simulators: Professional Lighting Solutions

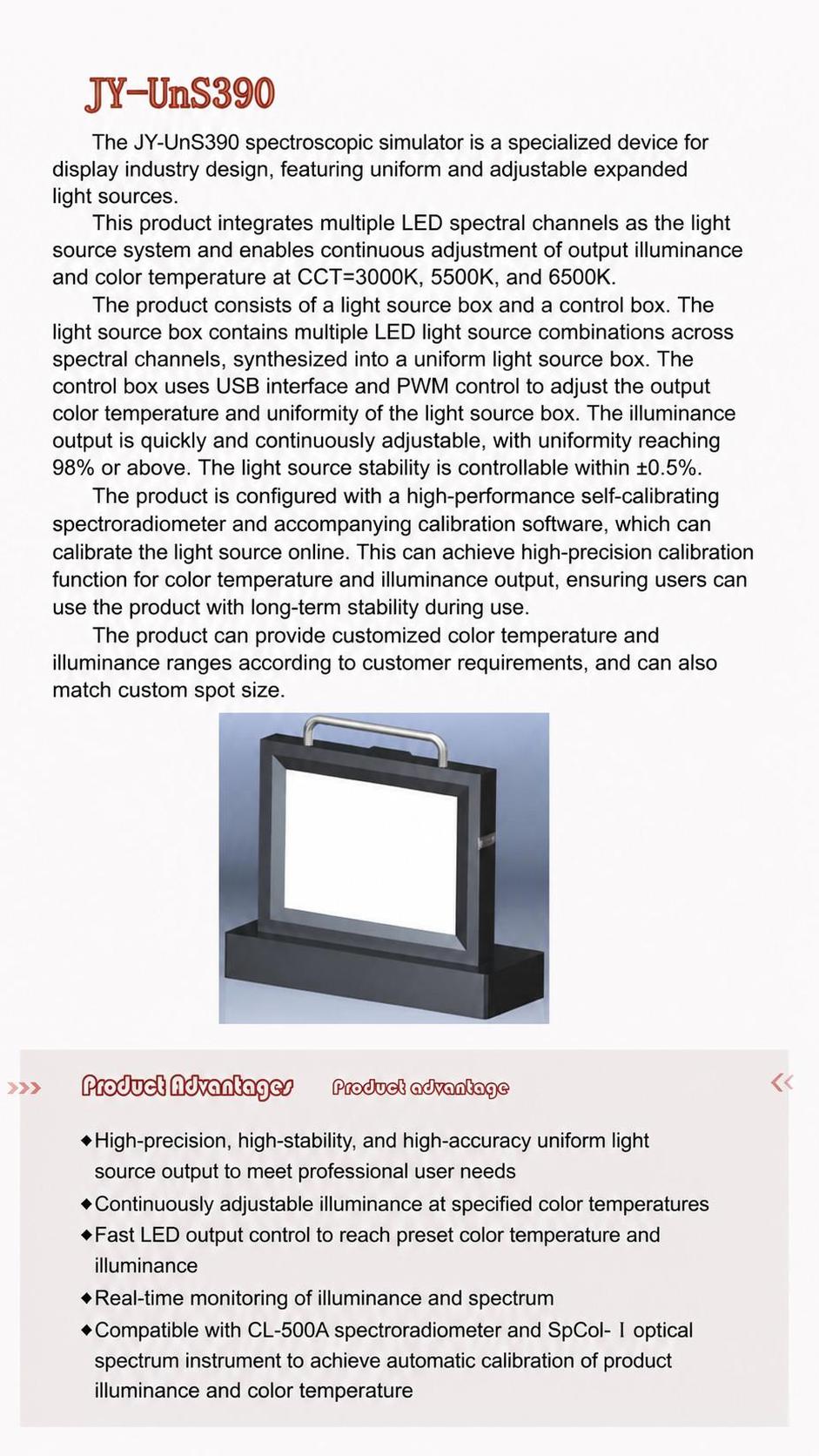

JY-UNS390 Spectral Simulator is a uniformly adjustable extended light source designed specifically for the display industry. This product combines multiple spectral channels of LED light source groups as a lighting system, achieving constant color temperature adjustable light source output illumination at CCT=3000K, 5500K, and 6500K. The product includes two parts: a light source box and an electrical control box. The light source box is equipped with multiple spectral channels of LED light sources combined to form an LED uniform light source box. The electric control box uses PWM control method through USB interface to control the output color temperature and uniform illumination of the light source box. The output illuminance can be quickly and continuously adjusted, and the output uniformity can reach over 98%. The stability of the light source can be controlled within ± 0.5%. The product is equipped with a high-performance self-made spectrometer and calibration software before leaving the factory. It can calibrate the spectrometer online and also communicate with the CL-500A spectral illuminance meter to control it, achieving automatic calibration of the product's illuminance and color temperature output, ensuring that users can use products with long-term stability during application. This product can provide customized color temperature and illumination range according to customer needs, and can also match customized size light spots.
Product advantages: High precision, high stability, and high accuracy of the uniform emission light source, meeting the professional needs of users with continuously adjustable and fast LED output control at specified color temperature, achieving preset color temperature and real-time monitoring of illuminance and spectrum. Compatible with Konica CL-500A spectrophotometer and SpCol - I spectrometer, it realizes automatic calibration function of product illuminance and color temperature

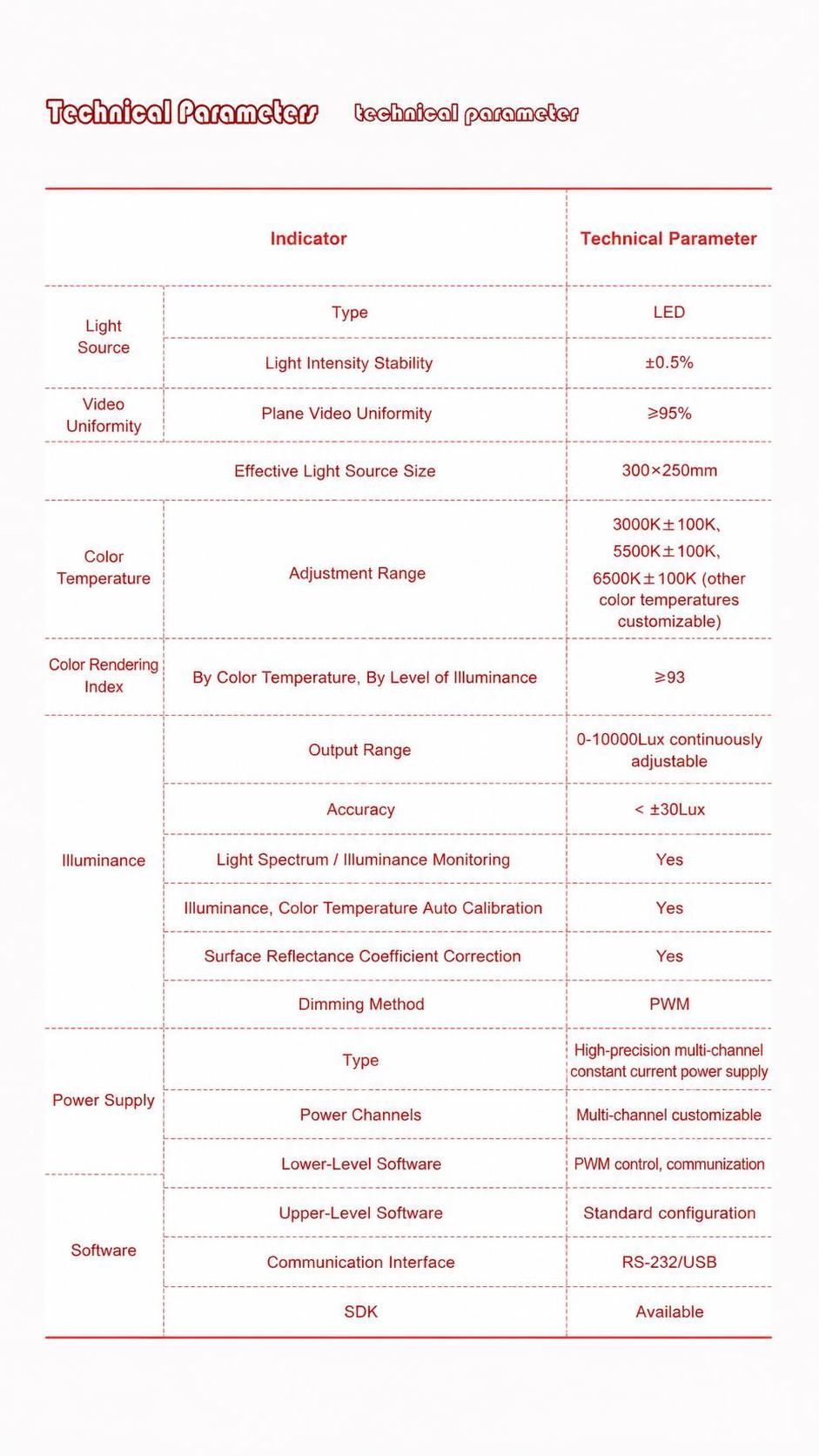

Technical Parameters



indicator	Technical Parameters
Light source type	LED

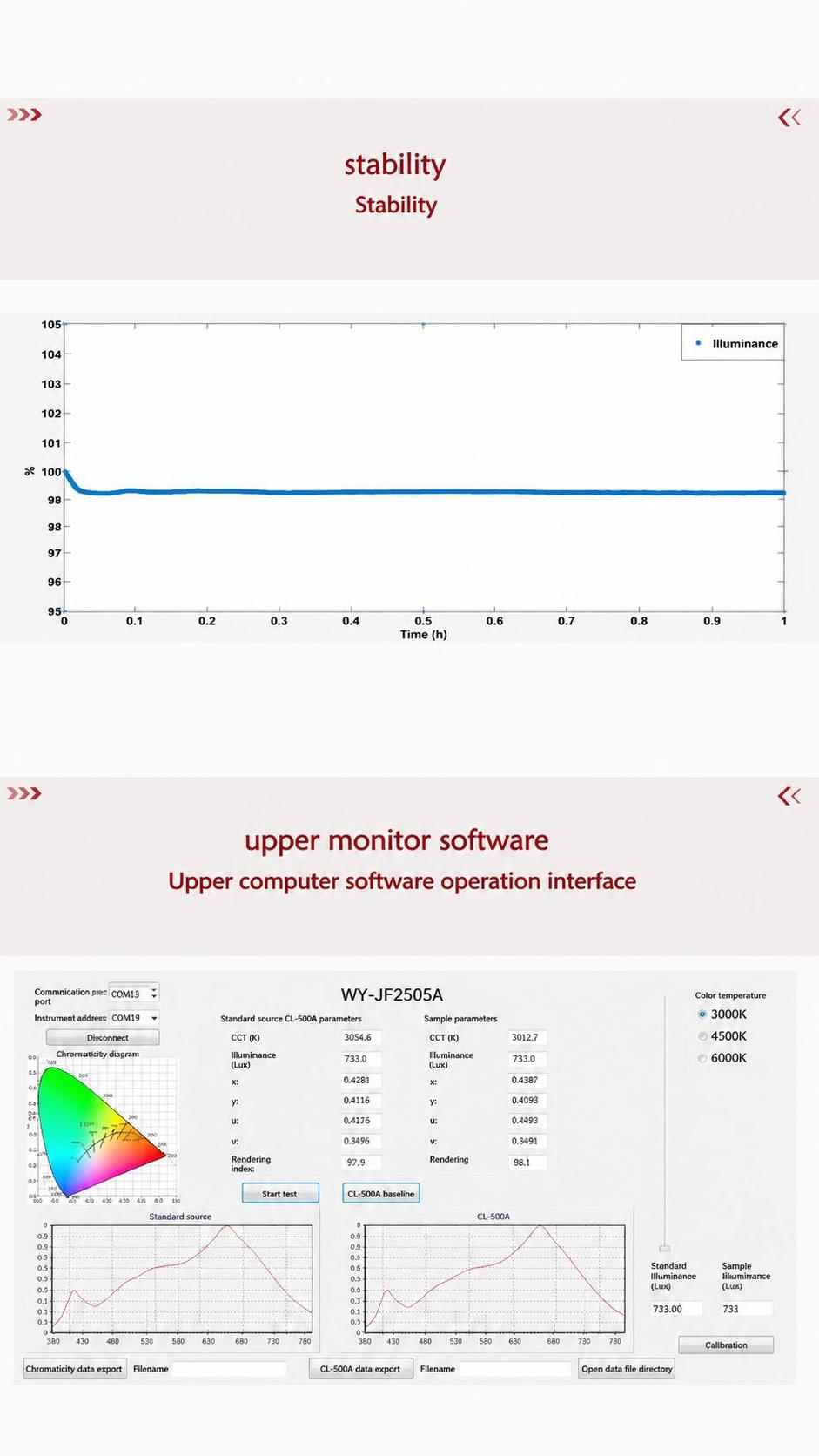

Stability of light intensity	±0.5%
Uniformity of plane field of view	≥95%
Effective size of light source	300×250mm
Color temperature adjustment range	3000K ± 100K, 5500K ± 100K, 6500K ± 100K (other color temperatures can be customized)
Color rendering index (at different color temperatures and levels of brightness)	Better than 93
Illumination output range	0-10000 Lux continuously adjustable
Illumination accuracy	<±30Lux
Spectral/Illuminance Monitoring	have
Automatic calibration of illuminance and color temperature	have
Surface reflection coefficient correction	have
Illumination adjustment method	PWM
Power type	High precision multi-channel constant current power supply
Number of power channels	Multi channel/customizable
Lower-level software	PWM control, communication
upper computer software	Standard Configuration
communication interface	RS-232/USB
SDK	can provide

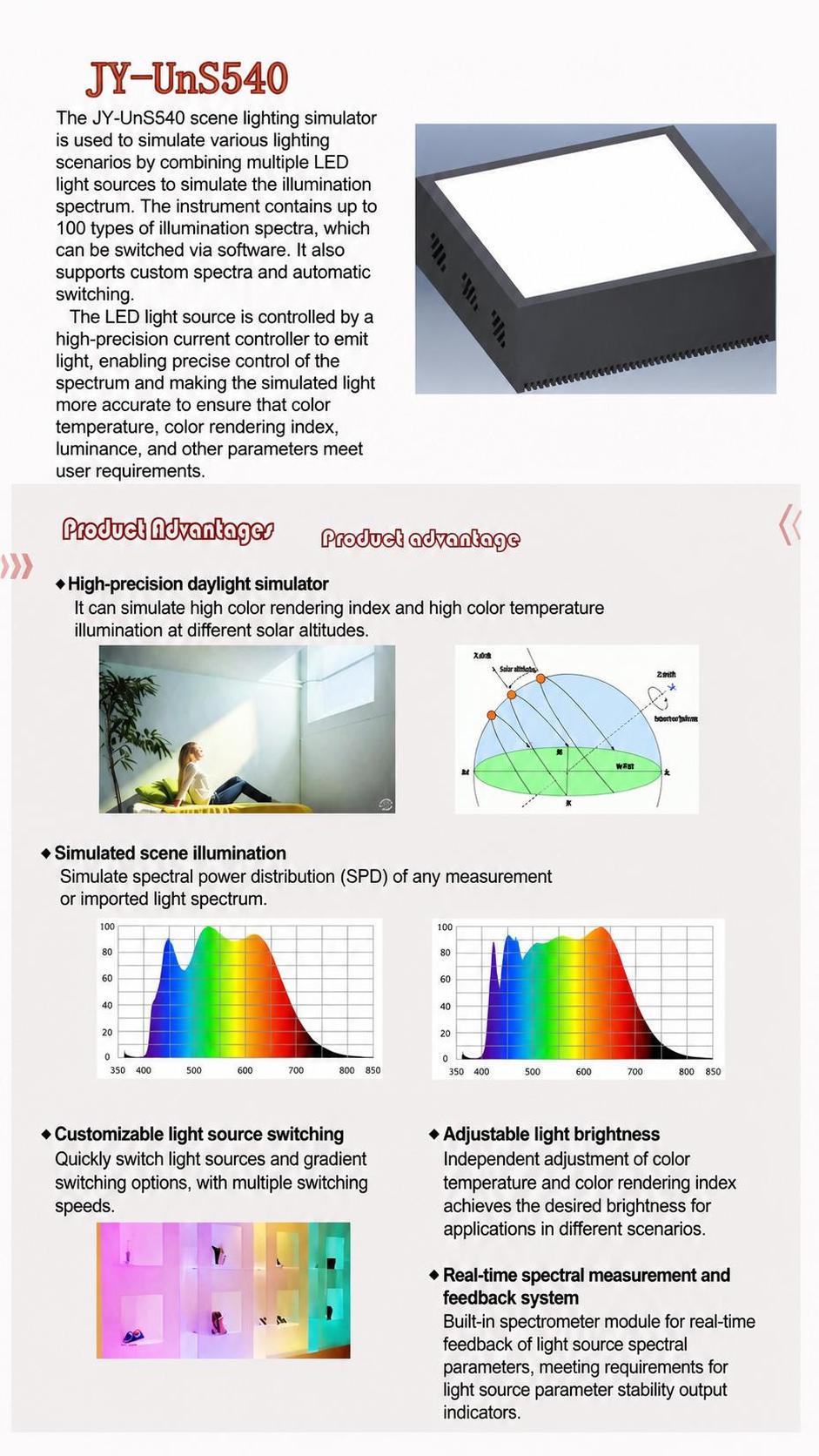

JY-UNS540 JY-UNS540 Scene Lighting Simulator is used to simulate various lighting scenes, simulating the required lighting spectrum through the combination of multiple LED light sources. This instrument can store 100 types of illumination spectra internally, which can be switched through software, and various spectra can also be set and automatically switched. The LED light source is controlled by a high-precision current controller to emit light, which is used for precise control of the spectrum, making the simulated spectrum more accurate and ensuring that parameters such as color temperature, color rendering index, and brightness meet user needs.
Product advantages: High precision daylight simulator can achieve high color rendering index and high color temperature accuracy under different solar altitude angles. It can simulate lighting in any scene, reproduce any measured or imported spectral power distribution. SPD can customize the switching method between light sources, and choose between fast switching and gradual switching between light sources. Multiple switching speeds can be set to adjust the brightness. Under the premise of the same color temperature and color rendering index, the brightness can be adjusted to meet the application of different brightness scenes for customers. The real-time monitoring and feedback system for light source parameters is equipped with a built-in spectral detection module to provide real-time feedback on light source parameters, ensuring stable output indicators for light source parameters

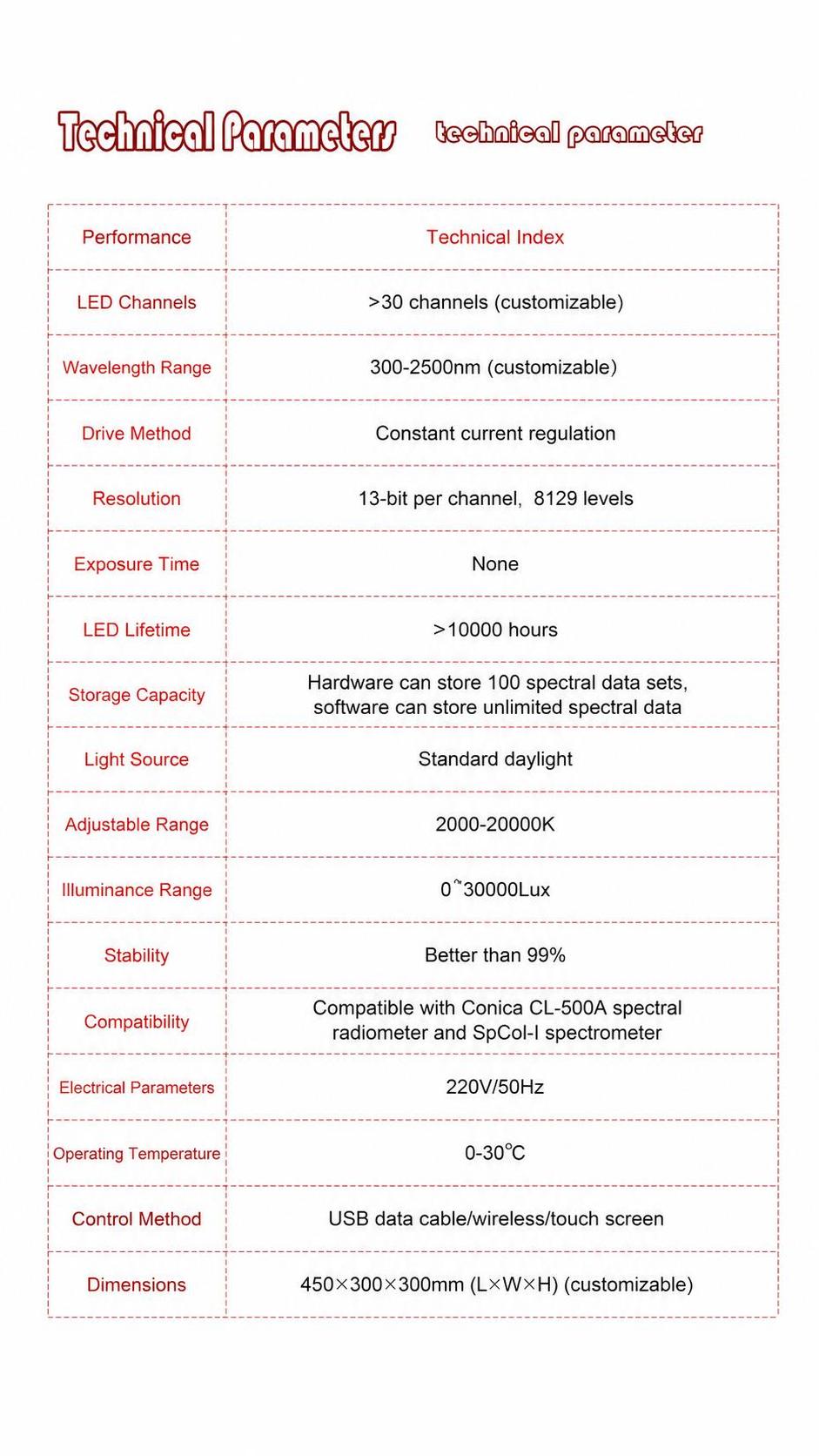

Technical Parameters



Performance	technical indicators
Number of LED channels	>30 channels (customizable)
spectral range	300-2500nm (customizable)
Drive Type	Constant current modulation
resolution	13 bits per channel, 8129 levels
warm-up time	nothing
LED lifespan	>10000 hours
storage capacity	Hardware can store 100 spectral data, software can store unlimited number of light sources
Preset light source	Standard sunlight
adjustable range	2000-20000K
Illuminance Range	0~30000Lux
Stability	Better than 99%
compatibility	Compatible with Conica CL-500A spectrophotometer and SpCol-I spectrometer
Electrical parameters	220V/50Hz
Operating Temperature	0-30℃
Control method	USB data cable/wireless/touch screen
Overall dimensions	450 × 300 × 300mm (L × W × H) (customizable)
