Product Introduction

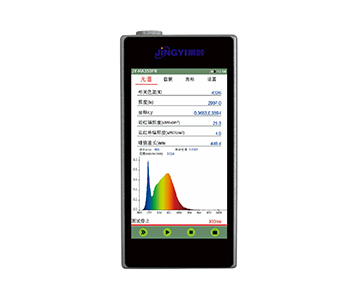

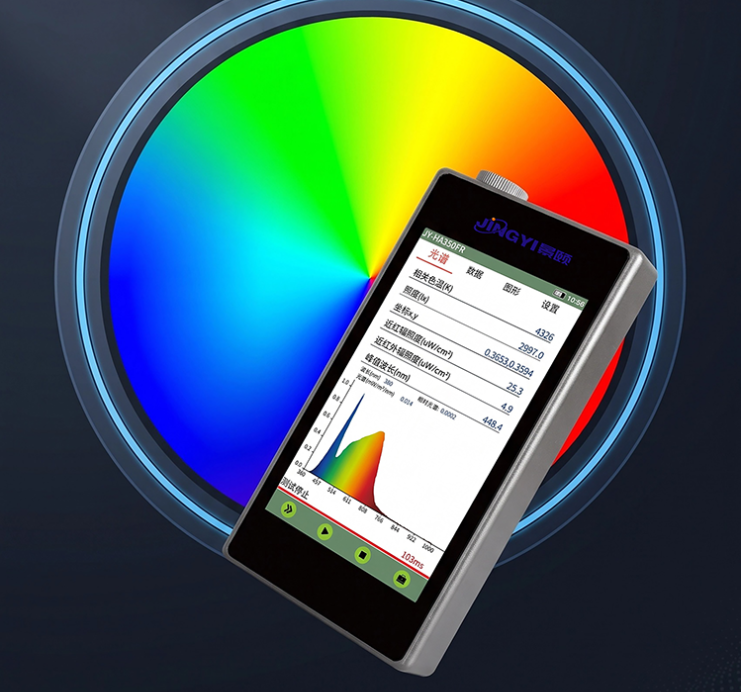

Jingyi Optoelectronics' JY-HA350FR infrared spectral radiometer, with a wavelength range of 380nm-1000nm, is a high-precision and fast radiometer that covers infrared LEDs. It is applicable to multiple wavelength bands in various fields such as remote control, security monitoring, and smart home. It boasts extremely fast measurement speed and accurately tests parameters such as the spectrum, peak wavelength, half-wave width, and radiance of infrared LEDs.

Product Parameters
Infrared irradiance: 0.1 μ W/cm ²~20000 μ W/cm ²
Wavelength range: 380-1000nm
Correlated Color Temperature (CCT): (CCT) Tc (K)
Blackbody deviation from Duv
Illuminance E (lx)
Candlelight E (Fc)
Chromatic coordinates (x, y) (u, v) (u ', v')
Relative spectral power distribution P (λ)
Color rendering index Ra, Ri (i=1-15)
Color tolerance: SDCM (MacAdam ellipse, rectangular box, and CIE u'v 'circle)
Main wavelength, peak wavelength, center wavelength, centroid wavelength, half width
Realism Rf
Color gamut index Rg
