The 84 series collimating lens is designed to couple larger free space beams into optical fibers. Thread
The tube positions the optical fiber at a distance of approximately 100mm from the surface of the lens, which can be adjusted to achieve optimal focusing

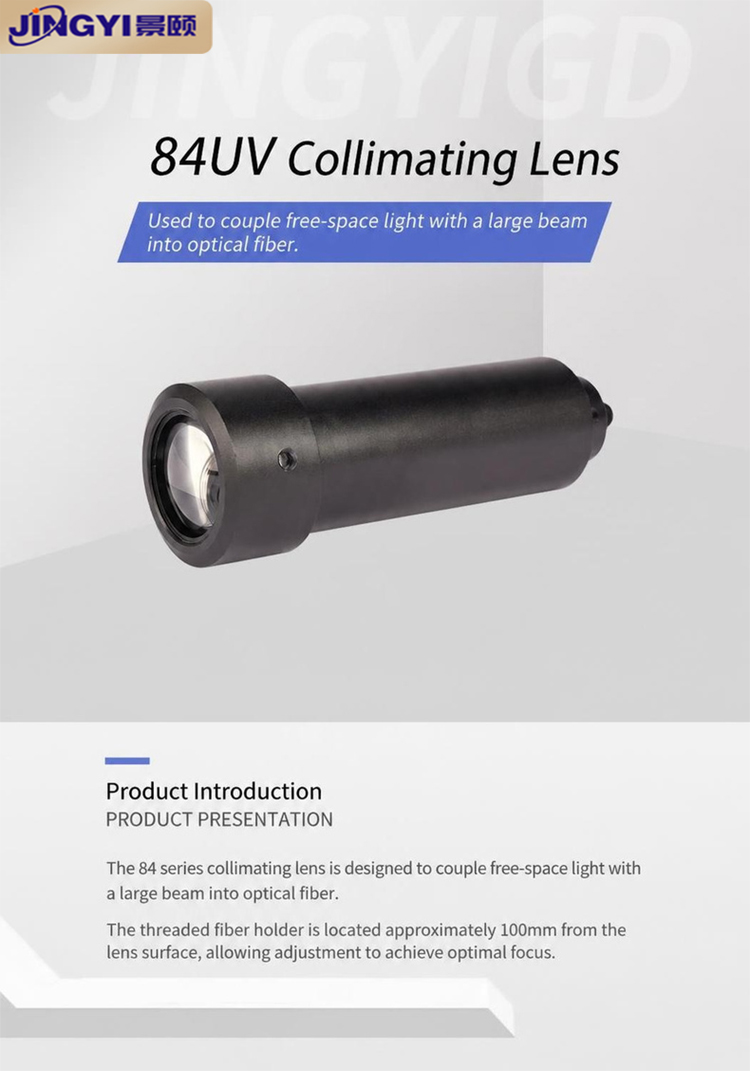

Introduction to 84UV collimating lens products
84UV collimating mirror is used to couple larger free space beams into optical fibers
Product Introduction: The 84 series collimating lens is designed to couple larger free space beams into optical fibers. The threaded tube positions the optical fiber on the surface of the lens at a distance of approximately 100mm, which can be adjusted to achieve optimal focusing.

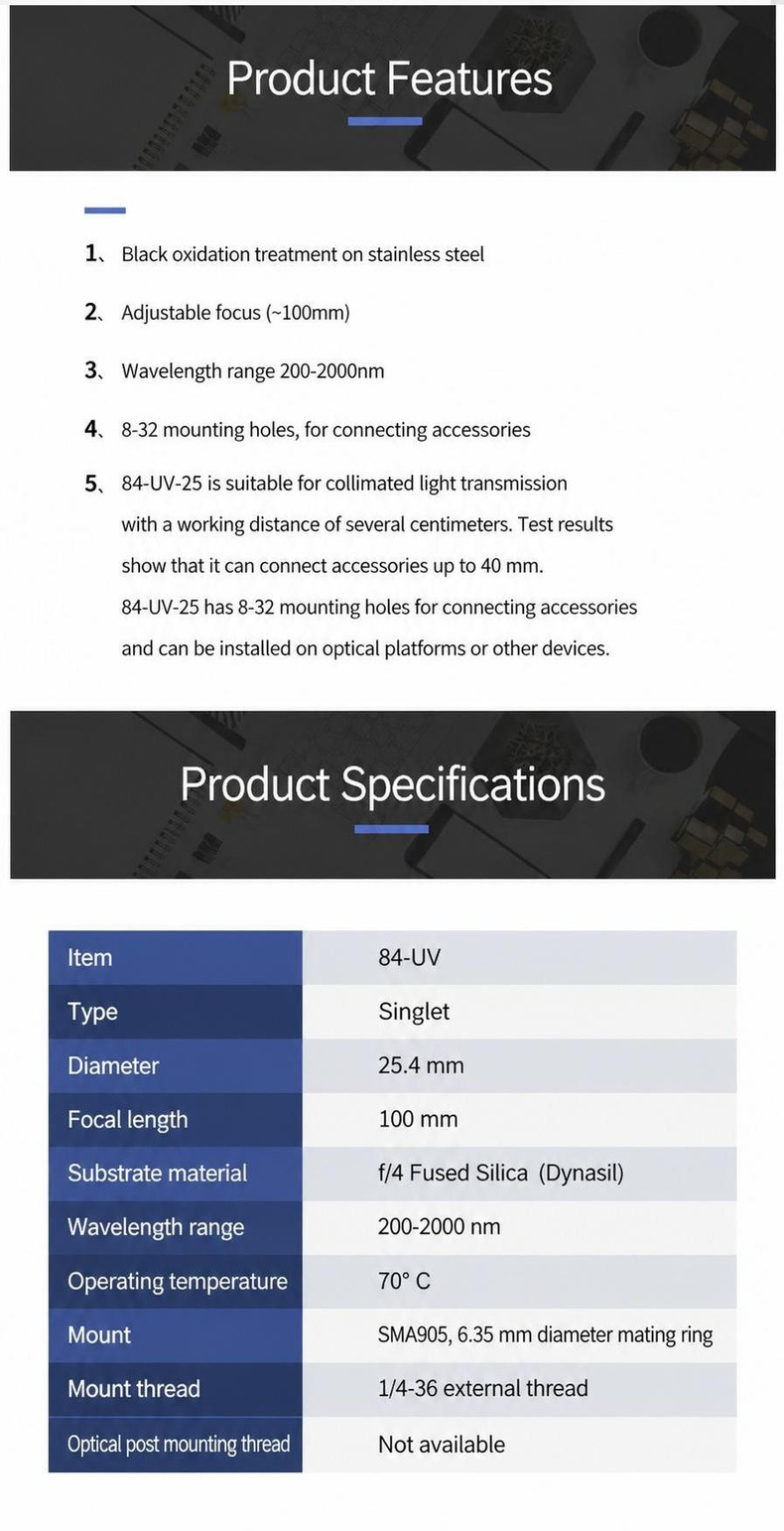

Product features: 1. Black oxidation treated stainless steel 2. Adjustable focal length (~100mm) 3. Wavelength range of 200-2000nm 4. 8-32 threaded hole for connecting optical tool holder 5. 84-UV-25 lens is suitable for collimating long-distance light transmission in the open air. Test results show that it can reach a maximum of 40 feet. 84-UV-25 has 8-32 threaded holes, which can be connected to optical sockets and installed on optical platforms or other devices.
Product Specifications
|
project
|
84-UV
|
|
Type
|
Single lens
|
|
diameter
|
25.4 mm
|
|
focal length
|
100 mm
|
|
Lens material
|
f/4 fused silica (Dynasil)
|
|
wavelength range
|
200-2000 nm
|
|
Operating Temperature
|
70°C
|
|
Connector
|
SMA905, 6.35mm collar
|
|
Connector thread
|
1/4-36 external thread
|
|
Optical column installation thread
|
Unavailable
|

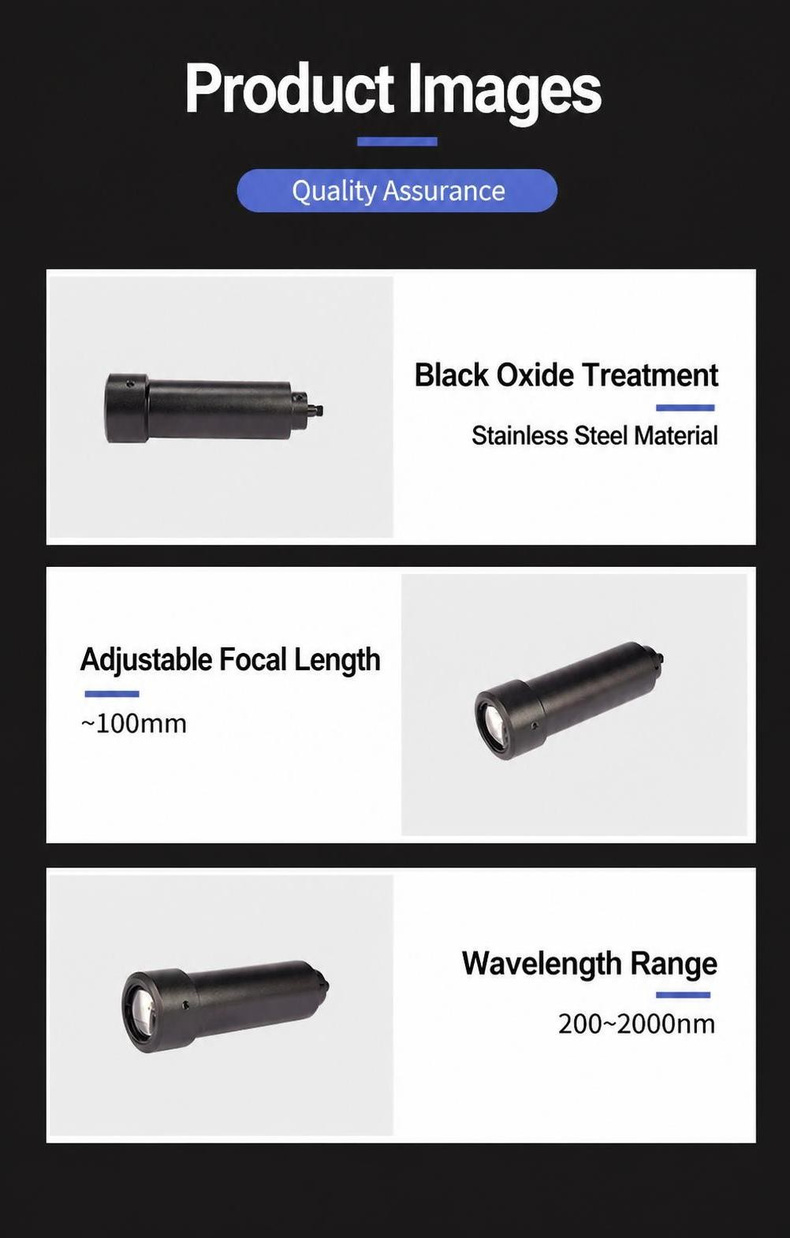

Product image: Black oxidation treated stainless steel material with adjustable focal length of~100mm, wavelength range of 200~2000nm
