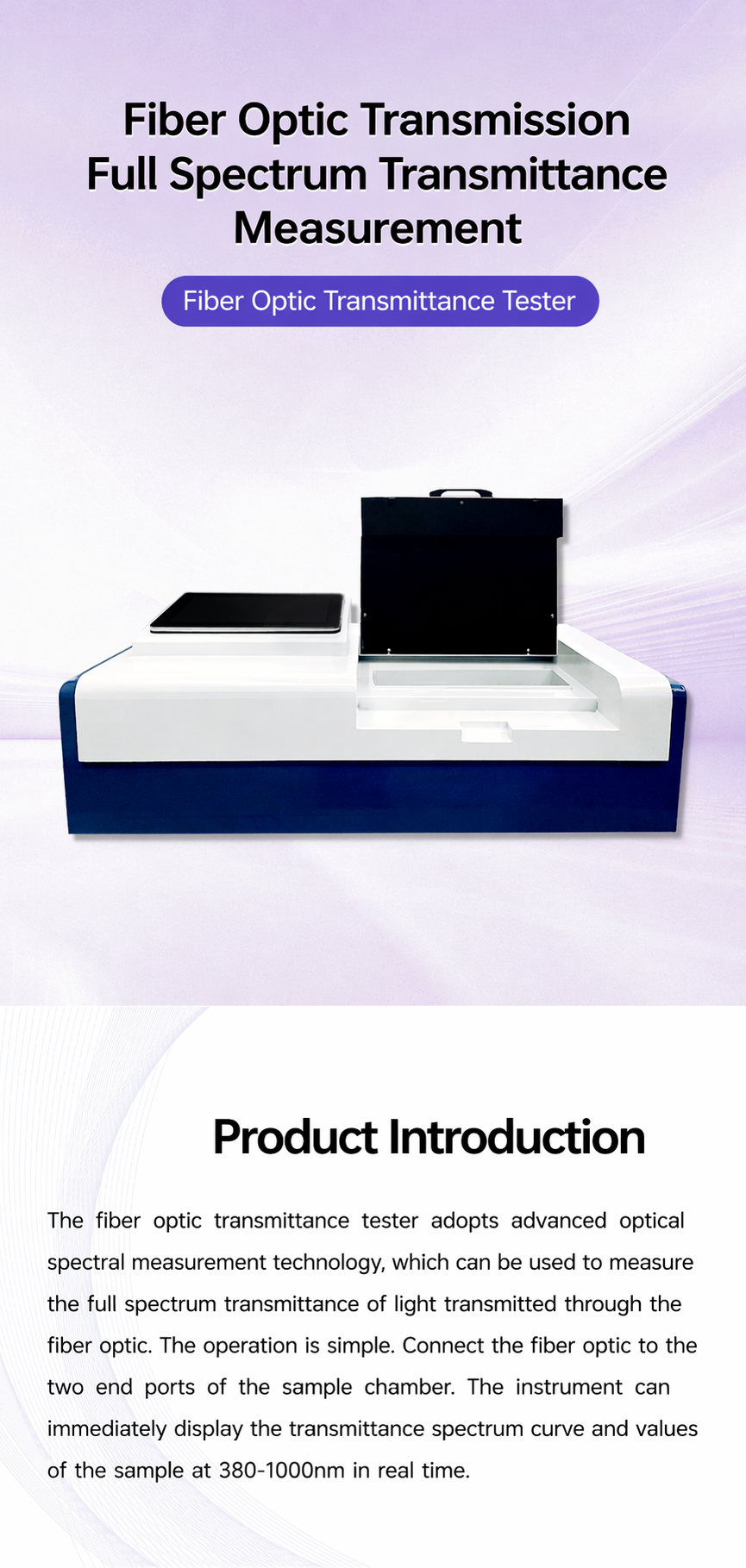

Product Introduction
The Jingyi Optoelectronic Fiber Optic Transmittance Detector adopts advanced spectral measurement technology and can be used for full spectrum transmittance measurement of fiber optic guided beams. It is easy to operate, and by connecting the fiber to the two end interfaces of the sample chamber, the transmittance spectrum curve and numerical value of the sample fiber at 380-1000nm can be displayed in real time.

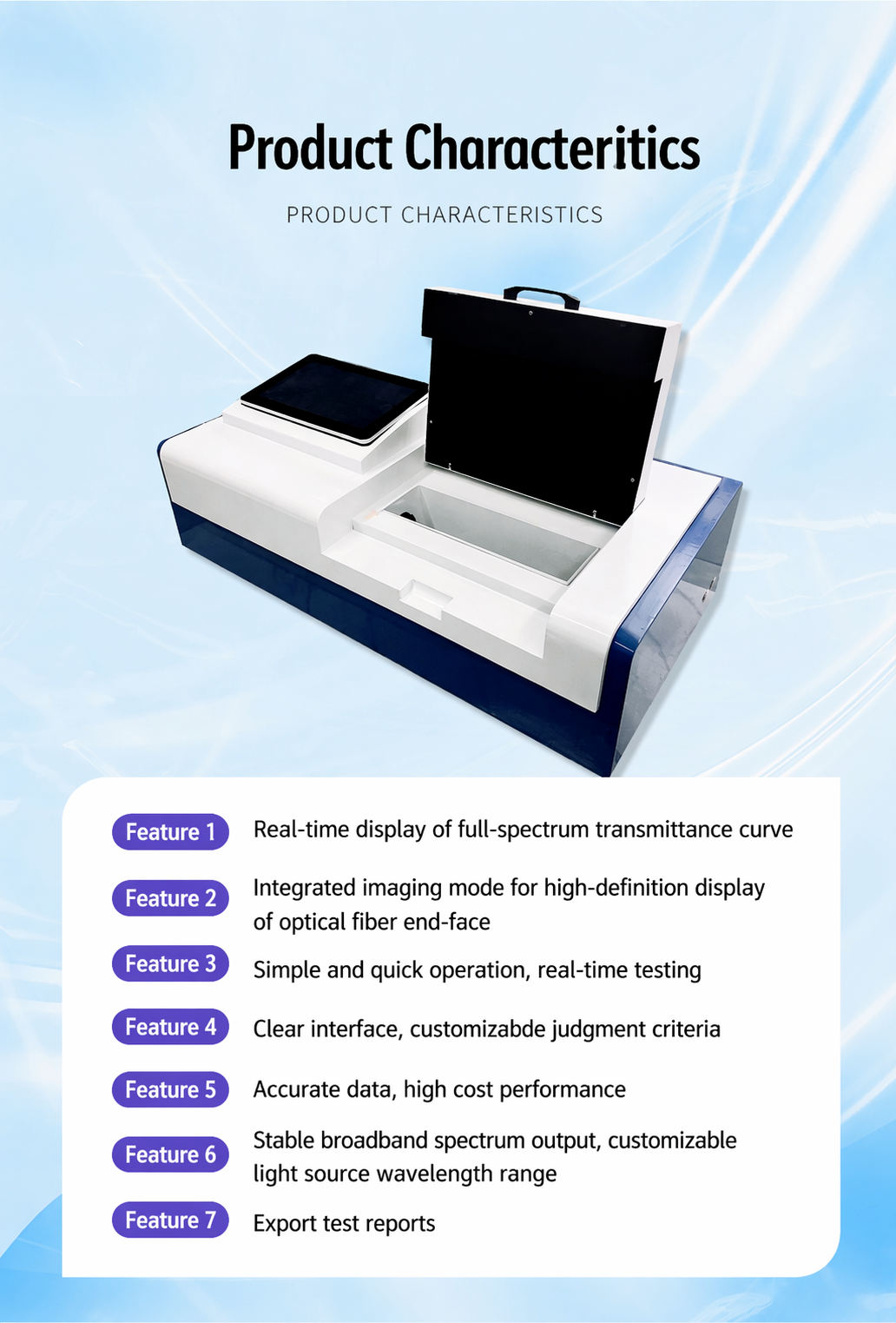

Product Features
- Feature 1: Real time display of transmittance full spectrum curve
- Feature 2: Integrated snapshot mode for high-definition display of fiber end face fiber images
- Feature 3: Simple and fast operation, real-time testing
- Feature 4: Clear interface, customizable qualification judgment range
- Feature 5: Accurate data and high cost-effectiveness
- Characteristic 6: Stable broadband light source output, customizable light source wavelength range
- Feature 7 can export test reports

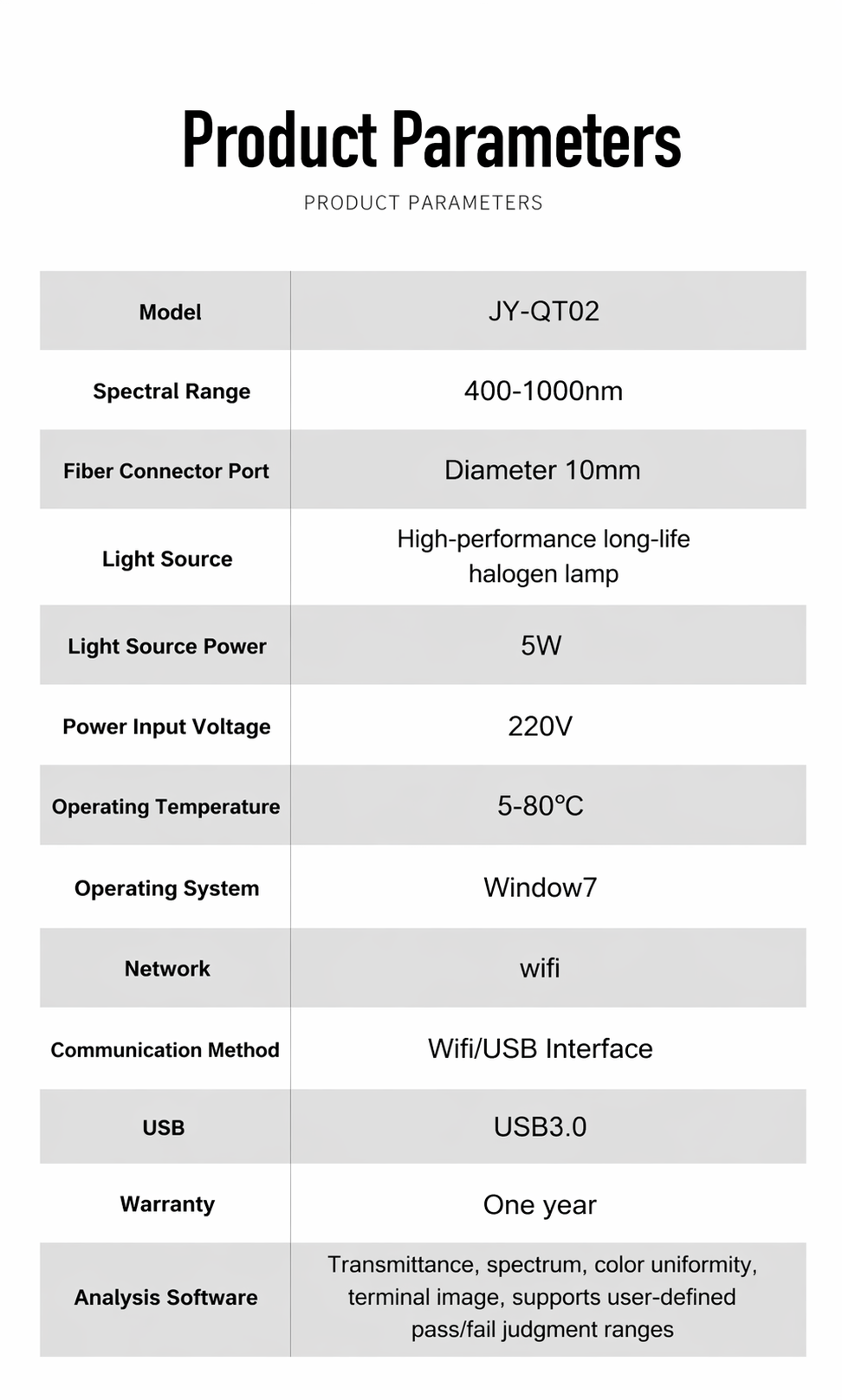

Product Specifications
| parameter item |
Content |
| model |
JY-QT02 |
| spectral range |
400-1000nm |
| Fiber optic connection port |
Diameter 10mm |
| light source |
High performance and long-life halogen lamp |
| Light source power |
5W |
| Light source input voltage |
220V |
| Operating temperature |
5-80℃ |
| computer system |
Windows7 |
| Internet |
wifi |
| contact method |
Wifi/USB interface |
| USB |
USB3.0 |
| warranty |
a year |
| analysis software |
Transmittance spectrum, color uniformity, end face image, supporting user-defined qualification judgment range |
