Product Introduction
The JY7810 spectrometer launched by Jingyi Optoelectronics has a wide band range and high resolution. The JY7810 rotates the grating through software control for wavelength scanning, thereby obtaining high-precision spectral measurement results.
The JY7810 system utilizes a simulated optimized optical system to ensure high resolution. The JY7810 series offers a variety of input and output options, providing endless possibilities, scalability, and diversity for researchers. Both single point detectors and various array cameras can be used.
JY7810 has multiple models with different frequency ranges：0.8~2.5μm、1.0~5.0μm、1.0~12.0μm、1.0~15.0μm、1.0~26.0μm，It can cover the wavelength range from near-infrared to mid to far infrared, and by selecting the appropriate grating, it can have more freedom in wavelength and resolution selection.
JY7810 can receive SMA905 fiber optic input light or free space light, and output the measured spectral data through USB2.0 or UART ports. JY7810 only requires a 12V DC power supply, which is very convenient to use. All controls can be electrically controlled through software.
|
model
|
description
|
|
JY7810
|
Standard version
|
|
JY7810H
|
High speed version, shortened spectral time
|
Product features
Ultra-wide wavelength range, up to 26.0μm;
Six different wavelength ranges are available, with options for other wavelength ranges as well;
High signal-to-noise ratio and high dynamic range;
TEC deep cooling detectors do not require the addition of liquid nitrogen;
Different resolutions and sensitivities can be set;
Built-in chopper and filter (if needed);
Power supply: DC 12V@<2A(max);
ADC bit depth: 24 bits;
Multiple optical input interfaces: SM905 fiber optic interface or free-space input;
A variety of detector types to choose from
Adopting a rotating concave grating design;
The internal structure is fully controlled by a computer, enabling one-click spectrum generation;
Data output interface: USB2.0 and UART;
15-pin expansion interface, external trigger signal;
Multiple accessories are available for selection;
Product Application
Absorption, reflection, and transmission spectra
Ground spectral
infrared spectrum

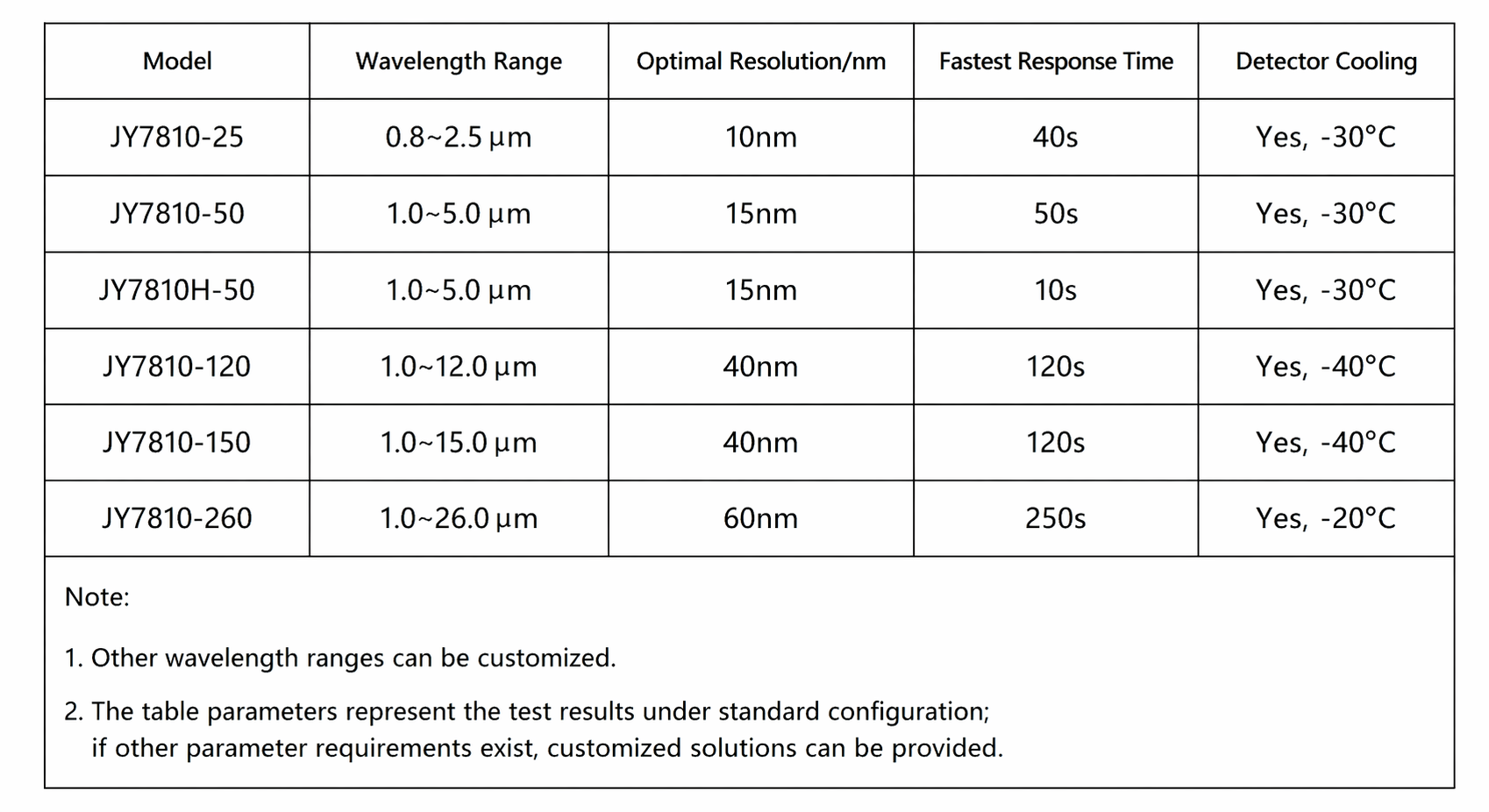

Selection Guide
Performance Parameter Table

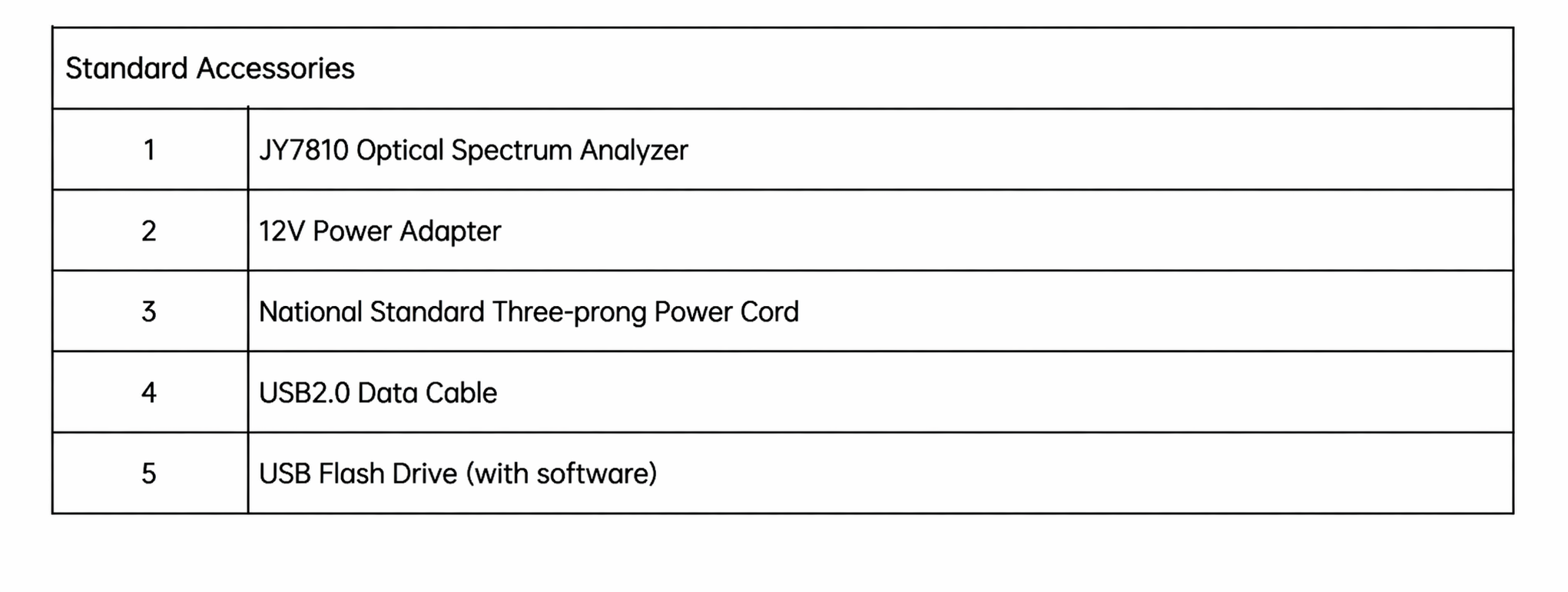

Accessories
Consult customer service to obtain detailed materials and exclusive solutions.
