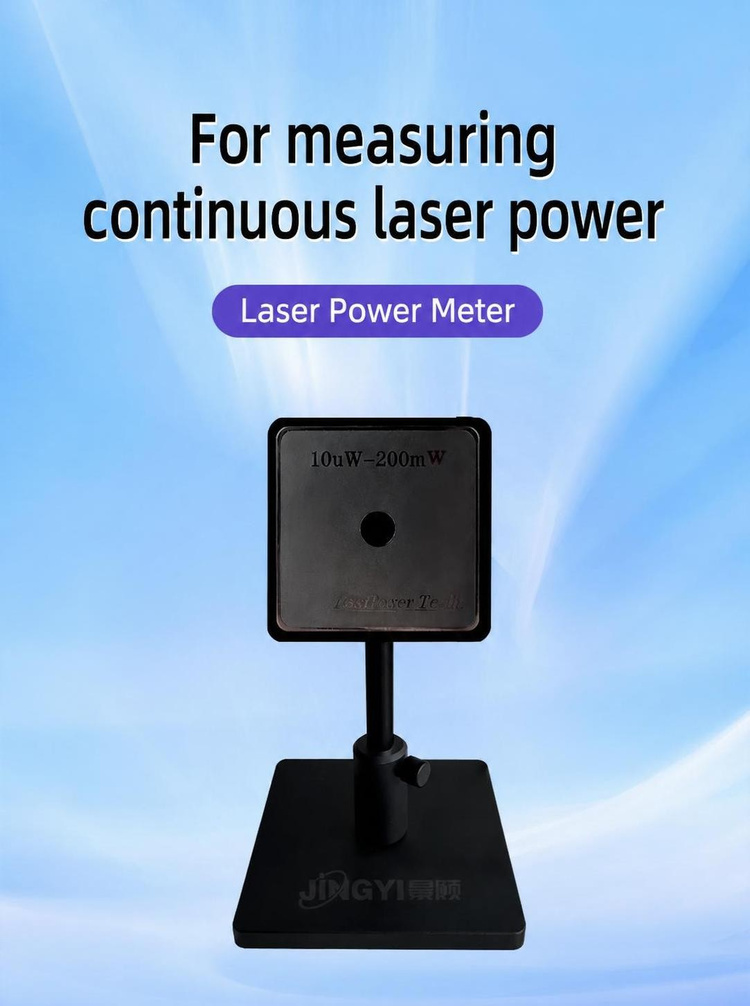

Laser Power Meter

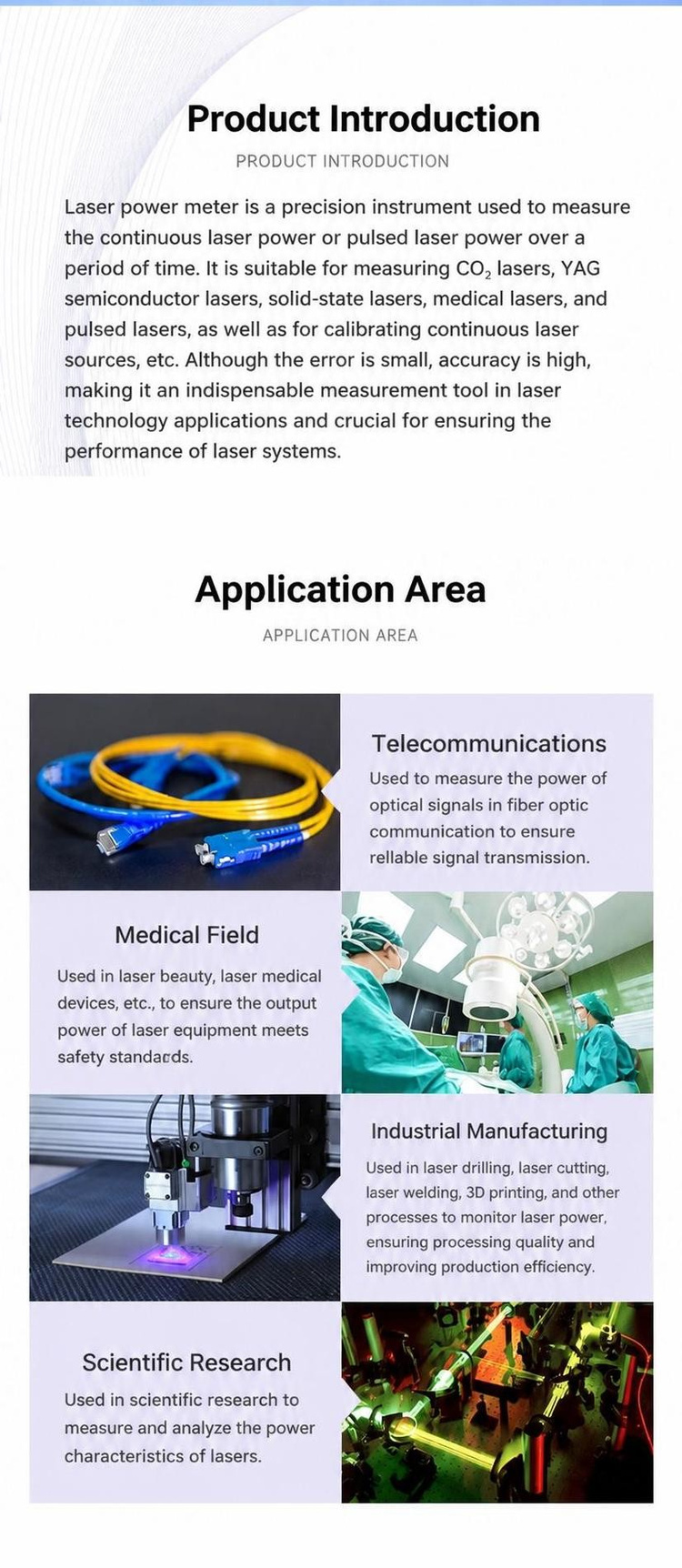

Product Introduction
Laser power meter is suitable for measuring carbon dioxide laser, YAG laser, semiconductor laser, solid-state laser, medical laser, fiber optic output, pulse laser, quasi continuous laser, etc. Small error and high accuracy.

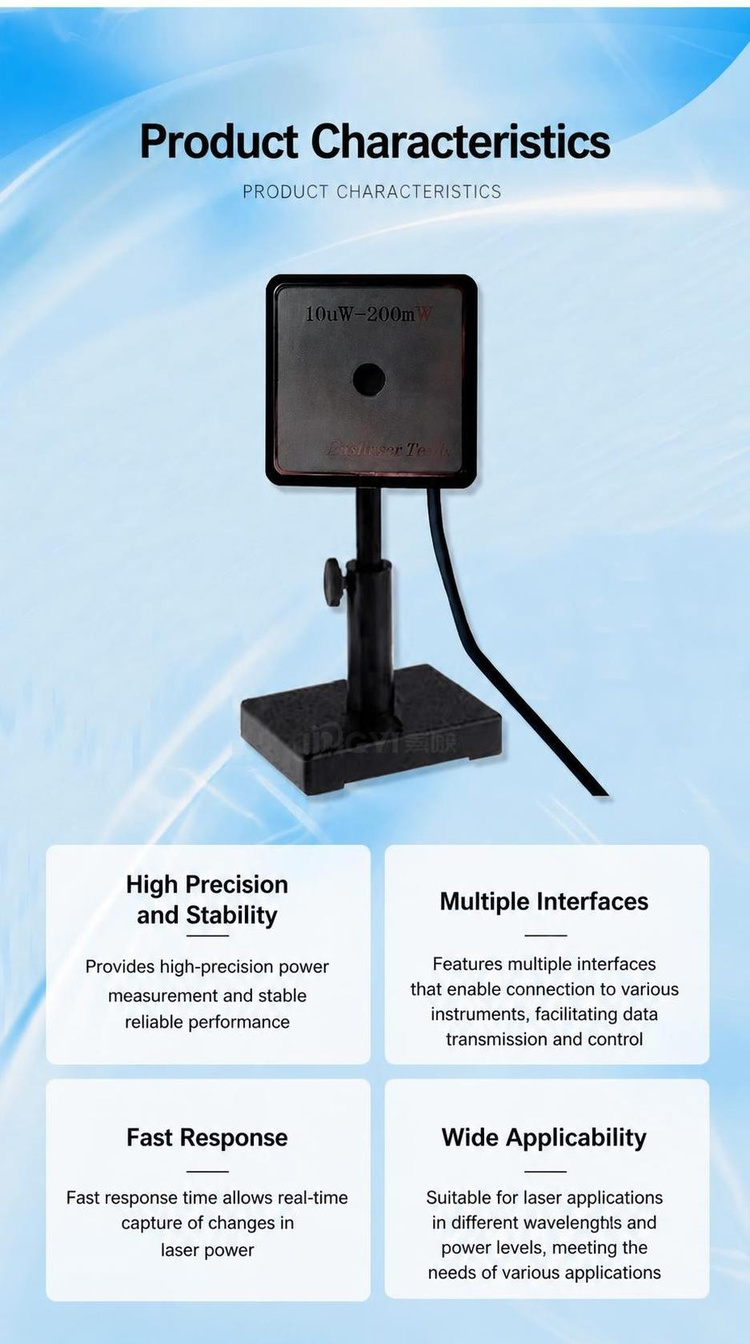

Characteristics
The probe is of pyroelectric type
Effective photosensitive diameter of probe: 10mm
Wide wavelength response range: 200nm-20 μ m
The header display can average the measured laser power, record and calculate the laser stability
Users can connect the header display to the computer. Thus, the laser power can be recorded into the computer, achieving unlimited and long-term power recording
Application Fields
laser
laser light
Laser engraving machine
Laser Marking Machine
cutter
welding machine
Laser skin rejuvenation and beauty equipment, etc

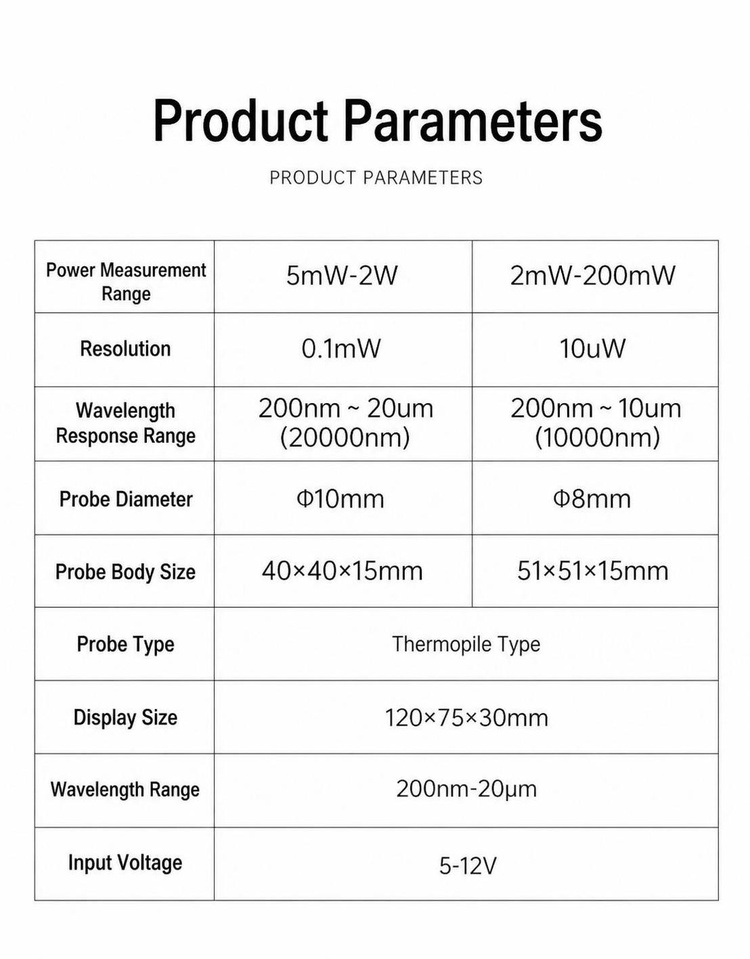

Product Specifications
|
parameter item
|
Parameter content
|
|
Probe Diameter
|
Φ10mm
|
|
Sensor Size
|
50x50x15mm
|
|
Display size
|
120x75x30mm
|
|
wavelength range
|
200nm-20μm
|
|
power range
|
0.1mw-2w， Resolution 0.1mW; 0.01mw-200mW, Resolution 0.01mW
|
|
input voltage
|
5-12v
|
product image
Third party organization certification
Laser power meter calibration certificate
