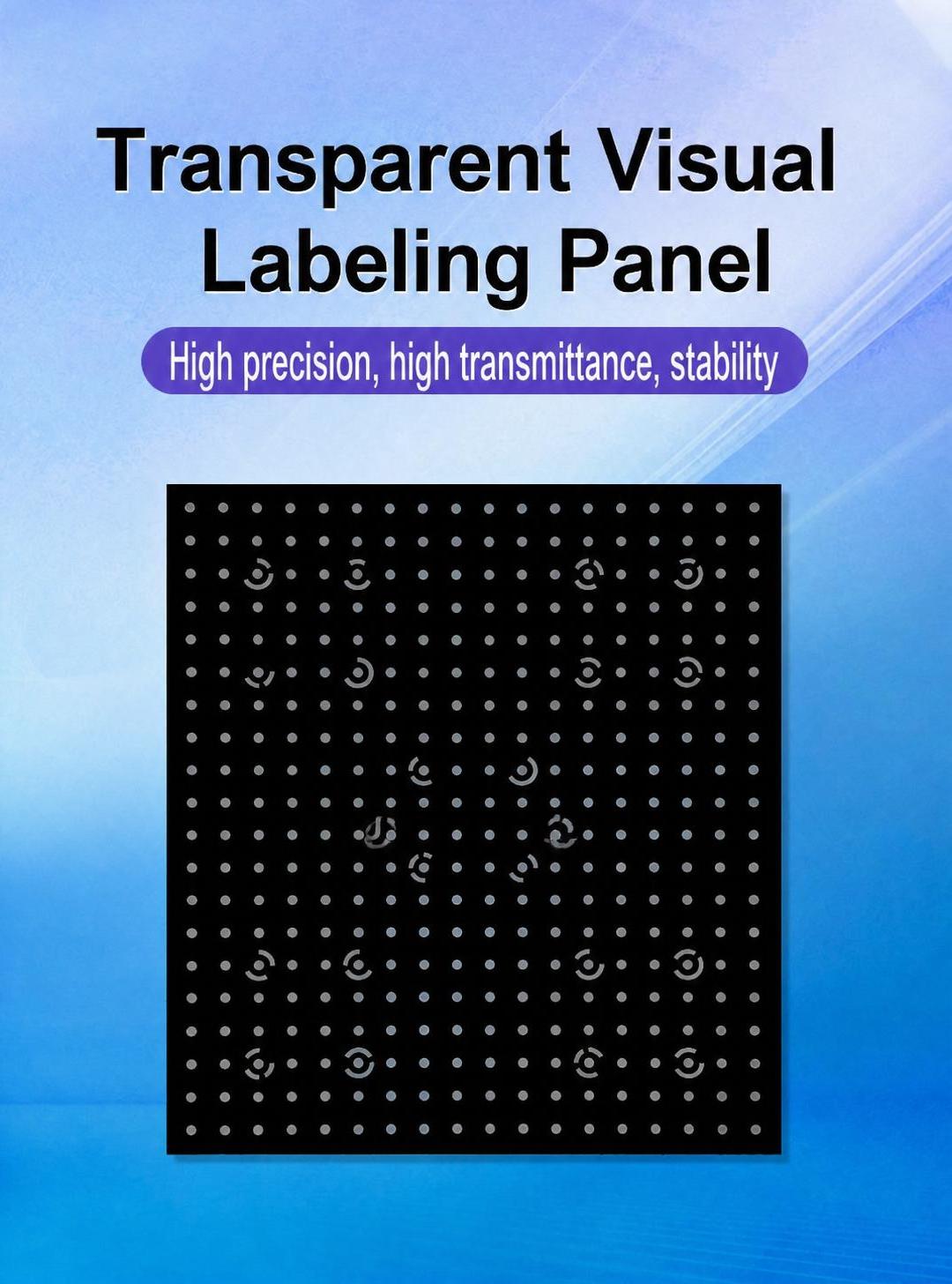

Transmitting visual calibration board: high-precision characteristic analysis
Transmitting visual calibration board with high precision, high transmittance, and stability
Product Introduction: The transmissive visual calibration plate is a flat plate with a fixed spacing pattern array, commonly used for positioning, size measurement, and object recognition in machine vision systems. It has the characteristics of high precision, high transmittance, stability, etc., and can also be customized according to the actual needs of users, including size, pattern, transmission point, etc. It has a wide range of applications in multiple fields, such as industrial automation, unmanned driving, machine vision, aerospace, biomedical imaging, etc.
Application field: machine vision: in industrial automation, robot navigation and other fields, it is used for camera calibration and distortion correction to improve the accuracy and stability of the machine vision system Automatic driving: in driverless cars, unmanned aerial vehicles and other fields, it is used for camera calibration and sensor calibration to improve the accuracy and security of the auto drive system Photogrammetry: in virtual reality, augmented reality and other fields, it is used for three-dimensional reconstruction and scene reconstruction to determine the internal and external parameters of the camera Biomedical imaging: in the biomedical field, it is used to correct the parameters of microscopes or imaging systems to improve the clarity and accuracy of images

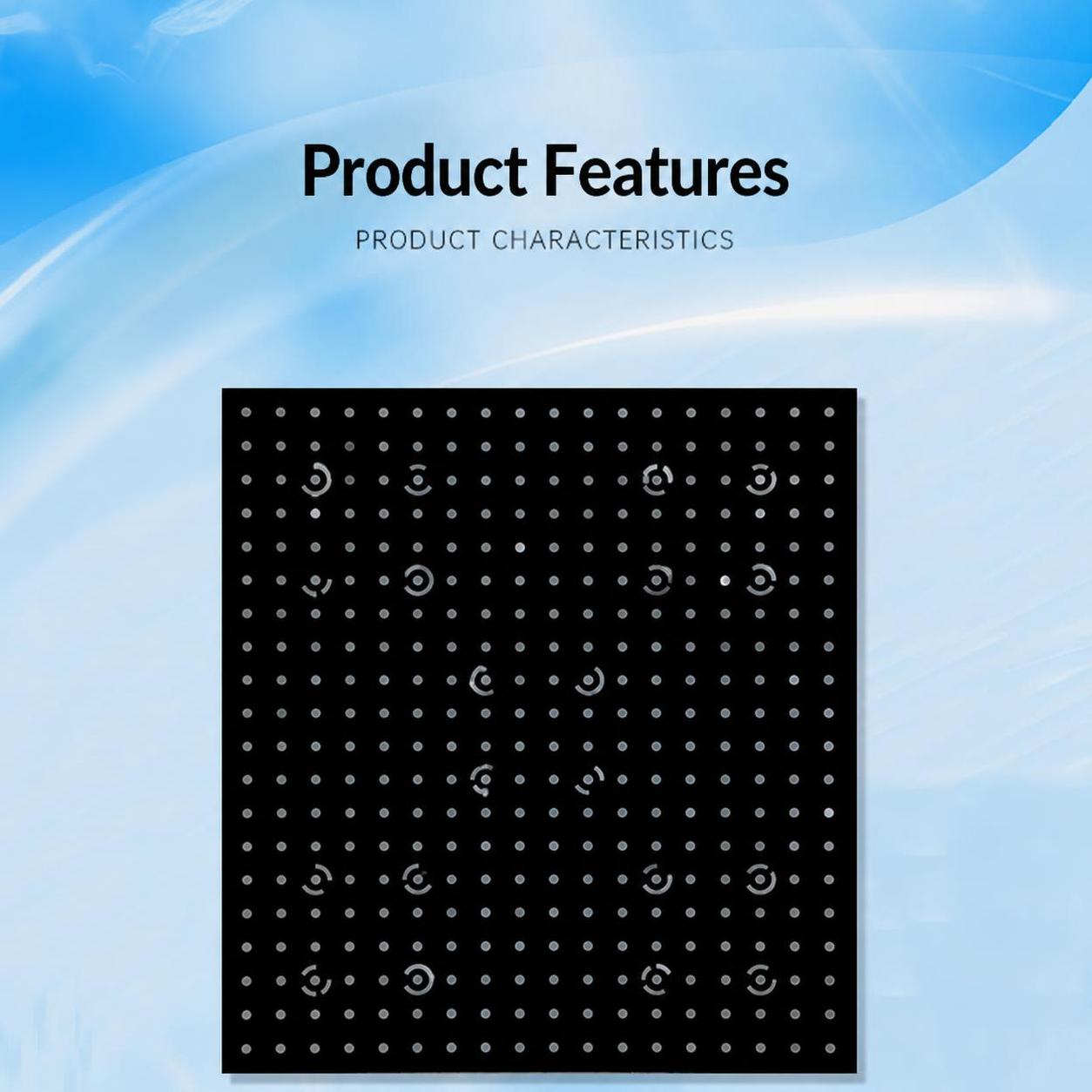

Product features: High precision: accuracy better than 10 μ m, ensuring high-precision measurement and positioning of the machine vision system. High transmittance: with a transmittance greater than 90%. Customizability: can be customized according to user needs, including size, pattern, transmission point, etc. Stability: The calibration plate is made of stable materials (such as glass), with good flatness and stability

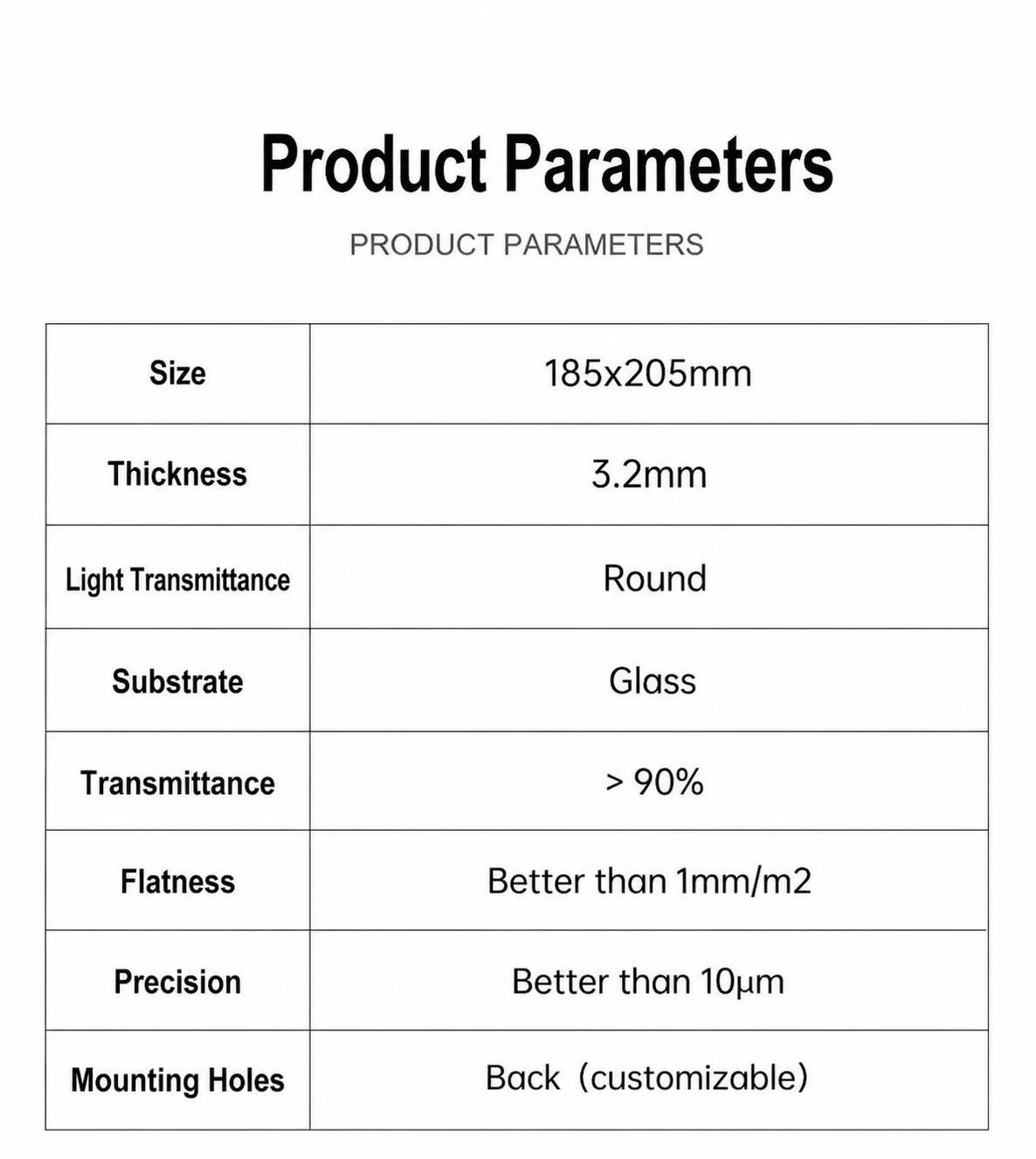

Product Specifications

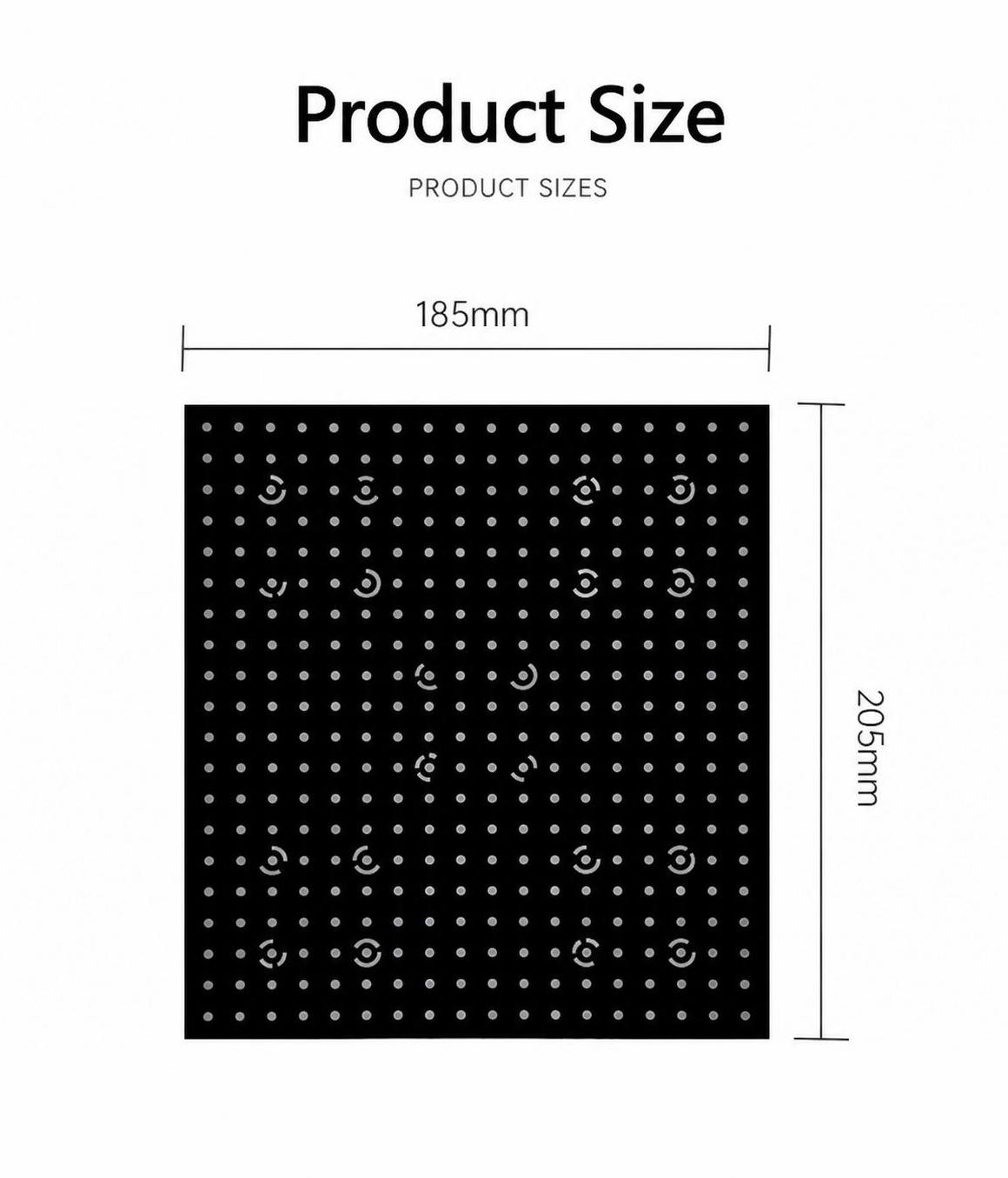

size	185x205mm
thickness	3.2mm
Transmission point	dot
substrate	Glass
transmittance	> 90%
flatness	Better than 1mm/m2
precision	Better than 10
Fixed hole positions	Back (customizable)
