JY-L2000 Halogen Lamp: Characteristics and Applications

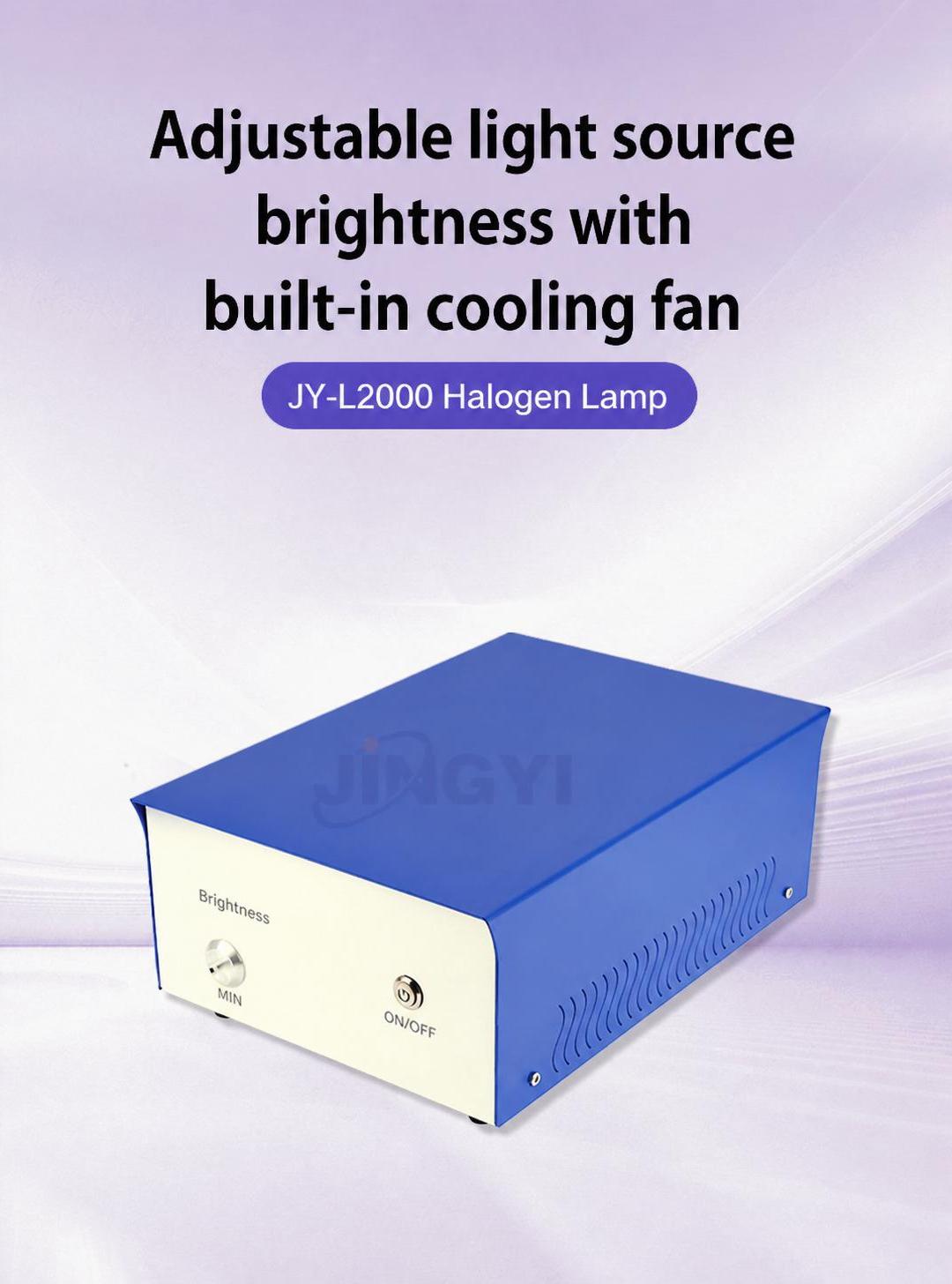

The brightness of the light source can be adjusted with a cooling fan JY-L2000 halogen lamp
Product introduction JY-L2000 halogen lamp is a 100W bulb with a wavelength range from 380 to 2500nm. The high-power light source series lamps are near blackbody light sources, and the filament is coated with a layer of fused silica. The brightness of the light source is adjustable, and the chassis is equipped with a cooling fan.
Application areas: Spectral transmittance, reflectance analysis, spectral chromaticity, absorbance analysis, diffuse reflectance integrating sphere measurement, and other reflection and transmission spectra, as well as radiometric calibration

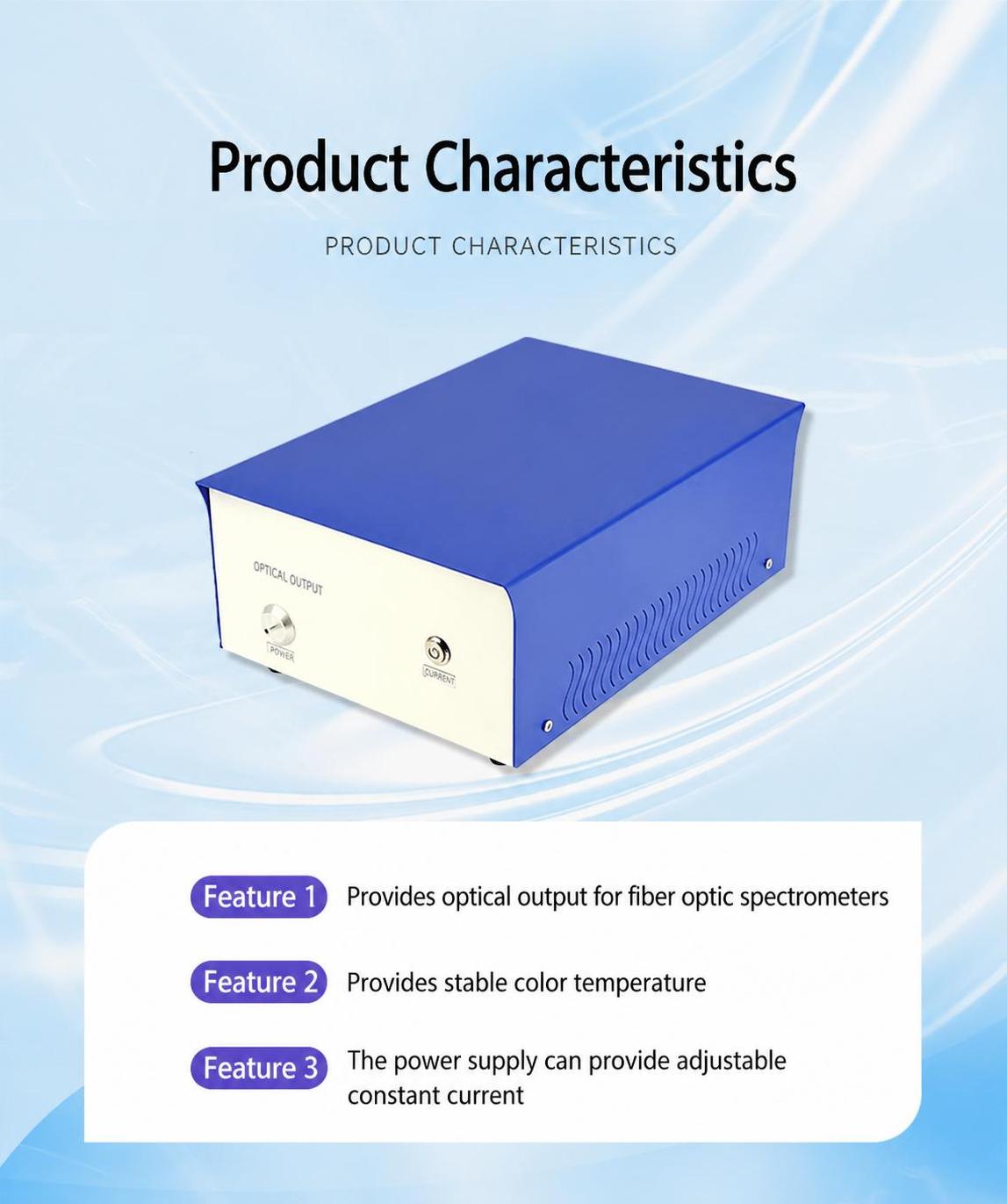

Product Characteristics: 1. Optical Output Characteristics Provided by Fiber Spectrometer. 2. Stable Color Temperature Characteristics. 3. Adjustable Constant Current Provided by Power Supply
|

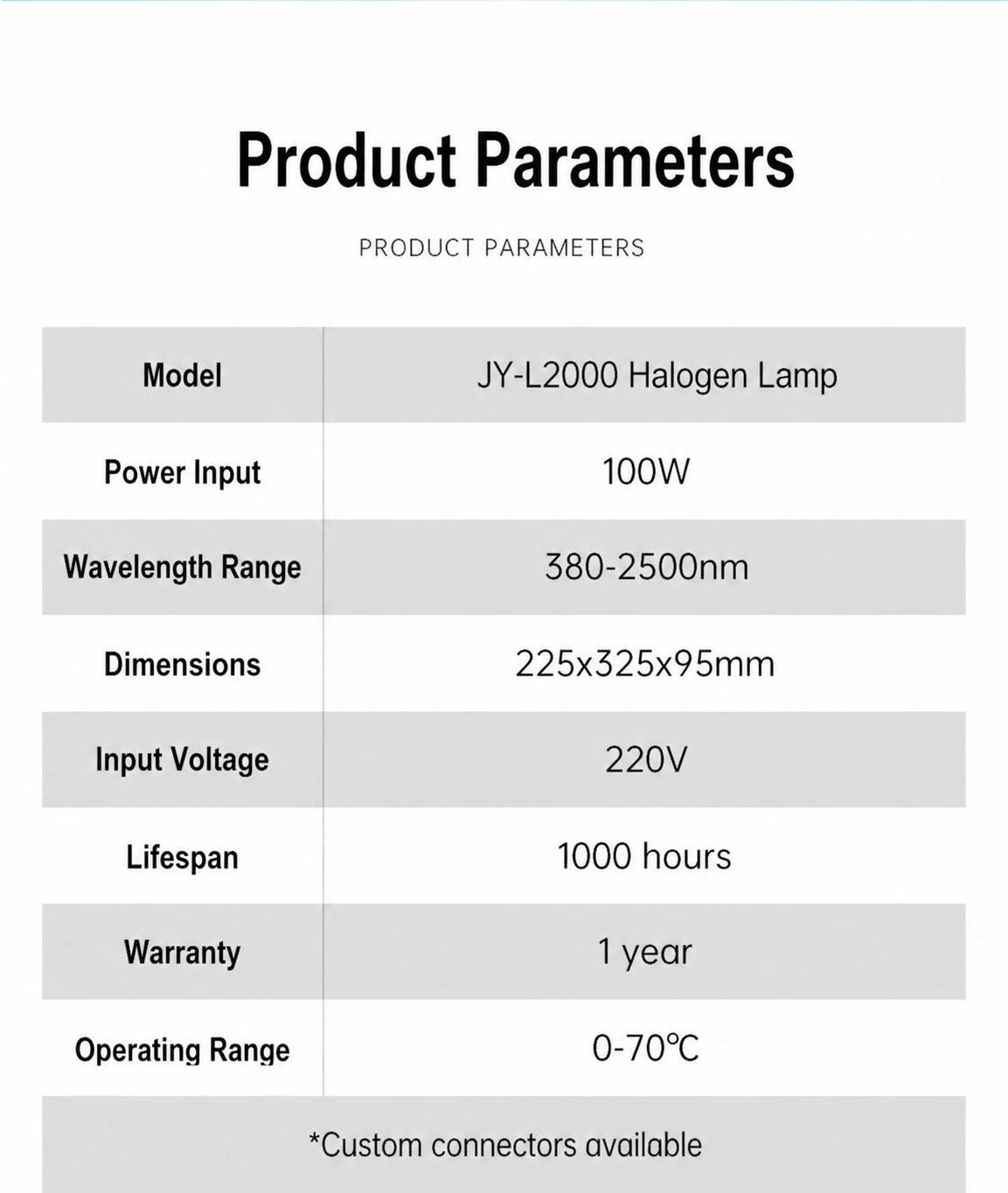

model
|
JY-L2000 halogen lamp
|
|
Power input
|
100W
|
|
Spectral wavelength
|
380-2500nm
|
|
size
|
225x325x95mm
|
|
input voltage
|
220V
|
|
lifespan
|
1000 hours
|
|
warranty
|
a year
|
|
scope of work
|
0-70℃
|
|
*Connectors can be customized
|
|

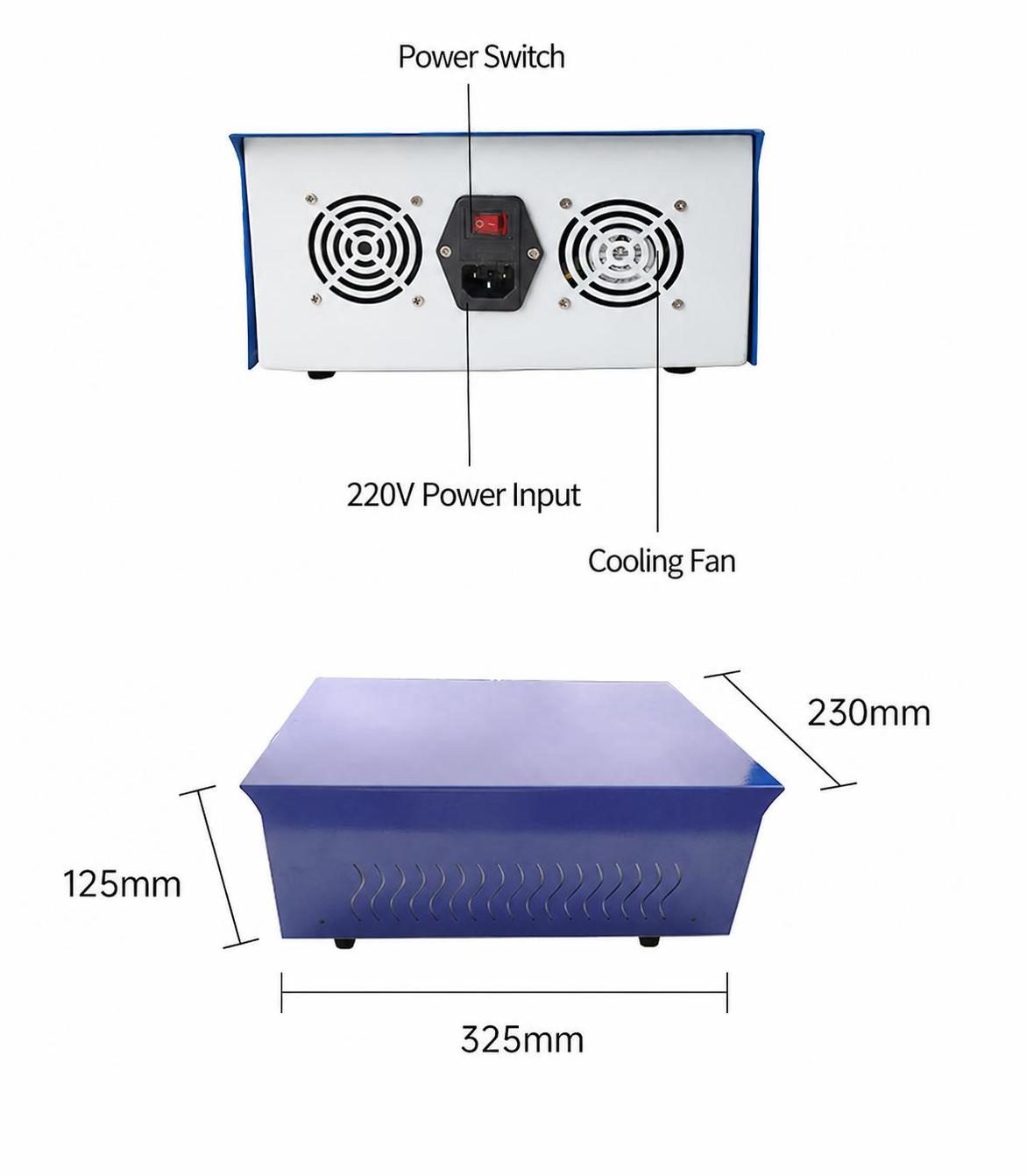

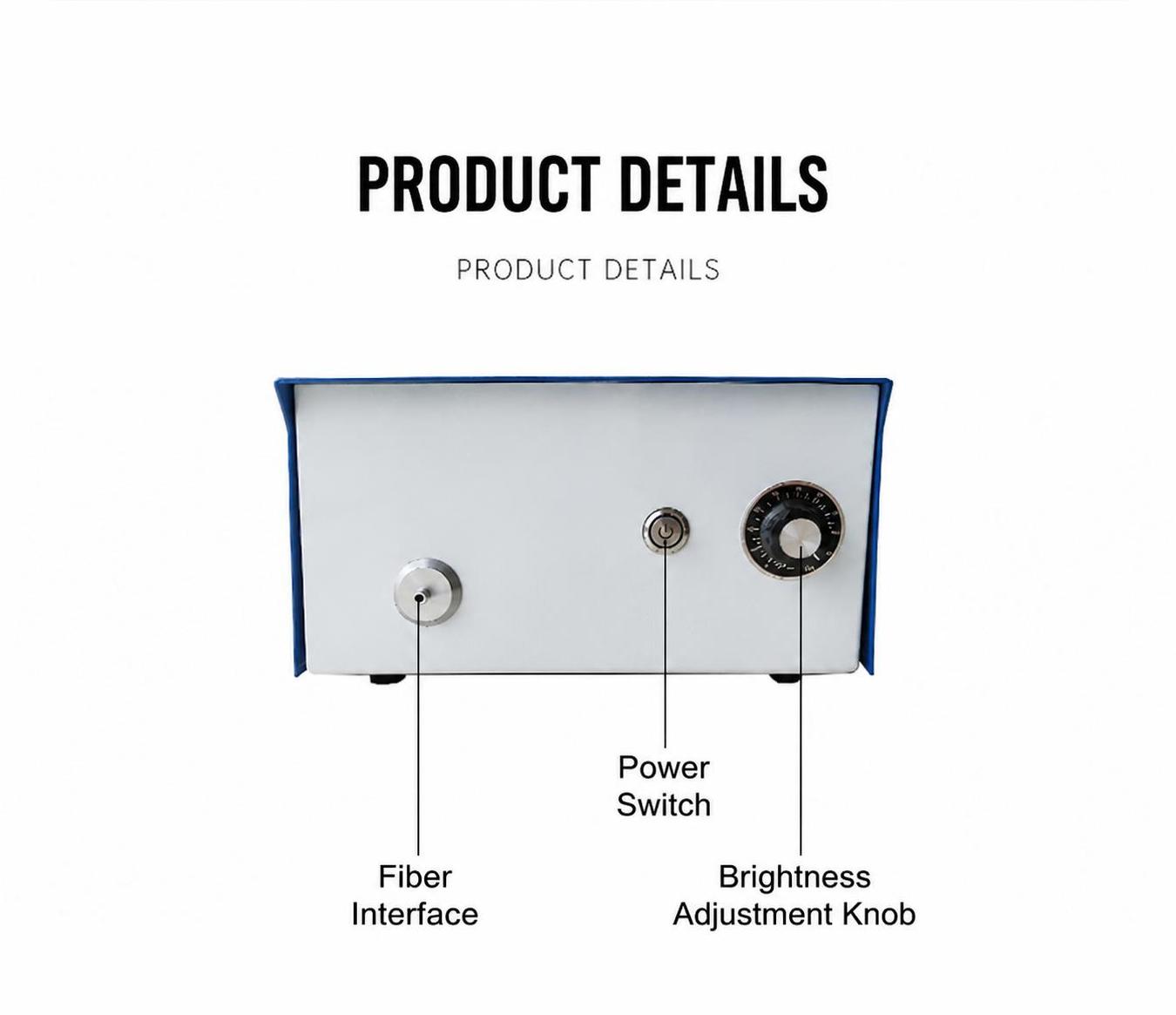

Product details: Fiber optic interface, light source switch, brightness adjustment knob, power switch, 220V voltage input, cooling fan

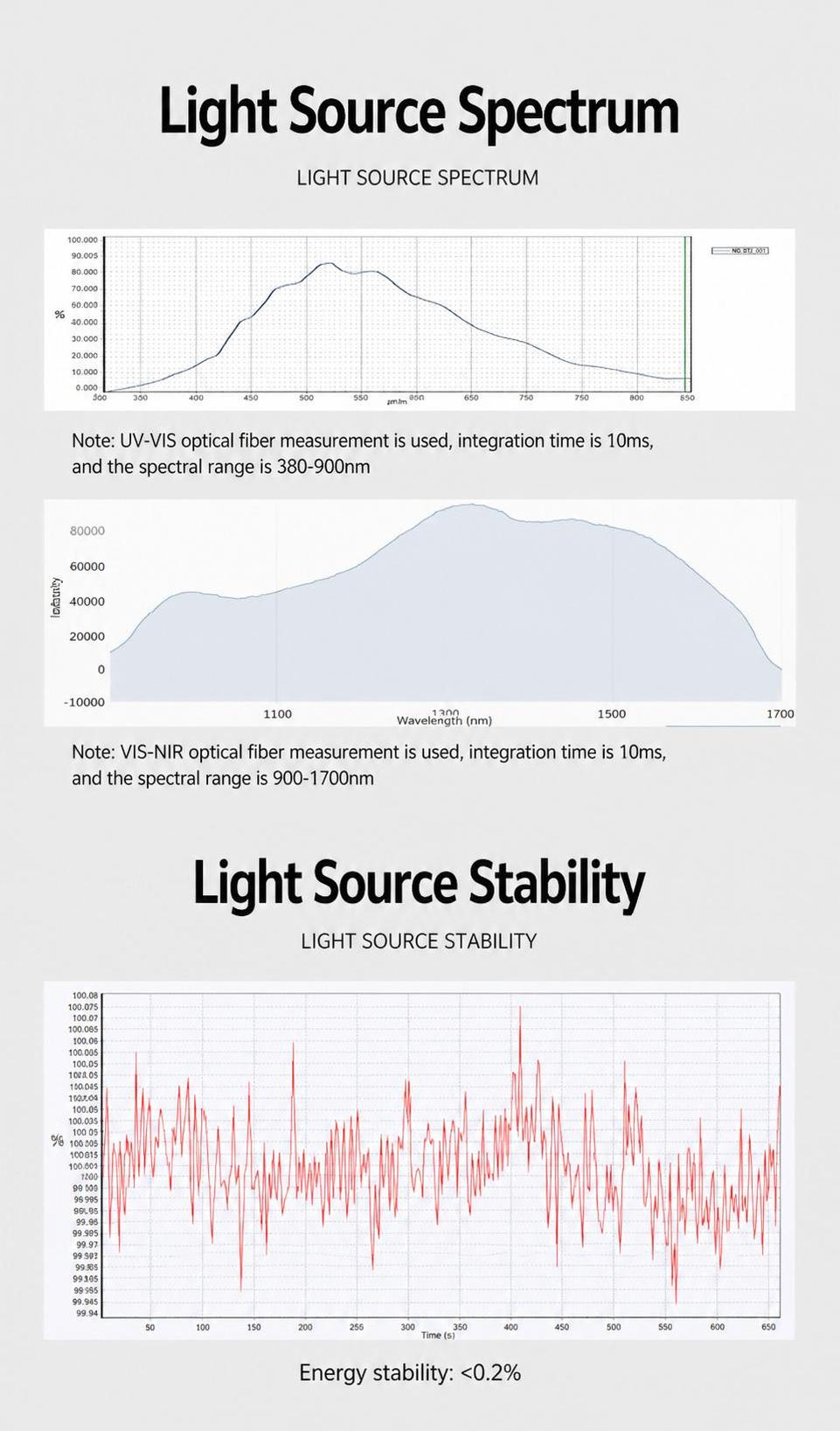

Light source spectrum: measured using UV-VIS fiber with an integration time of 10ms and a spectrometer band of 380-900nm. Note: measured using VIS-NIR fiber with an integration time of 10ms and a spectrometer band of 900-1700nm
Light source stability and energy stability:
