ProductOverview

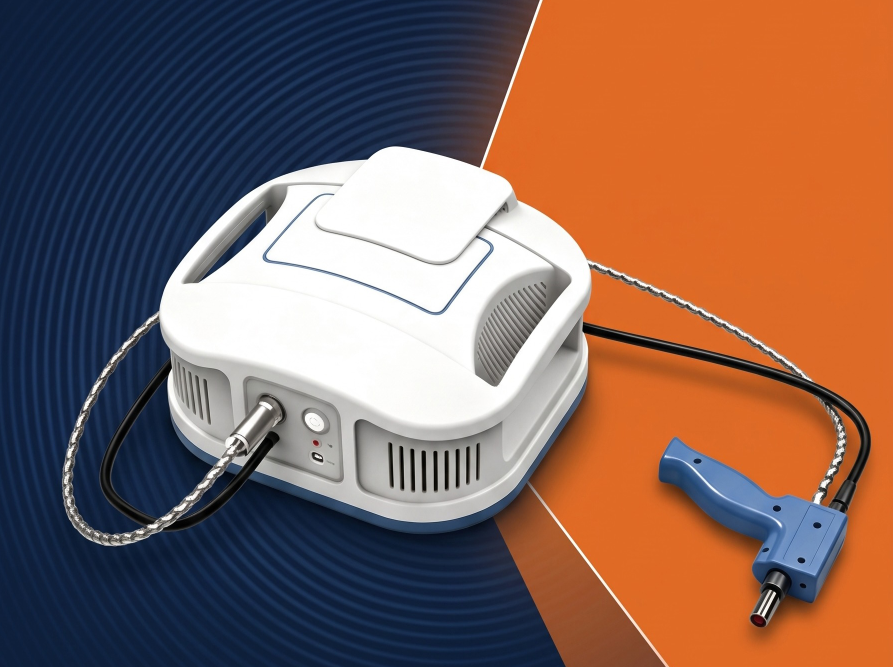

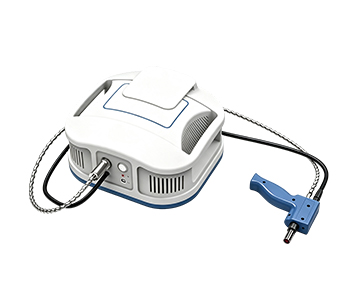

Jingyi Optoelectronic's JY-ATP9110-110 wide-band hyperspectral ground-based spectrometer (field spectral radiometer) boasts a wavelength range spanning from 300nm to 11μm， making it ideal for applications in geological research, mineral exploration, remote sensing measurements, crop monitoring, forest studies, oceanography research, and various other fields. The JY-ATP9110-110 wide-band hyperspectral ground-based spectrometer offers high cost-effectiveness, rapid and accurate measurements, simple operation, and portability. Equipped with a powerful software package, it can be used not only for reflectance measurements but also for radiometry, photometry, and chromaticity measurements.

Product features

Maximum wavelength range: 300nm~11μm
High sensitivity, with a detector quantum efficiency of up to 60%, and a near-infrared sensitivity 40% higher than traditional PDA detectors
The measurement speed is fast, with a single sampling time that can be less than 10 seconds
Fiber optic probe measurement, lightweight, and flexible to use
Equipped with a second-order diffractive coating and a filter, it boasts high accuracy
Dynamic dark current correction to reduce the impact of thermal noise
Display the tilt angle of the probe, indicate the detection position with a laser, and facilitate adjustment
Built-in GPS, altitude sensor, temperature and humidity sensor
Handheld, with a dedicated carrying case, easy to carry
PC software control mode

Application Fields

Geological research and exploration

Remote sensing measurement

Crop monitoring

Forest research, oceanographic research

Product Specifications
