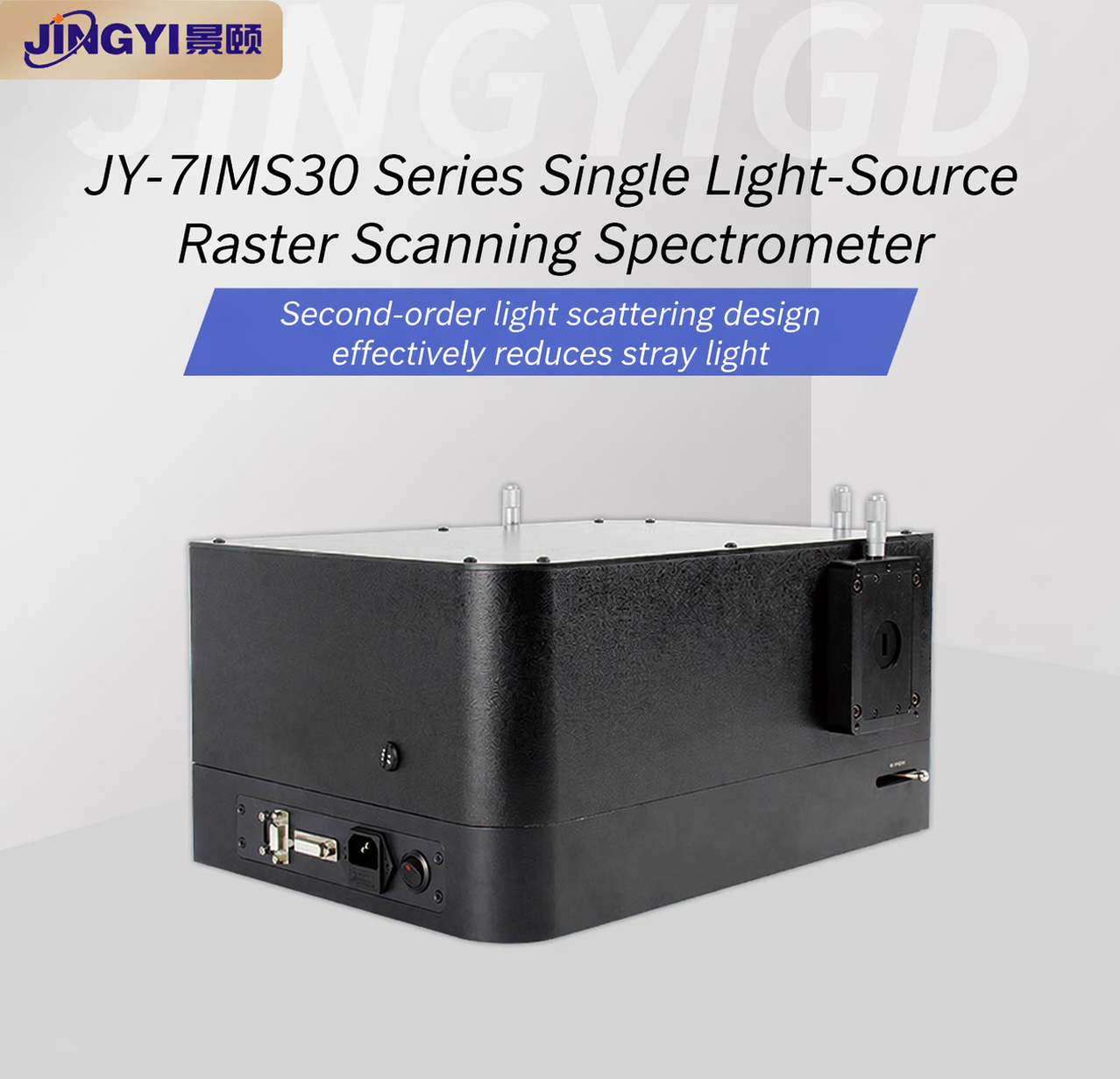

Product Features
Asymmetric horizontal Czerny Turner optical path, designed to eliminate coma errors, can improve spectral line symmetry and enhance optical resolution
Designed to eliminate secondary dispersion, effectively reducing stray light
The entrance can be used in conjunction with various light sources from our company
Can be equipped with various fiber optic interfaces to connect various types of fibers
Can connect any single point detector and other accessories from our company
The sine transmission mechanism adopts precision grinding screw, with a long service life, ensuring spectral accuracy and repeatability
Ultra wear-resistant linear guide rail, long-life design, smooth and comfortable operation, low noise
The JY-7IMS series uses RS232 interface, and the JY-7IMU series uses USB2.0 interface to communicate with computers, achieving automatic control
Can be equipped with a scanning knob indicator and manually set the wavelength
Equipped with a dedicated nitrogen filling port, it is easy to use in the ultraviolet and near-infrared bands with atmospheric absorption spectra
Using a 1200 line grating, the scanning wavelength range is wide up to 0~1100nm, which can cover the usage range of silicon detectors
Fine material selection, standardized craftsmanship, excellent production, with good performance indicators and batch consistency
Widely used in different professions and industries such as teaching, scientific research, photometry, chromaticity measurement, coating machines, air pollution, etc
The optical room and the mechanical transmission room are strictly separated to avoid the contamination of optical components caused by stray light and trace evaporation of lubricating oil in the latter
Model Description
|
model
|
Explanation
|
|
JY-7IMS3011B
|
Vertical entrance and exit, electric monochromator
|
|
JY-7IMS3021B
|
Parallel entrances and exits, electric monochromator
|
|
JY-7IMS3012
|
Vertical entrance and exit, manual monochromator
|
|
JY-7IMS3022
|
Parallel entrances and exits, manual monochromator
|
Technical Parameters
|
Focal Length
|
300mm
|
|
F/#
|
F/4.8
|
|
Stray Light
|
5X10⁻⁴
|
|
Grating Name
|
Grating S55 × 55 × 6
|
|
Grating effective usable area (GratingSize)
|
55mm×55mm
|
|
Standard Grating
|
JY-7OG1200-500(1200g/mm,
入p=500nm)
|
|
Slits effective size
|
Blade edge 10 μ m automatic protection, width 10 μ m~3mm
Continuously symmetrical adjustable; Height 14mm
|
|
Minimum Step
|
0.00625nm (1200g/mm grating)
|
|
size(Size of Monochromator)
|
L390mm×W278mm×H204mm
|
|
Weight of Monochromator
|
17kg (electric); 16kg (manual)
|
Comparison Table of Grating and Technical Indicators
|
Grating model line dispersion
|
Linear dispersion
(nm/mm)
|
accuracy
(nm)
|
repetitiveness
(nm)
|
resolution
(nm)
|
Theoretical spectral range
(nm)
|
Mechanical spectral range
(nm)
|
|
JY-7OG1200-250
|
2.7
|
0.2
|
0.1
|
0.1
|
185~500
|
0~1100
|
|
JY-7OG1200-300
|
200~600
|
|
JY-7OG1200-500
|
330~1000
|
|
JY-7OG600-500
|
5.4
|
0.4
|
0.2
|
0.2
|
330~1000
|
0~2200
|
|
JY-7OG600-750
|
500~1500
|
|
JY-7OG600-1000
|
660~2000
|
|
JY-7OG600-1250
|
830~2200
|
|
JY-7OG300-500
|
10.8
|
0.8
|
0.4
|
0.4
|
330~1000
|
0~4400
|
|
JY-7OG300-1250
|
830~2500
|
|
JY-7OG300-1800
|
1200~3600
|
|
JY-7OG300-3000
|
2000~4400
|
|
JY-7OG150-4000
|
21.6
|
1.6
|
0.8
|
0.8
|
2600~8000
|
0~8800
|
application software
JY-7IMSS Single Grating Scanning Monochromator
The application software for JY-7IMSS single grating scanning monochromator and JY-7IMSU.OCX control monochromator have the following functions:
Can be applied to Win7 or Windows XP operating systems
Capable of wavelength selection, wavelength scanning, parameter setting/reading, spectral line scaling, data printing/storage, etc
Can connect 7IDA1 data collector and lock-in amplifier devices such as SR810/SR830/7265/7225, and set parameters
Can control the automatic conversion of the 7IFW6 series filter wheel
Scanning parameters can be set and frequency domain or time domain scanning can be performed.
Multiple file formats for saving (. tee/. bmp/jpg/. xls/. txt, etc.)
Backup and recovery of original instrument parameters
Control JY-7IMSU.OCx integrates various functions, making it convenient for users to conduct secondary development
Related components
JY-7ILD series deuterium lamp light source
Deuterium lamp light sources are mainly used for ultraviolet radiation, reaching the vacuum ultraviolet limit of 195nm. The shorter the wavelength, the higher the brightness, and below 360nm, the radiance is higher than that of general halogen lamps. The JY-7ILD30 deuterium lamp light source produced by our company is equipped with long-life deuterium lamp bulbs indoors, which can be replaced by users themselves. When used in conjunction with our company's stable current power supply JY-7IPD30, the stability is better. It can be used as an independent excitation light source for ultraviolet and fluorescent light sources, or used in conjunction with our company's monochromators, spectrometers, sample chambers, filter wheels, etc. to form various application systems.
JY-7ILT series tungsten halogen lamp light source
The JY-7ILT series halogen tungsten lamp light source is equipped with imported German OSRAM bulbs and lamp holders, with a long service life. Users can replace the bulbs themselves. The light source has the characteristics of high color temperature, high luminous efficiency, and stable luminous flux. The luminous flux at the end of the bulb's lifespan is 95-98% of the initial value, which can be basically kept constant. Supporting JY-7IPT series steady current power supply
JY-7ILX series xenon lamp light source
The JY-7ILX series xenon lamp light source is equipped with a German OSRAM imported high-pressure short arc xenon lamp, which has a brightness several times higher than domestic lamp sources, a long service life, and easy replacement. The F/# of the light source room is continuously adjustable, and the high-voltage trigger is placed inside the light source room to avoid safety hazards caused by high voltage transmission between the light source room and the power supply. After turning off the power, the air cooling system continues to operate to ensure sufficient cooling of the light source room and power supply, thereby extending the lifespan of various components.
Optical Chopper
Optical chopper is a high-precision optical device that mainly modulates continuous light into light with a fixed frequency and outputs the modulation frequency; Usually used in conjunction with lock-in amplifiers; Optical chopper is generally composed of the following components: control unit, chopper device, chopper plate, and connecting wires, etc
detector
Our detector series products fully consider issues such as signal processing and connection matching. The products cover ultraviolet, visible, and infrared bands, mainly including photomultiplier tube detectors, lead sulfide detectors, silicon detectors, mercury cadmium telluride detectors, indium gallium nitride detectors, pyroelectric detectors, infrared detectors, linear CCD detectors, etc. In the photoelectric testing system, detectors need to be selected according to actual needs
Filter wheel
The JY-7IFW6 series filter wheel has 6 gears. The first gear does not install any filters, and the second to fifth gears can place filters with a thickness of 2mm and a diameter of 18mm directly, used to eliminate multi-level spectra
|
model
|
JY-7IFW6
|
JY-7IFW6A
|
JY-7IFW6B
|
|
spectral range
|
185~1600nm
|
185~2800nm
|
185~5000nm
|
|
Number of filters
|
3
|
4
|
5
|
|
Reserved installation position
|
2
|
1
|
0
|
JY-7ILM3 wavelength calibration mercury lamp light source
Cold cathode low-pressure mercury discharge lamp, which can be used for wavelength calibration of various monochromators with built-in power supply, small size, long service life, easy to use, high spectral energy, and good stability
Power: 3W
Weight: 0.45kg
JY-7IDA4 Data Collector
The JY-7IDA4 data collector is a weak signal measurement and acquisition device that uses dual channel conversion output channels and is controlled by independent software. It has a wide measurement range and high measurement accuracy, and can be used as a standalone weak signal collector. It can also be used in conjunction with our company's monochromator and detector to build a photoelectric testing system.
Characteristics and parameters:
Standard USB 2.0 interface sampling maximum rate: continuous 100kHz sampling
High performance operational amplifier, 16BitsA/D converter, high dynamic range signal acquisition, high measurement accuracy
Gain conversion of 1, 2, 4, 8, 16, 32, 64, 128 times, wide measurement range
Dual input, can be set as DC voltage input or DC current input
Current: ± 10pA~± 40 μ A
Voltage: ± 1 μ V~± 4V
Dual channel D/A conversion output channel, can be used to control other experimental equipment
Output amplitude: 0~10V
D/A conversion accuracy: 16Bits
One trigger input and one trigger output channel each, which can achieve synchronous experiments
Equipped with a+5V DC power supply
Support secondary development in environments such as LabVIEW, VB, VC, C #, etc
Weight: 1.35kg
