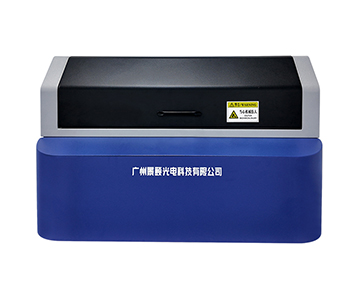

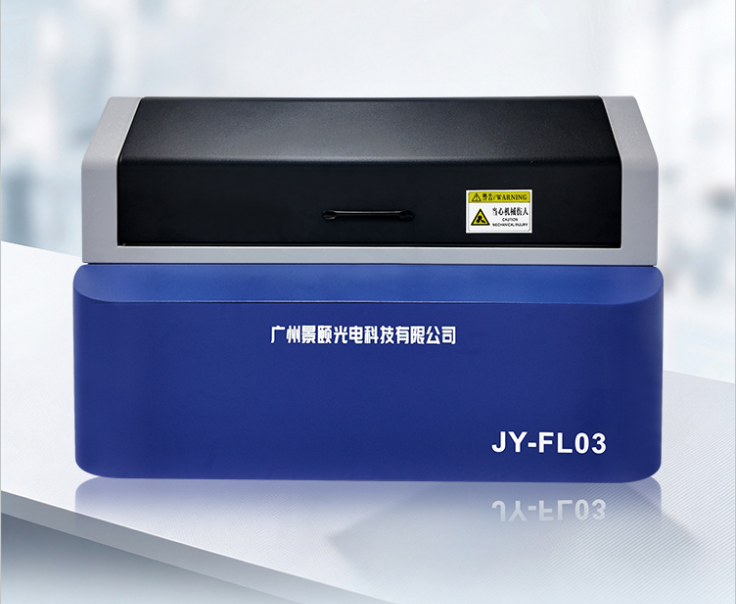

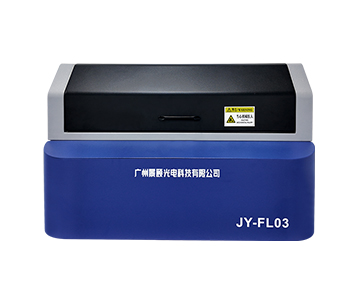

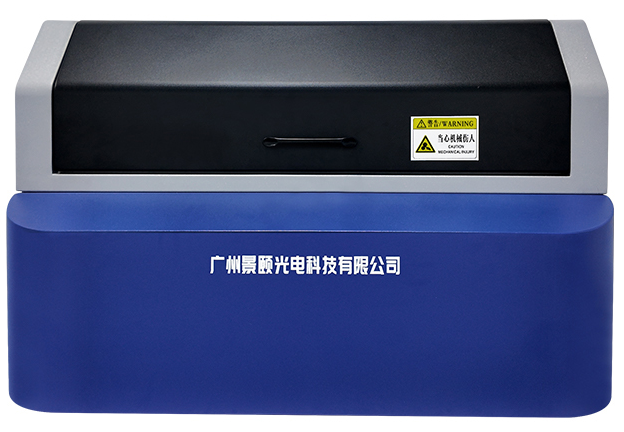

The automotive rearview mirror reflectance tester JYRMC200, produced by Jingyi Optoelectronics, is designed according to the national standard GB 15084-2022 for mirror reflectance testing and supports testing under high and low temperature conditions. It can measure rearview mirror reflectance, reflectance stability, reflectance transition time under working temperature, safety function tests during power-off, reflectance response time during reversing, and anti-glare characteristics at room temperature. This instrument fully complies with various vehicle rearview mirror testing standards.
Key Selling Points
Measurement under working temperature: The entire machine operates continuously and stably under conditions ranging from -30℃ to 65℃, meeting the requirements of GB 15084-2022 for reflectance transition time measurement under working temperature, without needing to pre-condition samples;
Optional light sensing test: Adjustable light source simulates ambient light and high beams from following vehicles to verify the environmental light sensing capability and brightness adjustment response of automatic anti-glare mirrors;
Optional power-on test: Simulates vehicle power supply and reverse signal to test the low reflectance value, display mode switching, and reverse response time under powered conditions;
Production line pulse adaptation: Integration time adjustable from 1 ms to 10 s, compatible with mass production lines with a cycle time of no more than 20 s per piece;
Integrated environmental chamber: Environmental chamber and main testing unit are fully integrated, preventing samples from moving back and forth between temperature zones and normal-temperature equipment;
Automation and data: Supports automatic loading and unloading, parallel multi-station testing, and data reporting, with optional statistical process analysis.
Overview of Testing Items (Standard and Optional Items Listed Separately)
|
Project
|
Inspection Content
|
Configuration
|
|
High reflectivity when not powered
|
Reflectance of the mirror in a non-powered state, determined not to be less than 40%
|
Standard
|
|
Low reflectivity when powered
|
Low reflectance level in powered display mode
|
Standard
|
|
Reflectivity curve
|
Reflectance distribution over the full wavelength range of 400 to 1000 nm
|
Standard
|
|
Reflectivity stability
|
Stability under long-term working conditions
|
Standard
|
|
Switching time at operating temperature
|
Transition process of reflectance status within the temperature range
|
Standard
|
|
Safety function when powered off
|
Response process of the emergency mirror from power-off to high reflectance
|
Standard
|
|
Ambient light response
|
Automatic adjustment response under ambient light and strong rear vehicle light conditions
|
Optional
|
|
Response when powered on and reversing
|
Response time under full vehicle power supply and reverse signal activation
|
Optional
|
Core Technical Parameters (Standard Configuration Indicators)
|
Measurement Principle
|
Integrating an integrating sphere with a fiber optic spectrometer, reflectance method
|
|
Wavelength Range
|
400 to 1000 nm; optionally extendable to near-infrared
|
|
Measurement Wavelength Interval
|
1 nm
|
|
Measurement Aperture
|
Ø9.5 mm
|
|
Fiber Length
|
3 m
|
|
Standard Whiteboard
|
27 mm PTFE diffuse reflectance whiteboard, factory calibrated
|
|
Reflectance Test Range
|
0 to 100%
|
|
Reflectance Accuracy
|
Better than 1% (based on standard plate)
|
|
Single Test Time
|
1 ms
|
|
Integration Time
|
Adjustable from 1 ms to 10 s
|
|
Spectrometer Type
|
Fiber optic spectrometer (CCD array detector)
|
|
Integrating Sphere Coating Reflectance
|
Better than 99%
|
|
Light Source
|
Halogen lamp, light intensity drift better than ±0.5%/8h, estimated lifetime 2000 hours
|
|
Operating Temperature Range
|
-30℃ to 65℃ (continuous operation of the whole unit)
|
|
Production Line Cycle Adaptation
|
Compatible with cycle times not exceeding 20 s per piece
|
|
Automation Interface
|
Supports automatic loading/unloading and multi-station parallel operation; interface type determined by the production line
|
|
Data Interface
|
USB 2.0 standard; RS-232 and Ethernet optional; can interface with upper-level systems
|
|
Power Supply and Consumption
|
AC 220V ±10%, 50Hz, not exceeding 300W
|
|
Operating System
|
Supports Windows operating system
|
|
Delivery Method
|
Delivered per workstation, including integration services and annual service
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
Optional features (with light sensing and power-on testing as the core options)
|
Optional Components
|
Description
|
Applicable Objects
|
|
Light Sensing Test Module
|
Adjustable light sources simulate ambient light and strong light from vehicles behind, verifying the ambient light perception and adjustment response of the automatic anti-glare mirror.
|
Automatic Anti-Glare Interior Rearview Mirrors
|
|
Powered-On Test Module
|
Simulate vehicle power supply and reversing signal to test the low reflectance value and response time when powered.
|
Streaming Interior Rearview Mirrors
|
|
Integrated High and Low Temperature Environmental Chamber
|
The environmental chamber and the main inspection unit are fully integrated, enabling continuous operation of the whole system from -30°C to 65°C.
|
Conversion Time Measurement at Operating Temperature
|
|
Multi-Angle Incident Component
|
Support reflectance measurement under different incident angle conditions.
|
Multi-Curvature Mirrors
|
|
Automatic Loading and Unloading Mechanism
|
Interface with production line mechanical structures to reduce manual intervention.
|
Mass Production Final Inspection Stations
|
|
Multi-Station Expansion
|
Extend from a single workstation to multi-station parallel inspection.
|
Production Lines with High Cycle Time Requirements
|
|
Broadband Expansion Component
|
Extend the measurement range from 400–1000 nm towards the near-infrared direction.
|
Samples Involving Near-Infrared
|
|
Statistical Process Analysis Software
|
Analyze the distribution and process capability of inspection data.
|
Production Lines Requiring Process Control
|
|
Spare Light Source and Consumable Kit
|
Spare parts for consumables such as light sources and optical fibers.
|
Continuous Operation Production Lines
|
Standard Configuration
|
Inspection Host
|
1 unit, including an integrating sphere and fiber optic spectrometer
|
|
Fiber Probe and Fiber
|
Ø9.5mm probe with 3m fiber optic cable, 1 set
|
|
Standard Whiteboard
|
27mm PTFE diffuse reflectance whiteboard, factory calibrated, 1 piece
|
|
Analysis Software
|
Reflectance measurement and analysis software, 1 set, compatible with Windows operating system
|
|
Connecting Cables and Power Supply
|
USB 2.0 connection cable and 220VAC power adapter, 1 set each
|
|
Random Files
|
Factory certificate of conformity, calibration certificate report, product user manual, warranty card, packing list, 1 copy each
|
|
Transportation Packaging
|
Dedicated transport packaging box, 1 set
|
*This page configuration diagram is intended to illustrate the workstation composition; the actual configuration shall be based on the approved plan. The specific test items and judgment thresholds for the light sensitivity test and power-on test modules shall be determined according to the customer's product specifications and standard requirements.
