74-ACH Adjustable Alignment Bracket Product Introduction

74-ACH adjustable collimation bracket

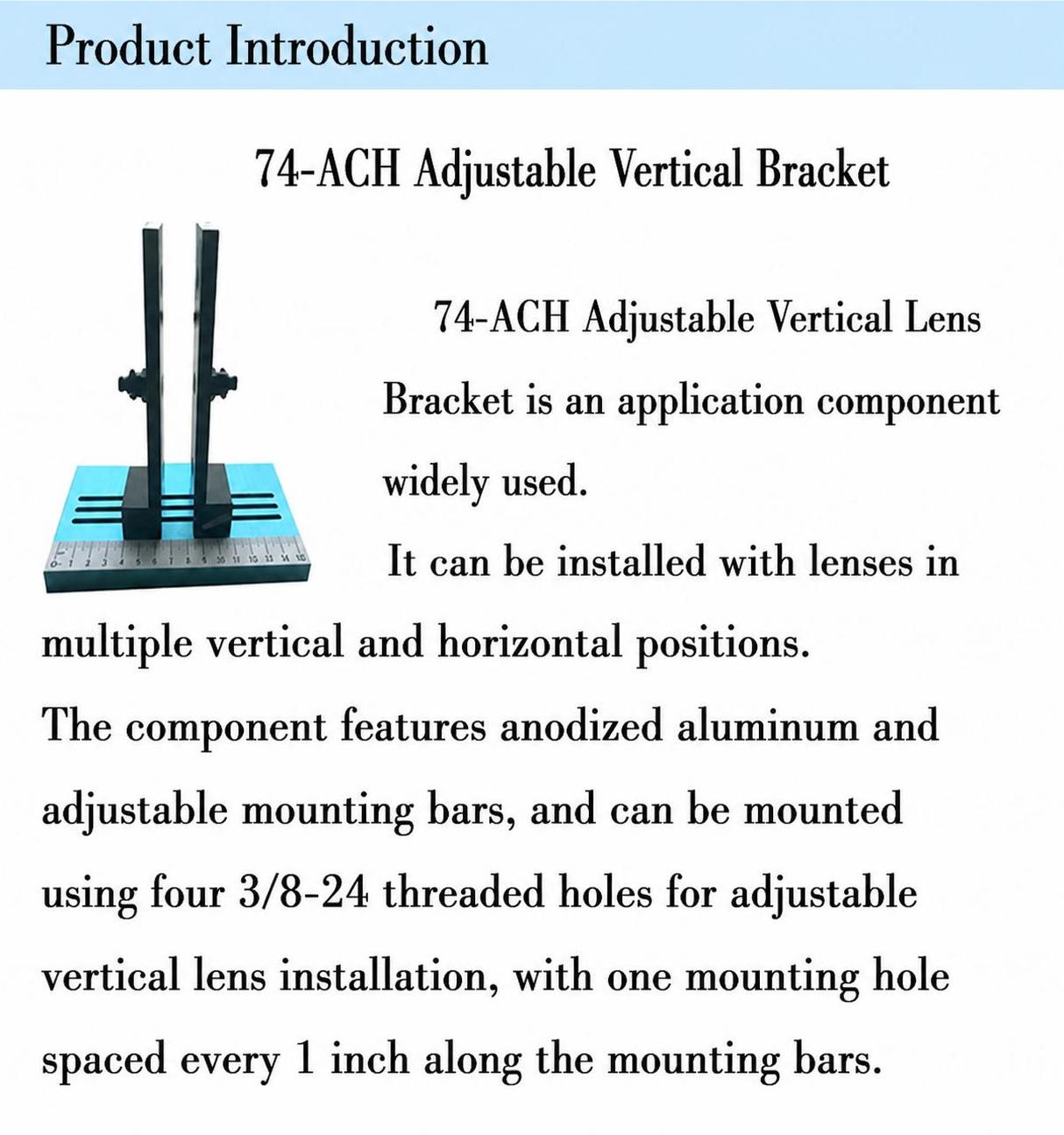

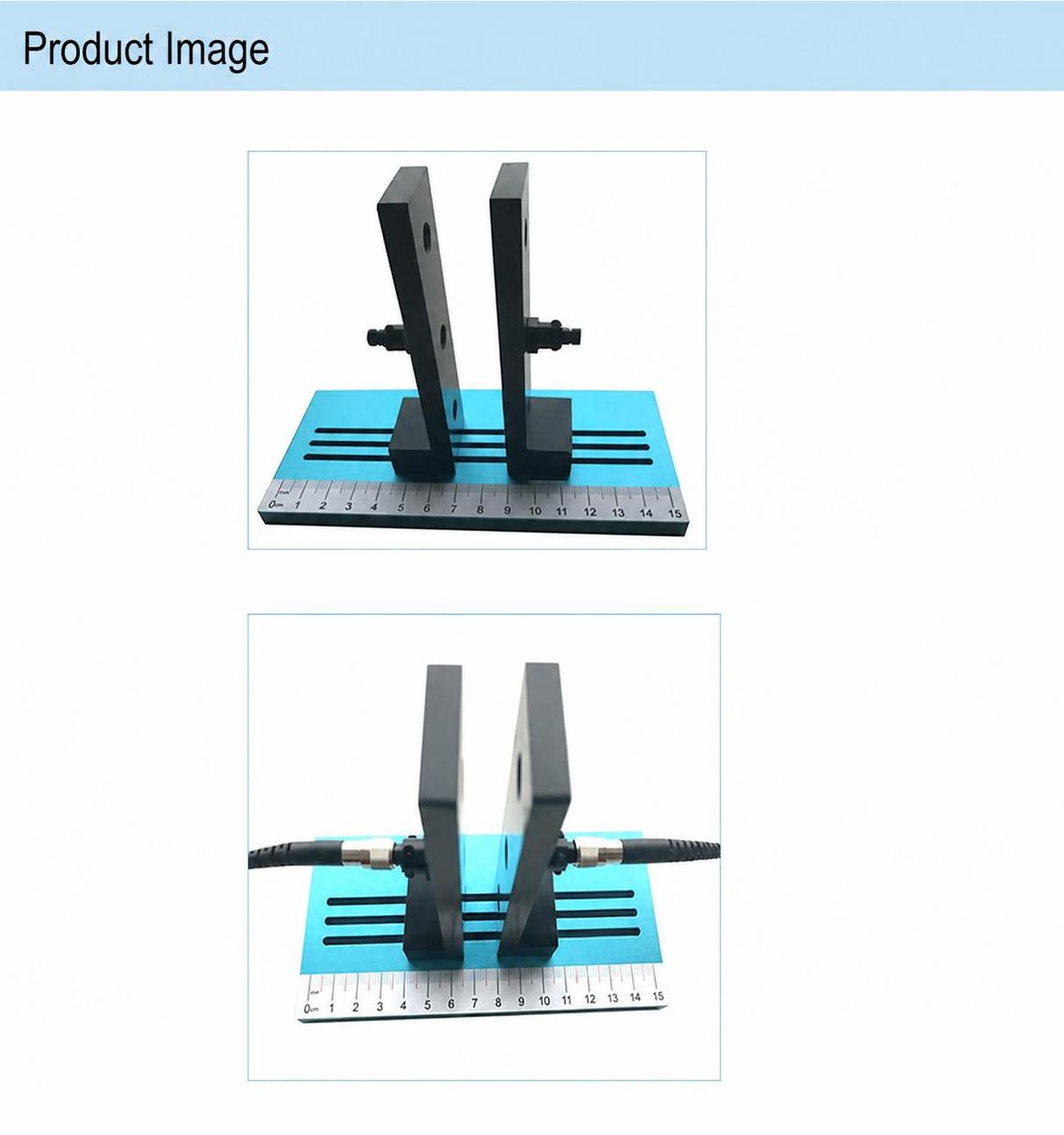

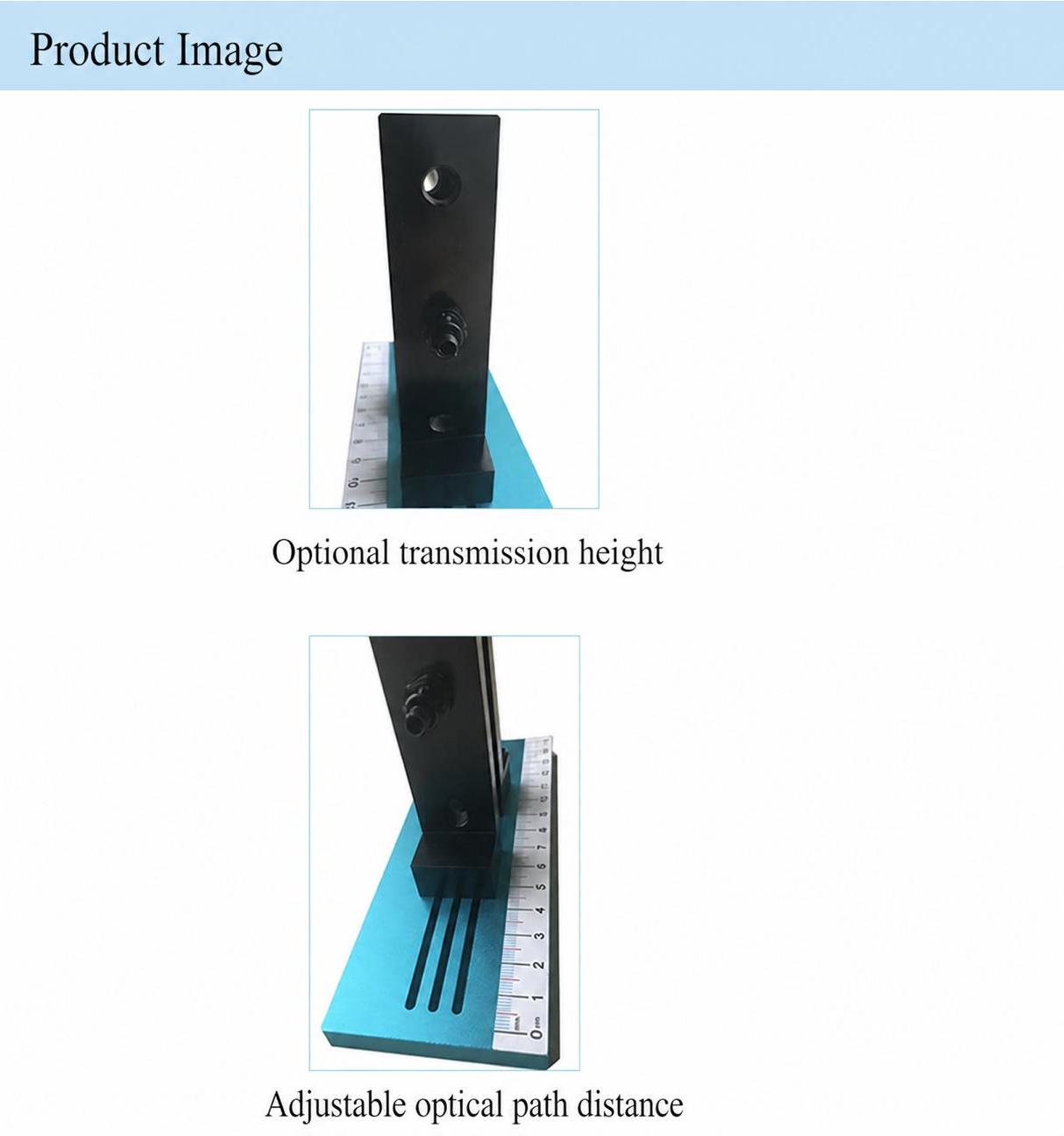

Product Introduction 74-ACH Adjustable Collimator Lens Bracket is a widely used component that can install lenses in multiple vertical and horizontal positions. This component features anodized aluminum and adjustable mounting strips, allowing for the installation of collimating lenses through four 3/8-24 threaded holes. There is one mounting hole every 1 inch from the top of the mounting strip.

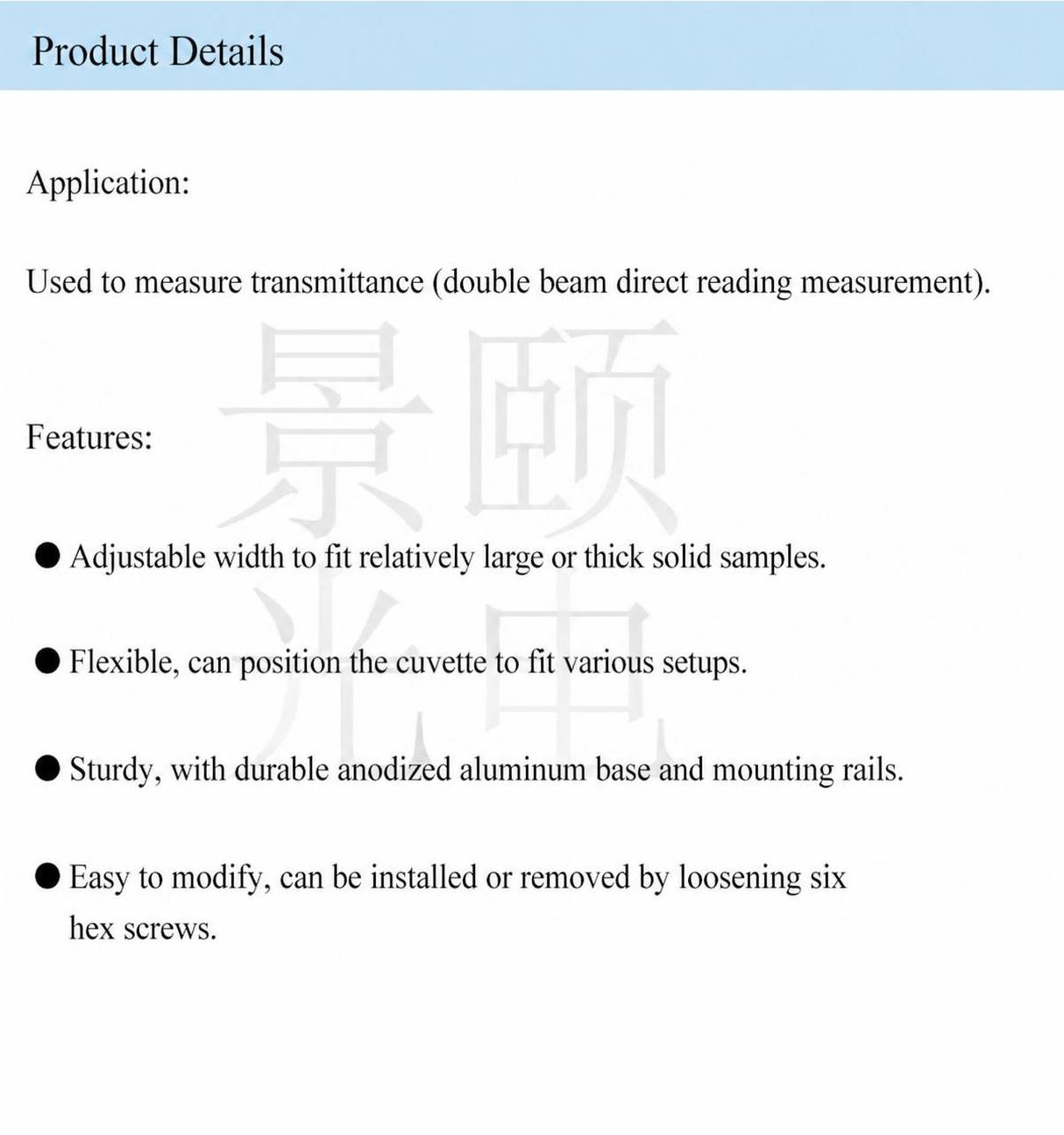

Application field: Used for measuring transmittance (dual collimator measurement method).

Features: Adjustable width, suitable for larger or thicker solid samples. Flexible and able to position the collimating mirror to adapt to various devices. Durable and sturdy anodized aluminum base and mounting strip. The modification is simple, and the installation strip can be removed with a basic hex wrench.

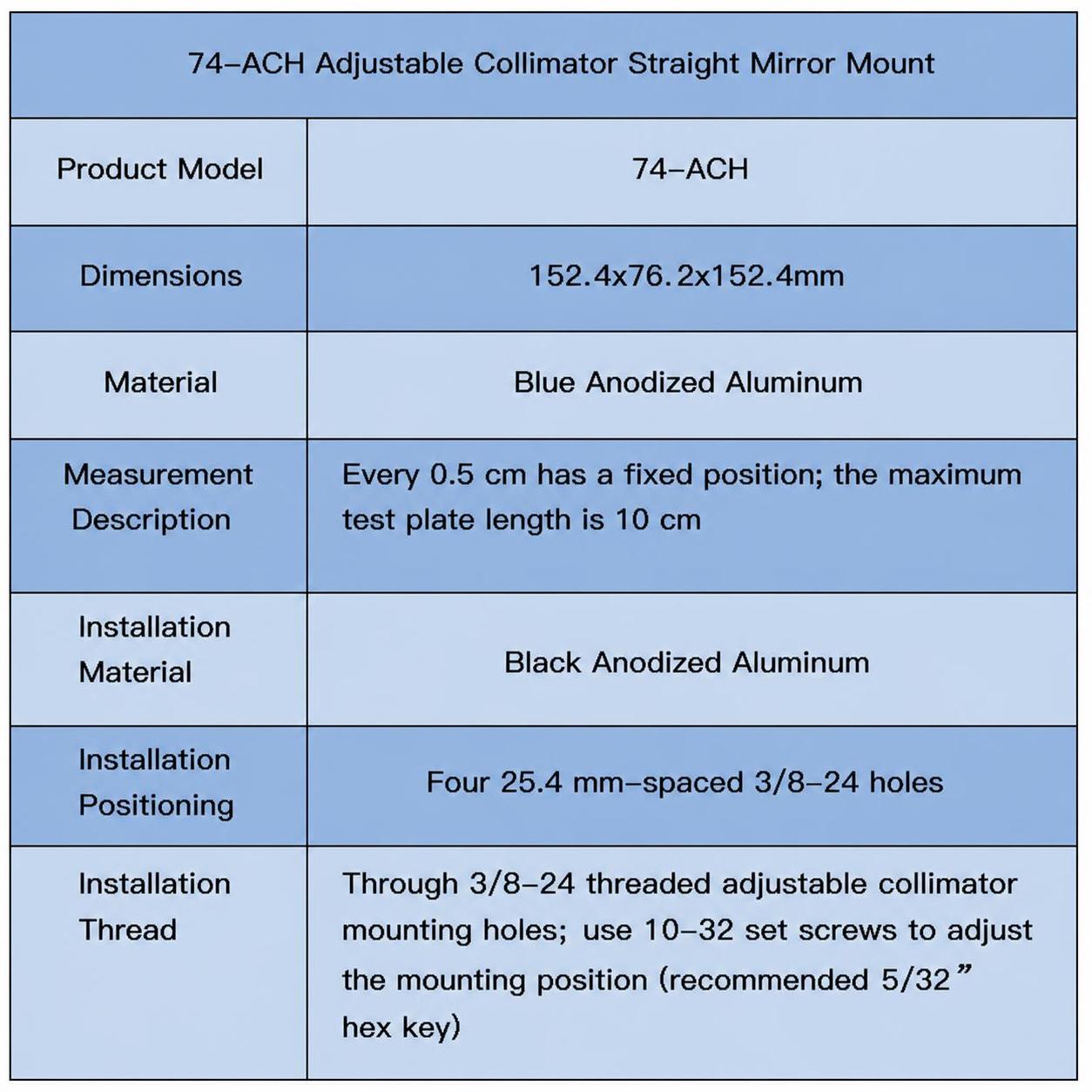

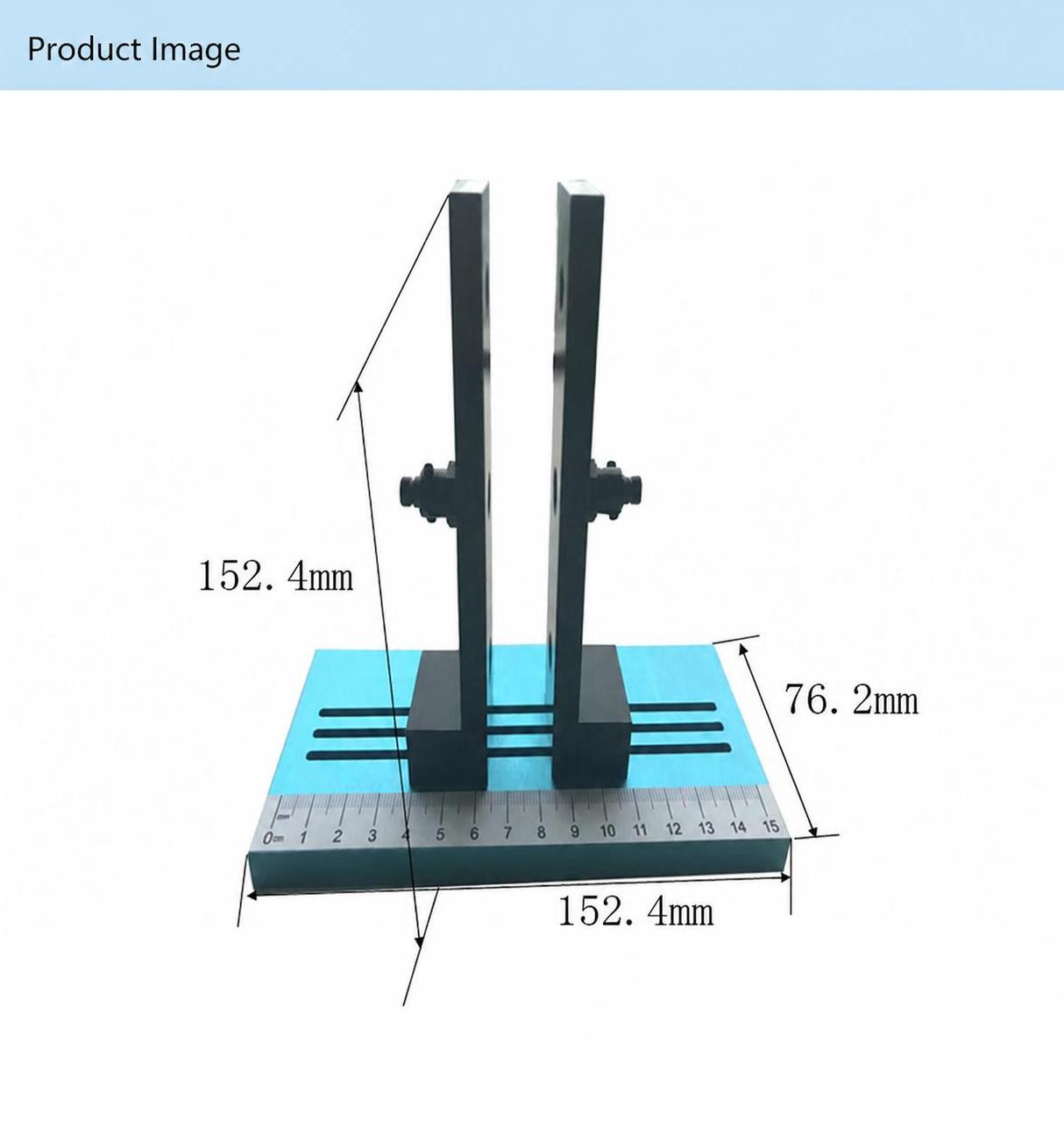

Product Specifications
