Product Introduction

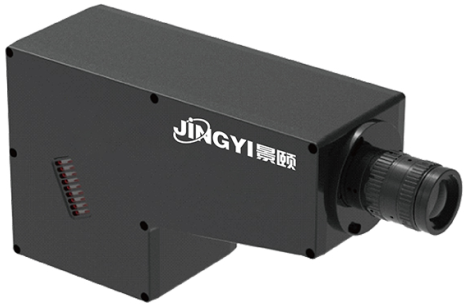

Jingyi Optoelectronics'JY-VIX Shortwave Infrared Hyperspectral CameraIt has ultra-high imaging speed, high sensitivity, and superior signal-to-noise ratio, and can be used in mounting, portable, indoor and other scenarios. It is mainly applied in scientific research, food safety, material detection and analysis, plastic sorting, biomedical and other fields.
Parameters of two models
JY-VIX-S230
Spectral resolution up to 3nm
Up to 512 spectral channels
JY-VIX-S270
Spectral resolution up to 3 nm
Up to 800 spectral channels
Product Features
The highest frame rate in ROI mode can reach 1800 fps, with ultra high speed imaging capability, greatly improving equipment efficiency
Lightweight design, balancing reliability and stability, easy to deploy or integrate into various complex systems and application scenarios
The spectral acquisition interval can be flexibly set and finely adjusted according to different needs to meet different requirements
Equipped with USB 3.0 data interface, plug and play, easy to achieve device connection and fast data transfer
Application Scenarios
Plastic testing
Ore detection
Product Specifications
|
Product Model
|
JY-VIX-S270
|
JY-VIX-S230
|
|
spectral range
|
900-1700 nm
|
900-1700 nm
|
|
Spectral resolution (FWHM)
|
3 nm
|
3 nm
|
|
Sampling Interval
|
1 nm
|
1.7 nm
|
|
Optical fixed focus lens
|
25 mm（Standard Configuration）
50mm / 35mm / 16mm / 8mm（Optional）
|
25 mm（Standard Configuration）
50mm / 35mm / 16mm / 8mm（Optional）
|
|
Numerical Aperture
|
F/2.5
|
F/2.5
|
|
Slot size (width x height)
|
40 μm x 12 mm
|
40 μm x 12 mm
|
|
Number of spectral channels
|
800
|
512
|
|
Number of spatial channels
|
1280
|
640
|
|
Multiple ROI regions
|
Support
|
Support
|
|
Effective pixel size
|
5 μm x 5 μm
|
5 μm x 5 μm
|
|
Data Depth
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
130 fps@full；900 fps@ROIpattern
|
400 fps@full；1800 fps@ROIpattern
|
|
Shutter mode
|
global shutter
|
global shutter
|
|
Lens interface
|
Standard C interface
|
Standard C interface
|
|
device interface
|
USB 3.0
|
USB 3.0
|
|
Storage temperature
|
-20°C-50°C
|
-20°C-50°C
|
|
Operating Temperature
|
0°C-45°C
|
0°C-45°C
|
|
Size (excluding lens)
(Width x Height x Depth)
|
140 mm x 87 mm x 236.5 mm
|
140 mm x 87 mm x 236.5 mm
|
|
Weight (excluding lens)
|
< 2 kg
|
< 2 kg
|
|
power consumption
|
< 2.1W (Uncooled)，< 25W (refrigeration)
|
< 2.1W (Uncooled)，< 25W (refrigeration)
|
|
external power supply
|
DC 12V/3A power supply
|
DC 12V/3A power supply
|
Consult customer service to obtain detailed materials and exclusive solutions.
