JINGYI Jing Yi

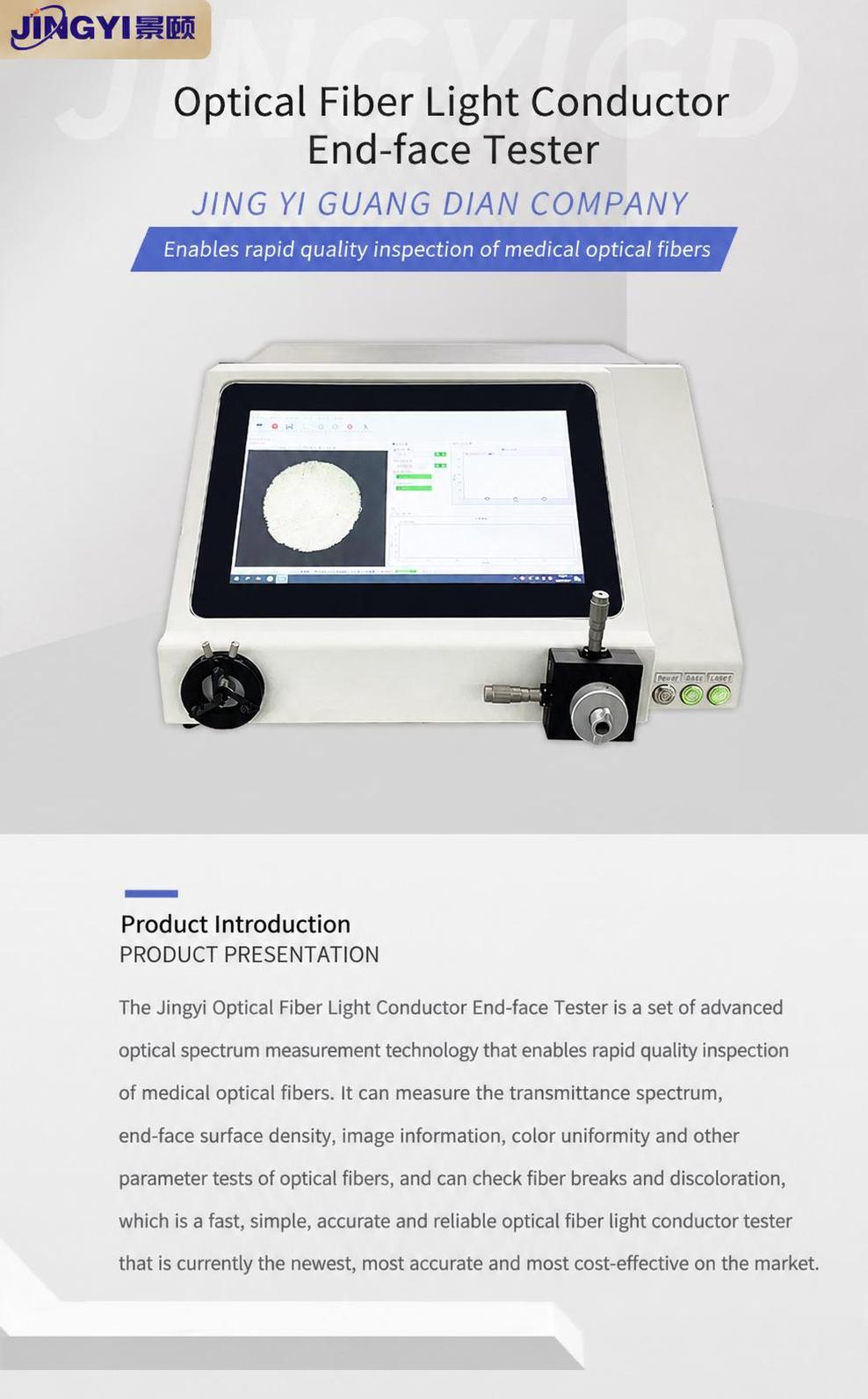

Fiber optic guided beam tester
JING YI GUANG DIAN COMPANY
Can perform rapid quality inspection of medical optical fibers
Product Introduction
PRODUCT PRESENTATION
Jingyi Optical Fiber Guide Beam Tester is a set of advanced spectral measurement technology that can quickly detect the quality of medical optical fibers. It can measure the optical fiber transmittance spectrum, optical fiber end face density quality image information, color uniformity parameters and other tests. It can check the fiber breakage and color change of optical fiber cables. It has the characteristics of fast, simple and accurate. It is currently the latest, most accurate and cost-effective optical fiber guide beam testing instrument on the market.

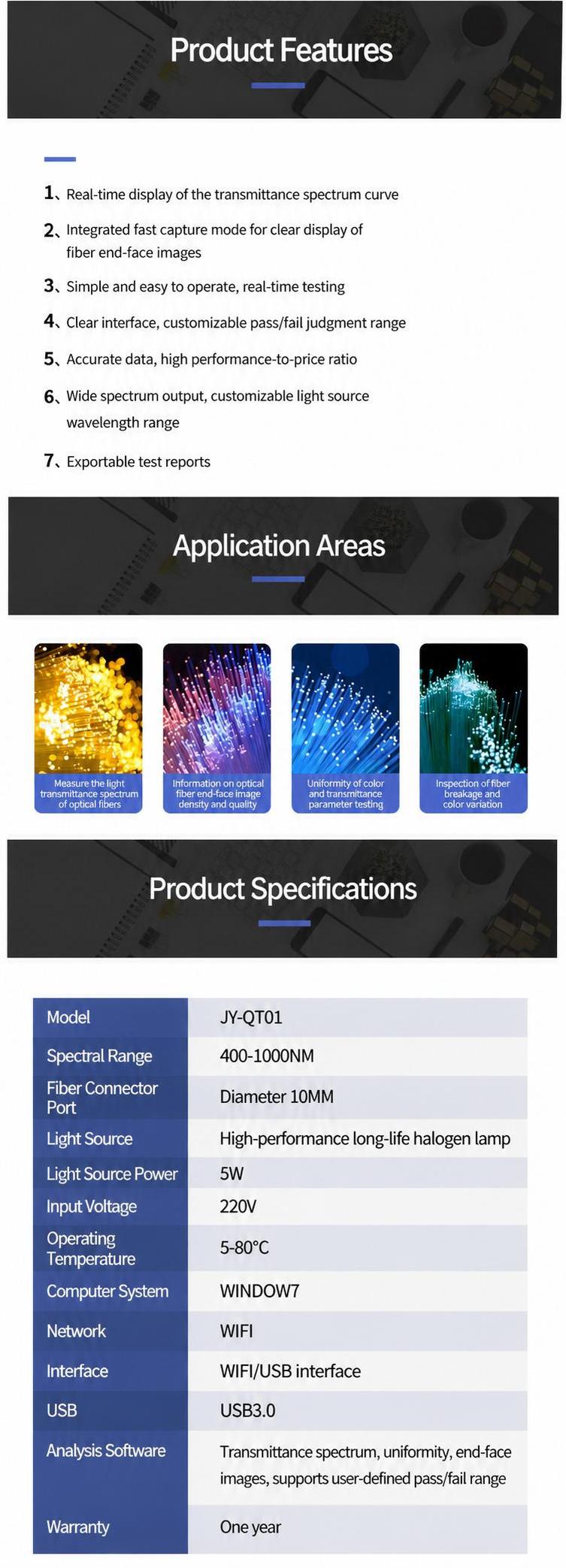

Product Features
- Real time display of transmittance full spectrum curve
- Integrated snapshot mode can display high-definition fiber end face fiber images
- Easy and fast operation, real-time testing
- The interface is clear, and the qualified judgment range can be customized and customized
- Accurate data and high cost-effectiveness
- Wide spectrum light source output, customizable light source wavelength range
- Exportable test report
Application Fields
- Measurement of transmittance spectrum of guided beam optical fiber
- Image information of fiber end face density quality
- Testing of color uniformity parameters, etc
- Check for broken fibers and discoloration of fiber optic cables
| project |
parameter |
| model |
JY-QT01 |
| spectral range |
400-1000NM |
| Fiber optic connection port |
diameter10MM |
| light source |
High performance and long-life halogen lamp |
| Light source power |
5W |
| Light source input voltage |
220V |
| Operating temperature |
5-80°C |
| computer system |
WINDOW7 |
| Internet |
WIFI |
| contact method |
WIFI/USB interface |
| USB |
USB3.0 |
| analysis software |
Transmittance spectrum, color uniformity, end face image, supporting user-defined qualification judgment range |
| warranty |
a year |

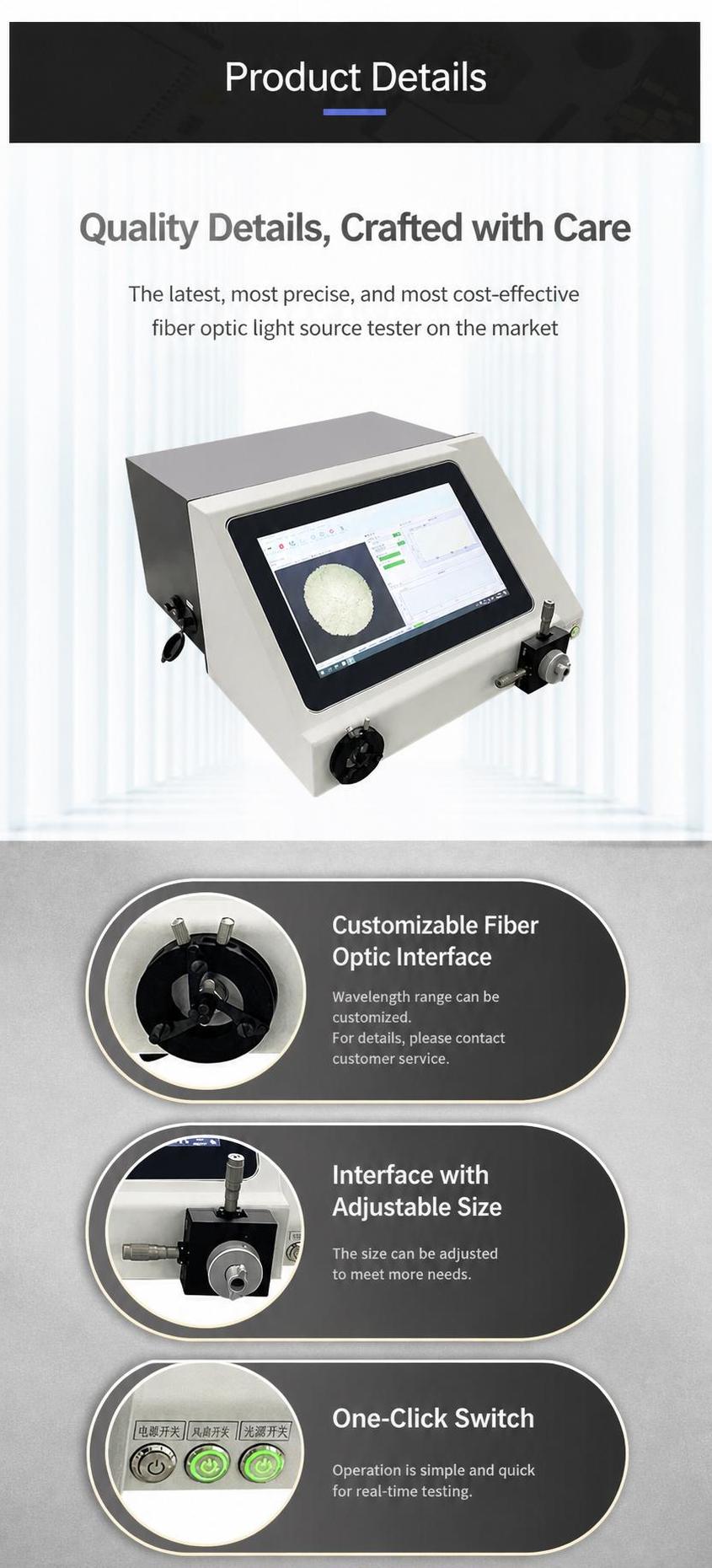

Product Details
Presenting quality details with care
The latest, most accurate, and cost-effective fiber optic beam testing instrument currently available on the market
- Customizable fiber optic interface
The wavelength range of the light source can be customized
For more details, please consult customer service
- The interface can be resized
Adjustable size
Meet more needs
- One-click switch
Easy and fast operation
Real time testing
