Product Introduction
Jingyi Optoelectronics' external push scan hyperspectral camera covers the visible to near-infrared spectral range and can be widely used in mounting, portable, indoor and other scenarios. Due to its lightweight design, high imaging speed, high sensitivity, and superior signal-to-noise ratio, it is mainly used in industrial testing, scientific research, biomedical, ecological environment, precision agriculture, resource exploration, and other fields.
Parameters of three models
JY-VIX-N110P
·Spectral resolution up to 1 nm
·Up to 1080 spectral channels
JY-VIX-N220
·Spectral resolution up to 1.6 nm
·Up to 600 spectral channels
JY-VIX-N230
·Spectral resolution up to 2.5 nm
·Up to 720 spectral channels
Product Features
·Lightweight design, sturdy and reliable, easy to deploy or integrate into various complex systems and application scenarios
·Equipped with high sensitivity, high spectral accuracy, and superior signal-to-noise ratio, ensuring accurate and reliable measurement results
·The spectral acquisition interval can be flexibly set to meet diverse needs
·USB3.0/GigE Data interface, plug and play
Application Scenarios

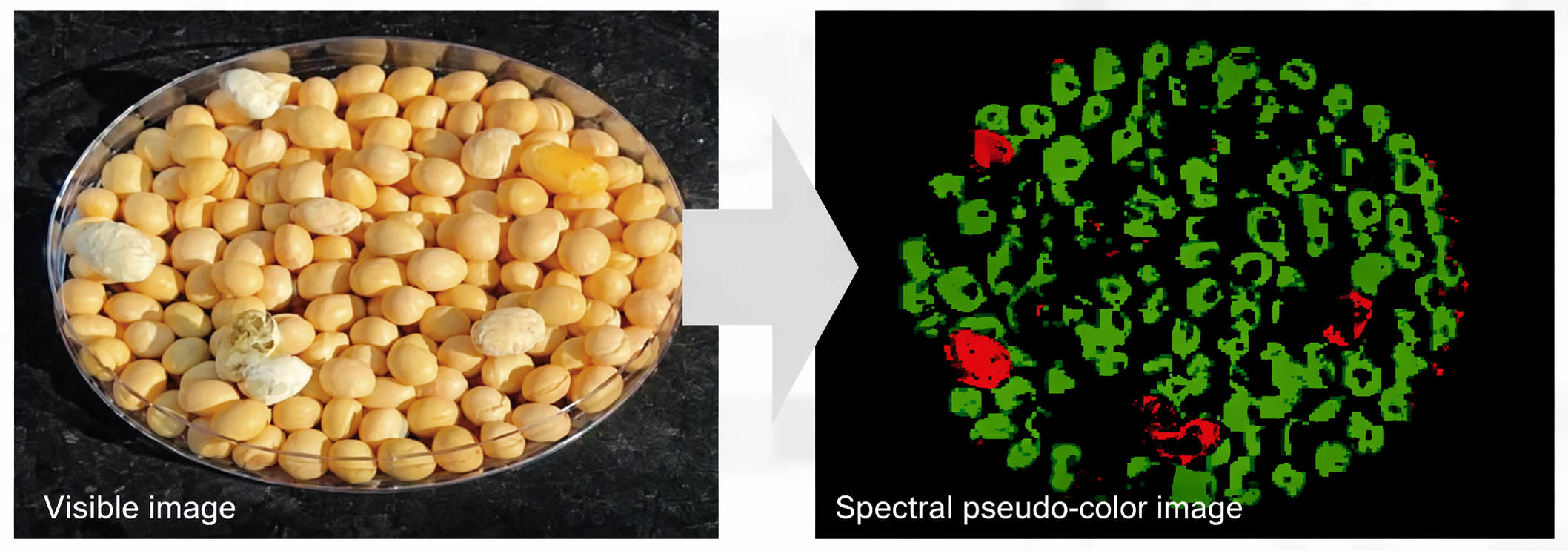

Soybean mold: Red indicates moldy soybeans
Soybean mold detection
Product Specifications
|
Product Model
|
JY-VIX-N110P
|
JY-VIX-N221
|
JY-VIX-N230
|
|
spectral range
|
400-1000 nm
|
400-1000 nm
|
400-1000 nm
|
|
Sampling Interval
|
0.5 nm
|
0.7 nm
|
0.8 nm
|
|
spectral resolution (FWHM)
|
1 nm
|
1.5nm
|
2.5 nm
|
|
Optical fixed focus lens
|
50mm / 35mm / 16mm / 8mm
|
50mm / 35mm / 16mm / 8mm
|
50mm / 35mm / 16mm
|
|
Numerical Aperture
|
F/2.8
|
F/4
|
F/2.0
|
|
Slot size (width x height)
|
30 μm x 7 mm
|
25 um x 6.5 mm
|
25 um x 10 mm
|
|
Number of spectral channels
|
1080
|
850
|
720
|
|
Number of spatial channels
|
1200
|
1200
|
1200
|
|
Effective pixel size
|
6.9 μm x 6.9 μm
|
5.86 μm x 5.86 μm
|
9 μm x 9 μm
|
|
Data Depth
|
12 bits
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
165 fps@full
|
100 fps@full
|
342 fps@full
|
|
Shutter mode
|
global shutter
|
global shutter
|
global shutter
|
|
Lens interface
|
Standard C interface
|
Standard C interface
|
Standard C interface
|
|
device interface
|
USB 3.0
|
USB 3.0
|
10 GigE
|
|
Storage temperature
|
-20°C-50°C
|
-20°C-50°C
|
-20°C-50°C
|
|
Operating Temperature
|
0°C-45°C
|
0°C-45°C
|
0°C-45°C
|
|
Size (excluding lens)
(Width x Height x Depth)
|
120 mm x 85 mm x 220 mm
|
65 mm x 52.5 mm x 136 mm
|
90 mm x 110 mm x 211.5 mm
|
|
Weight (excluding lens)
|
< 2 Kg
|
< 500 g
|
2 Kg
|
|
power consumption
|
<3.5 W
|
<3.5 W
|
<12 W
|
|
external power supply
|
Powered by USB 3.0
|
Powered by USB 3.0
|
Powered by DC24V 2A
|
