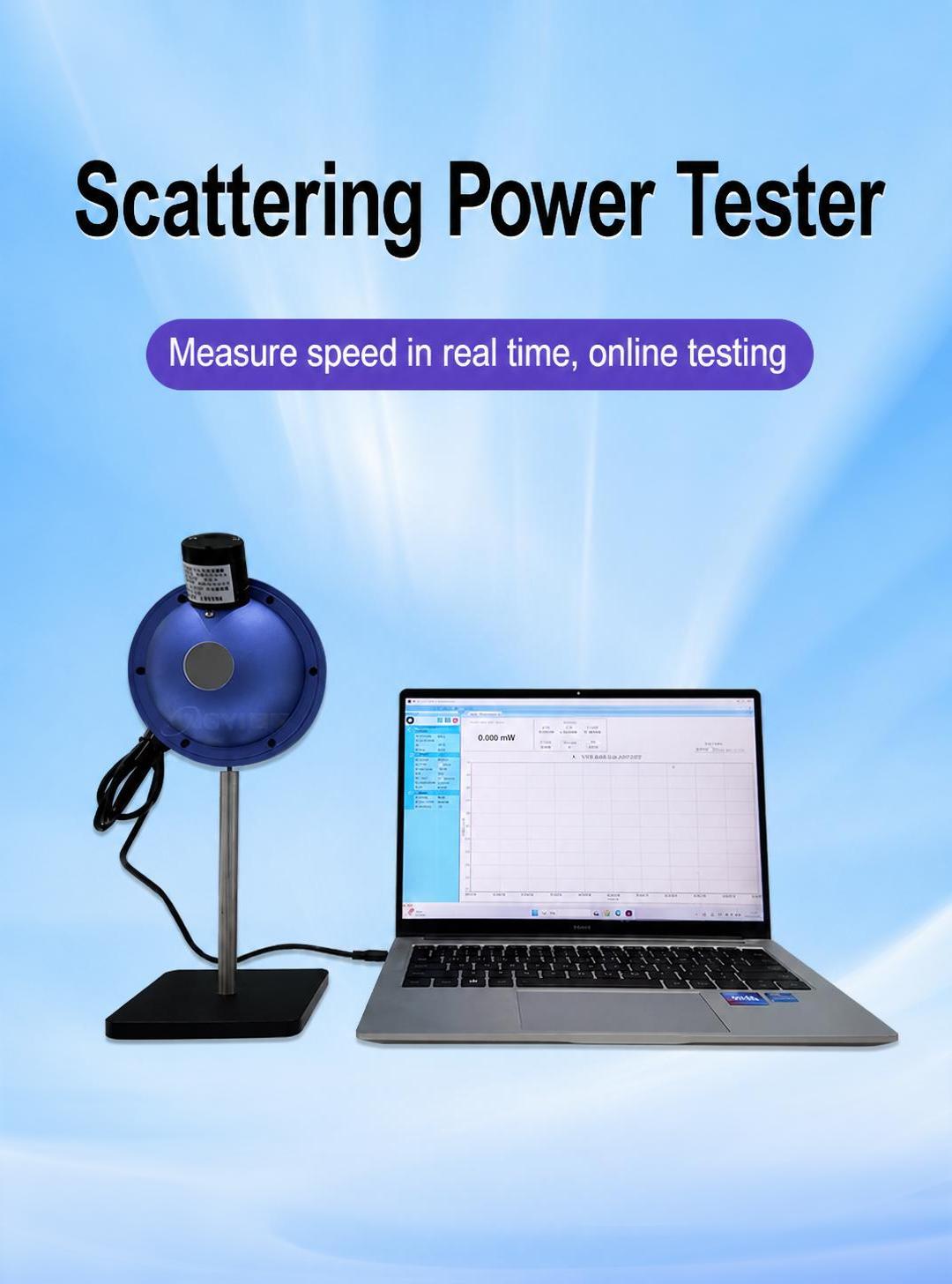

Integral sphere power tester
Capable of accurately and effectively collecting the power of highly divergent light sources
Product Introduction
PRODUCT PRESENTATION

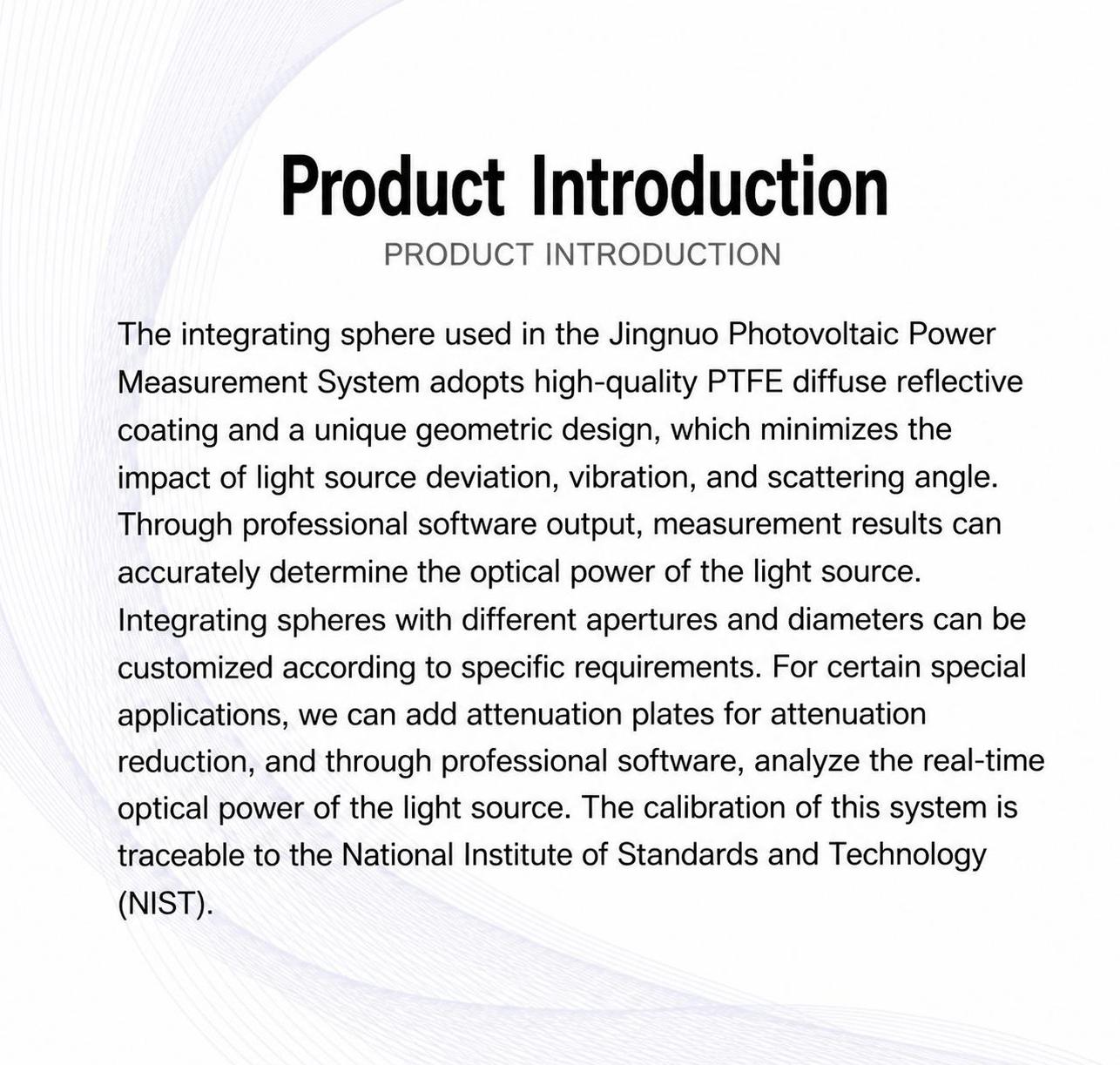

The integrating sphere of Jingyi Optoelectronic Integrating Sphere Power Tester adopts high-quality PTFE high diffuse reflection coating and unique geometric design structure, which ensures that the testing light source is not affected by beam polarization and divergence angle. The measurement results can be accurately determined by professional software output. The opening and diameter of the integrating sphere can be customized according to specific needs. For some special applications, we can attenuate by adding attenuation plates and analyze the real-time power of the light source through professional software. The calibration of this system can be traced back to the National Institute of Standards and Technology (NIST).

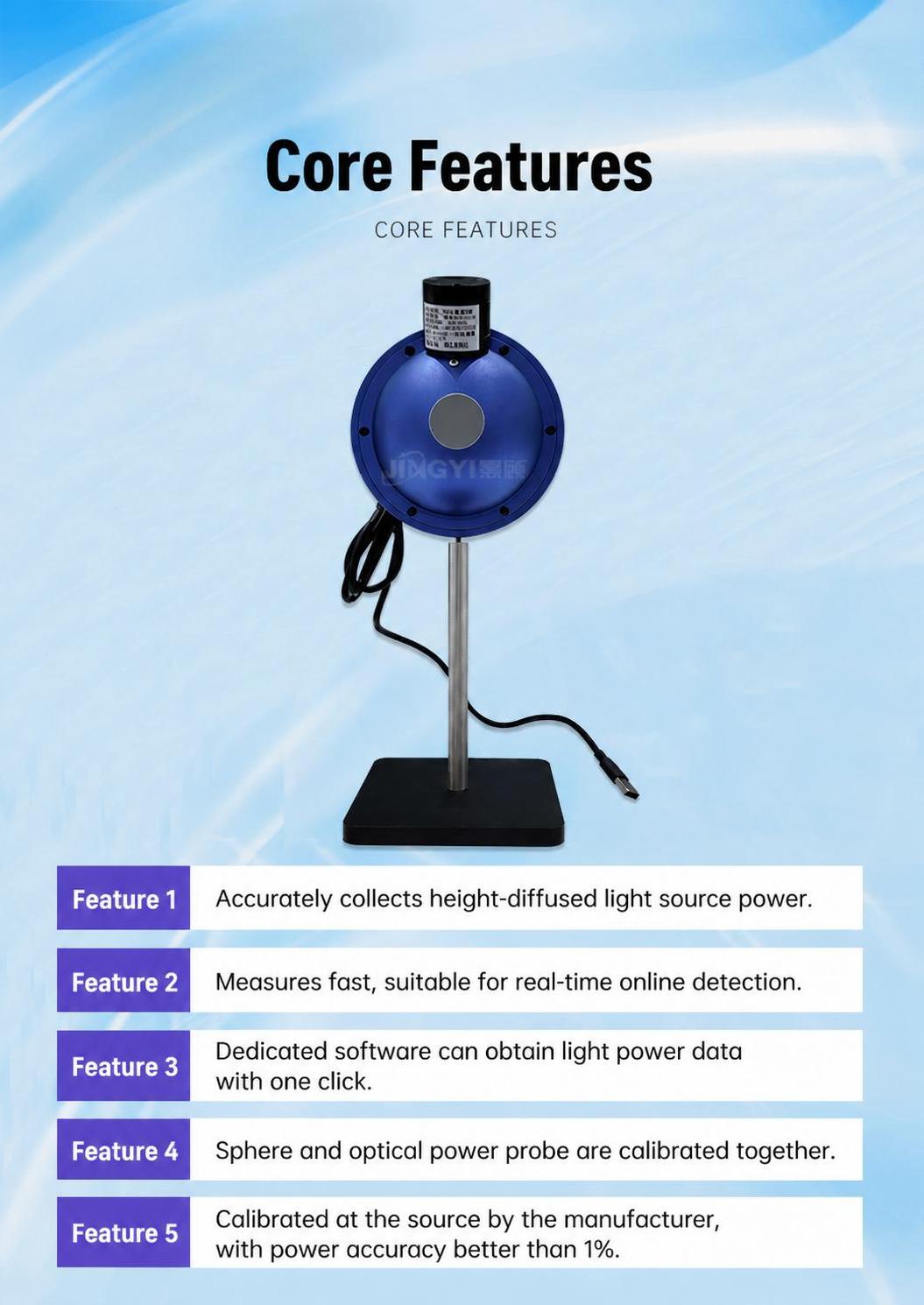

Product Features
- Capable of accurately and effectively collecting the power of highly divergent light sources
Fast measurement speed, suitable for online real-time detection
Specialized software can easily obtain optical power data with just one click
Calibration of integrating sphere and optical power probe together
Factory traceability calibration, power accuracy better than 1%
Product Application
- laser
- laser diode
- Laser diode component
- Divergent monochromatic light source
- Pulse laser power

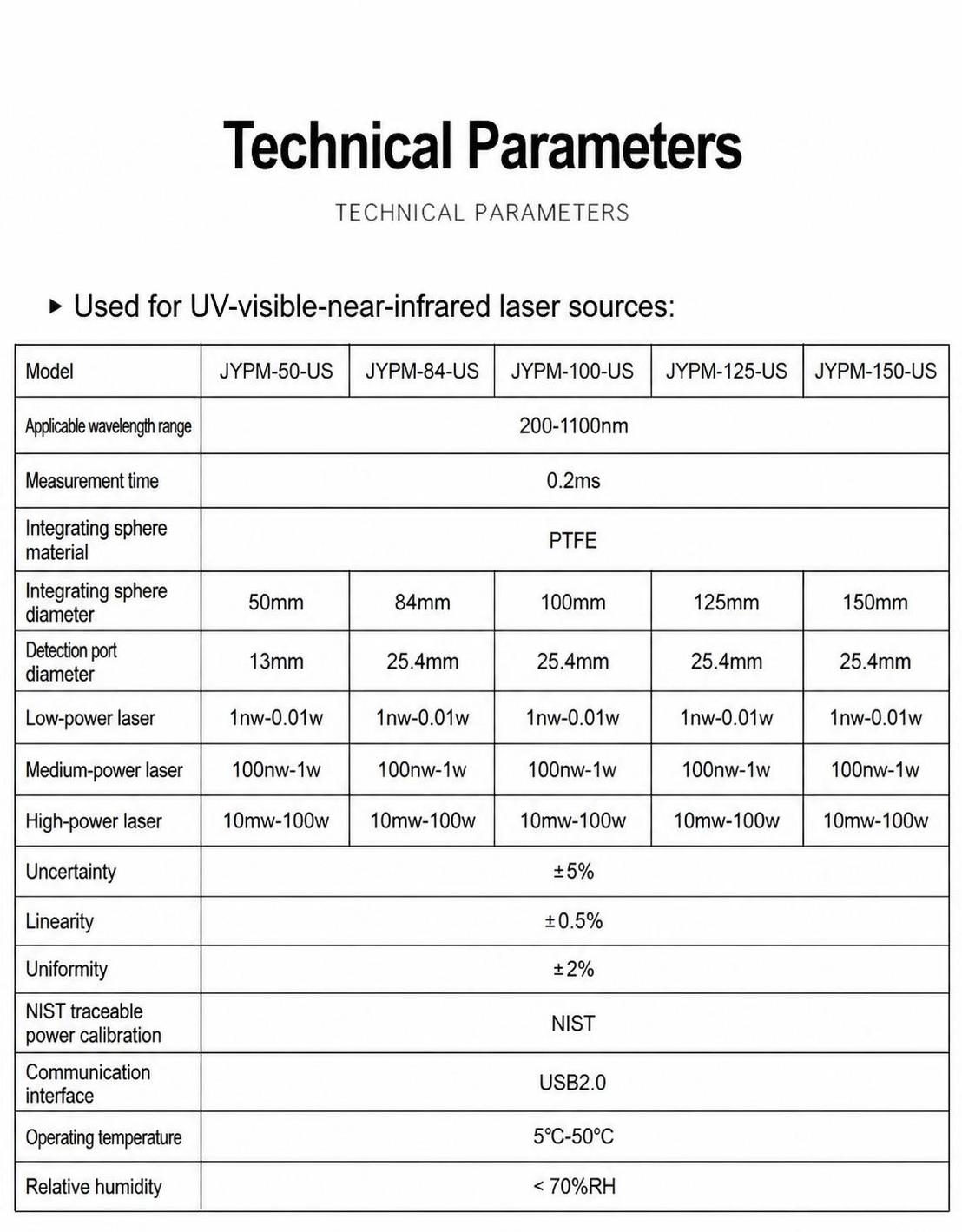

Laser for UV Vis NIR band:
| model |
JYPM-50-US |
JYPM-84-US |
JYPM-100-US |
JYPM-125-US |
JYPM-150-US |
| Applicable wavelength range |
200-1100nm |
|
|
|
|
| measure time |
0.2ms |
|
|
|
|
| Integral sphere coating |
PTFE |
|
|
|
|
| Integral sphere diameter |
50mm |
84mm |
100mm |
125mm |
150mm |
| Detection aperture |
13mm |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
| Low power laser |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
| Medium power laser |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
| High power laser |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
| uncertainty |
±5% |
|
|
|
|
| linearity |
±0.5% |
|
|
|
|
| uniformity |
±2% |
|
|
|
|
| Power probe traceability calibration |
NIST |
|
|
|
|
| communication interface |
USB2.0 |
|
|
|
|
| Operating Temperature |
5℃-50℃ |
|
|
|
|
| relative humidity |
<70%RH |
|
|
|
|

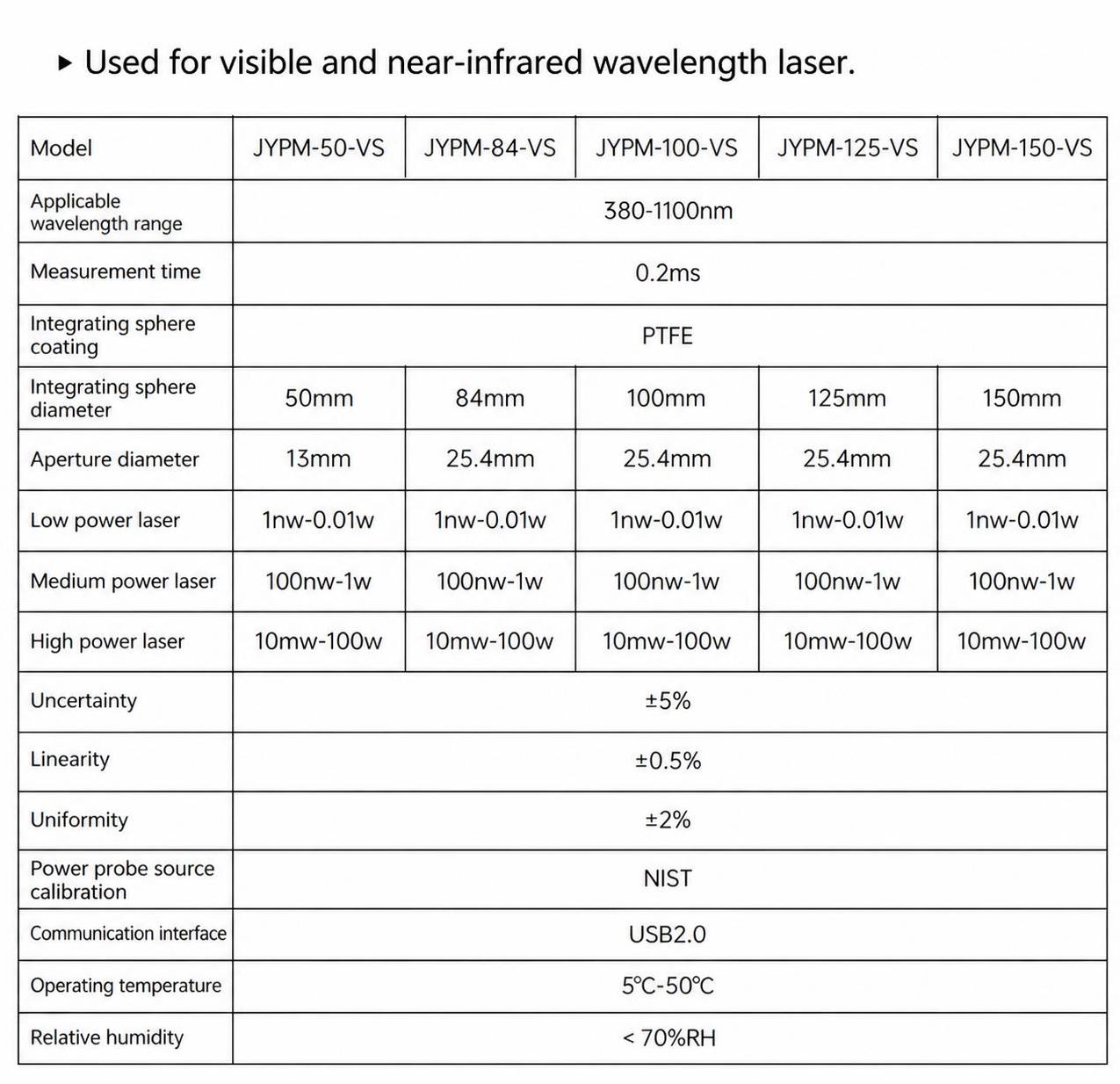

Laser for visible near infrared band:
| model |
JYPM-50-VS |
JYPM-84-VS |
JYPM-100-VS |
JYPM-125-VS |
JYPM-150-VS |
| Applicable wavelength range |
380-1100nm |
|
|
|
|
| measure time |
0.2ms |
|
|
|
|
| Integral sphere coating |
PTFE |
|
|
|
|
| Integral sphere diameter |
50mm |
84mm |
100mm |
125mm |
150mm |
| Detection aperture |
13mm |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
| Low power laser |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
| Medium power laser |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
| High power laser |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
| uncertainty |
±5% |
|
|
|
|
| linearity |
±0.5% |
|
|
|
|
| uniformity |
±2% |
|
|
|
|
| Power probe traceability calibration |
NIST |
|
|
|
|
| communication interface |
USB2.0 |
|
|
|
|
| Operating Temperature |
5℃-50℃ |
|
|
|
|
| relative humidity |
<70%RH |
|
|
|
|

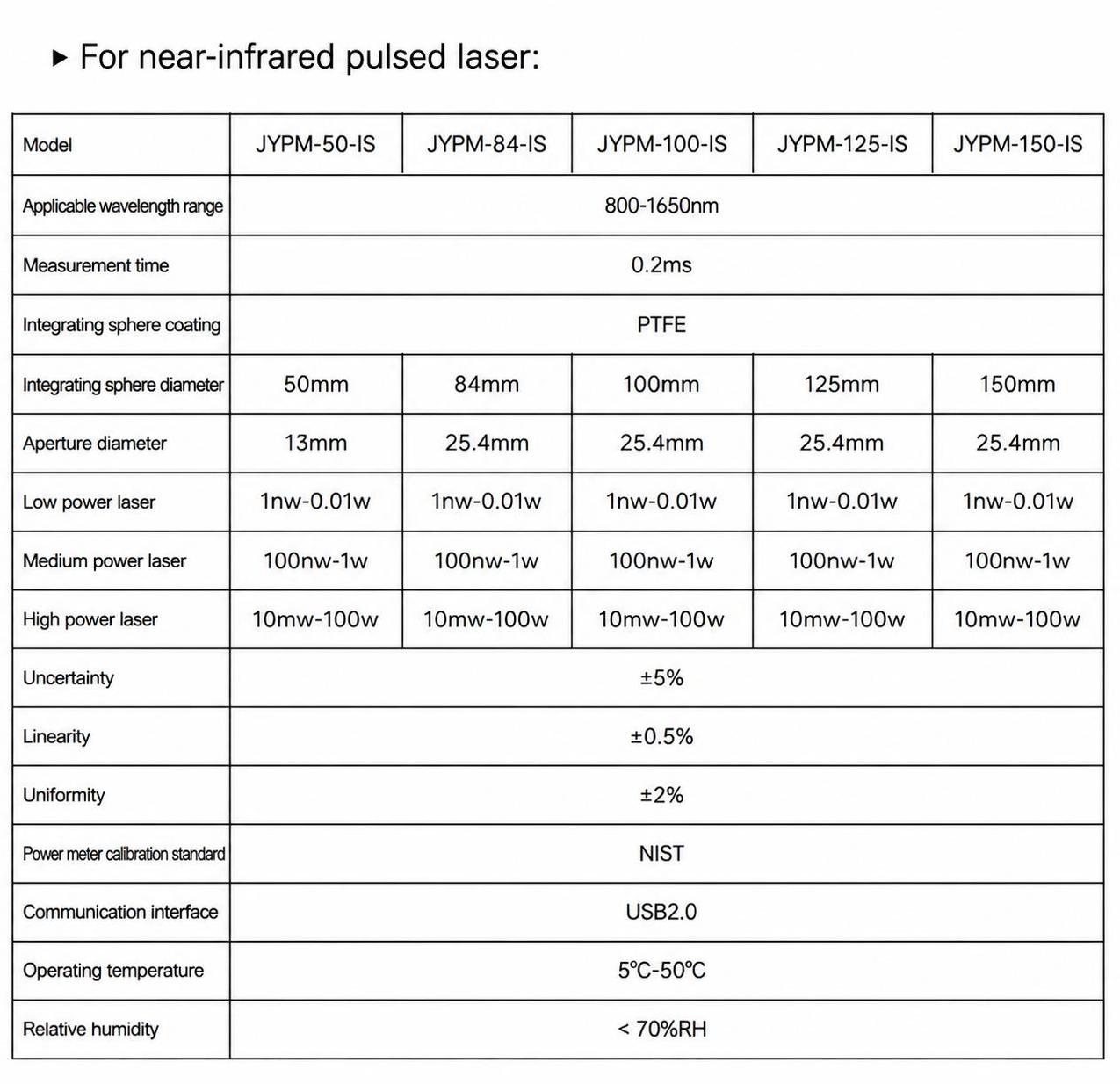

Laser for near-infrared band:
| model |
JYPM-50-IS |
JYPM-84-IS |
JYPM-100-IS |
JYPM-125-IS |
JYPM-150-IS |
| Applicable wavelength range |
800-1650nm |
|
|
|
|
| measure time |
0.2ms |
|
|
|
|
| Integral sphere coating |
PTFE |
|
|
|
|
| Integral sphere diameter |
50mm |
84mm |
100mm |
125mm |
150mm |
| Detection aperture |
13mm |
25.4mm |
25.4mm |
25.4mm |
25.4mm |
| Low power laser |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
1nw-0.01w |
| Medium power laser |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
100nw-1w |
| High power laser |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
10mw-100w |
| uncertainty |
±5% |
|
|
|
|
| linearity |
±0.5% |
|
|
|
|
| uniformity |
±2% |
|
|
|
|
| Power probe traceability calibration |
NIST |
|
|
|
|
| communication interface |
USB2.0 |
|
|
|
|
| Operating Temperature |
5℃-50℃ |
|
|
|
|
| relative humidity |
<70%RH |
|
|
|
|

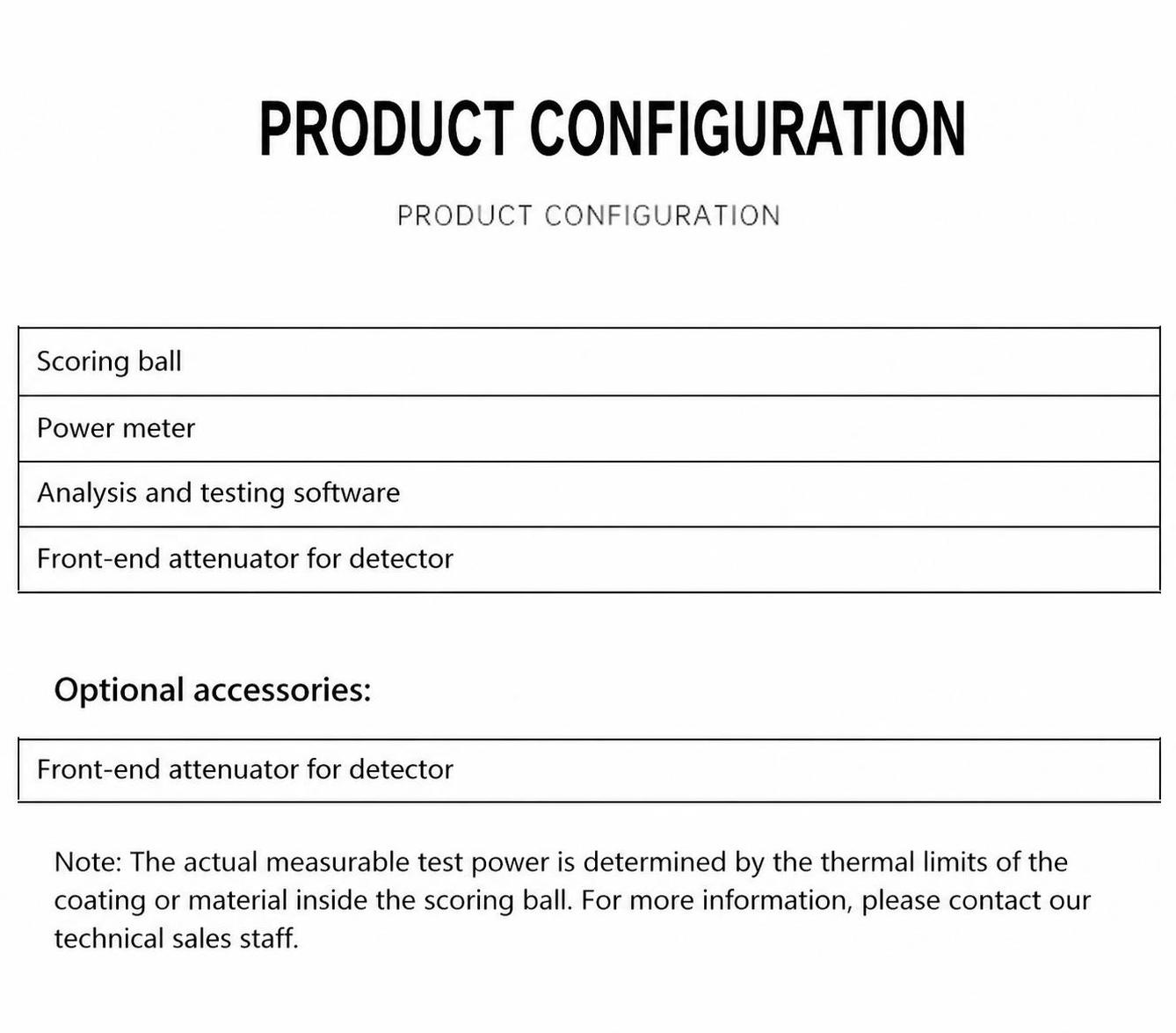

Product Configuration
- integrating sphere
- power meter
- Analysis and testing software
- Detector front-end attenuator
Optional accessories
- Detector front-end attenuator
Note: The actual testable power depends on the thermal limit of the coating or material inside the integrating sphere. For more information, please contact our technical sales personnel
