The compact and low-cost NE-1 calibration light source is suitable for wavelength calibration of visible and near-infrared spectra. NE-1 can generate 540-754 nanometers
The range of transmission spectral lines is suitable for performing fast and reliable wavelength calibration of spectrometers. The NE-1 casing is printed with easily recognizable transmission spectral lines.
NE-1 can be used to confirm the wavelength accuracy of any spectrometer and can also be used for recalibration of the spectrometer if necessary.
NE-1 operates with a 12 VDC power supply (included in the product). SMA fiber or FC fiber can be used to connect with NE-1.
Product Details
· Mainly used for visible near infrared wavelength calibration without intensity calibration
· Calibration lines are printed on the outer shell of the lamp, making it easy to use
The product includes:
· Neon lamphost
· 12V DC power supply
Specification
|
Engineering specifications
|
NE-1
|
|
Light source
|
Low pressure exhaustNeon lamp
|
|
Wavelength range:
|
540–754 nm
|
|
Size:
|
12.5 x 7.0 x2.6 cm
|
|
Weight:
|
40 g
|
|
Power consumption:
|
250 mA at 12 VDC
|
|
Power requirements:
|
12 VDC (included in the product)
|
|
Internal voltage:
|
600 V at 30 kHz
|
|
Lamp lifespan:
|
About 3500 hours (under 20mA conditions)
|
|
Amplitude stability:
|
About 1 minute
|
|
Aperture:
|
3 mm
|
|
Connector:
|
SMA 905 or FC
|

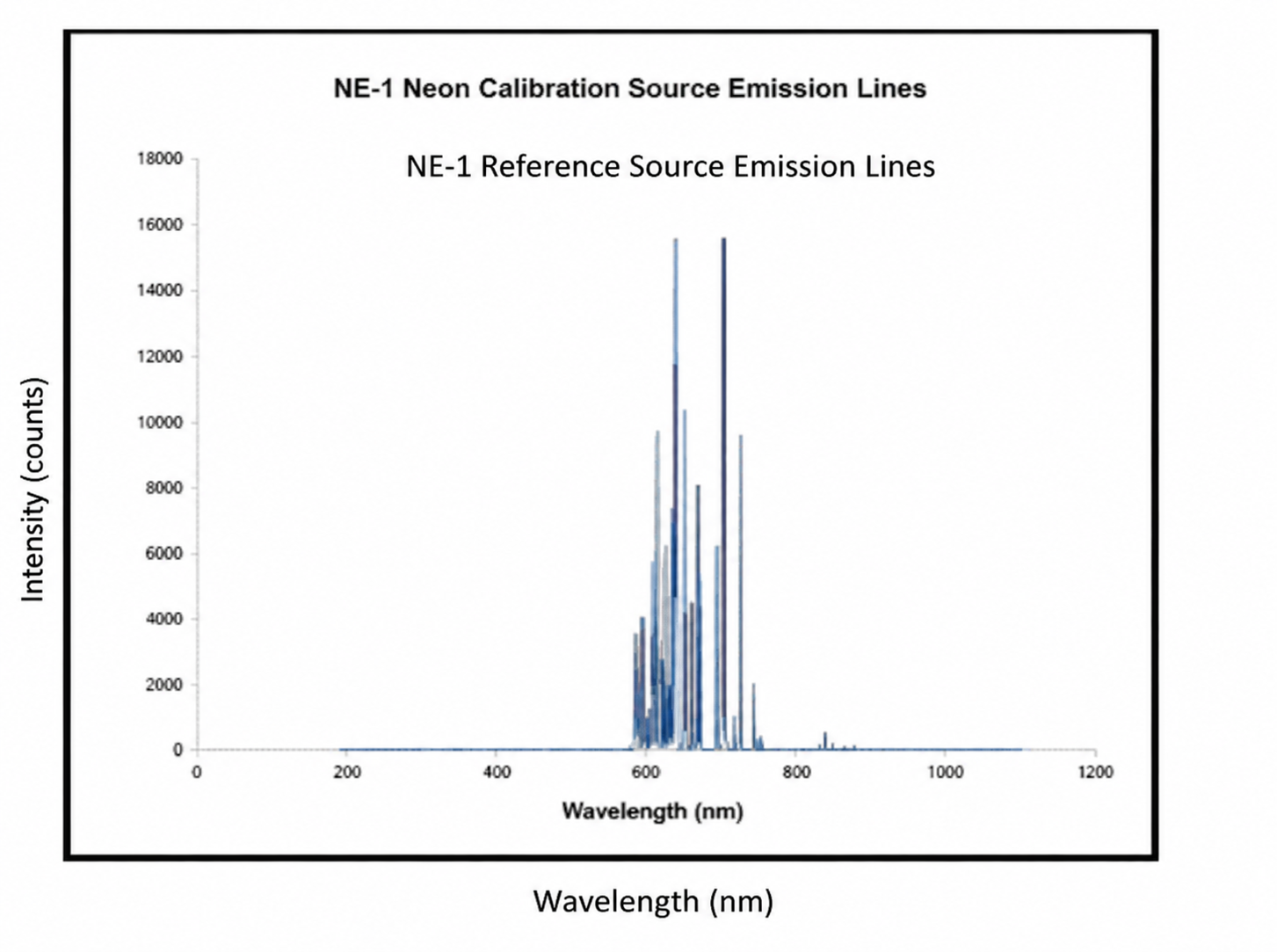

Strong neon transmission spectral lines (nanometer)
|
341.790
|
633.442
|
|
342.391
|
638.299
|
|
503.135
|
640.225
|
|
503.775
|
650.653
|
|
540.056
|
653.288
|
|
576.441
|
659.895
|
|
582.015
|
667.828
|
|
585.249
|
671.704
|
|
588.189
|
692.947
|
|
594.483
|
703.241
|
|
597.553
|
717.394
|
|
602.000
|
724.512
|
|
607.433
|
743.890
|
|
609.616
|
747.244
|
|
612.884
|
748.887
|
|
614.306
|
753.577
|
|
616.359
|
754.404
|
|
621.728
|
1117.752
|
|
626.649
|
1152.275
|
|
630.479
|
|
The wavelength displayed in blue is a strong spectral line, which has been printed on the calibration label
