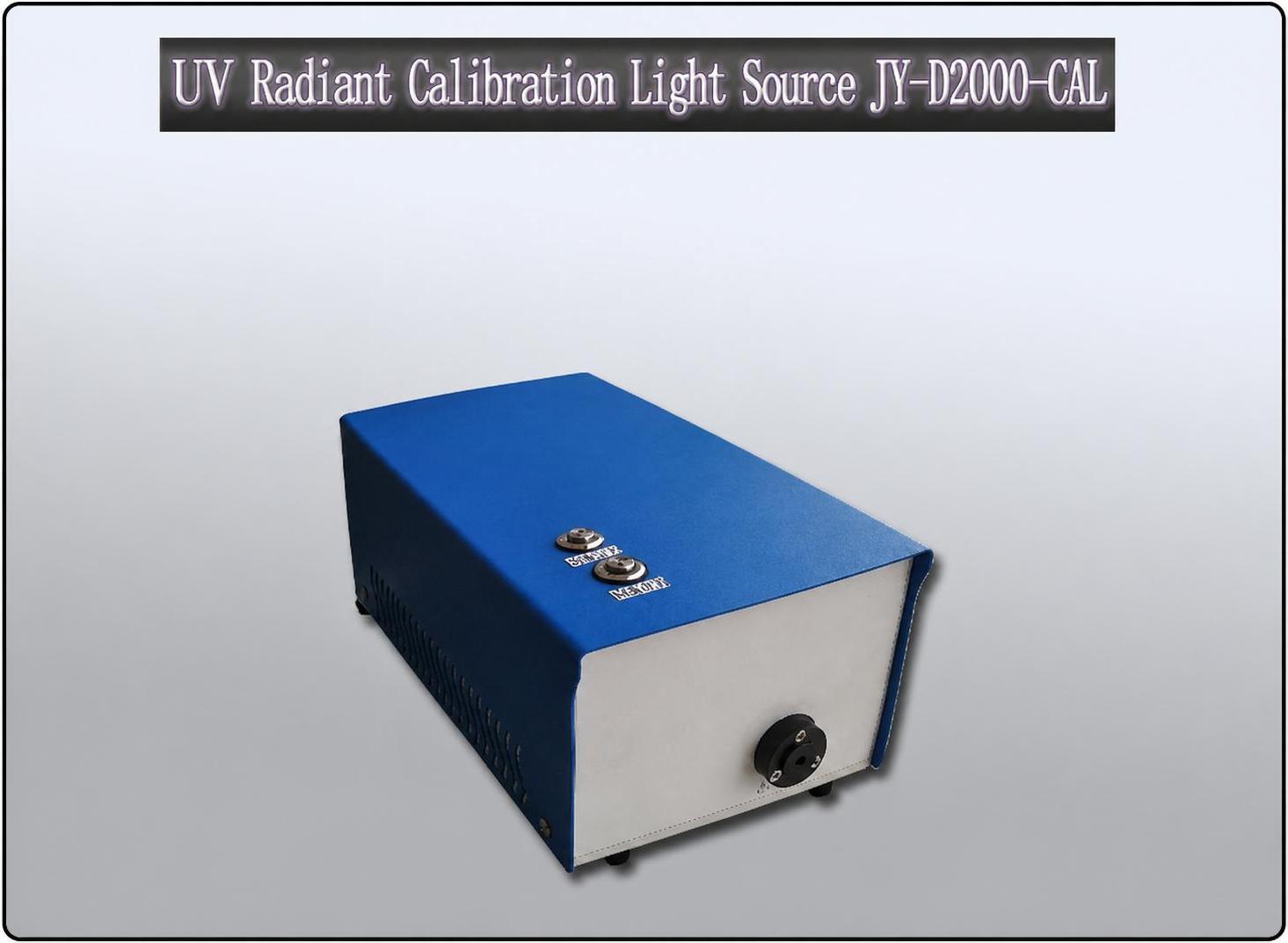

Calibration Certificate UV Radiation Calibration Light Source JY-D2000-CAL

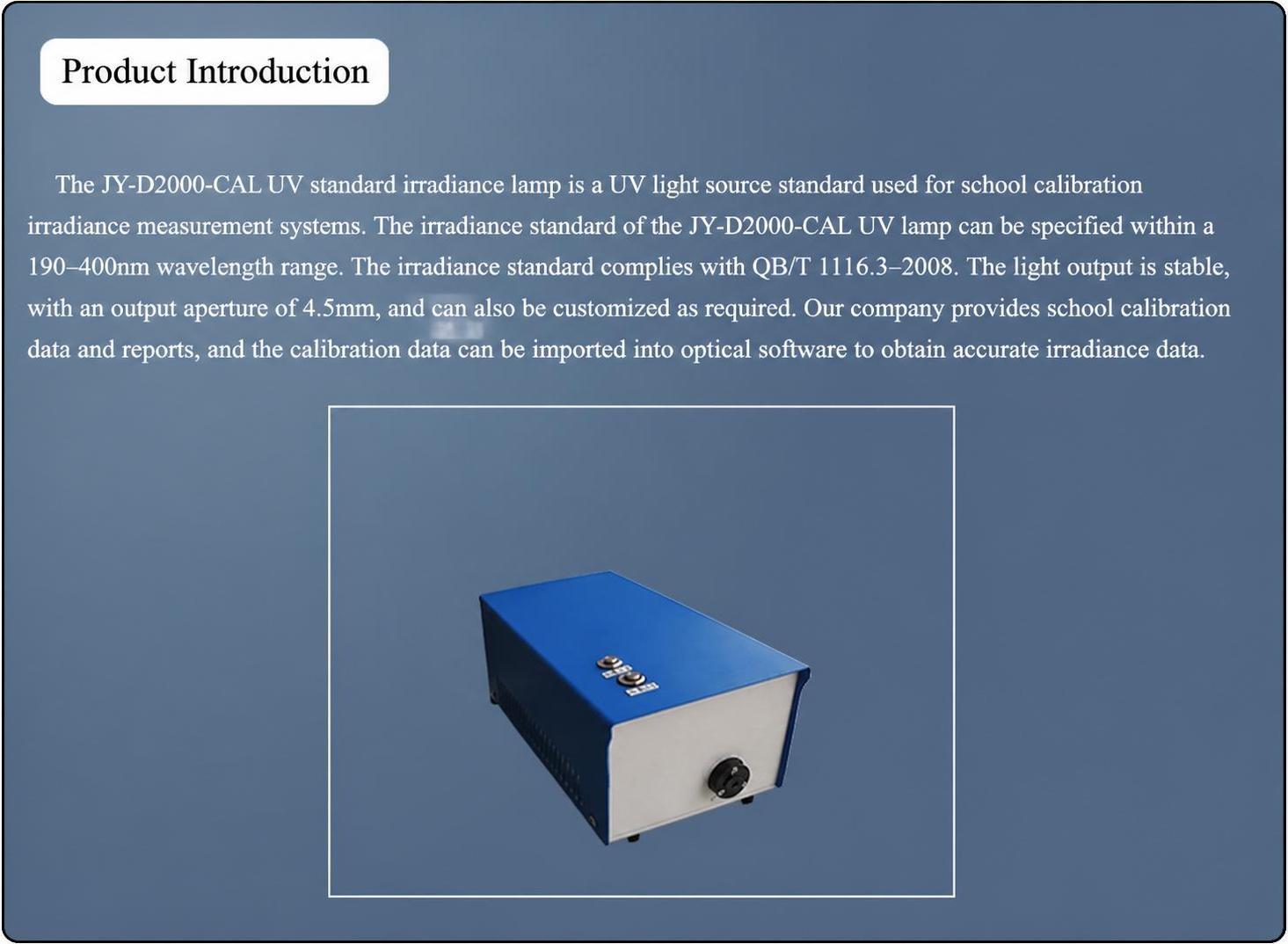

Product Introduction JY-D2000-CAL UV Standard Energy Lamp is a UV light source used to calibrate the absolute spectral response of radiation measurement systems. The spectral absolute intensity in the wavelength range of 190-400nm can be determined using the JY-D2000-CAL deuterium lamp standard energy lamp. The measurement standard refers to QB/T 1116.3-2008. The light source output is stable, with a light source output aperture of 4.5mm, and can also be customized according to needs. Our company provides calibration data and reports, which can be loaded into optical software to obtain accurate radiation energy data.

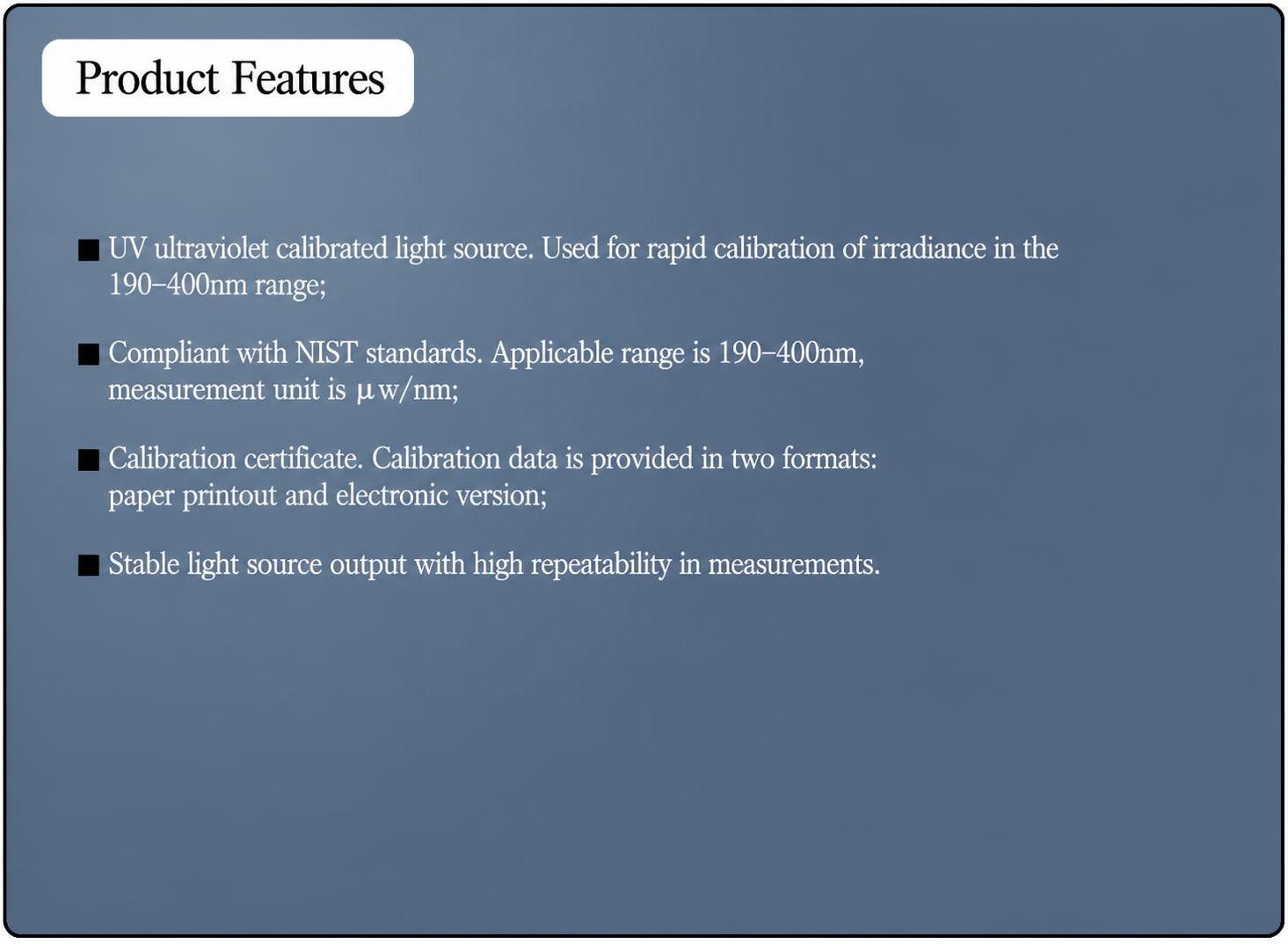

Product features: UV calibrated light source. Used for rapid radiometric intensity calibration of spectra ranging from 190-400nm; Compliant with NIST calibration. Applicable range is 190-400nm, measured in uw/nm; Calibration certificate. Calibration data is provided in two ways: paper printing and electronic version; The light source output is stable and the measurement repeatability is high.

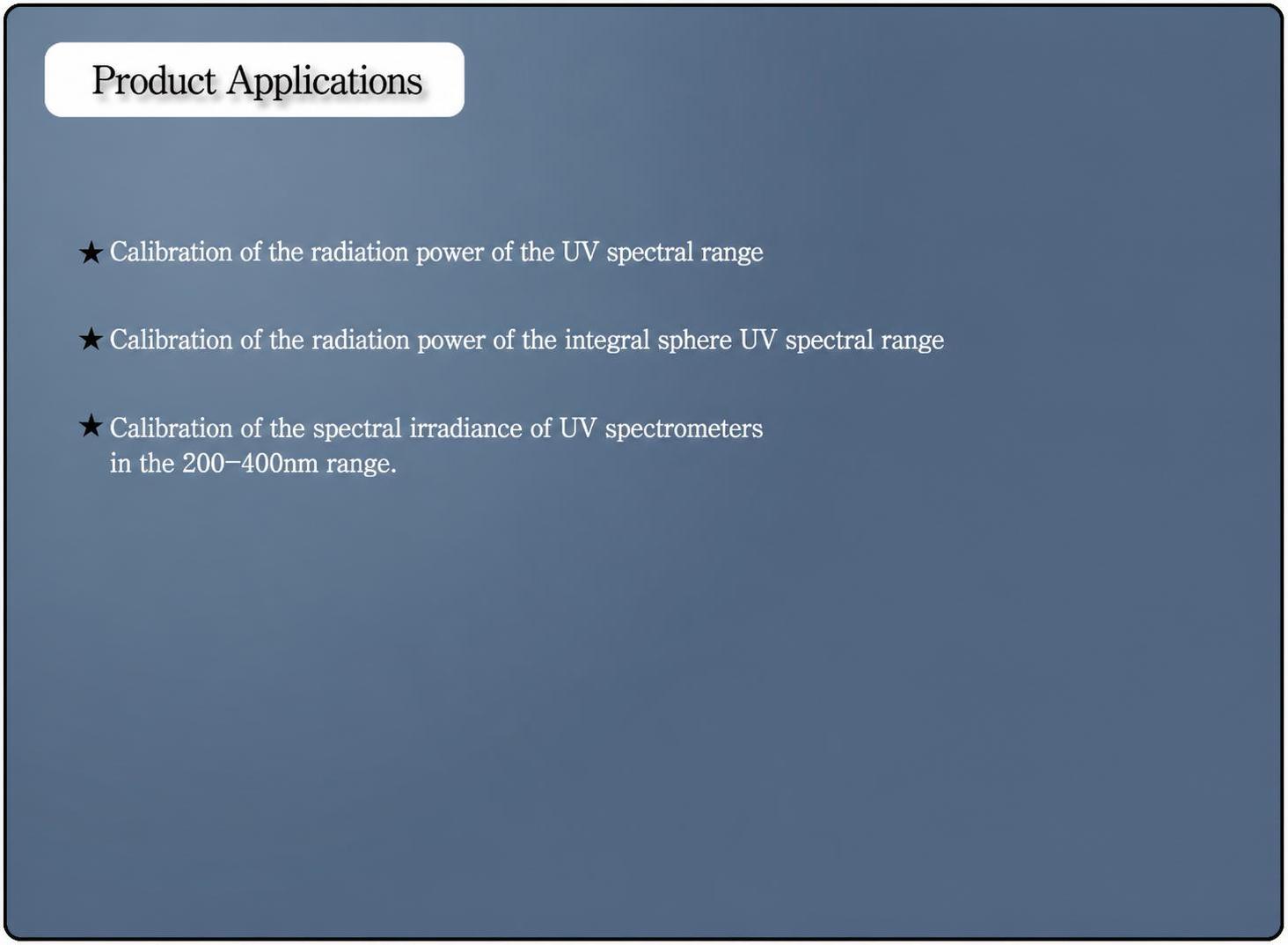

Product application: Spectral analyzer for UV band radiation power calibration, integrating sphere for UV band radiation power calibration, calibration of numerous optical instruments for 200-400nm UV spectra.

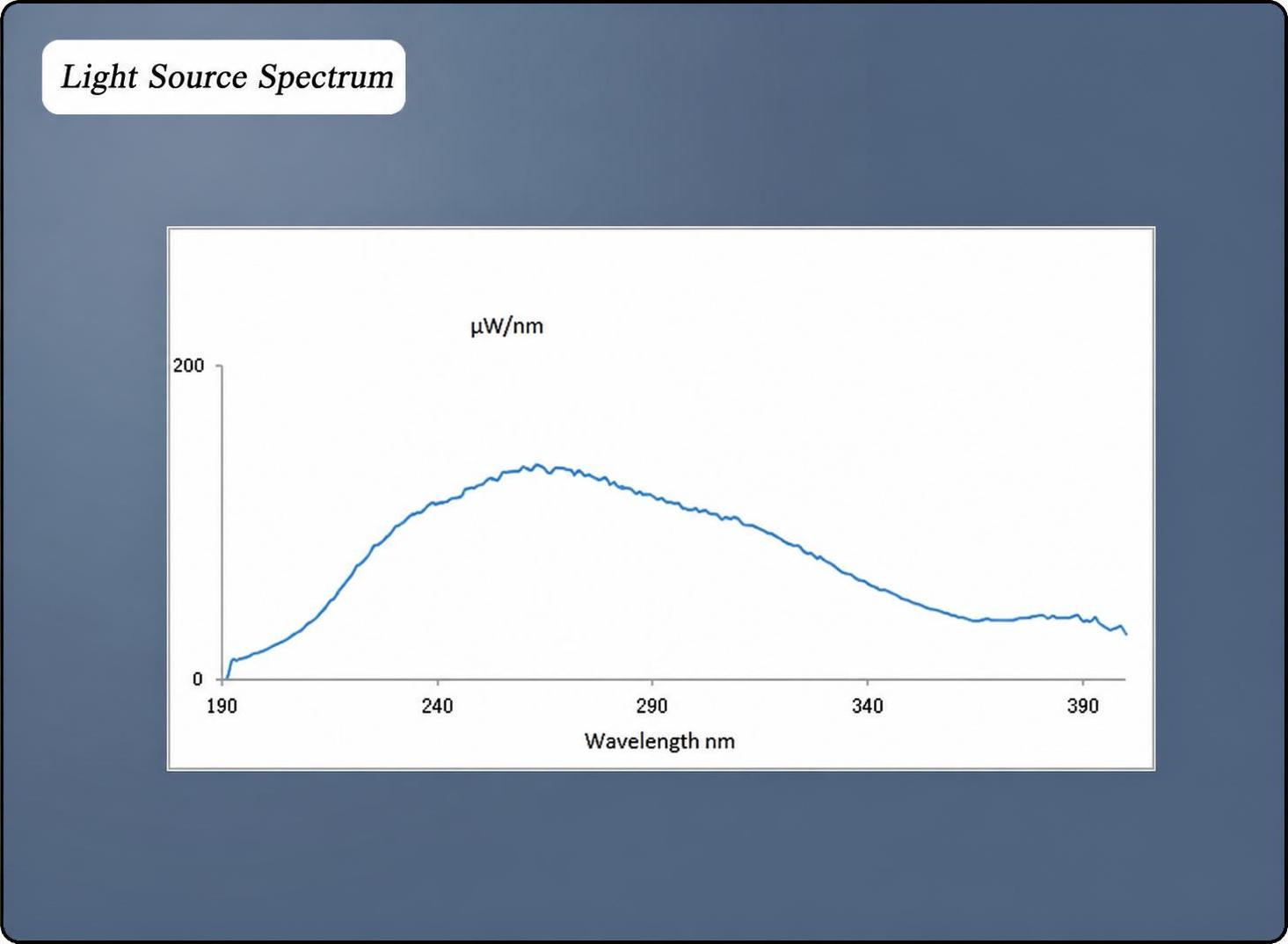

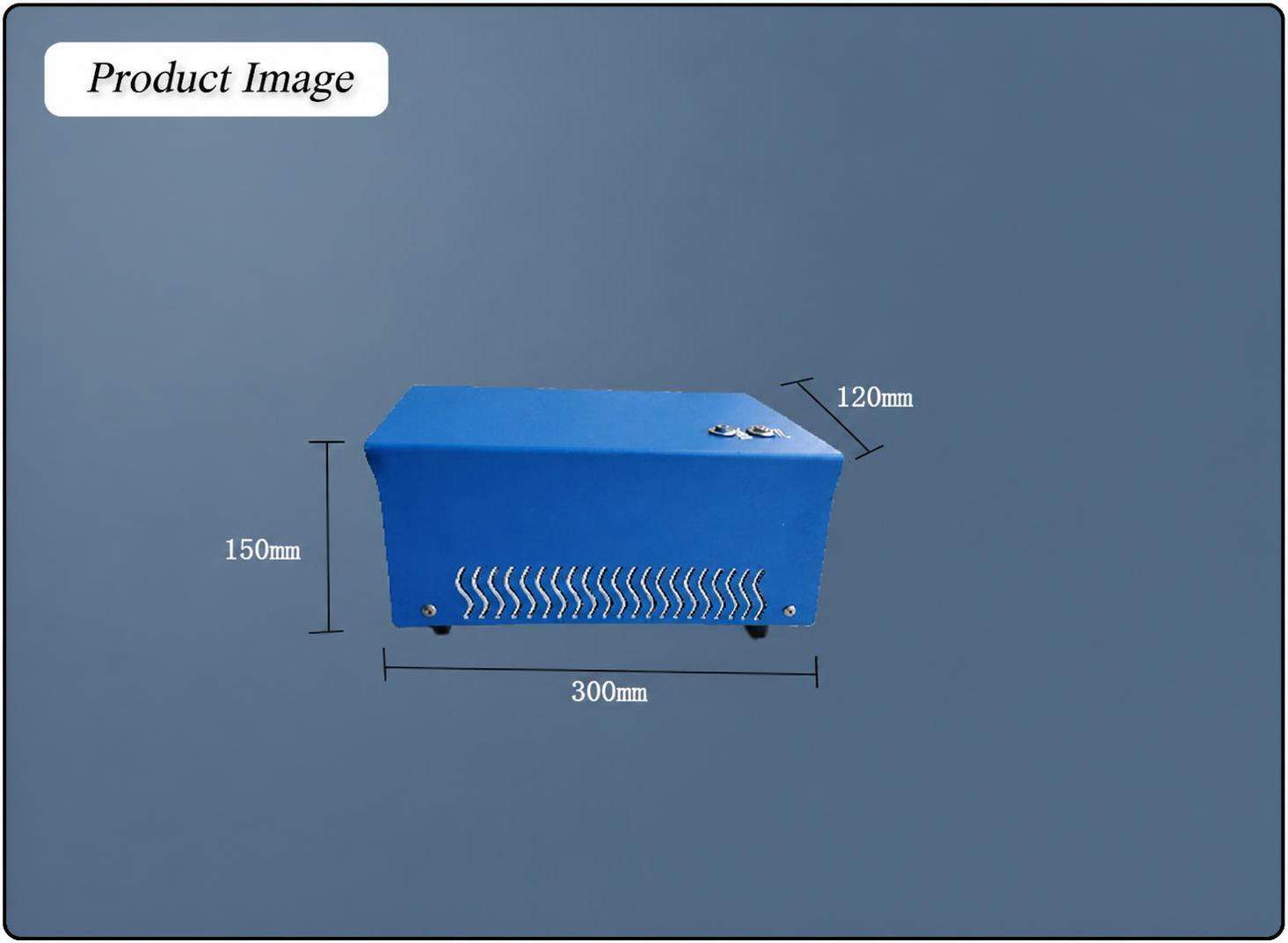

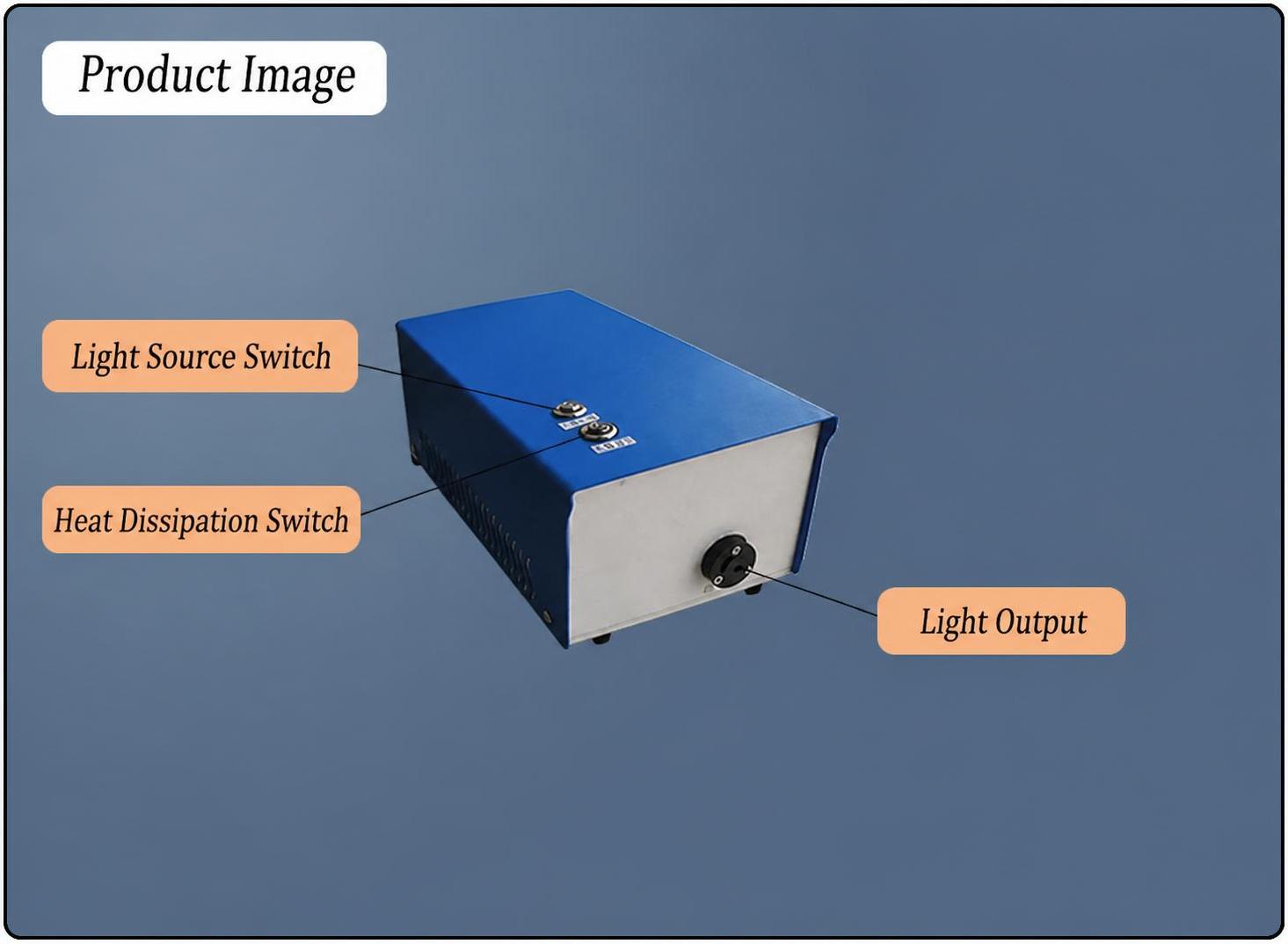

Product image: Light source, heat dissipation switch, light outlet. Product image size: 150mm × 120mm × 300mm. Light source spectrum. Wavelength: nm. Unit: μ W/nm
