Product Introduction

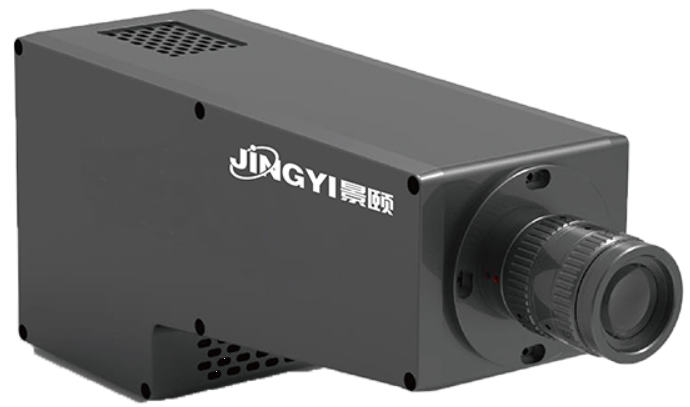

Jingyi Optoelectronic's JY-VIX high-speed push-broom spectral camera boasts ultra-high imaging speed, high sensitivity, and superior signal-to-noise ratio, making it widely applicable in scenarios such as mounting, portability, and indoor use. By utilizing the spectral characteristics of different parts or components of the target object, it enables non-destructive, non-contact, rapid, and efficient precise acquisition, detection, identification, classification, screening, and analysis applications. This technology can be widely used in fields such as industrial inspection, food safety, material testing, plastic sorting, and ore sorting.
Two models
JY-VIX-S235N
GigE data interface：High speed safety and reliability
JY-VIX-S235G
Camera Link Data interface: commonly used industrial interfaces
Product Features
With a full-mode frame rate of up to 1000 fps and an online detection speed of 3 – 4 m/s, it fully meets the efficiency requirements for industrial conveyor belt detection
Equipped with a built-in cooling module, it boasts high sensitivity and superior signal-to-noise ratio, enhancing the accuracy and reliability of detection
The spectral acquisition interval can be flexibly set and finely adjusted according to different needs, meeting various requirements
With a spectral resolution of 8 nm, it fully meets the resolution requirements for high-speed detection scenarios
Application Scenarios
Plastic testing
Ore detection
Product Specifications
|
Product Model
|
JY-VIX-S235G
|
JY-VIX-S235N
|
|
spectral range
|
900-1700 nm
|
900-1700 nm
|
|
Sampling Interval
|
4 nm
|
4 nm
|
|
spectral resolution (FWHM)
|
8 nm
|
8 nm
|
|
Optical fixed focus lens
|
Standard Configuration：16 mm
Optional：50mm / 35mm / 25mm / 16mm / 8mm
|
Standard Configuration：16 mm
Optional：50mm / 35mm / 25mm / 16mm / 8mm
|
|
Numerical Aperture
|
F/2.5
|
F/2.5
|
|
Slot size (width x height)
|
80 μm x 14 mm
|
80 μm x 14 mm
|
|
Number of spectral channels
|
200
|
200
|
|
Number of spatial channels
|
640
|
640
|
|
Effective pixel size
|
15 μm x 15 μm
|
15 μm x 15 μm
|
|
Data Depth
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
1000 fps@full
|
450 fps@full；750 fps@binning
|
|
Shutter mode
|
global shutter
|
global shutter
|
|
Lens interface
|
Standard C interface
|
Standard C interface
|
|
device interface
|
Camera link
|
GigE
|
|
Storage temperature
|
-20°C-50°C
|
-20°C-50°C
|
|
Operating Temperature
|
0°C-45°C
|
0°C-45°C
|
|
Size (excluding lens)
(Width x Height x Depth)
|
118 mm x 87 mm x 248.5 mm
|
118 mm x 87 mm x 251.5 mm
|
|
Weight (excluding lens)
|
< 2kg
|
< 2kg
|
|
power consumption
|
< 2.1W (Non refrigerated)，< 25W (Refrigeration)
|
< 2.1W (Non refrigerated)，< 25W (Refrigeration)
|
|
external power supply
|
DC 12V/3A power supply
|
Pass DC 12V/3A power supply
|
Consult customer service to obtain detailed materials and exclusive solutions.
