Uniform Light Source Product Introduction: High Uniformity Light Output and Adjustable Brightness Monitoring
Better than 98% high uniformity output brightness monitoring adjustable integrating sphere uniform light source

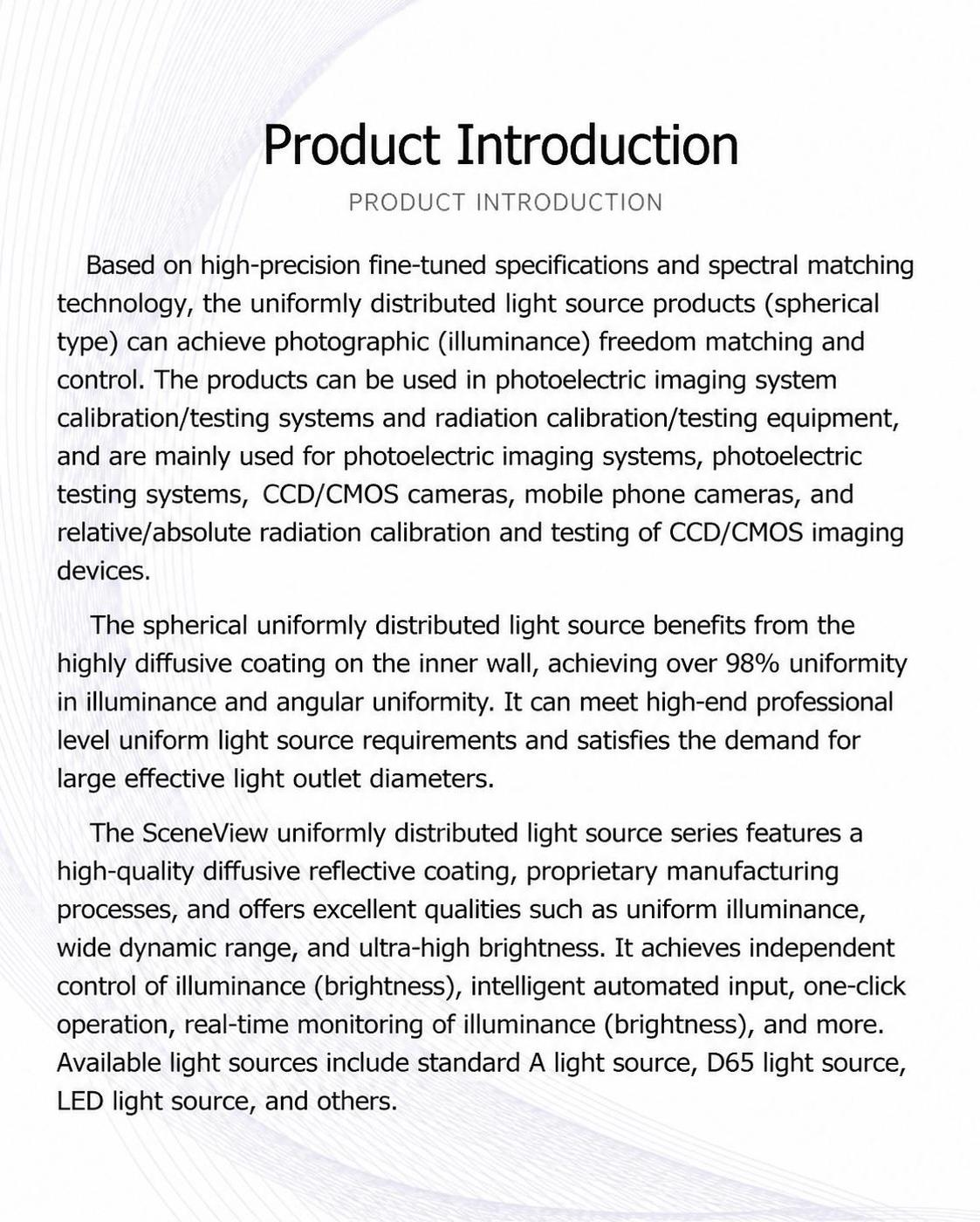

Product Introduction: Based on high-precision fine calibration and spectral matching technology, this uniform light source product (spherical) can achieve free matching and control of illumination (brightness). The product can be used as radiation calibration/testing equipment for optoelectronic imaging systems or testing systems, mainly for relative/absolute radiation calibration and testing of optoelectronic imaging systems, optoelectronic testing systems, CCD/CMOS cameras, mobile phone cameras, CCD/CMOS imaging devices, etc. The spherical uniform light source benefits from its spherical structure and high diffuse reflection coating inside. The emitted light source has a surface uniformity and angle uniformity of over 98%, which can meet the high-end professional level uniform light source requirements. And meet your requirement for a large and effective light output aperture. Jingyi Optoelectronics' uniform light source series products adopt high-quality diffuse reflection coatings and exclusive research and development processes. The emitted light source has the advantages of high uniformity, wide dynamic range, and ultra-high brightness. It can achieve independent control of brightness, intelligent input automatic control with one click operation, and real-time monitoring of brightness. Standard A light source, D65 light source, LED and other light sources can be selected for installation.

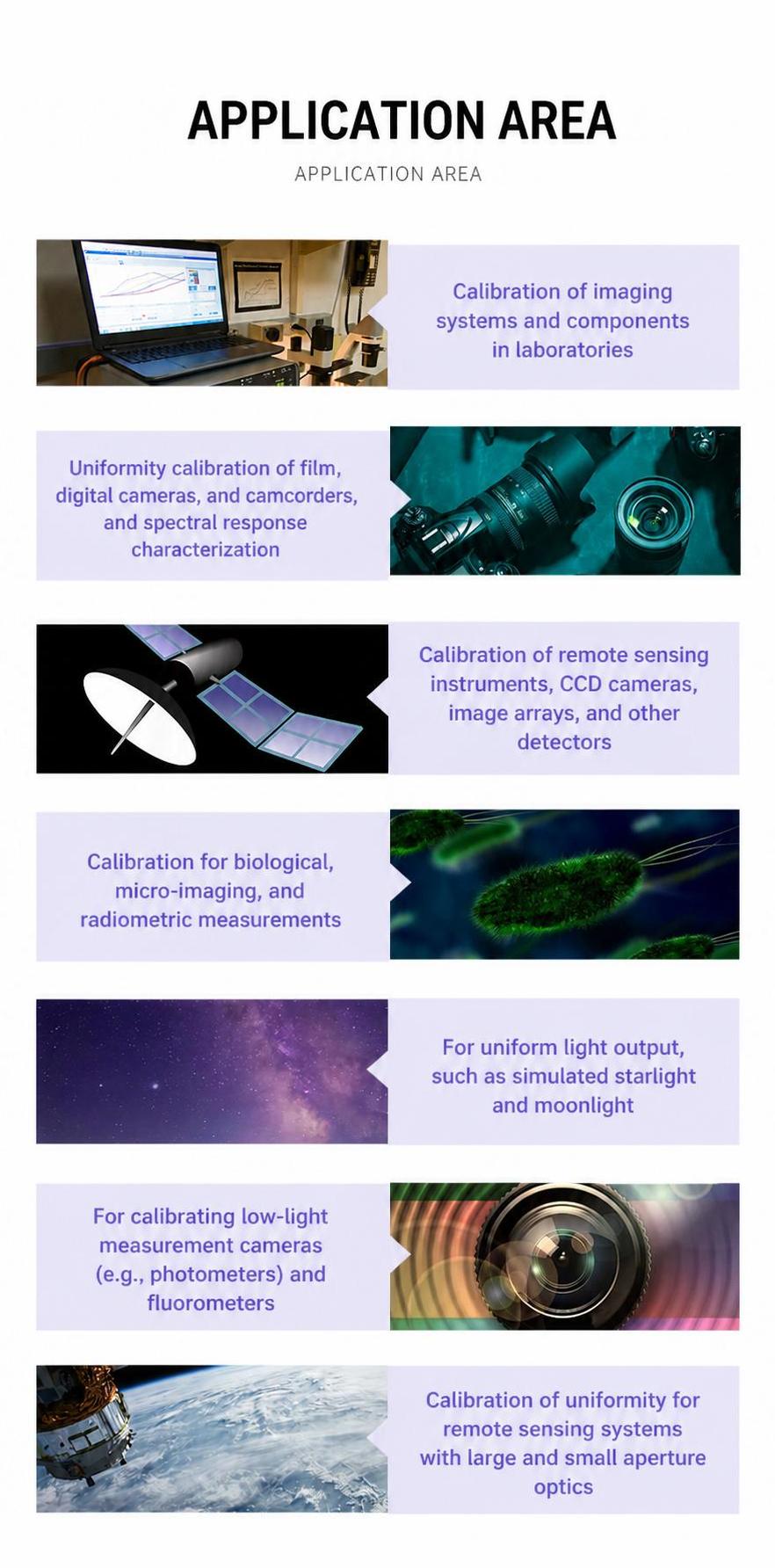

Calibration films for imaging systems and devices, digital cameras, and camera uniformity correction in the application field laboratory. Spectral response characteristics are suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors. Biological, low light imaging, and quantitative measurement calibration are used for uniform output in low light conditions, such as simulating starlight, moonlight, etc., for calibration of low light measurement cameras such as fluorescence measurement systems. Uniformity calibration of large and small aperture aerospace remote sensing detection systems is also required

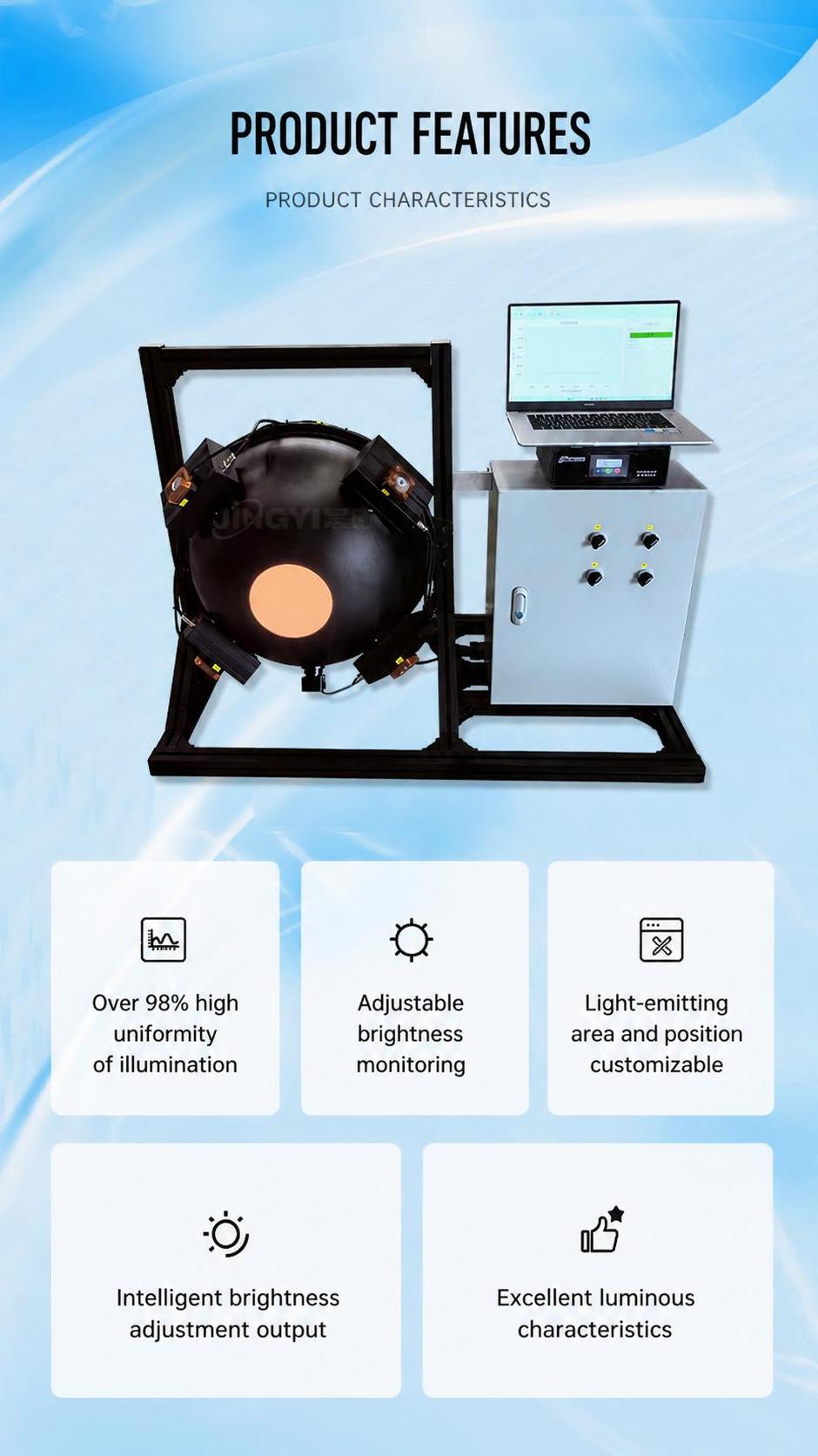

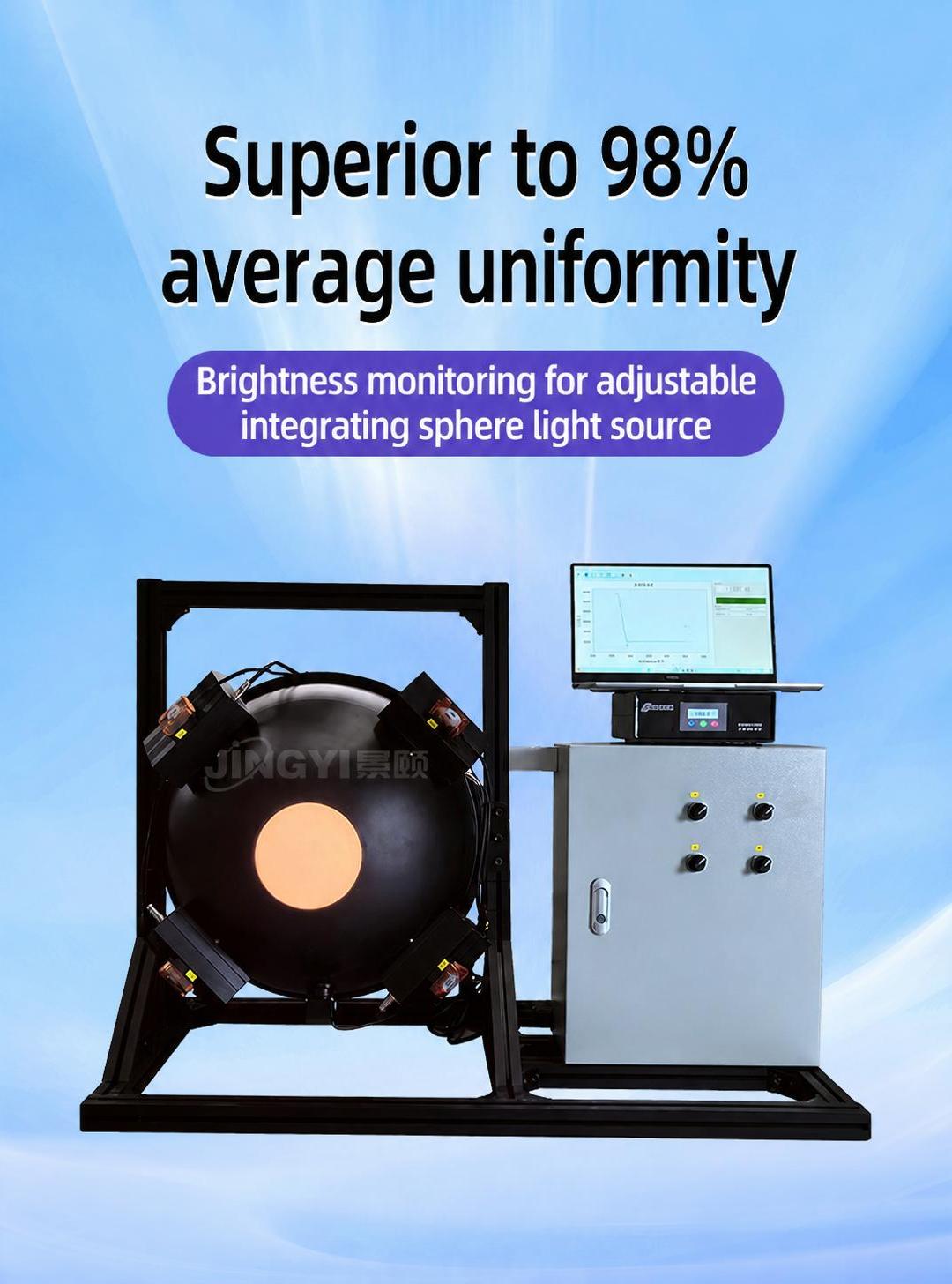

Product features superior to 98% high uniformity output brightness monitoring with adjustable light port area and customizable intelligent brightness adjustment output with excellent Lambertian characteristics

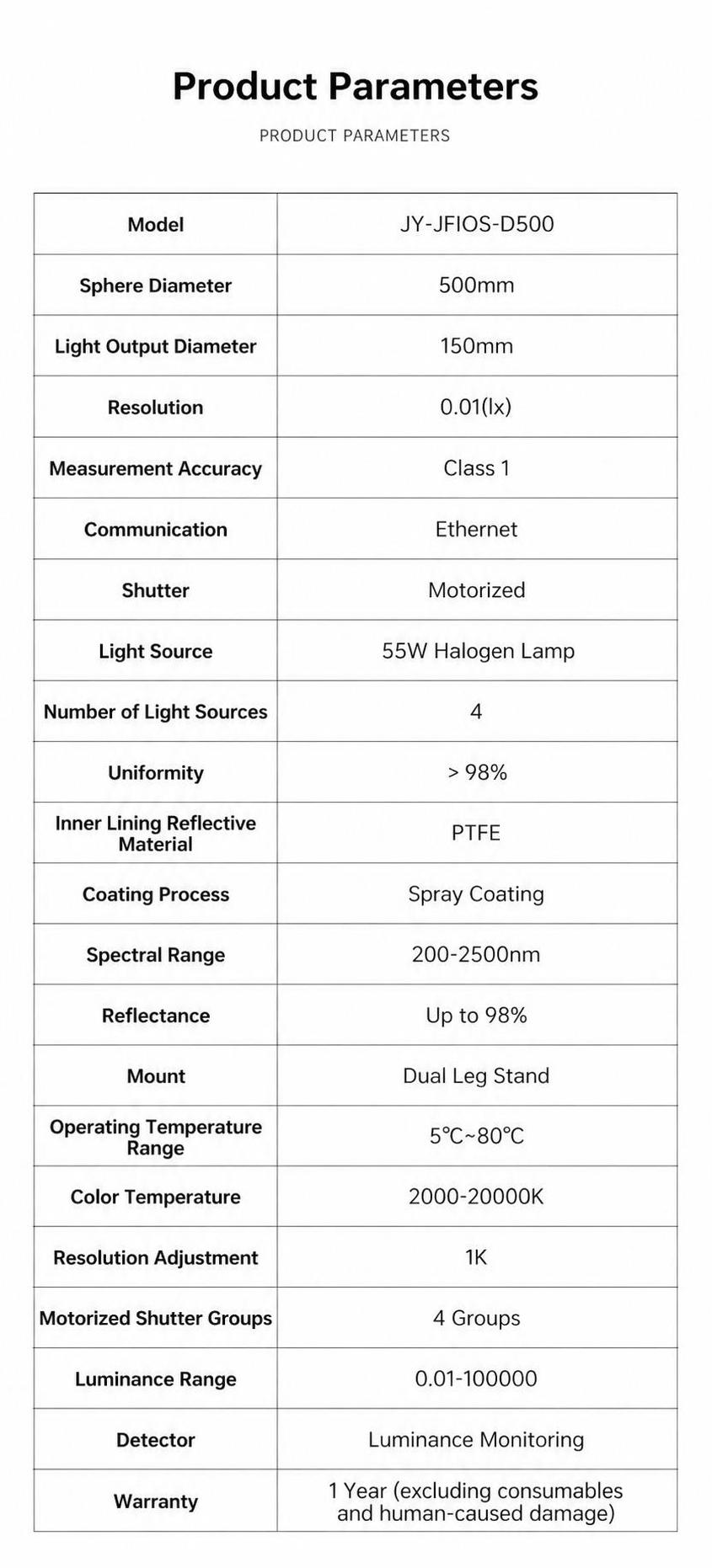

Product Specifications
