Product Introduction

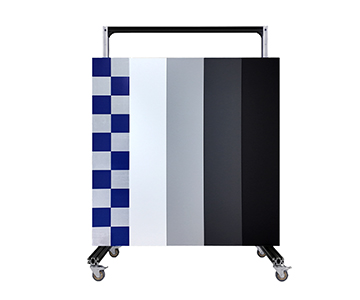

The Multi-Grade Reflectivity Splicing LiDAR Calibration Board is a high-precision, multifunctional reflective board used for the calibration and alignment of LiDAR systems. Through different reflectivity regions, it simulates various target reflective characteristics, helping LiDAR systems improve measurement accuracy and recognition ability. It is mainly used in fields such as autonomous driving, robot navigation, and remote sensing measurement to ensure that LiDAR systems can accurately measure and identify targets.



Applications

Autonomous Driving: In autonomous vehicles, it can be used to calibrate LiDAR systems to ensure they can accurately measure and identify obstacles.

Robot Navigation: In robot navigation systems, it can be used to calibrate LiDAR systems, improving navigation accuracy and stability.

Remote Sensing Measurement: In remote sensing measurement, it can be used to calibrate LiDAR systems to ensure the accuracy of measured data such as target height and shape.



Product Features

Multi-Grade Reflectivity: Features multiple regions with different reflectivities, which are precisely calculated and manufactured.

Seamless Splicing Design: Designed in a splicable form, allowing combination into different sizes and shapes as needed.

Lambertian Characteristics: Has nearly perfect Lambertian characteristics, with reflective properties very close to an ideal diffuse reflector.

Customization Support: Provides customization services for reflectivity, size, shape, and other aspects.



Product Specifications

Model	JY-MRT-1500
Reflectivity	5%、10%、50%、90%、 Blue and white check high reflectivity film
Wavelength	905nm
Substrate	Aluminum plate
Substrate Size	1500*1500mm
Substrate Thickness	3mm
Accuracy	±1%
Flatness	Better than 1mm/㎡
Holder	With wheels
Holder Height	Center point height from ground adjustable 920-1200mm
Other Specifications	Customizable
Warranty	One year (excluding human damage and consumables)

*The final right of interpretation of this technical specification belongs to the manufacturer.
