Product Introduction

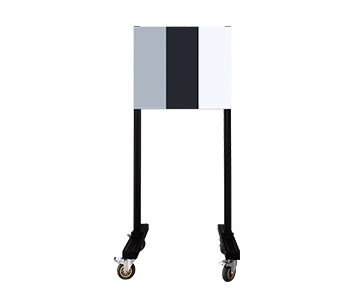

The Multi-Level Reflectivity Spliced LiDAR Calibration Board is a high-precision, multifunctional target board used for the calibration and adjustment of LiDAR systems. By incorporating regions with different reflectivity levels, it simulates various target reflection characteristics, helping LiDAR systems improve measurement accuracy and recognition capabilities. It is primarily used in fields such as autonomous driving, robotic navigation, and remote sensing measurements to ensure that LiDAR systems can accurately measure and identify targets.



Application Areas

Autonomous Driving: Used in autonomous vehicles to calibrate LiDAR systems, ensuring they can accurately measure and recognize obstacles.



Robotic Navigation: Applied in robotic navigation systems to calibrate LiDAR systems, enhancing navigation accuracy and stability.



Remote Sensing Measurements: Utilized in remote sensing measurements to calibrate LiDAR systems, ensuring the accuracy of data such as target height and shape.



Product Features

Multi-Level Reflectivity: Comprises multiple regions with different reflectivity, precisely calculated and manufactured.



Seamless Splice Design: Designed for splicing, allowing configuration into various sizes and shapes as needed.



Lambertian Characteristics: Exhibits nearly perfect Lambertian properties, with reflection characteristics very close to an ideal diffuse reflector.



Customization Support: Offers customization in reflectivity, size, shape, and other aspects.



Product Specifications

Model	JYMRT
Reflectance	90%+50%+10%
Wavelength	905nm
Substrate	Aluminum Plate
Substrate Size	600*500mm
Substrate Thickness	3mm
Accuracy	±1%
Flatness	Better than 1mm/㎡
Mount	With rollers
Height	Center point 1200mm from the ground, overall height 1280mm
Other Specifications	Customizable
Warranty	One year (excluding human damage and consumables)

*The final interpretation right of this technical specification belongs to the manufacturer.
