Product Introduction

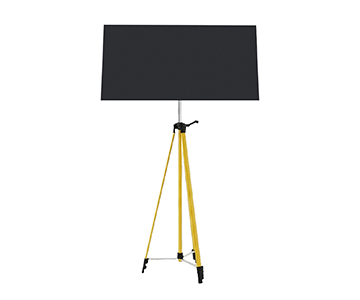

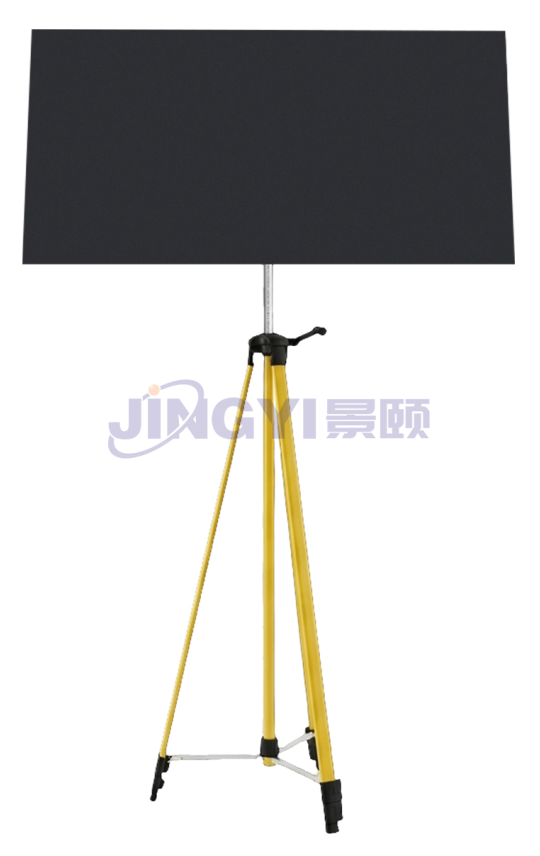

The JY-MRT diffuse reflection target board is a standard diffuse reflection target plate developed for 905nm LiDAR testing. It uses an aluminum substrate with a dedicated diffuse reflection coating, offering excellent reflectivity uniformity and flatness. Equipped with an adjustable tripod, it allows rapid setup of outdoor and laboratory laser ranging calibration scenarios and is widely used for vehicle-mounted LiDAR, autonomous driving perception systems, and laser ranging sensor performance calibration and testing.



Some Application Areas

Ranging accuracy and echo signal calibration for vehicle-mounted 905nm LiDAR

Field testing for autonomous and self-driving perception systems

Performance testing of laser ranging sensors and ToF modules

LiDAR algorithm verification and point cloud imaging effect assessment

Calibration of intelligent transportation and security laser detection devices



Product Advantages

Precision Calibrated Reflectivity: Custom-designed for the mainstream 905nm LiDAR operating wavelength, consistently achieves 10% standard reflectivity to meet LiDAR echo intensity and ranging accuracy calibration requirements.



Ultra-High Reflective Uniformity: Surface reflection uniformity exceeds 99.5%, ensuring strong consistency in reflection signals across the entire target plate, preventing measurement data deviations caused by regional reflectivity differences.





Excellent Flatness Accuracy: The 3mm aluminum alloy substrate offers high rigidity, with surface flatness better than 0.4mm/m², resisting deformation and ensuring target surface stability during long-distance laser testing.



Portable Adjustable Stand: Equipped with a tripod, supporting free adjustment of the pitch angle for quick alignment of the target surface to the LiDAR; the stand is foldable for convenient transport during field testing.



Durable Coating Process: Coating thickness is less than 1mm with strong adhesion, featuring a matte black surface to reduce stray light interference, suitable for both indoor laboratory and outdoor testing environments.



Specifications

Model	JY-MRT
Size	1000x500mm
Color	Black
Reflectivity	10%
Wavelength	905nm
Coating Thickness	<1mm
Flatness	<0.4mm/m²
Uniformity	>99.5%
Substrate	Aluminum plate
Thickness	3mm
Mount	Foldable storage, adjustable pitch angle tripod
Warranty	One year (excluding consumables and damage caused by human factors)

*The final interpretation of this technical specification belongs to the manufacturer
