Product Introduction

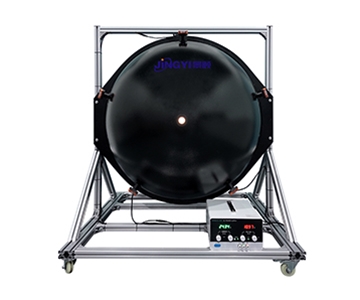

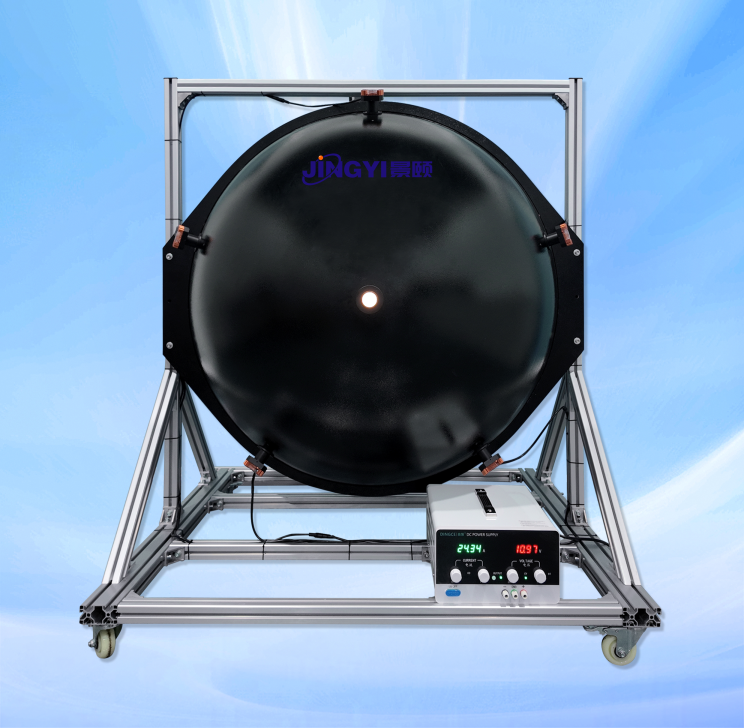

Jingyi Optoelectronics' photometric integrating sphere integrating sphere uniform light source has a sphere diameter of 1000mm and a uniform light outlet of over 99%. The installed light source is a halogen lamp light source, which can also be customized according to specific needs. The power is 100W, the voltage is adjustable, and the light outlet diameter is 30mm. It is located at the center of the sphere and can be customized with flange installation calibration devices.



Product Features

High uniformity light output greater than 99%

The area and position of the light outlet can be customized

Has excellent Lambertian characteristics

Light source: Halogen lamp light source/LED light source/Xenon lamp light source can be customized

Customizable and adjustable brightness output

Customizable open flange



Application Areas

Calibration of imaging systems and devices in the laboratory

Film, digital camera, camera uniformity correction, spectral response characteristics

Suitable for calibration of remote sensing instruments, CCD cameras, image arrays, and other detectors

Biology, low light imaging, and quantitative measurement calibration, etc

Used for uniform output of weak light, such as simulating starlight, moonlight, etc

Used for calibrating low light measurement cameras, such as fluorescence measurement systems

Uniformity correction of large and small aperture space remote sensing detection systems



Product parameters

model	JY-JFIOS-D1000
Integral sphere diameter	1000mm
Number of openings	1
opening size	30mm
Coating	PTFE
workmanship	spraying
Coating applicable spectral range	250-2500nm
light source	halogen lamp
Number of light sources	5 of them
power	100W voltage adjustable
