Product Introduction

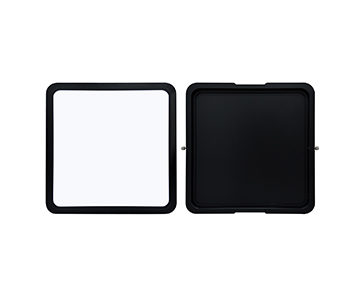

Compared to other standard boards, the diffuse reflection standard whiteboard offers high stability and is suitable for the ultraviolet-visible-near infrared (350-2500nm) broad spectral range, with a maximum reflectance ratio of up to 99%. The diffuse reflection standard whiteboard measures 250x250mm, and users can customize the size according to their needs. It is made from imported PTFE material formed through high-temperature processing, providing waterproof functionality and long-term resistance to powder shedding and yellowing. It is a commonly used Lambertian reflector within the 350-2500nm wavelength range. This diffuse reflection standard whiteboard can be combined with a spectrometer and light source to form a diffuse reflection measurement system, suitable for measuring the reflectance of various samples such as silicon wafers, ceramics, frosted glass, plastics, and more.



Product Features

High stability, allowing for repeated accurate data acquisition.

Suitable for calibration purposes.



Application Areas

Densitometers

Imaging equipment

Integrating sphere systems

Spectrometer systems

Optical experimental equipment

Remote sensing instruments

Reflectance instrument calibration





Product Parameters

Model	JY-BRT250
Material	PTFE
Reflectivity	99%
Wavelength Range	350-2500nm
Dimensions	250*250mm
Housing	Metal

*The final interpretation of this technical specification belongs to the manufacturer
