Product Overview

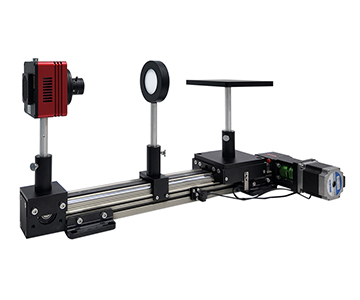

The large-aperture laser spot quality analyzer independently developed by Jingyi Optoelectronics enables laser spot detection and testing applications. It performs comprehensive testing and analysis of parameters such as laser beam size, shape, and energy distribution, providing customers with customized integrated design solutions for beam quality analysis, and supports multi-application development. Modular customization can be performed according to different customer requirements. It is suitable for semiconductor lasers, solid-state lasers, fiber lasers, ultrafast lasers, laser ranging, and other fields.



Features

High cost-performance ratio; can replace imported laser beam quality analyzers for laser spot detection and testing applications

Pixel size of 5x5um

Spot detection diameter range:50um to 200mm

Standard with attenuating plates for convenient operation; optional higher power attenuation configuration, with power range up to 1000 W

Supports manual and automatic real-time exposure and gain adjustment



Key Measurement Functions

Spot diameter (long axis/short axis, X/Y direction)

Ellipticity, Gaussian fitting

Energy distribution, beam position, divergence angle

Pass/Fail setting

High-speed, high-resolution display of 2D and 3D pseudo-color beam profiles

Real-time pseudo-color 2D display of spot, Gaussian curve display for long and short axes

Supports control of camera exposure, gain, and resolution

Supports statistical analysis of parameters

Records and exports parameters or generates reports

Reads spot images and measures parameters

Multi-choice image saving function

Supports USB 3.0 interface

Graphical interface, user-friendly, freely configurable

Customizable extended functions



Typical Applications

Laser spot measurement

Laser spot mode defect detection

Collimator spot inspection

Fiber alignment and coupling analysis

Optical component quality inspection

External optical path alignment, etc.



Product Specifications

Model	JYCCD-NIR1000
Chip Size	1/4"
Wavelength Range	400-1700nm
Aperture	6*4.5mm
Single Pixel Size	5x5µm
External Trigger	Supported
Resolution	640x512
Detection Range	50µm~200mm
Maximum Frame Rate	400
Minimum Detectable Divergence Angle	<0.1mrad
Exposure Time	15µm~60s
Chip Type	InGaAs
Bit Depth	12bit
Neutral Density Filter	Standard with 4 neutral density filters
Power Interface	USB

*The final right of interpretation of this technical specification belongs to the manufacturer.
