Product Overview

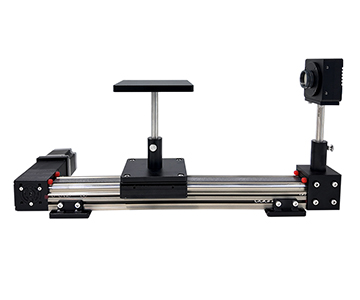

The large-aperture laser spot quality analyzer independently developed by Jingyi Optoelectronics enables laser spot detection and testing applications. It performs comprehensive testing and analysis of parameters such as laser beam size, shape, and energy distribution, providing customers with customized integrated design solutions for beam quality analysis, and supports multi-application development. Modular customization can be performed according to different customer requirements. It is suitable for semiconductor lasers, solid-state lasers, fiber lasers, ultrafast lasers, laser ranging, and other fields.
Features
High cost-performance ratio; can replace imported laser beam quality analyzers for laser spot detection and testing applications
Pixel size of 9.76x9.76um
Spot detection diameter range: 29 um to 200 mm
Standard with attenuating plates for convenient operation; optional higher power attenuation configuration, with power range up to 1000 W
Supports manual and automatic real-time exposure and gain adjustment
Key Measurement Functions
Spot diameter (long axis/short axis, X/Y direction)
Ellipticity, Gaussian fitting
Energy distribution, beam position, divergence angle
Pass/Fail setting
High-speed, high-resolution display of 2D and 3D pseudo-color beam profiles
Real-time pseudo-color 2D display of spot, Gaussian curve display for long and short axes
Supports control of camera exposure, gain, and resolution
Supports statistical analysis of parameters
Records and exports parameters or generates reports
Reads spot images and measures parameters
Multi-choice image saving function
Supports USB 3.0 interface
Graphical interface, user-friendly, freely configurable
Customizable extended functions
Typical Applications
Laser spot measurement
Laser spot mode defect detection
Collimator spot inspection
Fiber alignment and coupling analysis
Optical component quality inspection
External optical path alignment, etc.
Product Specifications
|
Model
|
JYCCD-UV1000
|
|
Chip Size
|
1"
|
|
Wavelength Range
|
200-1100nm
|
|
Aperture
|
12.49*9.99mm
|
|
Single Pixel Size
|
9.76x9.76µm
|
|
External Trigger
|
Supported
|
|
Resolution
|
1280x1024
|
|
Detection Range
|
29µm~200mm
|
|
Maximum Frame Rate
|
30
|
|
Minimum Detectable Divergence Angle
|
<0.1mrad
|
|
Exposure Time
|
17µm~15s
|
|
Chip Type
|
CMOS
|
|
Bit Depth
|
12bit
|
|
Neutral Density Filter
|
Comes standard with 4 attenuating plates
|
|
Power Interface
|
USB
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
Consult customer service to obtain detailed materials and exclusive solutions.
