Product Introduction

With the rapid development of LiDAR technology, LiDAR is widely used in automotive autonomous driving and mobile phone LiDAR scanners. LiDAR-specific test panels can be used for target distance calibration of LiDAR, enabling LiDAR to more accurately determine surrounding obstacles and their motion trajectories. Common reflectance levels used for LiDAR calibration are 10%, 50%, and 90%. For higher calibration accuracy requirements, additional stepped reflectances can be custom-made.

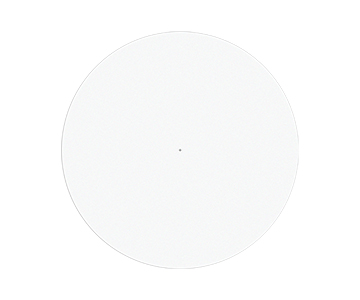

Utilizing independently developed technology and processes, this diffuse reflector panel has a reflectance of 90% and a diameter of 700 mm, with other sizes available upon request. It possesses near-perfect Lambertian characteristics and stability, ensuring optimal testing performance for LiDAR calibration.



Partial Application Areas

LiDAR

Time-of-Flight (TOF)

Automotive Autonomous Driving Systems

Mobile LiDAR Scanner Testing Systems

Band Range Sensitivity Testing



Product Advantages

Operates at a wavelength of 850nm–1000nm

90% reflectance with flat spectral response

Near-perfect Lambertian characteristics

Comes with factory reflection inspection report

Accurate reflectance data verified by authoritative institutions

Excellent diffuse reflection testing performance



Specifications

Model	JY-MRT
Size	Diameter: 700mm
Color	White
Reflectance	90%
Wavelength	850nm-1000nm
Accuracy	±1%
Flatness	0.5mm/m²
Uniformity	>99.5%
Substrate	Aluminum Plate
Thickness	3mm
Warranty	One year (excluding consumables and human-induced damage)

*The final right of interpretation of this technical specification belongs to the manufacturer.
