Product Introduction

Compared with other standard boards, the diffuse reflectance standard whiteboard offers high stability and is suitable for a wide spectral range from ultraviolet to visible to near-infrared (250-2500 nm). It has a maximum reflectance ratio of up to 99%. The diffuse reflectance standard whiteboard measures 300x300mm, and users can customize the size according to their needs. It is made from imported PTFE material processed at high temperatures, providing waterproof functionality and preventing powdering or yellowing over time. Within the wavelength range of 250-2500 nm, it is commonly used as a Lambertian reflector. This diffuse reflectance standard whiteboard can be combined with a spectrometer and a light source to form a diffuse reflectance testing system, suitable for measuring the reflectance of various samples such as silicon wafers, ceramics, frosted glass, plastics, and more.



Product Features

● High stability for consistently accurate data.

● Suitable for calibration.



Application Fields

★ Photometers

★ Imaging equipment

★ Integrating sphere systems

★ Spectrometer systems

★ Optical experimental equipment

★ Remote sensing instruments

★ Reflectance instrument calibration



Product Parameters

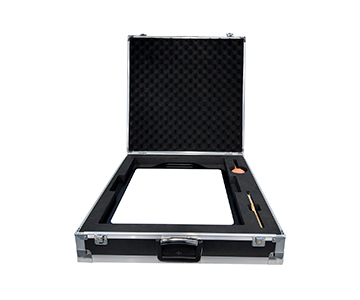

Model	JY-BRT300
Material	PTFE
Reflectance	99%
Wavelength Range	250-2500nm
Diffuse Reflective Surface Size	300x300mm
Housing Size	340x489.5mm
Housing Material	Plastic housing, acrylic

*The final right of interpretation of this technical specification belongs to the manufacturer.
