Product Introduction

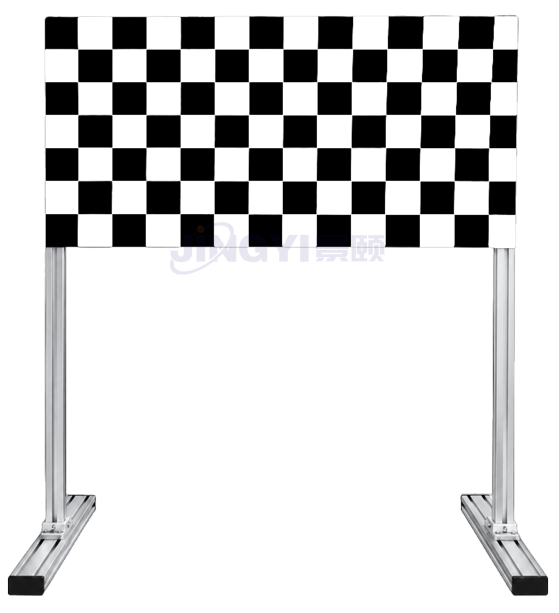

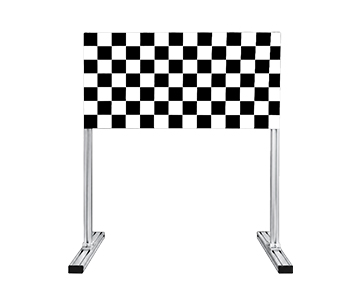

This 905nm dedicated checkerboard calibration board is a composite standard calibration target designed for automotive LiDAR, autonomous driving perception, and machine vision system development. It uses a high-precision aluminum substrate combined with a professional diffuse reflection coating process. The black-and-white squares have fixed standard reflectivity, suitable for camera intrinsic parameter calibration, LiDAR and camera joint calibration, and multi-sensor fusion calibration testing.



Product Features

Matching LiDAR Standard Reflectivity: Optimized for the 905nm LiDAR wavelength, the black-and-white squares have fixed reflectivity of 5%/95%, satisfying optical camera imaging recognition while also enabling LiDAR echo intensity calibration, suitable for combined visual and LiDAR calibration.



Extremely High Geometric Accuracy: Square processing precision ±0.5mm; the 5mm aluminum alloy substrate is rigid, resistant to deformation, with flatness better than 1mm/m², ensuring calibration algorithm calculation accuracy and preventing calibration errors caused by deformation.



Stable Diffuse Reflective Coating: Professionally sprayed diffuse coating with no obvious specular reflection, effectively suppressing stray light interference, allowing stable imaging in both indoor laboratory and outdoor field testing.



Accompanying Sturdy Aluminum Profile Stand: Vertical stand with stable structure that does not easily shake; easy to install, standard height suitable for conventional vehicle-mounted perception device calibration, and supports flexible height adjustment.



Flexible Customization Service: Overall size, square edge length, and number of arrays can be modified as needed; the reflectivity of black and white squares can also be adjusted to accommodate other wavelengths.



Application Areas

Automotive camera monocular/stereo camera calibration

Autonomous driving LiDAR & camera joint extrinsic calibration

Multi-sensor fusion perception system calibration testing

Surround-view imaging and vehicle perception algorithm field testing

Time-of-Flight (ToF) sensors and industrial machine vision system calibration

Optical calibration experiments in university laboratories and automotive testing institutions



Product Specifications

Checkerboard Specifications	1120*560mm
Small Grid Size	80*80mm
Array	14x8
Color	Black+White
Reflectivity	White squares 95%; black squares 5%
Process	Spray coating
Operating Wavelength	905nm
Thickness	5mm
Substrate	Aluminum plate
Flatness	Better than 1mm/m²
Precision	±0.5mm
Height	Target center to ground 106cm ±1cm
Other Specifications	Customizable
Warranty	One year (excluding consumables and human-caused damage)

*The final right of interpretation of this technical specification belongs to the manufacturer.



Consult customer service to obtain detailed materials and exclusive solutions.
