Product Introduction

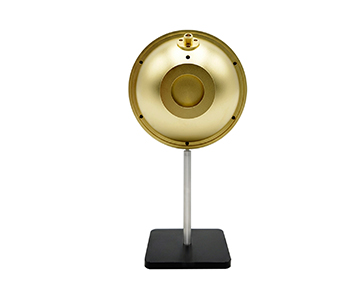

The gold-coated integrating sphere features a gold-plated diffuse reflective coating, providing a uniform matte gold appearance. The coating surface has diffuse reflection properties; the center includes a circular sample testing window, which serves as the core area for light input and sample placement. The top of the sphere has an M12X0.5 threaded interface, allowing direct connection with a fiber optic cable and spectrometer, suitable for near-infrared and mid-infrared optical measurements. It is widely used in the optical property testing of infrared materials, laser energy measurement, radiation calibration, and other experimental and industrial inspection scenarios. A stand can be optionally added for equipment debugging and sample display.
Product Features
The gold coating has very high reflectivity in the near-infrared and mid-infrared wavelength range (700 nm~20 μm), making it suitable for infrared light sources, reflection/transmission testing of infrared materials, infrared laser energy measurement, and infrared radiation measurement.
Applications
Infrared radiation flux testing
Infrared material reflectance measurement
Laser power monitoring
Infrared optical system calibration
Spectrometer accessory optics
Product Specifications
|
Model
|
JY-DFIOS150
|
|
Housing Material
|
Aluminum Alloy
|
|
Inner Diameter
|
150mm
|
|
Opening
|
Top opening with M12X0.5 thread,
|
|
Coating Material
|
Center opening diameter 42mm
|
|
Process
|
24K Gold
|
|
Reflectivity
|
Electroplating chemical method
|
|
Wavelength Range
|
>94%
|
|
Support Rod Material
|
700nm~20μm
|
|
Support Rod Height
|
Stainless Steel
|
|
Base Material
|
200mm
|
|
Other Specifications
|
Alumina
|
|
Warranty
|
Customizable
|
*The final right of interpretation of this technical specification belongs to the manufacturer.
